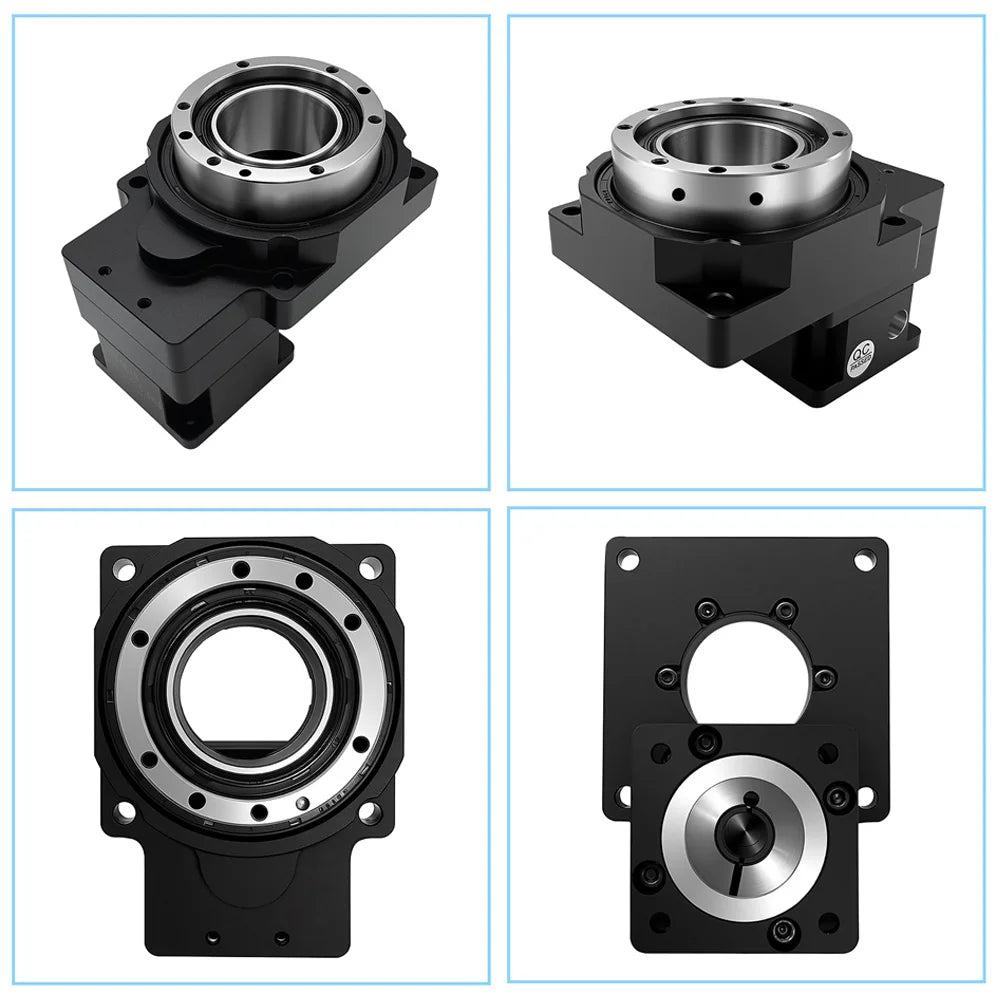

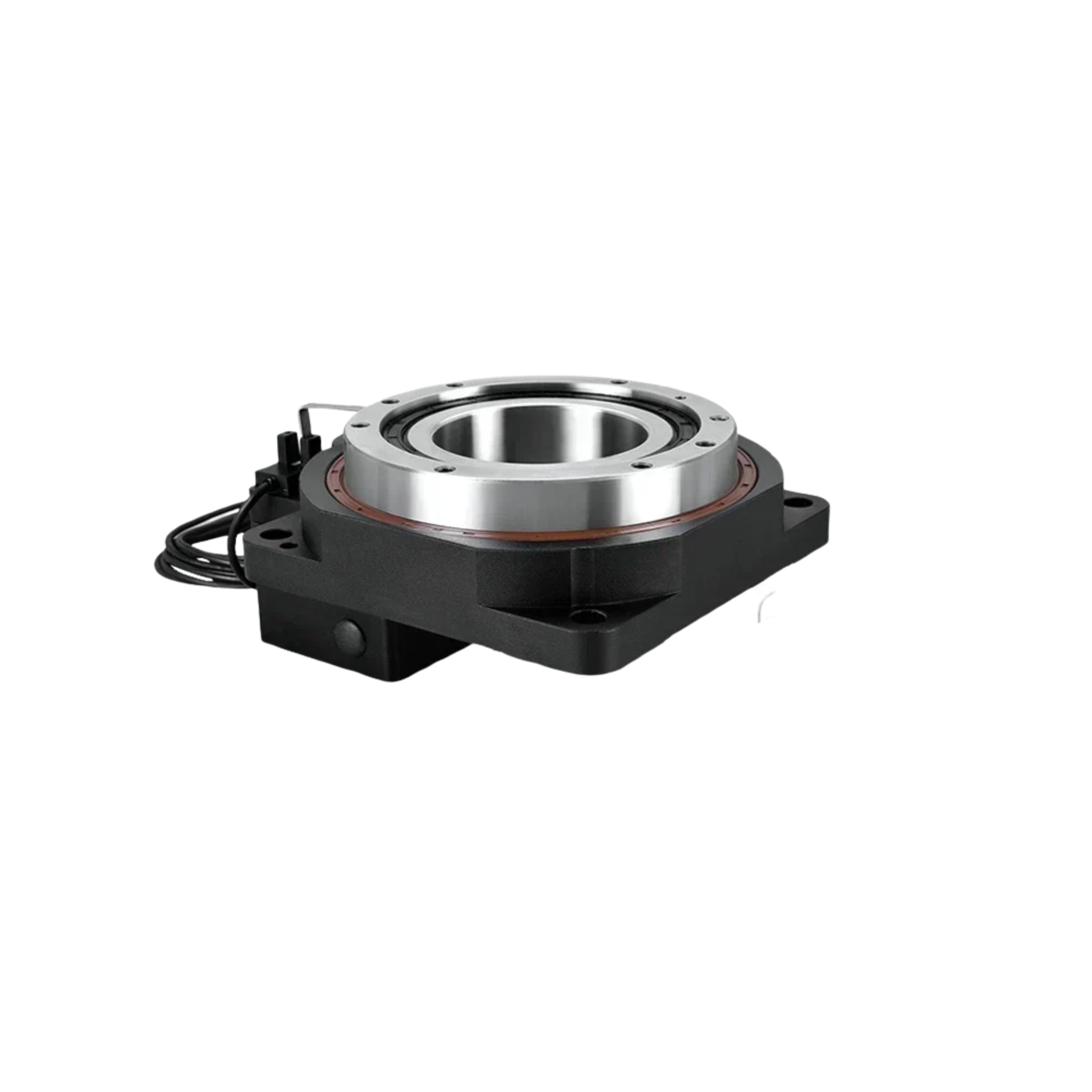

Combine power and precision with this 60mm Servo Motor Rotary Stage. Designed for heavy-duty automation, it supports high torque applications while maintaining exceptional repeatability.
Key Features
-

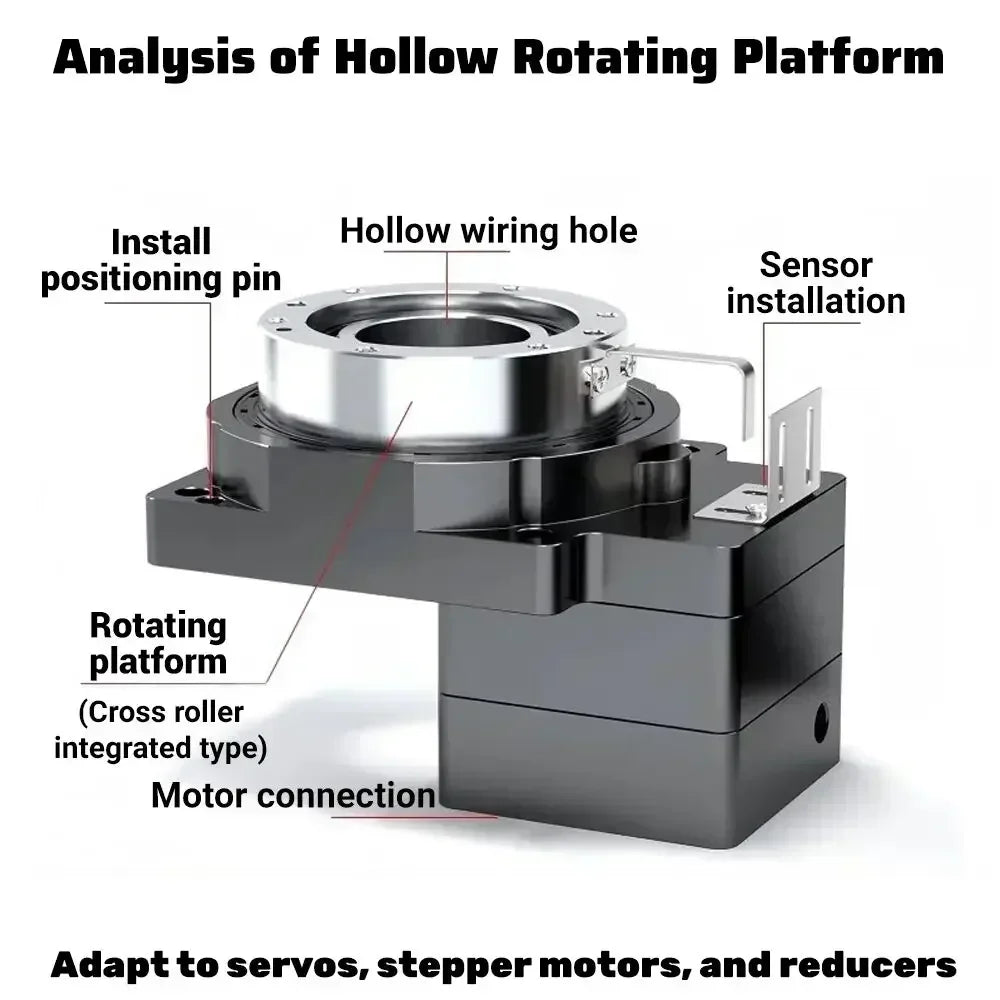

Hollow servo-driven rotary stage for easy cable and air line access
-
Cross roller bearings and anti-overturning ring for lateral stability
-
High-strength, heat-treated gears for minimal backlash
-
Modular design allows direct mounting of arms or tooling
-
Optimised for CNC, packaging, optoelectronic, and robotic systems
Specifications
-
Table diameter: 60mm | Through-hole: 62mm
-
Speed ratio: 5:1 | Max axial load: 2000N
-
Repeated positioning accuracy: ≤15 arc-sec | Rated torque: 28N·m
-
Construction: Aluminum alloy with carburized, lapped gears
-
Protection: IP50 | Transmission efficiency: 95%
Package Contents
What Makes This a Smart Buy:
Perfect for industrial automation, this servo rotary stage combines high torque, precision, and versatility, making it an essential component for complex production and robotic setups.
