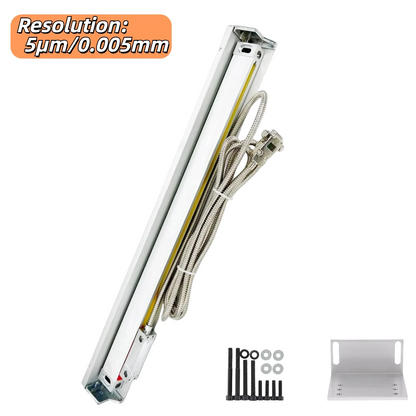

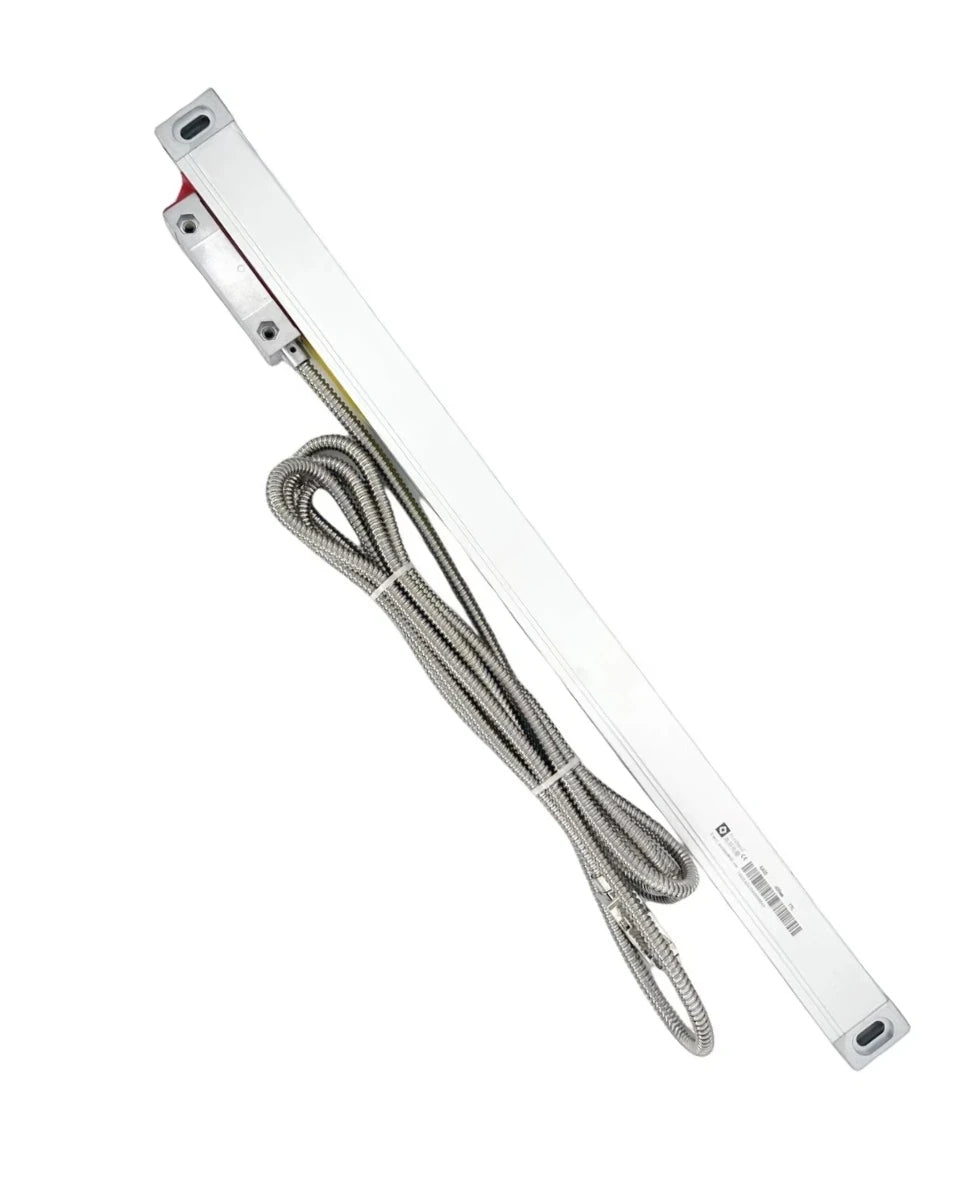

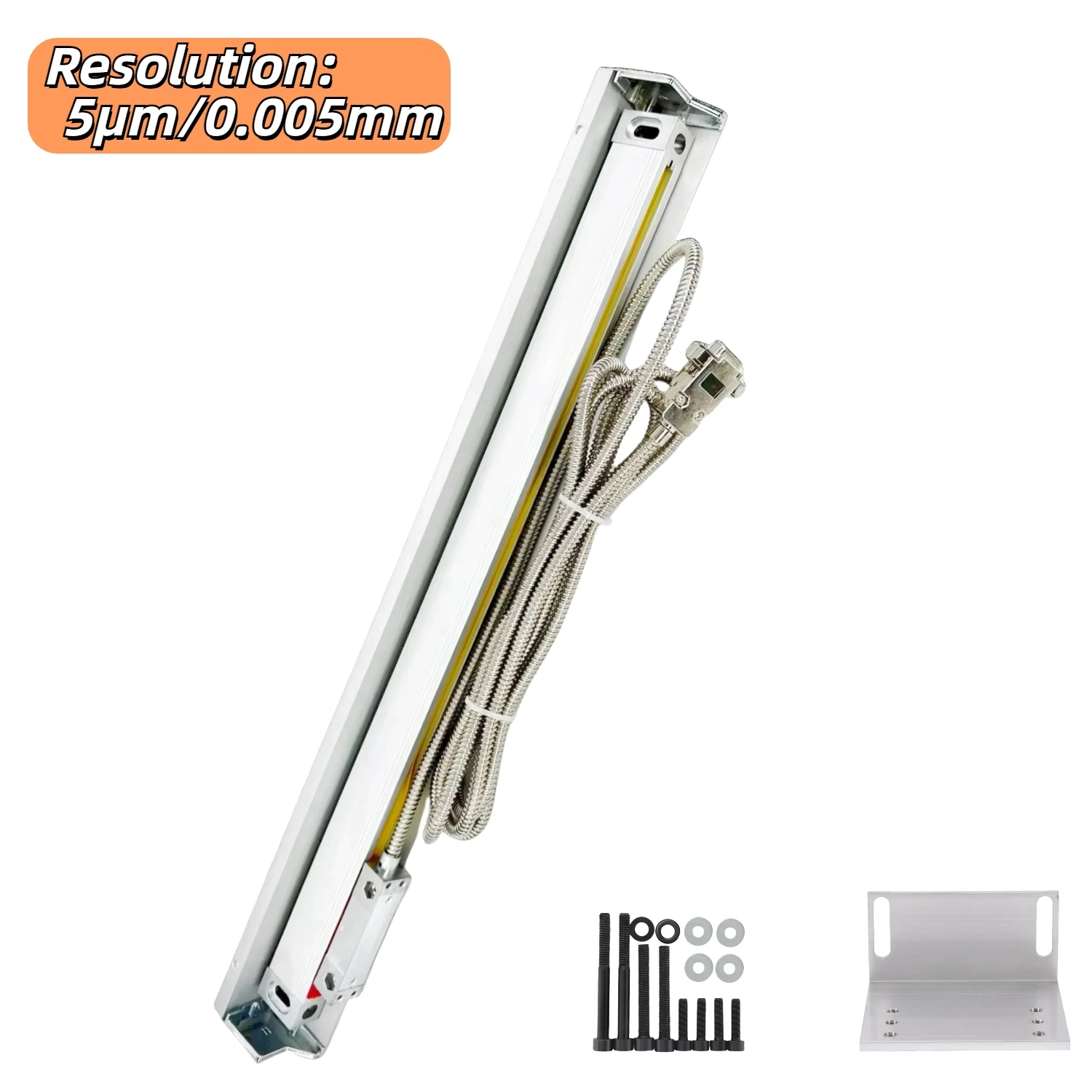

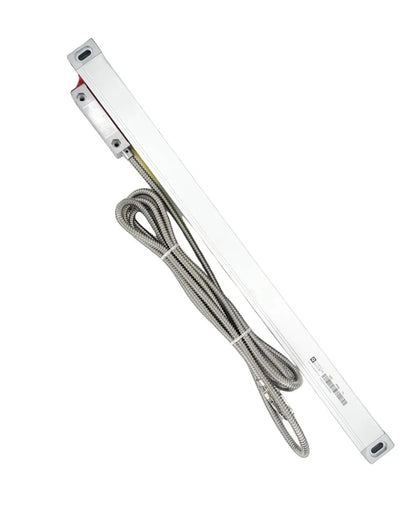

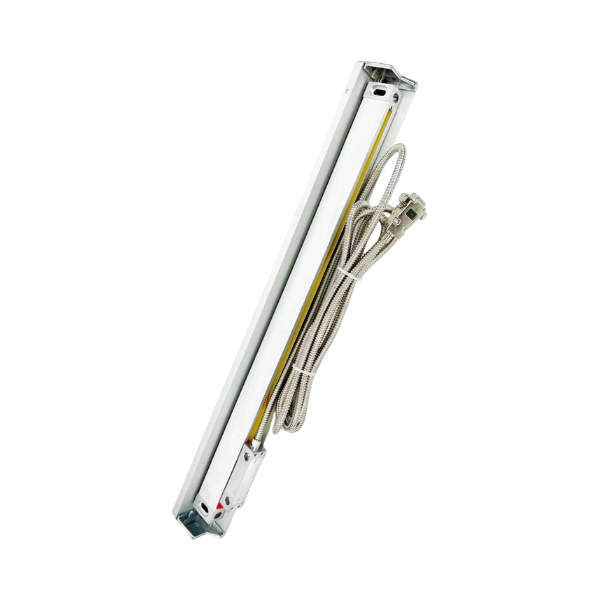

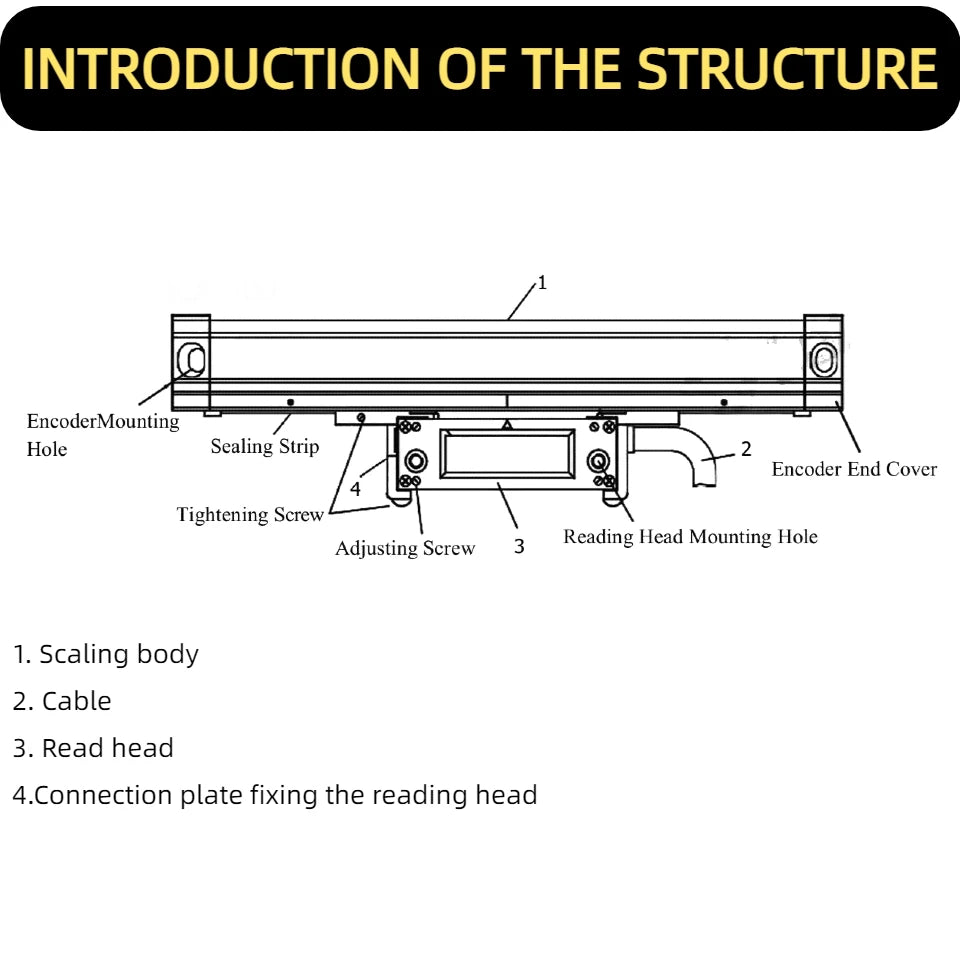

500mm Optical Grating Ruler 5um Precision TTL Linear Scale

Achieve precise position measurement on compatible milling machines, lathes, grinders and CNC equipment with this 500mm optical linear scale. With 5μm resolution and a TTL output signal, it provides accurate position feedback for demanding machining and measurement applications.

Key Features

• High-precision 5μm (0.005mm) resolution for detailed position measurement
• 500mm measurement travel for a broad range of machining applications
• Optical grating technology designed for accurate linear position feedback
• TTL output signal for integration with compatible digital readout systems
• Suitable for mills, lathes, grinders and CNC machinery
• 3-metre cable provides convenient installation flexibility
• 60m/min maximum moving speed for efficient machine operation
• Compact 21.5mm × 33.5mm cross-section helps suit space-conscious installations
• Includes scale cover and mounting hardware for a practical installation setup
• Available in multiple travel lengths from 450mm to 800mm

Specifications

• Product Type: Optical Linear Scale
• Model: KA35
• Measurement Travel: 500mm
• Available Travel Options: 500mm
• Resolution: 5μm / 0.005mm
• Output Signal: TTL
• Input Voltage: 5V DC
• Power Consumption: +5V ±5%, 80mA
• Maximum Moving Speed: 60m/min
• Cable Length: 3m
• Connector: 9-pin socket
• Cross-Section Dimensions: 21.5mm × 33.5mm
• Installation Hole Distance: Travel + 124mm
• Overall Scale Length: Travel + 140mm
• Applications: Mill, lathe, grinder, CNC and other compatible machinery

Package Contents

• 1 × Optical Linear Scale (5um-500mm)
• 1 × Scale Cover
• 1 × Mounting Bracket
• 1 × Screw Set

What Makes This a Smart Buy:
With fine 5μm resolution, TTL output and multiple travel options, this linear scale is a practical upgrade for precision machining equipment. Its versatile design makes it suitable for workshops and CNC setups where accurate position feedback is essential.
