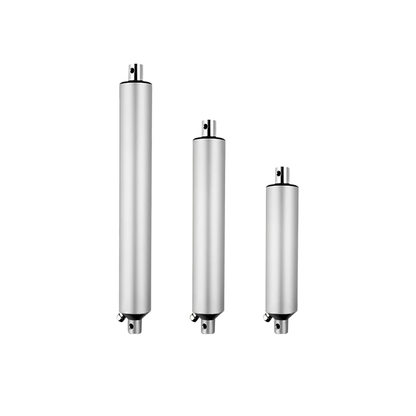

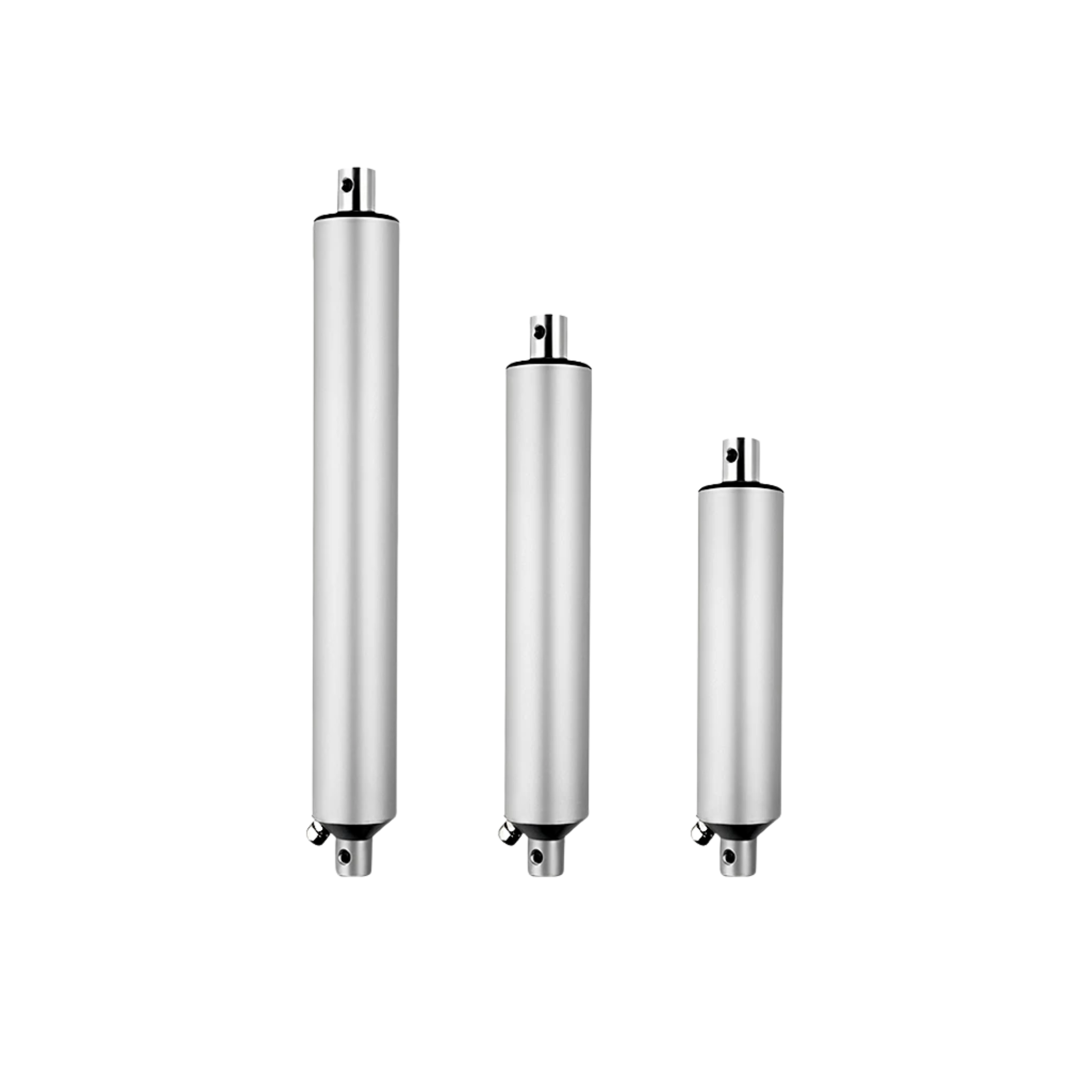

A lightweight precision linear actuator designed for smooth, low-force movement in compact mechanical and automation systems. Ideal for applications where accuracy and gentle motion are more important than heavy lifting, such as smart devices and adjustable mechanisms.
Key Features
- Low-force 10N output for precise, controlled movement
- 500mm stroke for extended range in compact systems
- Smooth and quiet operation for sensitive applications
- Compact design ideal for space-limited installations
- Electric push-pull motion with directional control
- IP65-rated protection against dust and moisture
- High cycle durability for long-term use
- Suitable for automation, DIY projects, and light mechanical systems
Specifications
- Voltage: DC 12V (supports 24V/36V options)
- Stroke Length: 500mm
- Force Output: 10N (part of 10–2000N range)
- Speed: 150mm/s (light load)
- Protection Rating: IP65
- Operating Temperature: -20°C to 65°C
- Duty Cycle: 20%
- Maximum Self-Locking Force: Up to 2000N
- Lifespan: Up to 50,000 cycles
- Material: Aluminium alloy housing
- Model: BST-YF-BS
Package Contents
- 1 × Electric Linear Actuator (500mm, 10N)
What Makes This a Smart Buy:
This compact actuator is perfect for precision movement where smooth control matters more than force. Its lightweight design and high speed make it a versatile choice for automation, DIY builds, and smart mechanical adjustments.
