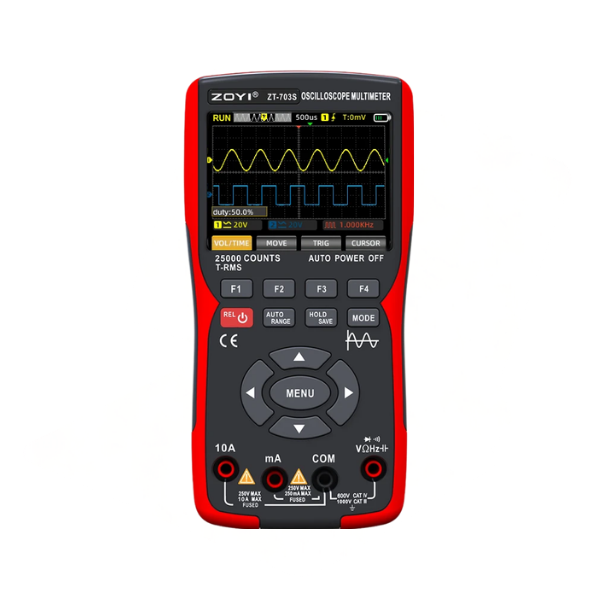

50MHz 3in1 Digital Multimeter Oscilloscope Waveform Generator

Take on a wide range of electrical testing tasks with this versatile 3-in-1 digital multimeter and oscilloscope with waveform generator. Combining multiple measurement and signal-testing functions in one compact unit, it is ideal for electronics work, troubleshooting, repairs and DIY projects.

Key Features

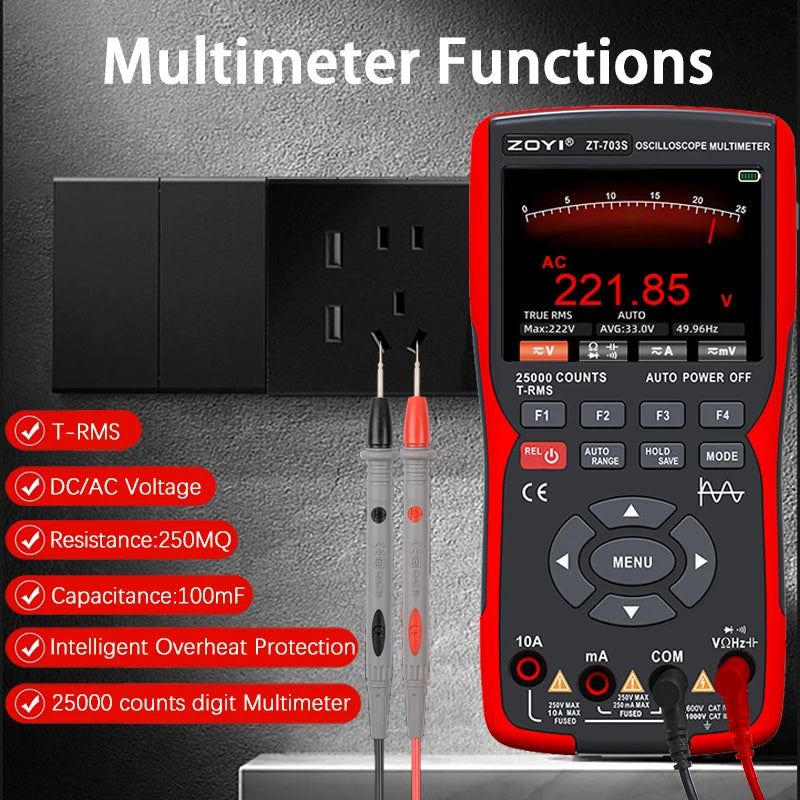

• 3-in-1 Test Solution: Combines digital multimeter, oscilloscope and waveform generator functions in one convenient device.

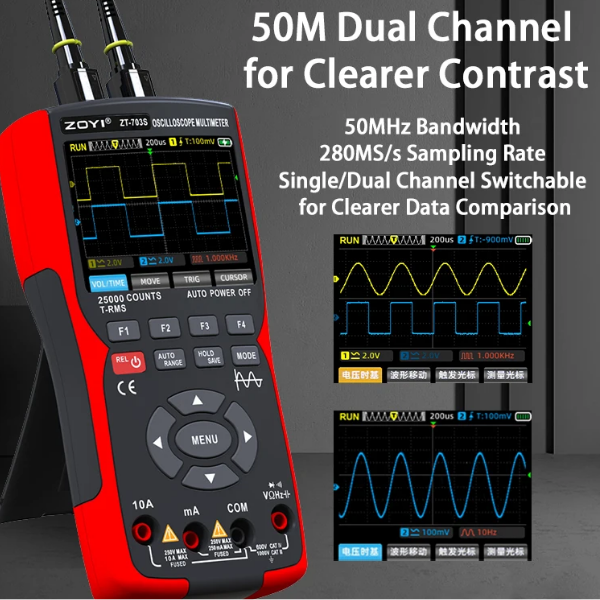

• 50MHz Oscilloscope Bandwidth: Suitable for analysing a wide range of electronic signals and waveforms.
• Auto-Ranging Operation: Automatically selects the appropriate measurement range for faster and easier testing.
• Multiple Electrical Measurements: Measures AC/DC voltage, AC/DC current, resistance and capacitance.
• Digital Display: Clear digital screen provides convenient viewing of measurement results and waveform information.
• Broad Testing Capability: Suitable for electronics troubleshooting, electrical testing, component checking and DIY projects.
• Capacitance Measurement: Supports capacitance measurements up to 99.99mF for testing compatible electronic components.
• High Resistance Range: Measures resistance from 250Ω up to 250MΩ for versatile circuit testing.
• Portable Design: Compact 23cm × 13cm × 6.5cm body is convenient for workshops, benches and field use.

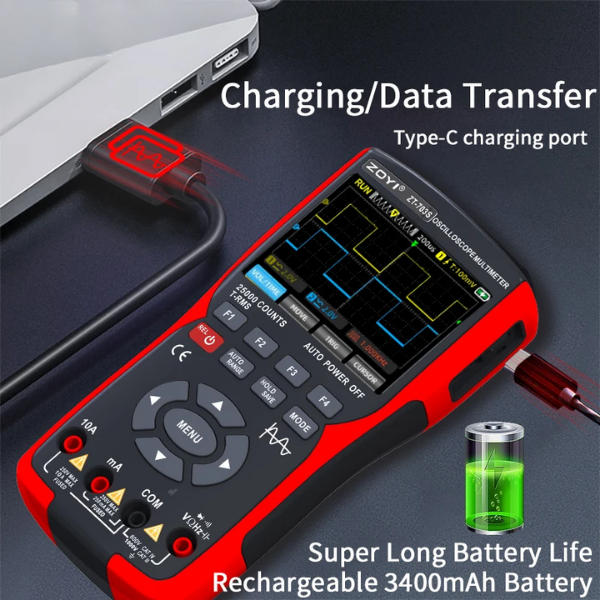

• Rechargeable/Battery Powered: Battery included for convenient operation without requiring a permanent power connection.
• Practical All-in-One Design: Reduces the need to carry separate testing instruments for everyday electronics work.

Specifications

• Product Type: 3-in-1 Digital Multimeter / Oscilloscope / Waveform Generator
• Model: ZT-703S Standard
• Operating Mode: Auto Range
• Display: Digital Display
• Oscilloscope Bandwidth: 50MHz
• DC Voltage Range: 9.999mV–999.9V
• DC Voltage Accuracy: ±(0.5%+3)
• AC Voltage Range: 9.999mV–750.0V
• AC Voltage Accuracy: ±(1.0%+3)
• DC Current Range: 9999μA–9.999A
• AC Current Range: 25mA–10A
• Resistance Range: 250Ω–250MΩ
• Capacitance Range: 9.999mF–99.99mF
• Inductance Measurement: Not Supported
• Dimensions: 23 × 13 × 6.5cm
• Battery: Included
• Application: Electrical, Electronics, Testing, Troubleshooting and DIY

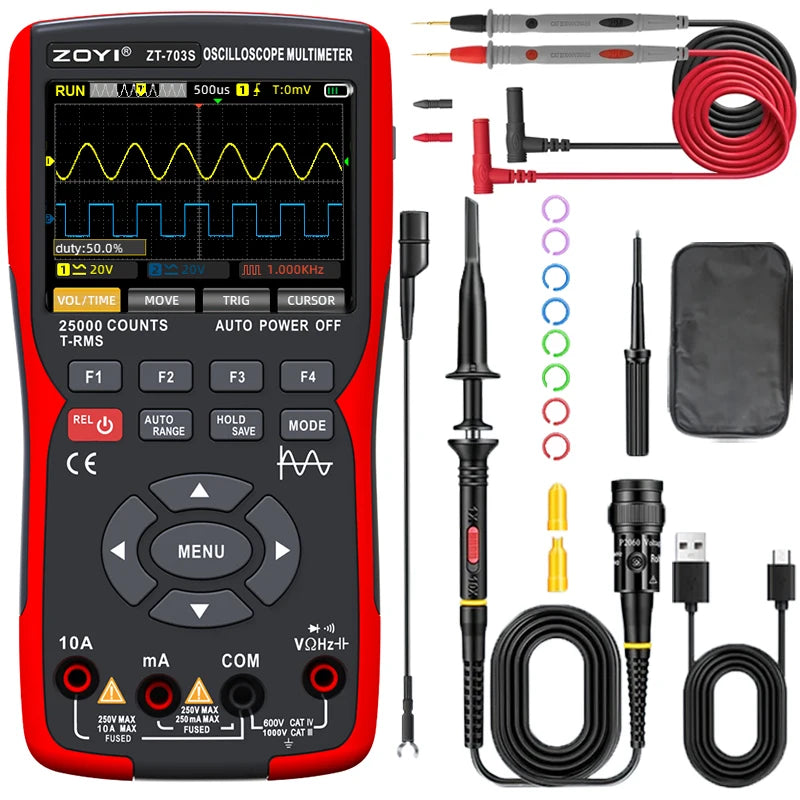

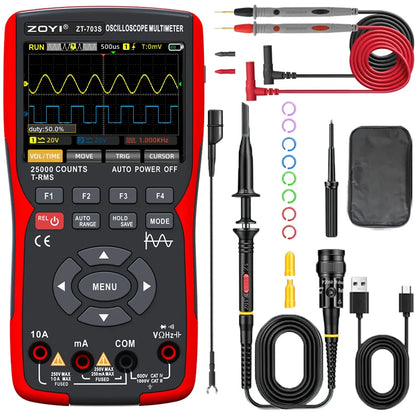

Package Contents

• 1 × 3in1 Digital Multimeter
• 1 × USB Cable
• 1 × Test Lead Set
• 1 × Probe/Accessory Set
• 1 × User Instructions

What Makes This a Smart Buy:

Get three essential testing functions in one compact instrument, making it a practical choice for electronics troubleshooting, repairs and DIY work. Its broad measurement ranges and 50MHz oscilloscope capability offer excellent versatility without needing multiple separate devices.
