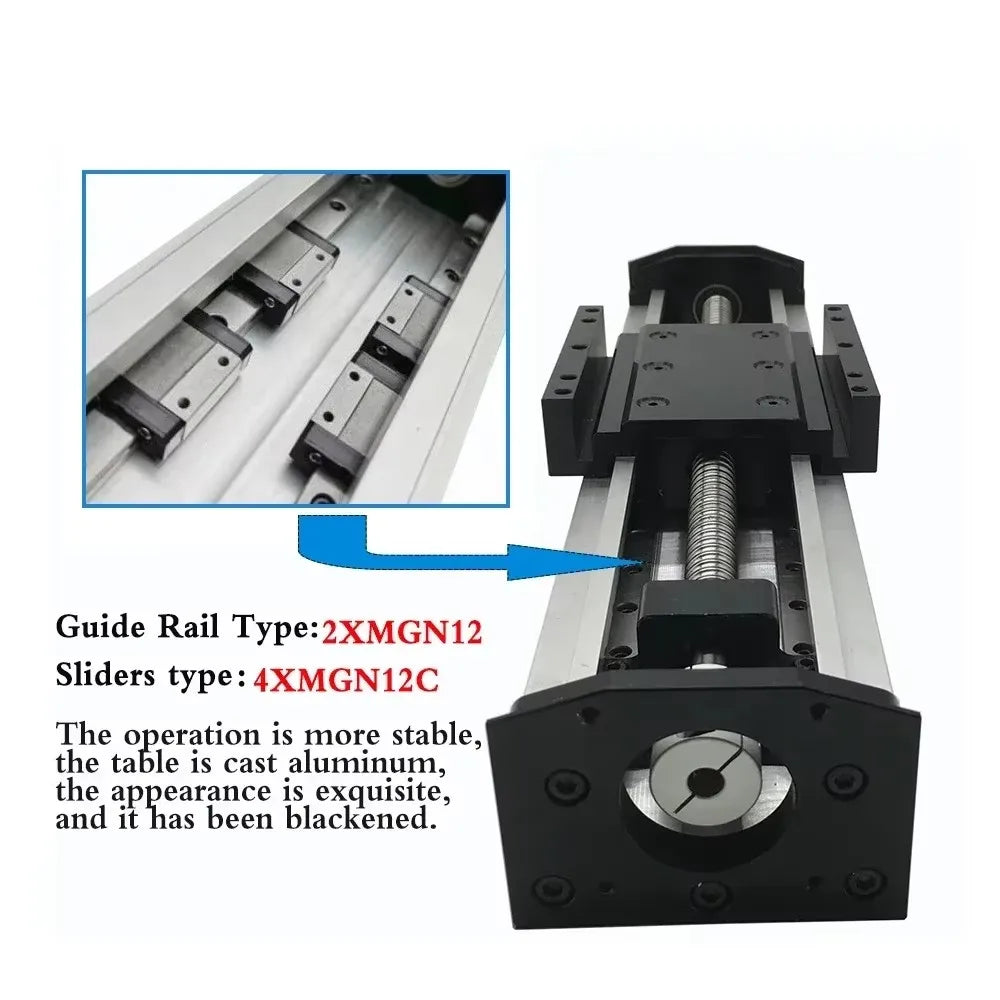

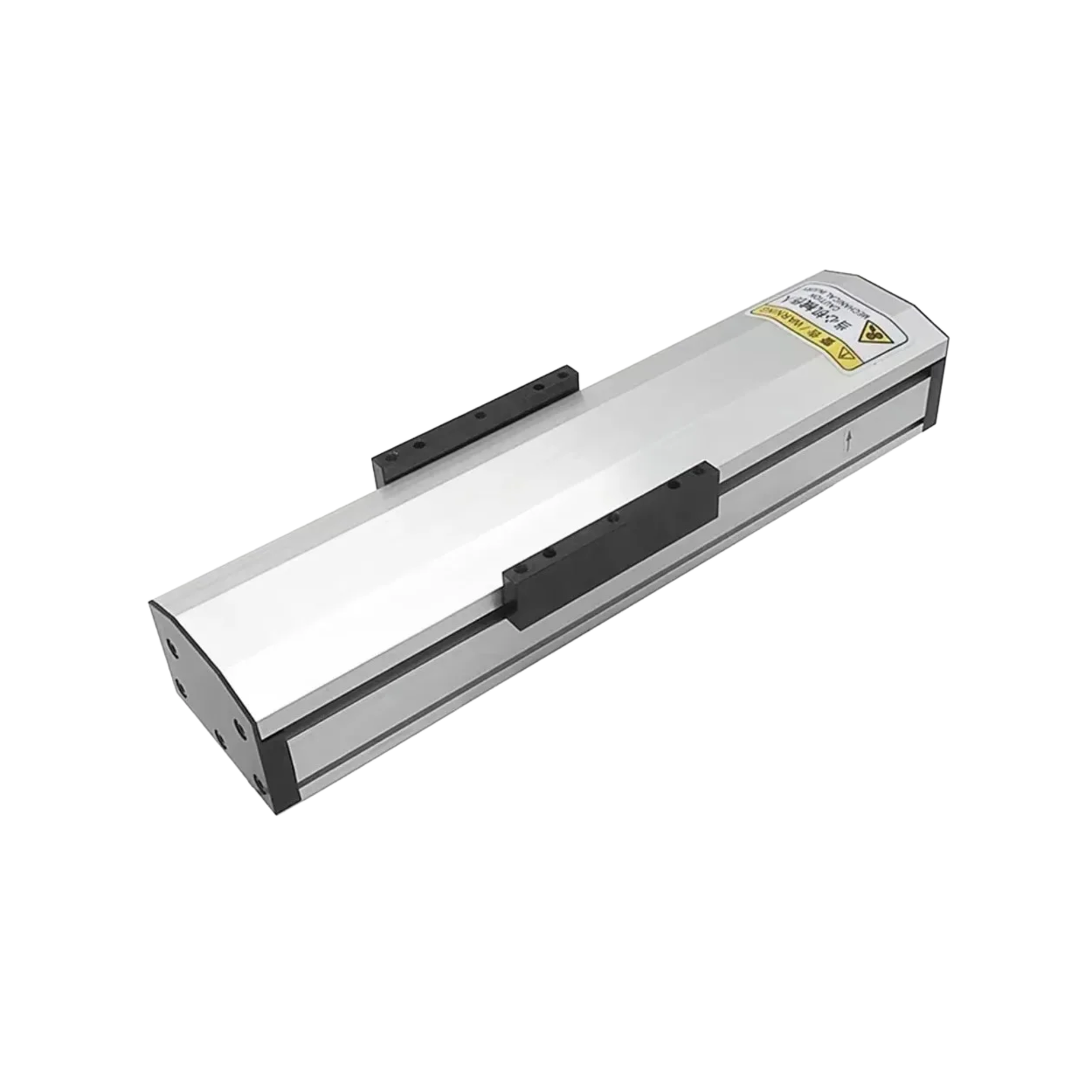

57mm Stepper Bracket Linear Stage – 900mm Stroke

This precision linear stage is designed for smooth, accurate motion in CNC builds, automation projects, and DIY machinery setups. With a long 900mm travel distance, it’s ideal for applications that require extended reach without sacrificing stability or control.

Built around a ball screw drive system, it delivers consistent, repeatable movement with excellent load-handling capability—making it a reliable choice for demanding mechanical projects.

Key Features

• 900mm extended stroke for long travel applications

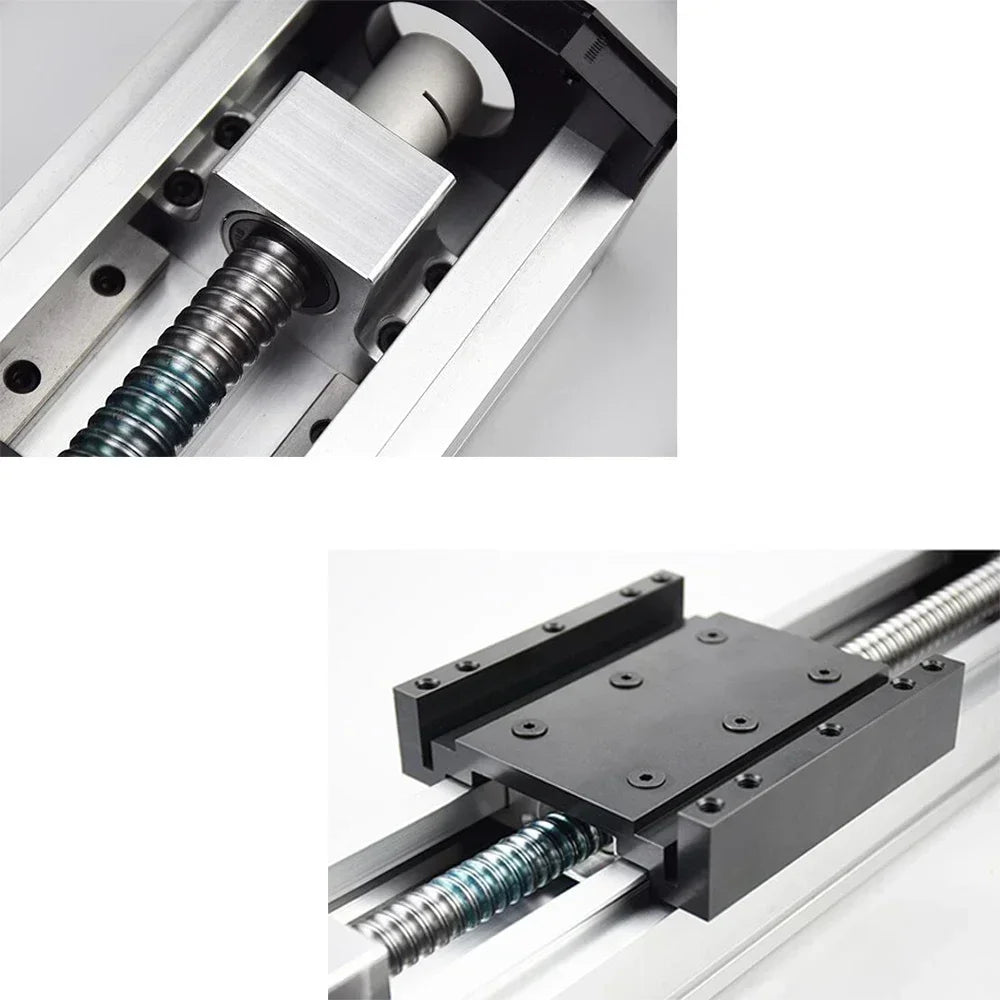

• High-precision ball screw system for smooth linear motion
• Strong load capacity suitable for heavy-duty setups

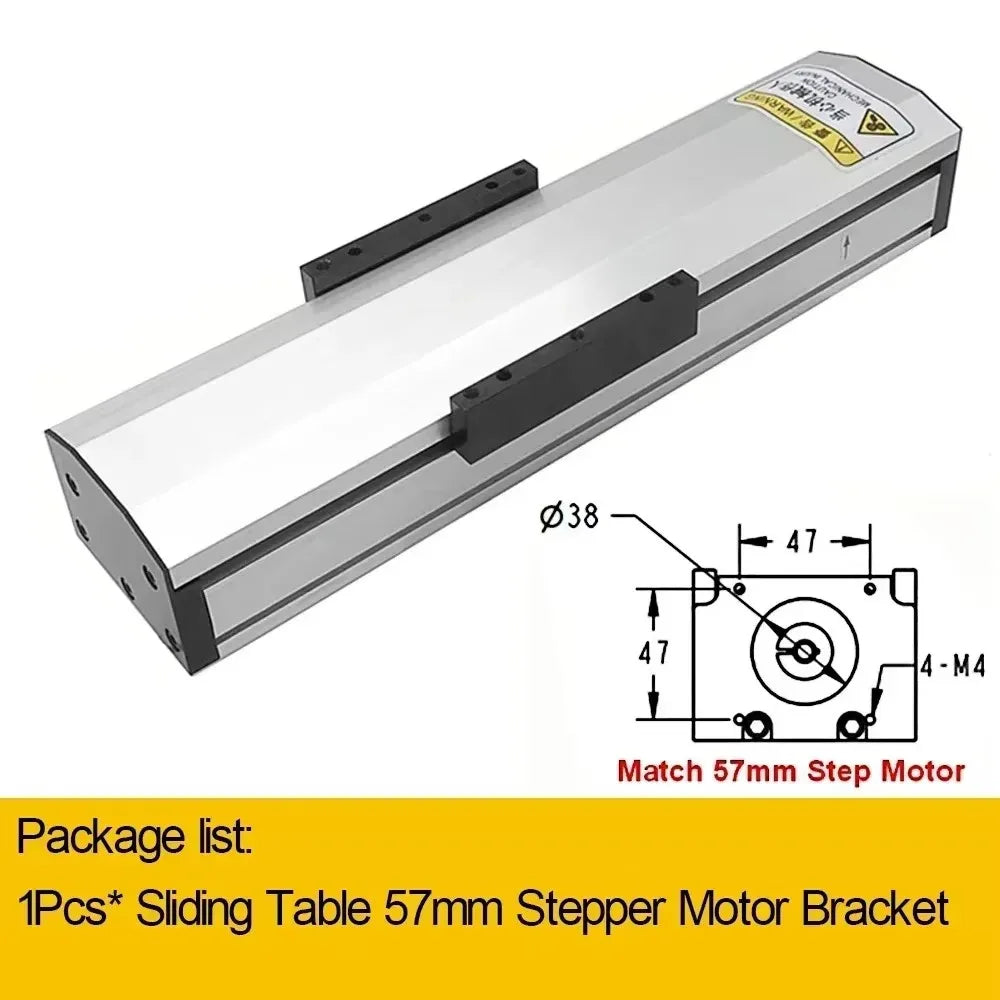

• Compact 57mm bracket design for flexible installation
• Designed for accurate, repeatable positioning control
• Suitable for CNC, automation, and custom machinery builds

Specifications

• Ball screw accuracy: C7
• Ballscrew type: SFU1605 / SFU1610 compatible
• Module width: 90mm
• Horizontal load: up to 70kg
• Vertical load: up to 35kg
• Repeat positioning accuracy: 0.03mm – 0.05mm
• Max moving speed: up to 250mm/s (SFU1605) / 500mm/s (SFU1610)
• Screw pitch: 5mm / 10mm
• Screw model: Ball screw
• Model number: QMF90

Package Contents

• 1 × Linear motion stage (900mm stroke assembly)
• Mounting bracket components

What Makes This a Smart Buy:
This linear stage offers a powerful combination of long travel distance and precision control, making it ideal for larger builds that still demand accuracy. It’s a dependable solution for improving performance, efficiency, and smooth motion in custom mechanical systems.
