Take control of precision positioning with this 57mm Stepper Motor Rotary Table. Designed for CNC machines, robotics, and automated production lines, it delivers accurate rotation and reliable performance for professional applications.
Key Features
-

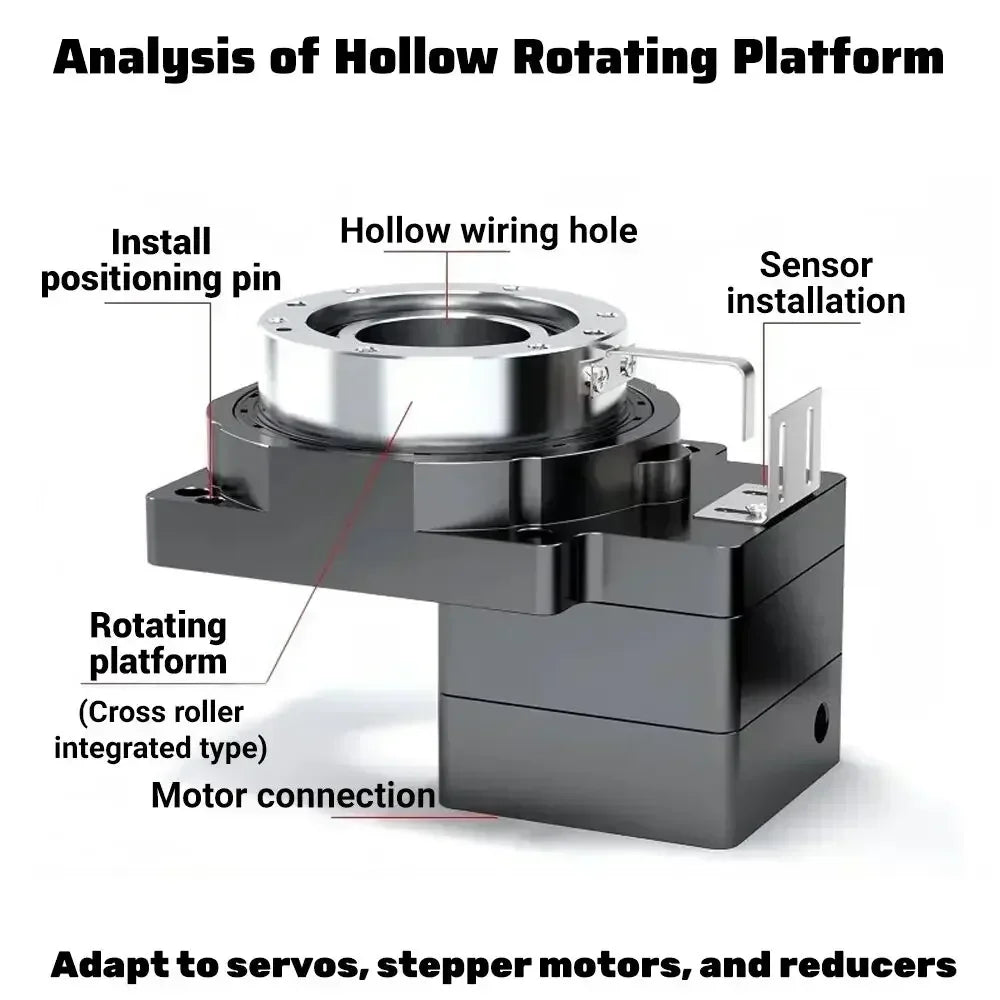

Hollow rotating platform with integrated stepper motor and gearbox
-

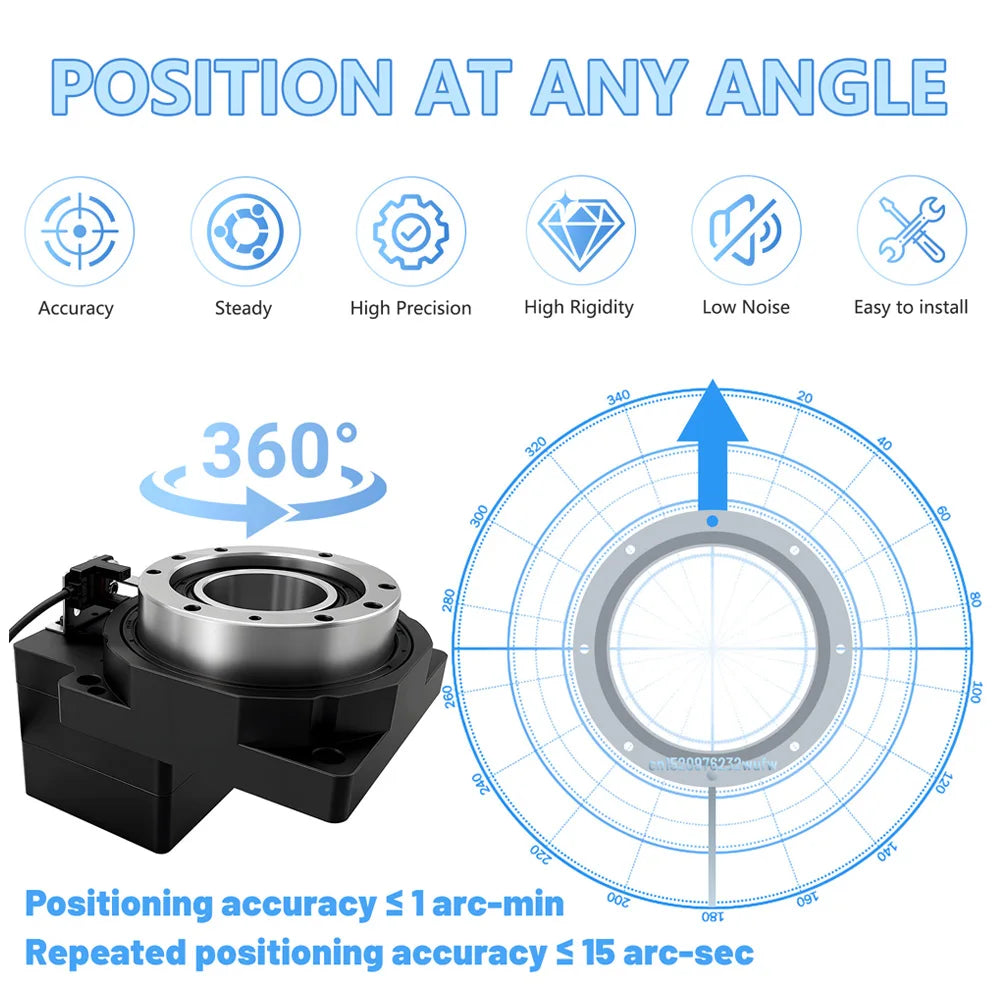

High-precision stepper-driven positioning, ≤15 arc-sec repeatability
-
Cross roller bearings and anti-overturning ring for stability under side loads
-
Adjustable gear center to minimise backlash and maintain accuracy
-
Easy mounting for mechanical arms or worktables
Specifications
-
Table diameter: 57mm | Through-hole: 28mm
-
Speed ratio: 5:1 | Max axial load: 230N
-
Repeated positioning accuracy: ≤15 arc-sec
-
Construction: Aluminum alloy, high-strength gears
-
Protection level: IP50 | Transmission efficiency: 95%
Package Contents
What Makes This a Smart Buy:
This compact rotary table combines precision and versatility, replacing traditional cam dividers with easy integration into CNC setups. Its high repeatability ensures consistent performance for intricate projects.
