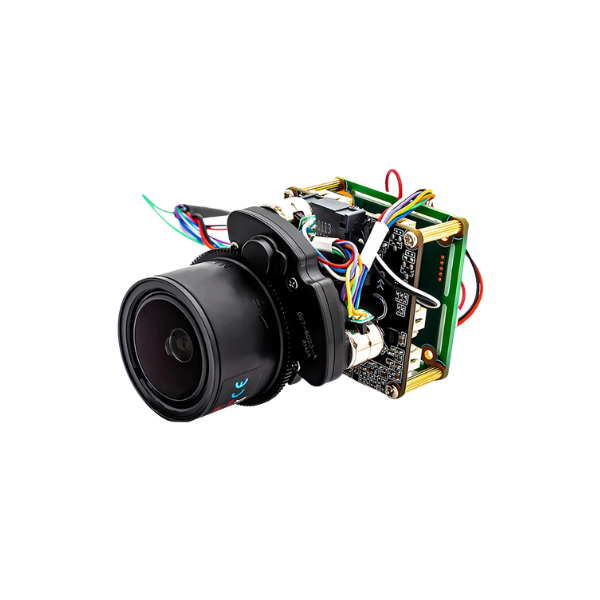

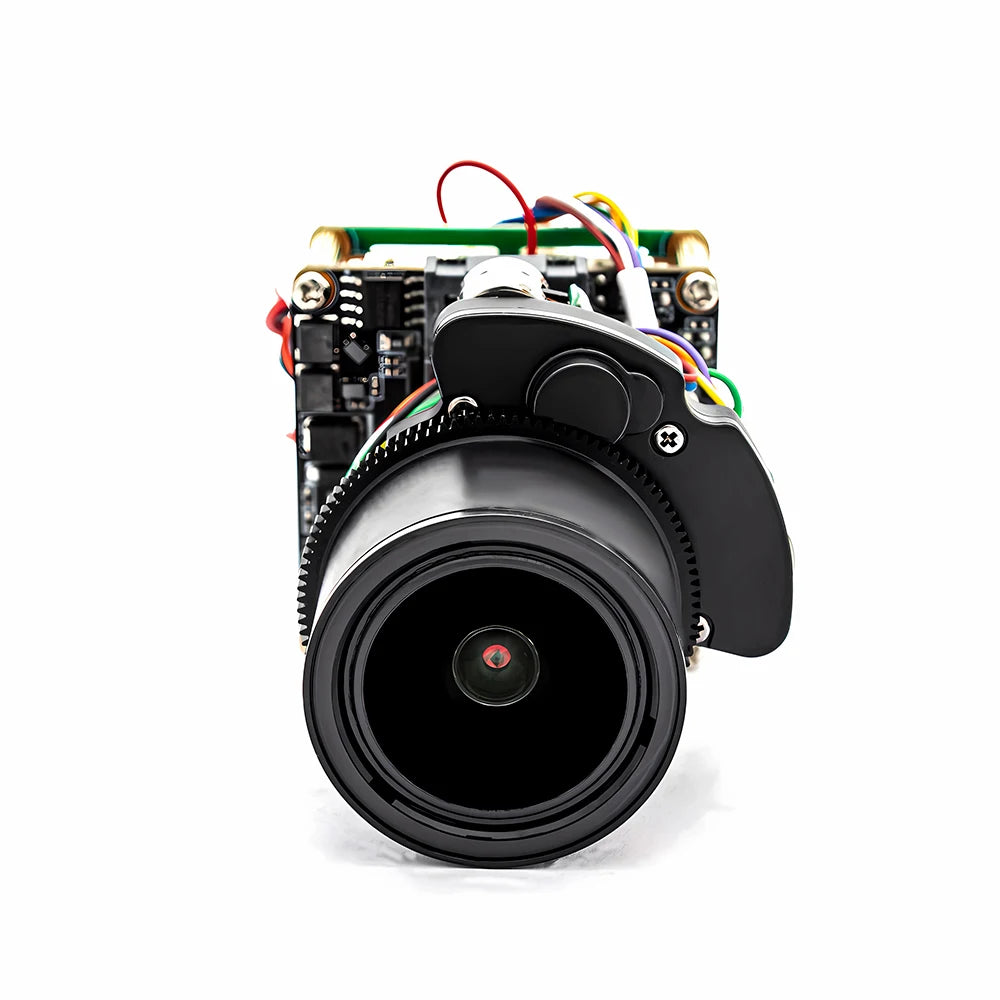

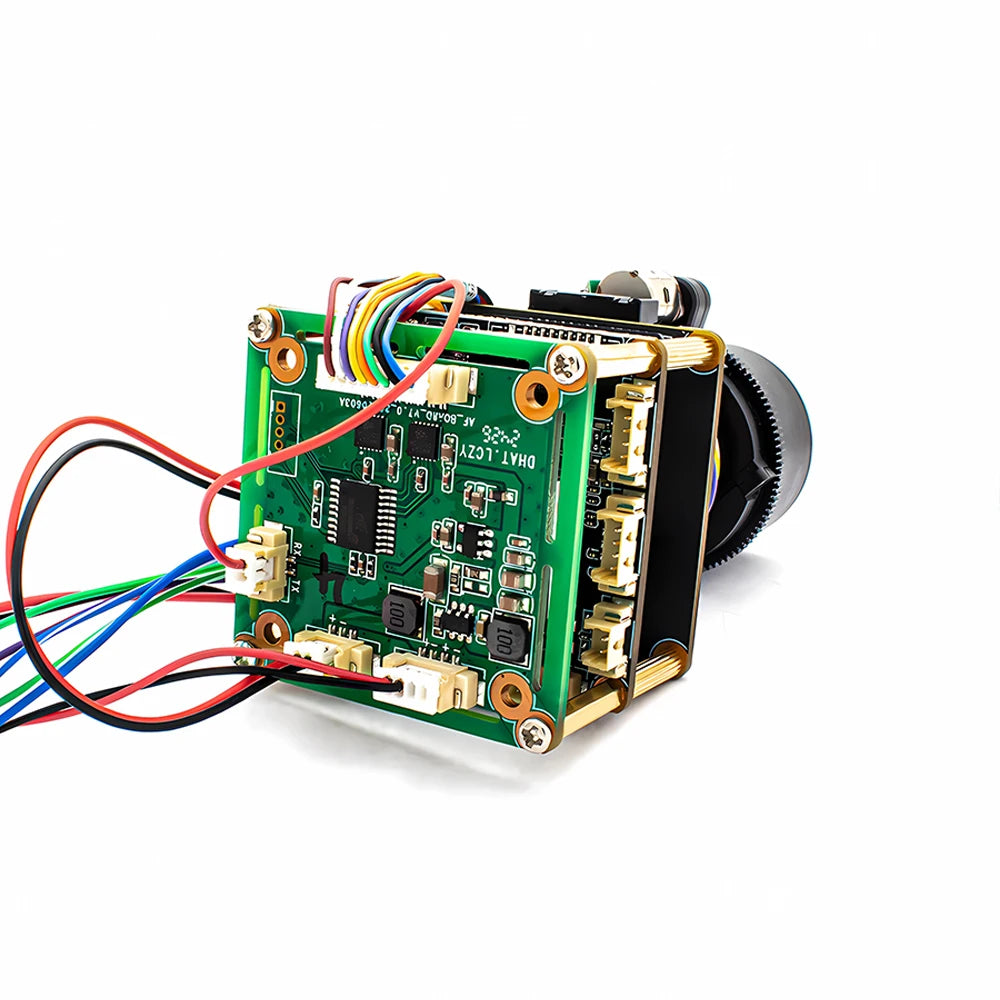

5MP PoE IP Camera Module 5X Zoom Auto Focus

Designed for compact security systems, industrial equipment and custom surveillance applications, this 5MP IP camera module combines sharp imaging with motorised 5X optical zoom and auto focus. Its network connectivity, intelligent human detection and flexible integration options make it a versatile choice for monitoring, embedded systems and specialist camera projects.

Key Features

• 5MP high-definition imaging for clear surveillance and monitoring
• 5X motorised optical zoom for flexible wide-angle and close-up viewing
• Auto focus helps maintain image clarity when changing focal lengths
• 2.7–13.5mm motorised zoom lens for adaptable viewing angles
• PoE connectivity enables network and power transmission through a compatible Ethernet connection
• Supports H.265+, H.265 and H.264 video compression to help reduce bandwidth and storage requirements
• Intelligent human detection helps improve monitoring accuracy
• Customisable detection areas for more targeted surveillance
• HDR support helps preserve image detail in challenging lighting conditions
• Day and night image control with integrated IRCUT switching
• Supports infrared and warm-light control for flexible illumination setups
• Two-way audio support with audio input and output
• ONVIF and RTSP support for compatibility with suitable network video systems
• Compact embedded design for custom installations and integrated equipment
• Suitable for industrial machinery, vending machines, display systems, medical equipment, access systems and custom security applications

Specifications

• Resolution: 5MP
• Image Sensor: 1/2.8-inch CMOS
• Sensor: IMX335
• Lens: 2.7–13.5mm motorised zoom
• Zoom: 5X optical zoom
• Focus: Auto focus
• Main Video Resolution: Up to 3840 × 2160 at 20FPS
• Frame Rate: Up to 30FPS depending on resolution
• Video Compression: H.265+, H.265, H.264
• Network Interface: 1 × RJ45 Ethernet, 10/100M adaptive
• Power: PoE compatible; DC12V input
• Audio: 1-channel audio input and 1-channel audio output
• Network Protocols: HTTP, RTSP, DHCP, NTP and ONVIF
• Smart Detection: Human detection, custom area detection and alarm functions
• Day/Night Control: Integrated IRCUT switching
• Installation: Embedded
• Colour: Black
• Operating Temperature: -40°C to +65°C
• Dimensions: Approximately 38 × 38mm
• Storage: No internal storage

Package Contents

• 1 × 5MP IP Camera Module (POE48V)

What Makes This a Smart Buy:

With 5MP imaging, motorised 5X zoom and auto focus in a compact module, this camera offers excellent flexibility for custom security and monitoring projects. PoE support and broad network compatibility make it a practical choice for both integrated systems and specialist installations.
