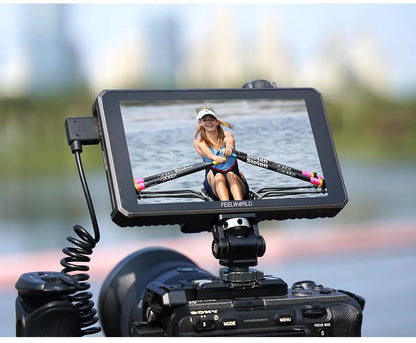

6-Inch 4K Camera Field Monitor 1500nit HDMI SDI

Take your on-set monitoring to the next level with a bright 6-inch Full HD IPS field monitor designed for professional video production. With 1500nit brightness, 4K HDMI support, 3G-SDI connectivity and a comprehensive suite of exposure and focus tools, it provides clear, reliable monitoring in demanding shooting environments.

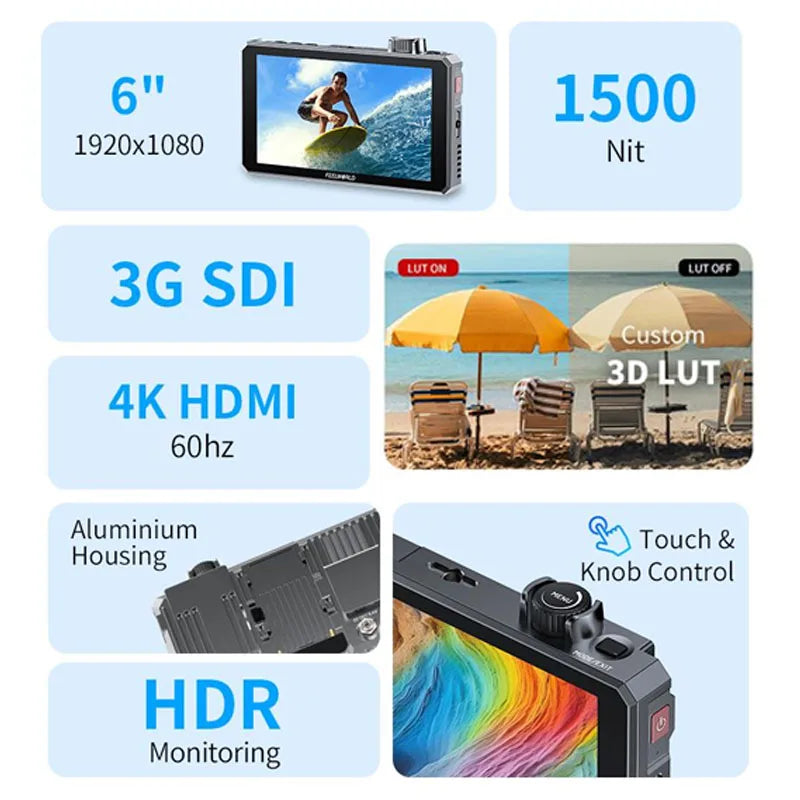

Key Features

• 1500nit High Brightness: Provides a bright, clear image that remains easy to view in strong daylight and outdoor conditions.

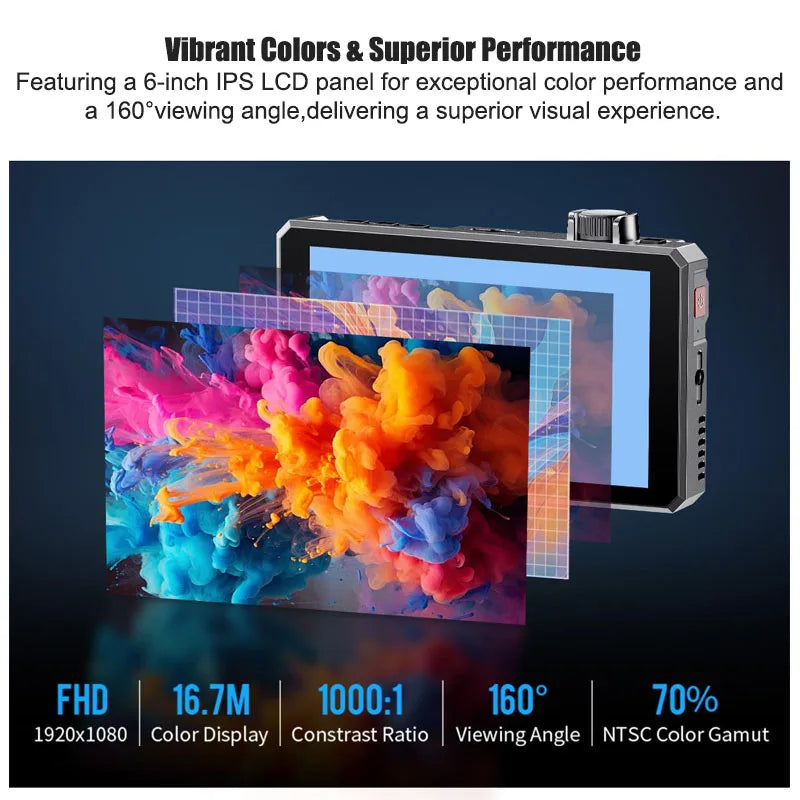

• 6-Inch Full HD IPS Display: 1920 x 1080 resolution delivers detailed images with vibrant, accurate-looking colours.
• 4K HDMI Support: Accepts and outputs compatible 4K signals up to 60Hz for high-resolution camera workflows.

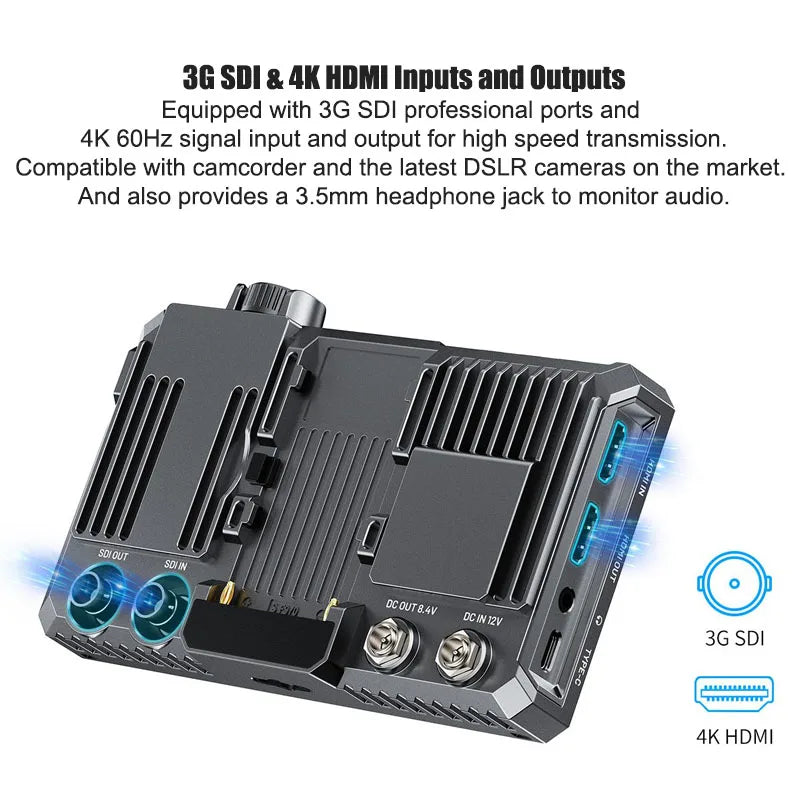

• 3G-SDI Connectivity: Professional SDI input and output support reliable signal transmission with compatible cameras and equipment.

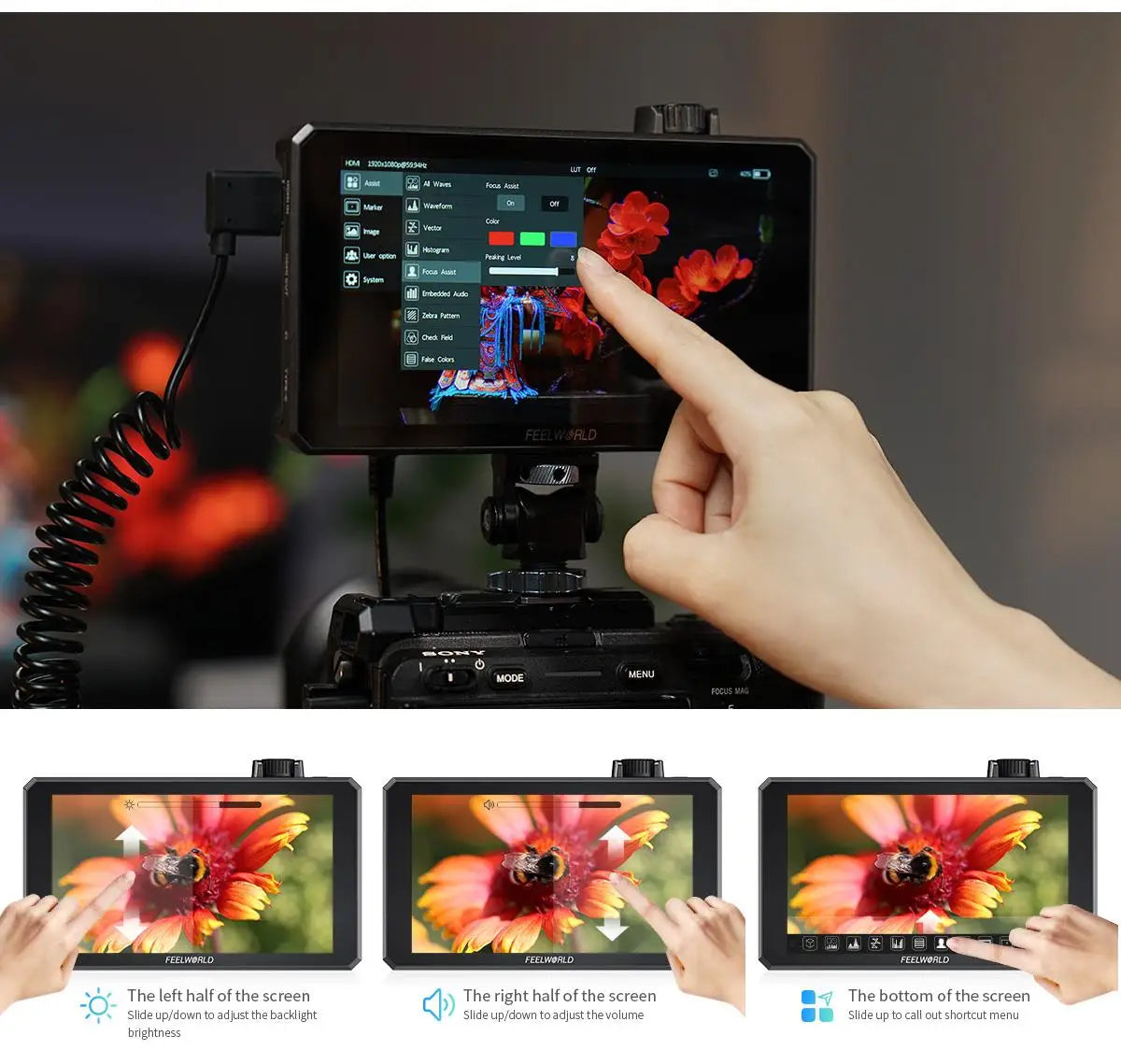

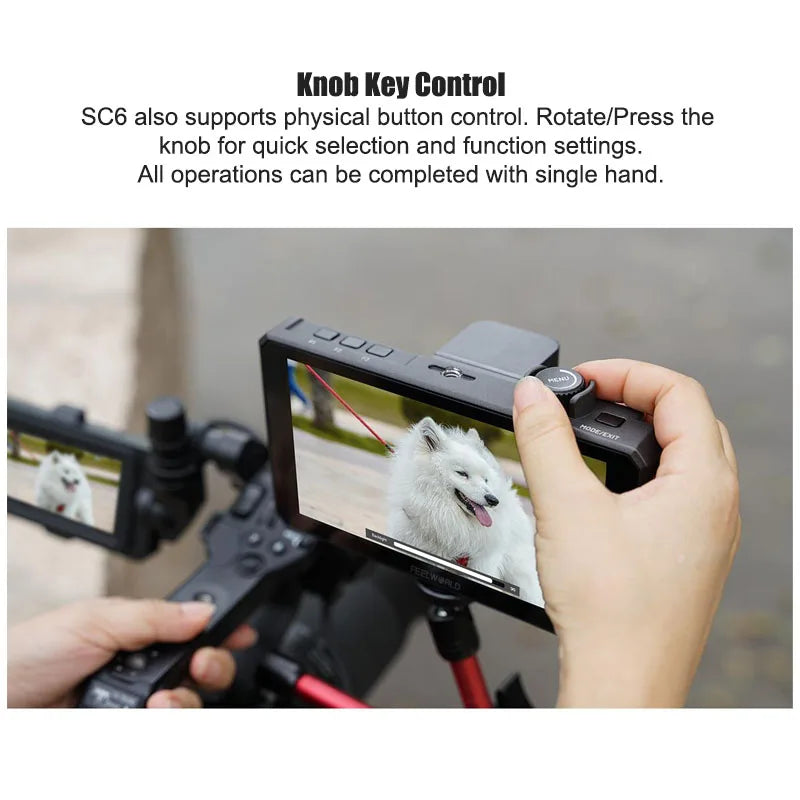

• Touch & Knob Controls: Switch between intuitive touchscreen operation and physical knob control for flexible on-set adjustments.

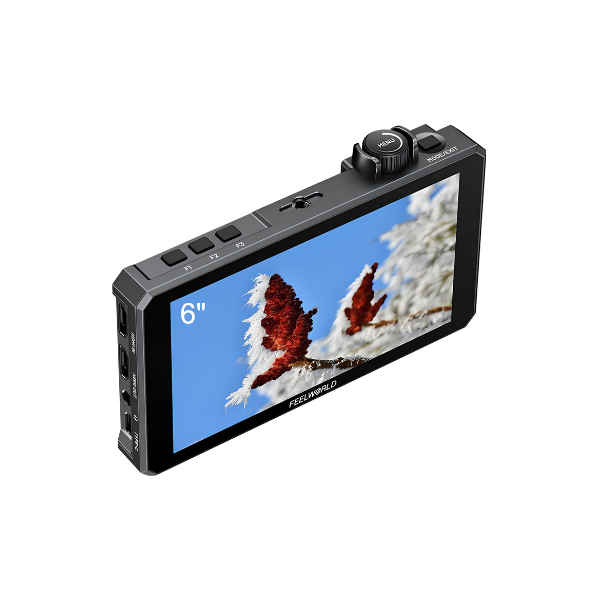

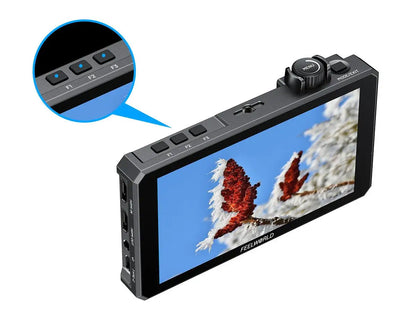

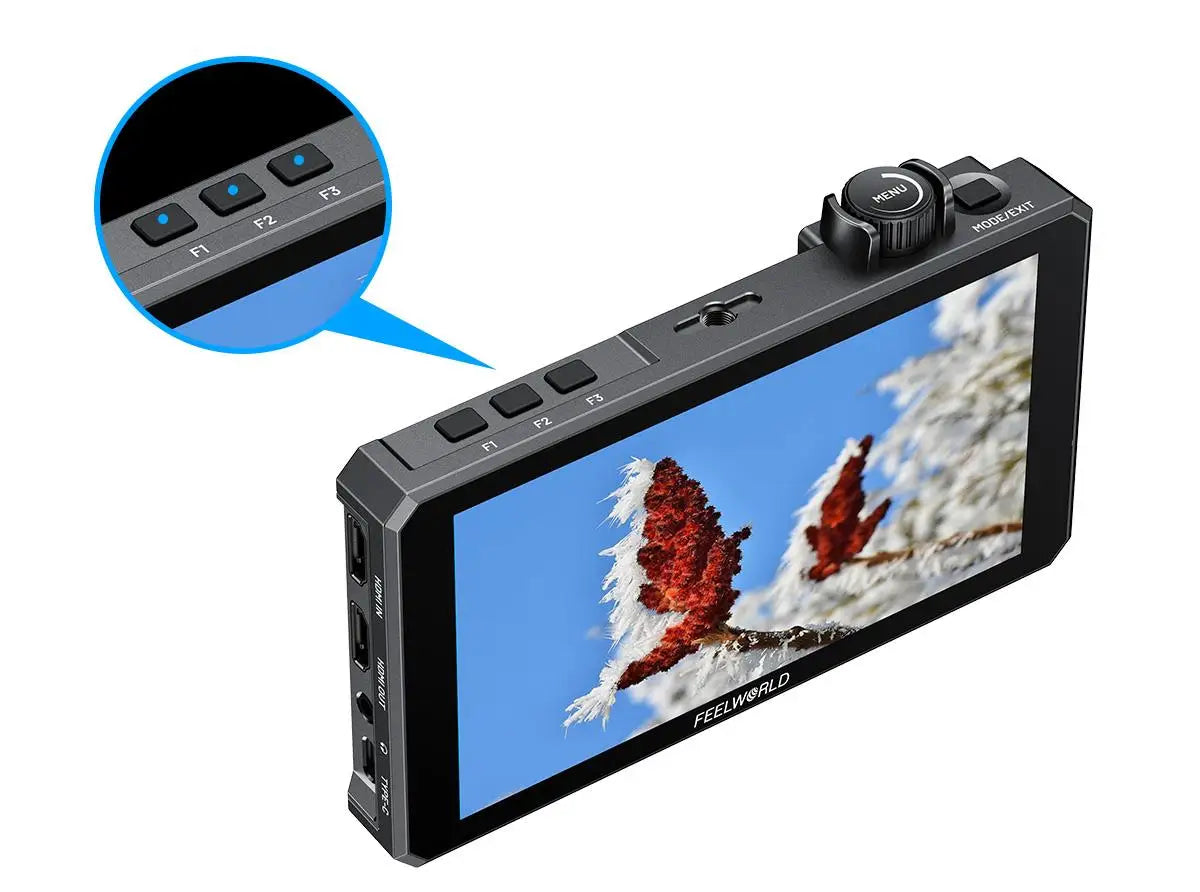

• Custom Shortcut Buttons: Three programmable buttons provide quick access to frequently used monitoring functions.
• Professional Monitoring Tools: Includes waveform, vectorscope, histogram, false colour, zebra, focus assist and other tools for precise image evaluation.
• 3D LUT Support: Load custom .cube LUT files to preview different colour looks during production.
• HDR Monitoring: Supports HLG modes to help display a wider range of highlights and shadows.

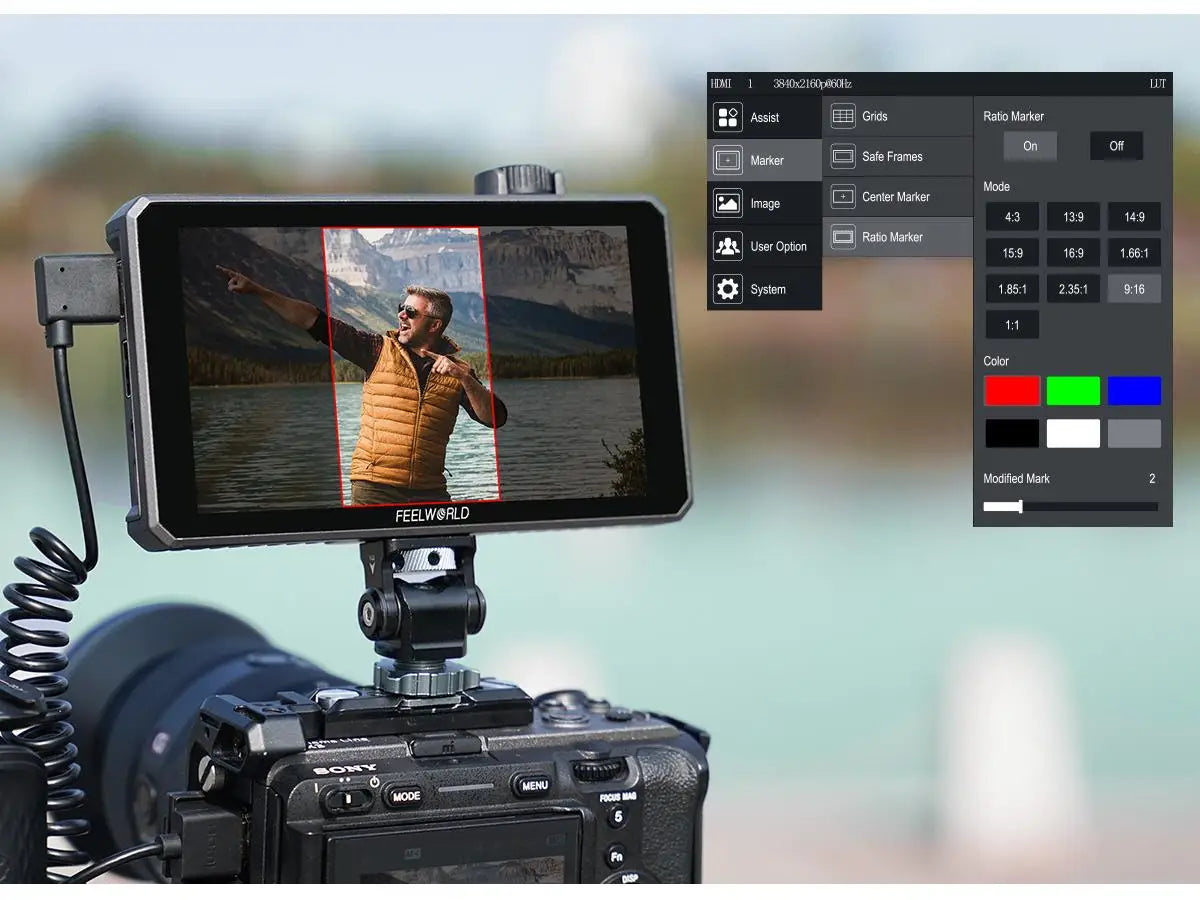

• 9:16 Vertical Marker: Useful for content created for TikTok, Instagram and other vertical video platforms.
• Rugged Aluminium Alloy Body: Durable metal construction helps withstand the demands of regular on-location production.
• Efficient Cooling: Built-in adjustable cooling fan helps manage operating temperature during extended sessions.
• Flexible Power Options: Supports DC power and compatible NP-F series batteries for studio or mobile shooting.

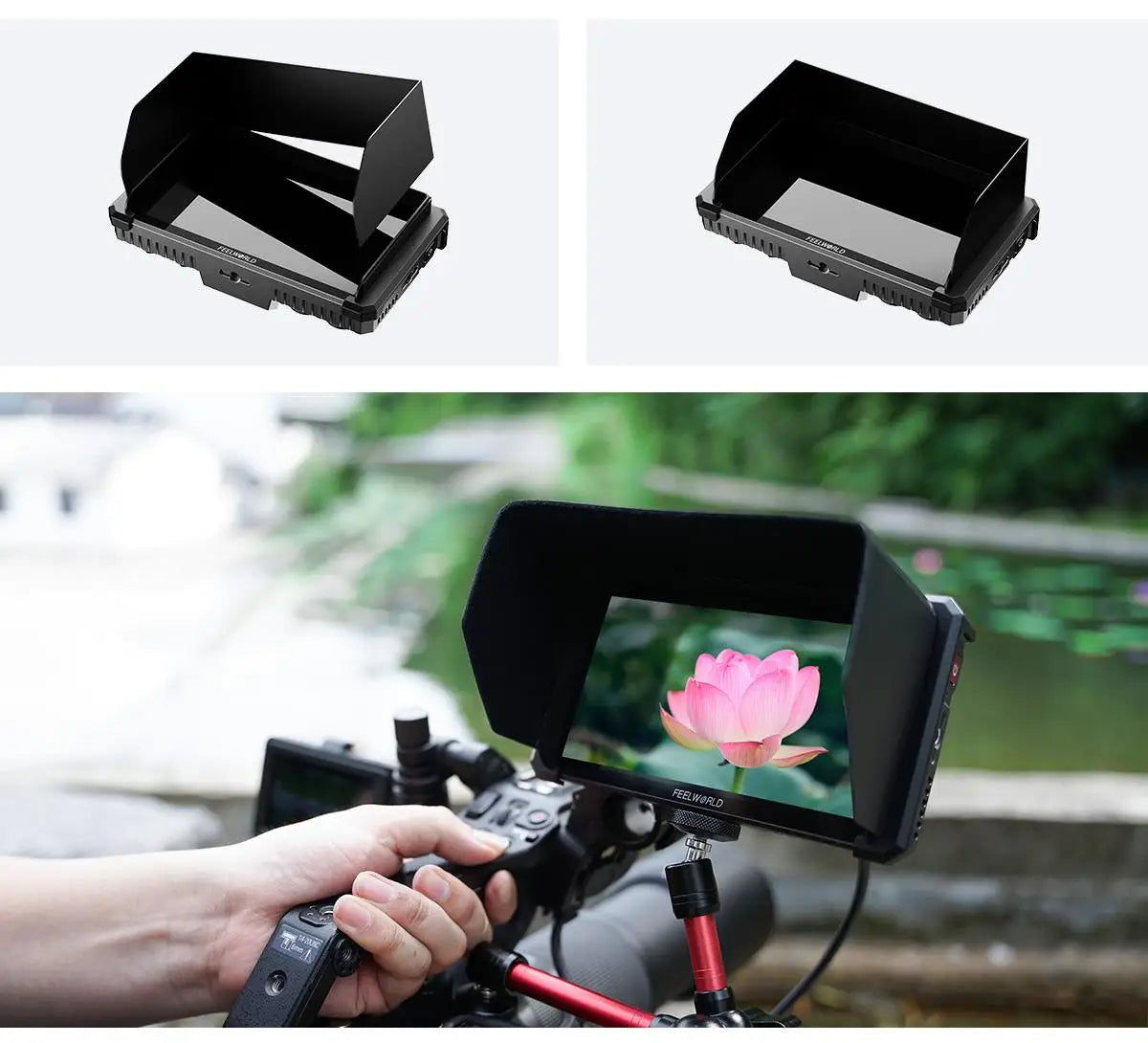

• Portable Sun Hood: Helps reduce glare and improve screen visibility in bright environments.
• Audio Monitoring: Built-in 3.5mm headphone connection allows convenient audio monitoring.

Specifications

• Product Type: Professional Camera Field Monitor
• Screen Size: 6-inch IPS
• Resolution: 1920 x 1080
• Aspect Ratio: 16:9
• Brightness: 1500cd/m²
• Colour Depth: 8-bit
• Contrast Ratio: 1000:1
• Backlight: LED
• Viewing Angle: 80°/80° (L/R), 80°/80° (U/D)
• Pixel Pitch: 0.069 x 0.069mm
• HDMI: 4K 60Hz Input/Output
• 3G-SDI: Input/Output
• Supported HDMI Resolution: Up to 4096 x 2160
• HDR: HLG1, HLG2, HLG3
• 3D LUT: Built-in LUTs with support for up to 32 custom .cube files
• Monitoring Tools: Waveform, Vector, Histogram, False Colour, Zebra and Focus Assist
• Cooling Fan: Adjustable Levels 1–5
• Power Options: DC Input / NP-F Series Battery
• Battery Type: NP-F Series, battery not included
• Power Consumption: Approx. 18W
• Language Support: 12 Languages
• Mounting: Mini Hot Shoe Mount Adapter
• Display Response Time: Approx. 35ms

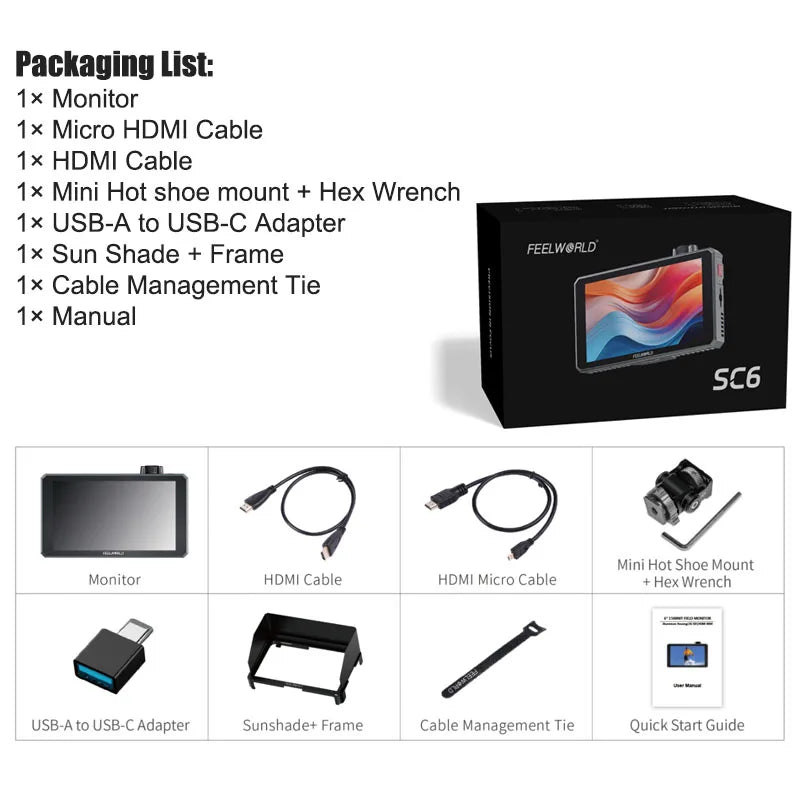

Package Contents

• 1 x 6-Inch Camera Field Monitor
• 1 x Mini Hot Shoe Mount Adapter
• 1 x Sunshade
• 1 x HDMI Cable
• 1 x HDMI Micro Cable
• 1 x USB to Type-C Adapter
• 1 x Cable Management Tie
• 1 x User Manual

What Makes This a Smart Buy:

With daylight-viewable 1500nit brightness, 4K HDMI, 3G-SDI and professional monitoring tools, this compact field monitor gives creators detailed control over their footage on set. Its flexible controls and DC/NP-F power options make it suitable for studio, location and mobile production.
