7 Position M22520/2-01 Wire Crimper for Miniature Connectors

Achieve consistent, reliable crimping on miniature electrical contacts with this precision four-indent wire crimper. Designed for 20–32AWG wires and compatible with a range of MIL-standard connectors, it combines adjustable crimp depth, a precision ratchet and a compact one-hand design for controlled workshop work.

Key Features

• 20–32AWG Crimp Range: Suitable for crimping a wide range of miniature electrical contacts
• M22520/2-01 Standard: Designed for applications requiring this established crimping configuration

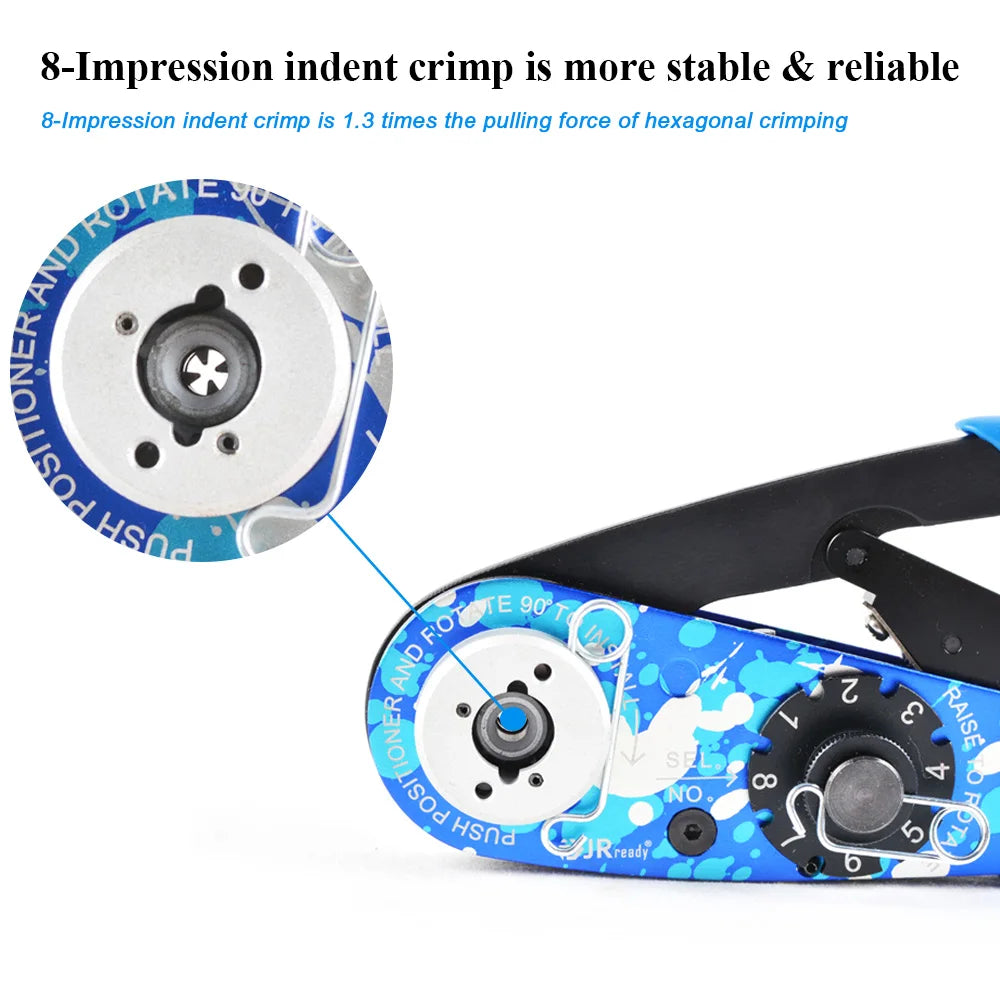

• Four-Indent Crimping: Creates consistent multi-point crimps for secure wire and contact connections

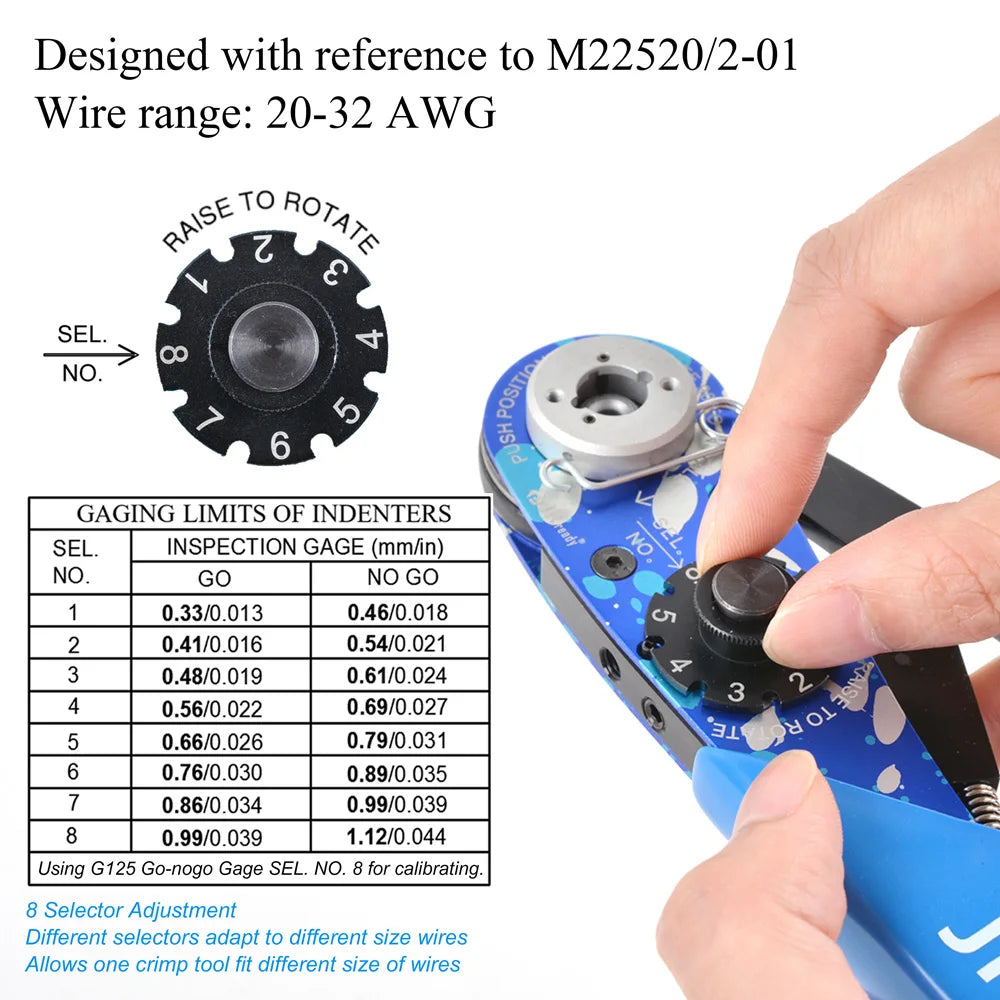

• 8-Position Selector: Adjustable crimp depth allows precise control for different contact and wire requirements
• Precision Ratchet: Controlled cycling helps provide repeatable crimping results

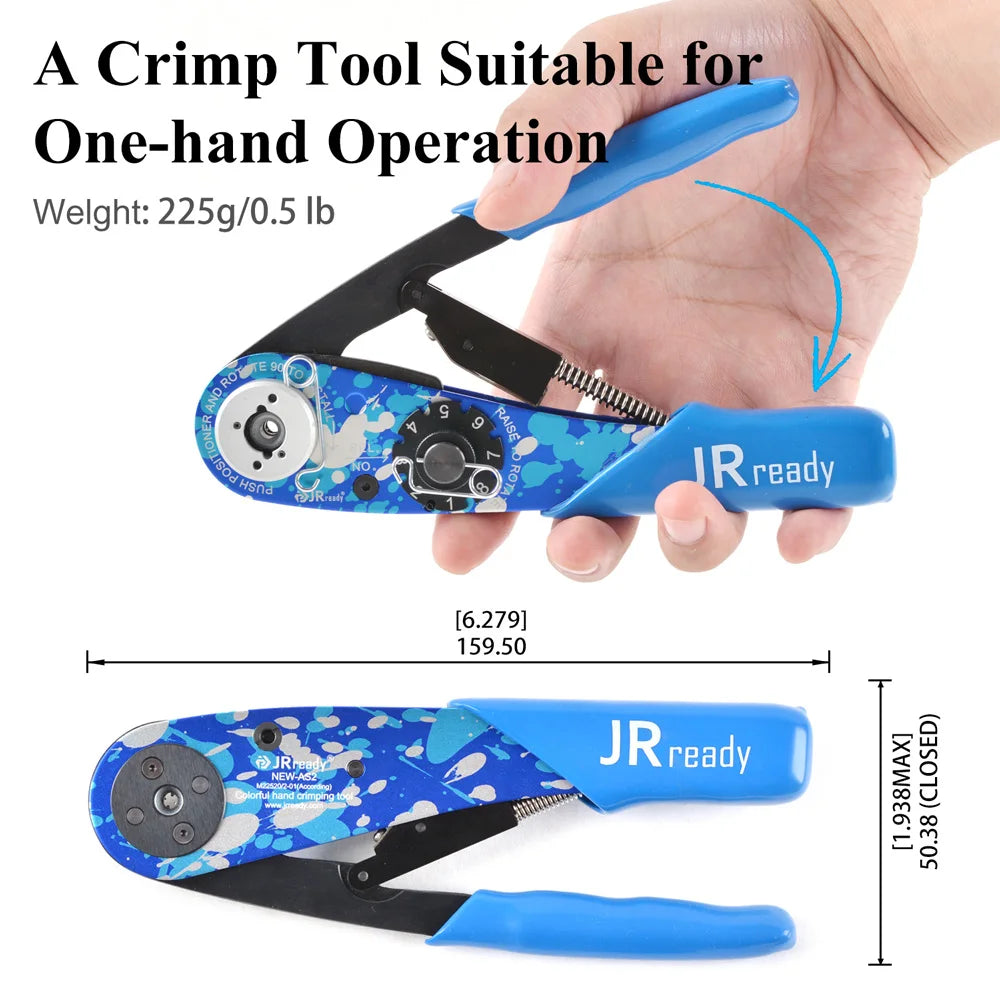

• One-Hand Operation: Compact 225g design is easy to handle during detailed electrical work
• Durable Construction: Stainless steel and mould steel components provide a sturdy tool structure
• Soft-Grip Handle: Designed for comfortable handling during repetitive crimping tasks
• Wide Connector Compatibility: Suitable for various MIL-standard, industrial and miniature connector applications
• Positioner Compatible: Supports compatible K, KA, SK2/2 and HD series positioners
• Ambidextrous Design: Suitable for both left- and right-handed users
• Industrial & DIY Use: Useful for electrical assembly, connector repair and precision wiring projects

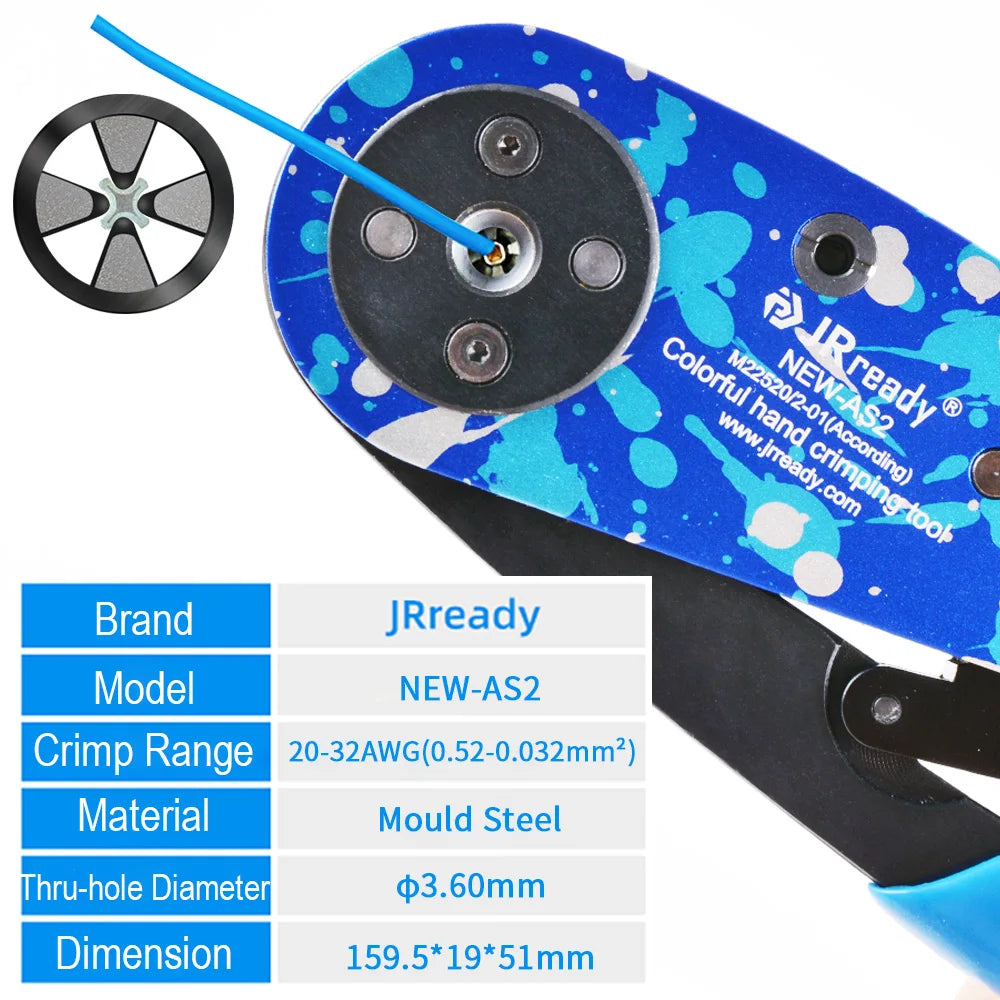

Specifications

• Product Type: Four-indent wire crimper
• Standard: M22520/2-01
• Model: NEW-AS2
• Crimp Range: 20–32AWG
• Crimp Type: Four-indent
• Selector: 8-position crimp-depth adjustment
• Crimp Mechanism: Precision ratchet
• Compatible Positioners: K, KA, SK2/2 and HD series
• Compatible Applications: Miniature connectors and MIL-standard contacts
• Compatible Connector Series: MIL-DTL-24308, MIL-DTL-26482, MIL-DTL-26500, MIL-DTL-83527, MIL-C-38300, MIL-DTL-38999, SAE AS81659, MIL-C-81703, MIL-DTL-83723 and MIL-DTL-83733
• Material: Stainless steel and mould steel
• Handle Material: Soft-grip plastic
• Handle Style: Straight
• Hand Orientation: Ambidextrous
• Weight: Approx. 225g

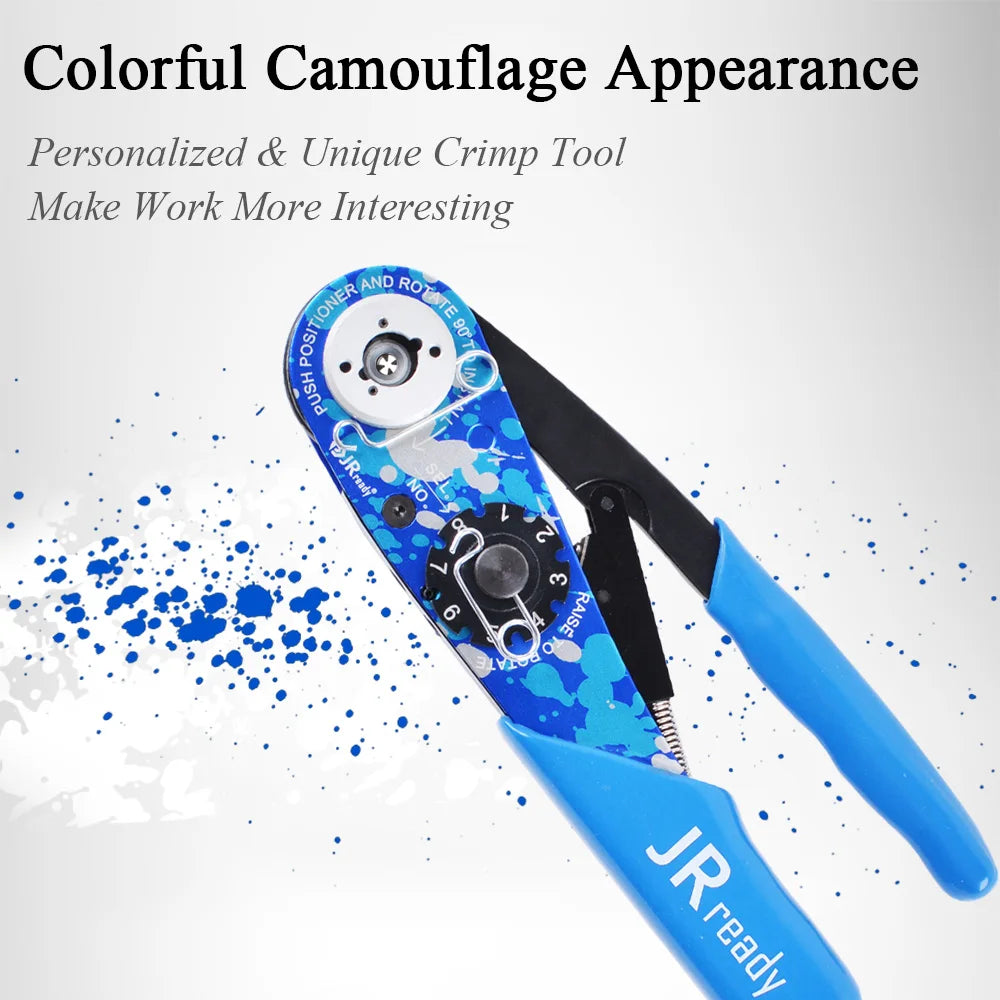

• Colour: Camouflage blue pattern

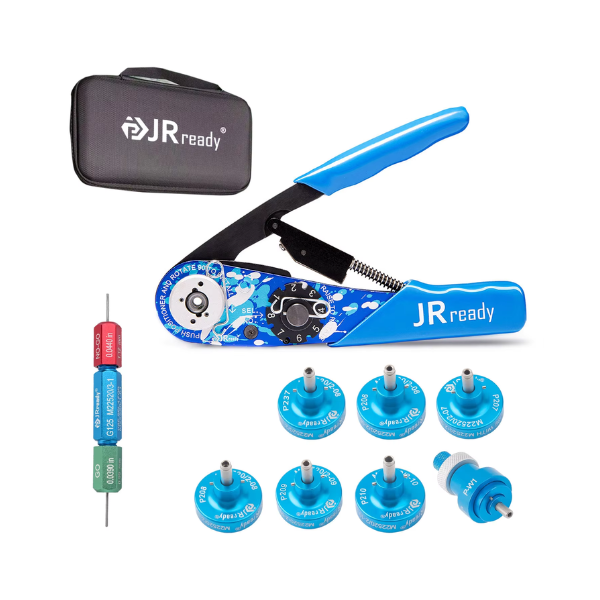

Package Contents

• 1 × M22520/2-01 Wire Crimper Set (NEW-AS2 7Positioners)
• 1 × Storage Bag

What Makes This a Smart Buy:

The adjustable 8-position selector and precision ratchet make it easier to achieve repeatable crimps across different 20–32AWG applications. Its compact, lightweight construction is particularly practical for detailed connector assembly, electrical repairs and workshop use.
