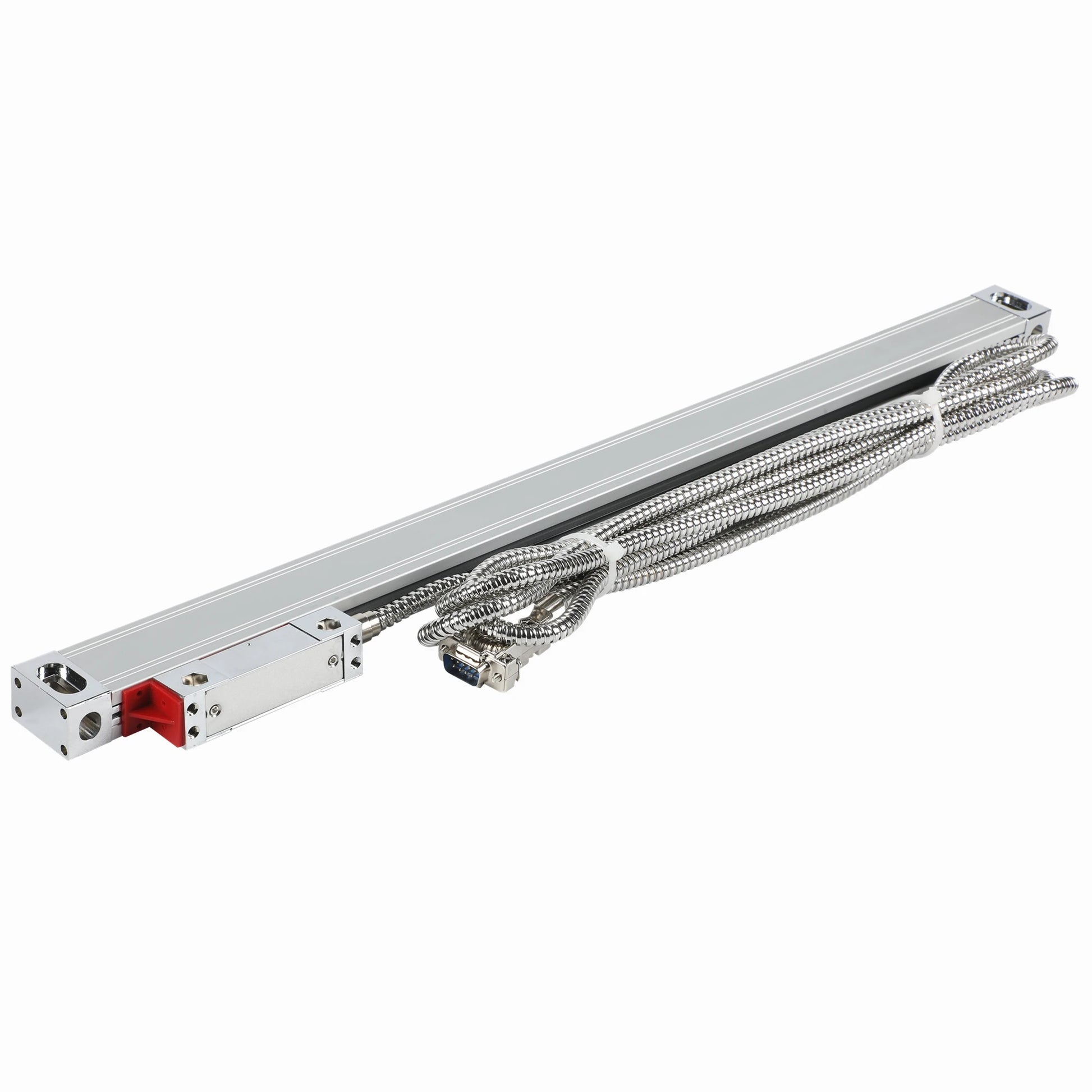

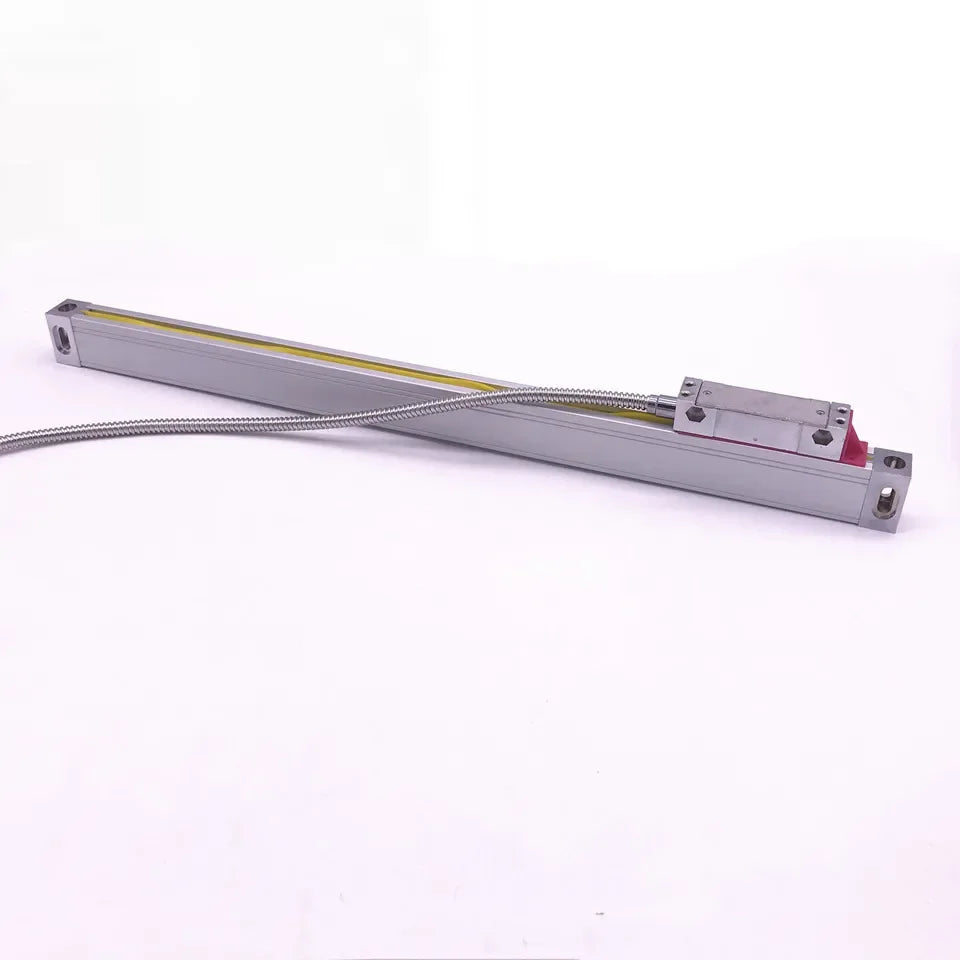

Take control of your machining precision with this 700mm optical linear encoder, built to deliver accurate and consistent position tracking. It’s a dependable solution for improving workflow efficiency and achieving professional-quality finishes.
Key Features
- 5 micron resolution for fine, detailed measurement
- Optical grating system for smooth and stable readings
- Designed for CNC, milling, and lathe applications
- TTL signal output for broad system compatibility
- Strong, compact build for long-term workshop use
- Easy installation with included mounting hardware
- Flexible cable length for convenient positioning
Specifications
- Measuring Length: 700mm
- Total Length: 842mm (travel + 142mm)
- Resolution: 5µm (0.005mm)
- Output Signal: TTL
- Input Voltage: 5V DC
- Grating Pitch: 0.02mm
- Cable Length: Approx. 2.5–3m
- Dimensions: 21mm x 33mm

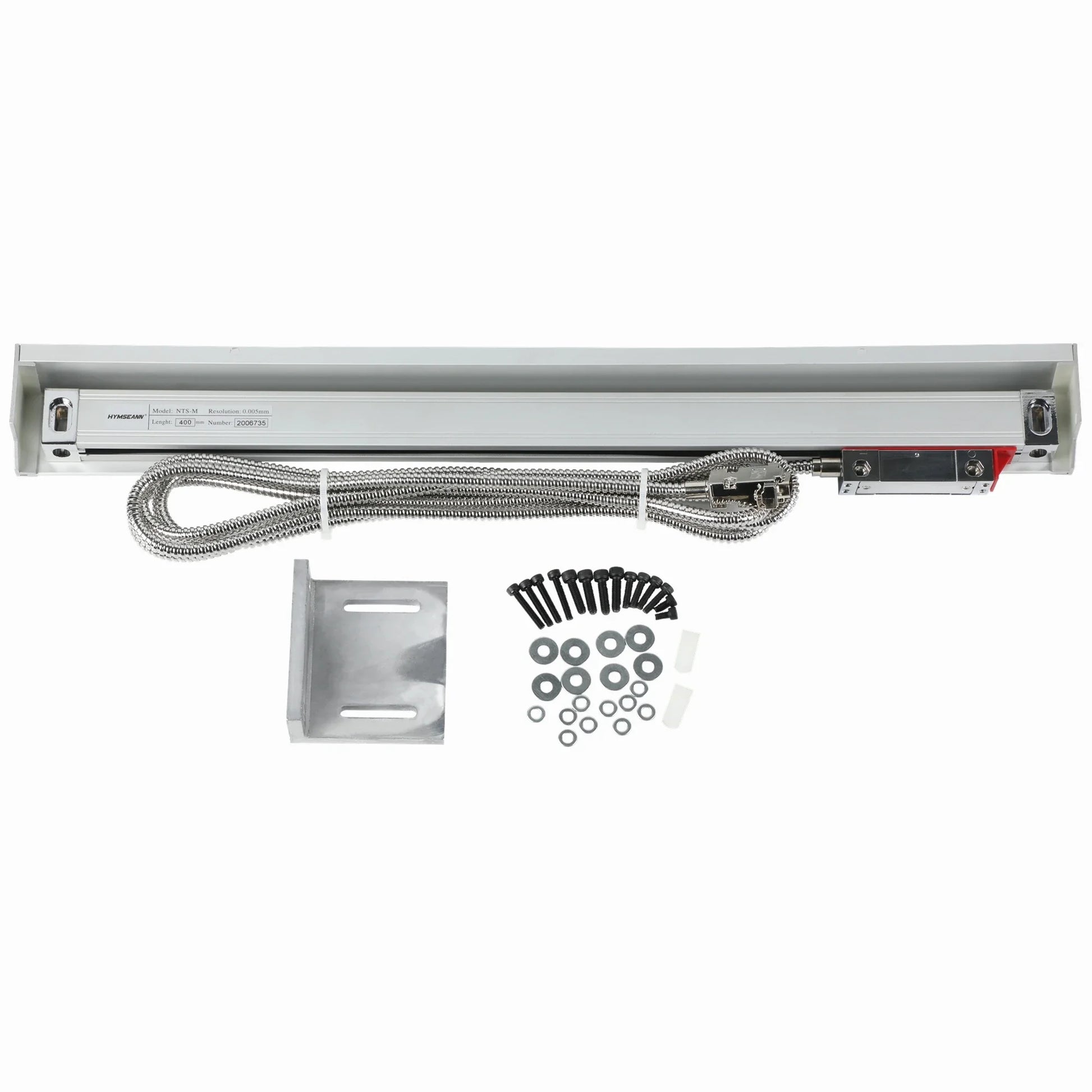

Package Contents
- 1 x 700mm Linear Scale Encoder
- 1 x Scale Cover
- 1 x Mounting Bracket
- 1 x Screw Kit
What Makes This a Smart Buy:
With precise measurement and easy integration, this encoder helps you work smarter and more accurately. It’s a cost-effective way to improve the performance and consistency of your CNC setup.
