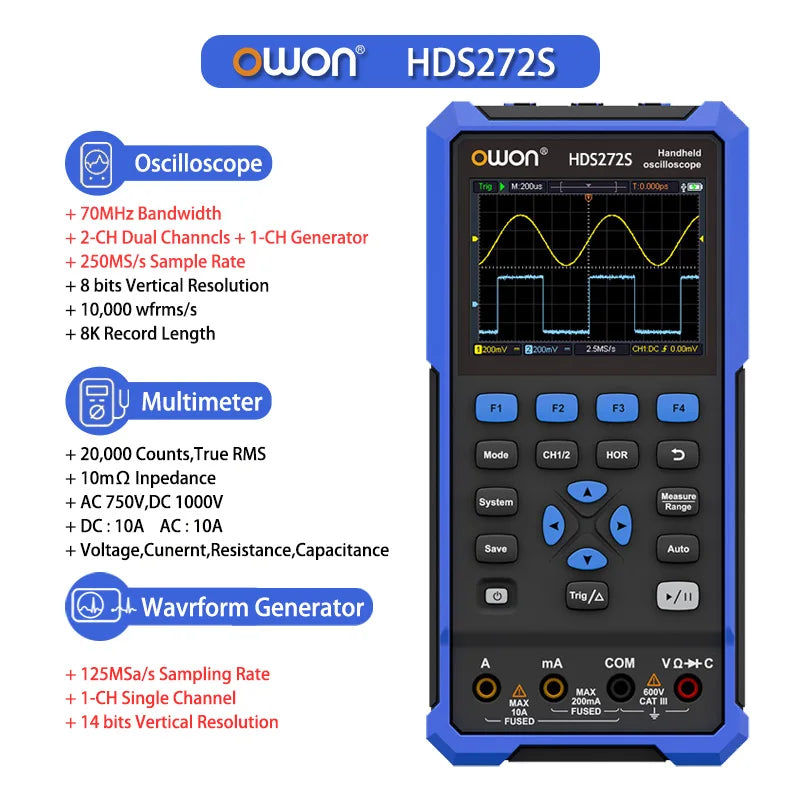

70MHz 3-in-1 Handheld Oscilloscope with Multimeter & Generator

The HDS272S is a powerful handheld testing solution combining higher bandwidth performance with a built-in signal generator. Designed for advanced users, it allows signal analysis, measurement, and generation in one compact device.

Key Features

• 3-in-1 handheld tool: oscilloscope, multimeter, signal generator

• 70MHz bandwidth for advanced signal diagnostics

• Dual-channel oscilloscope with fast real-time sampling

• Built-in waveform generator for testing and simulation

• Portable design suitable for field work and workshops

• 3.5-inch colour LCD with high contrast display

• USB Type-C interface for charging and connectivity

Specifications

• Bandwidth: 70MHz

• Channels: 2 + 1 signal generator

• Real-Time Sampling Rate: 500MS/s

• Record Length: 8K

• Display: 3.5-inch colour LCD

• Resolution: 320 × 240 pixels

• Signal Generator Output: Multiple waveform types

• Battery: Rechargeable 18650 lithium battery

Package Contents

• 1 × Handheld Digital Oscilloscope with Signal Generator

• Oscilloscope probe

• Multimeter test leads

• USB charging cable

• Quick guide

• Carry pouch and accessories

What Makes This a Smart Buy:
This model offers maximum versatility by combining higher-speed signal analysis with built-in waveform generation—saving space, time, and the cost of separate tools.
