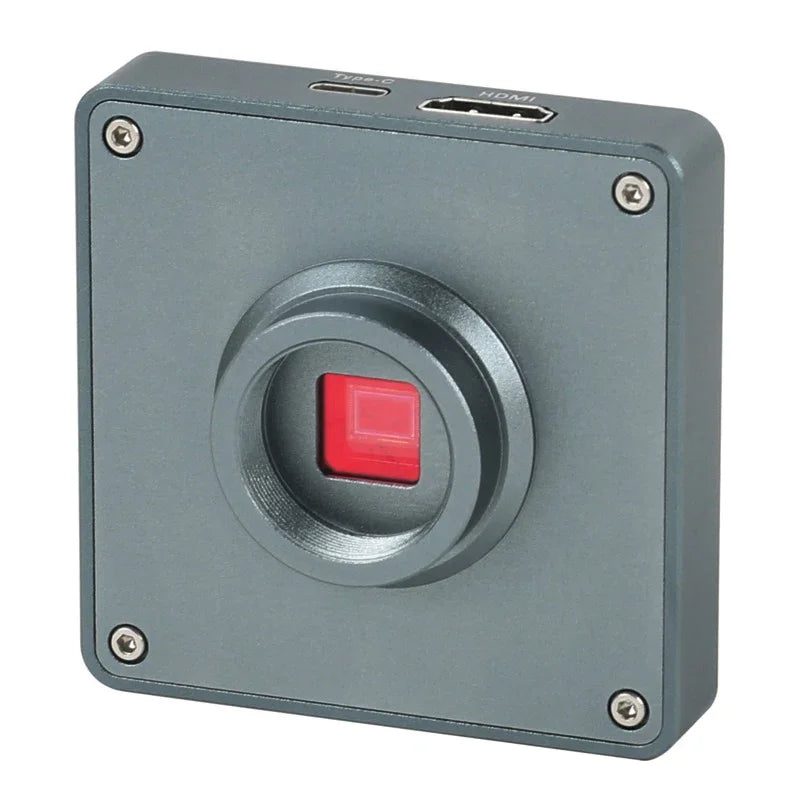

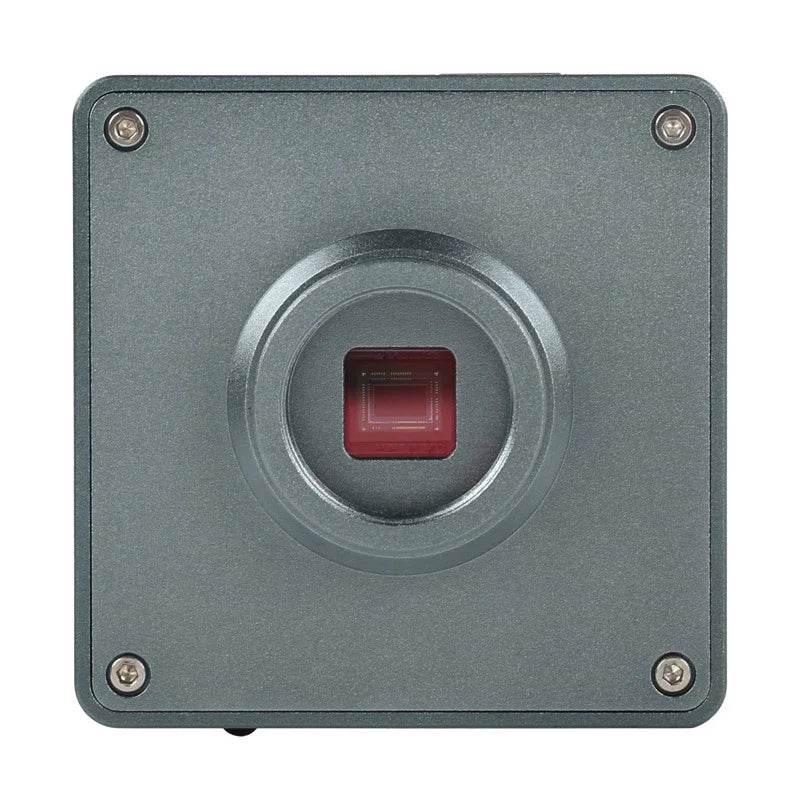

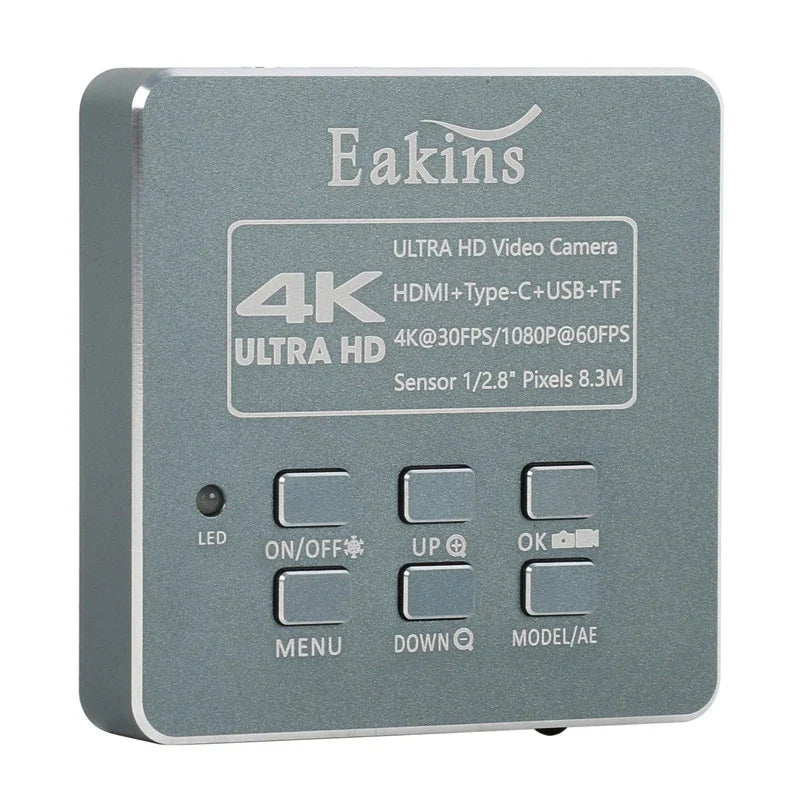

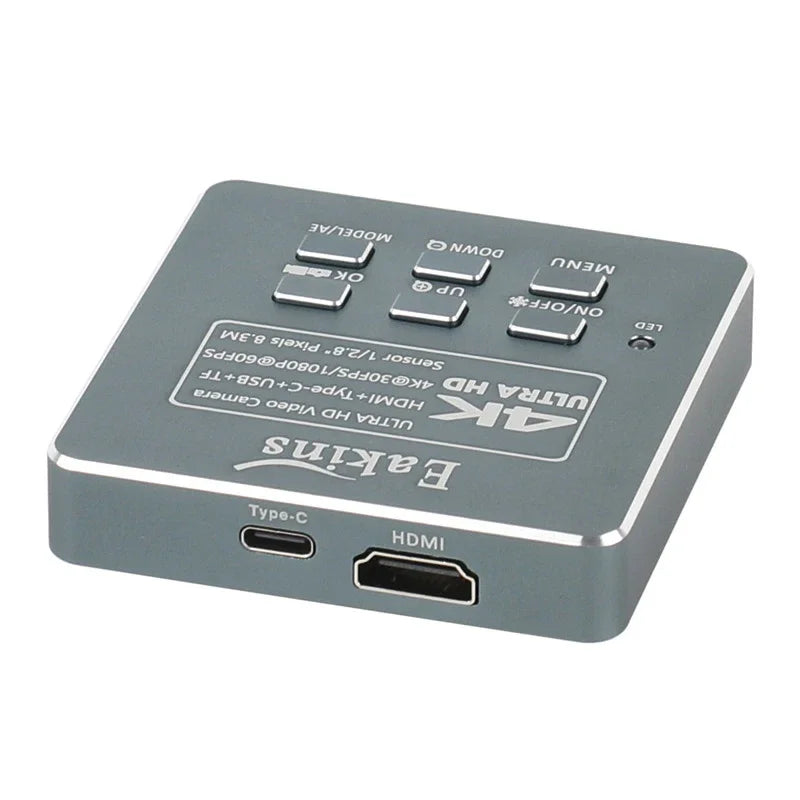

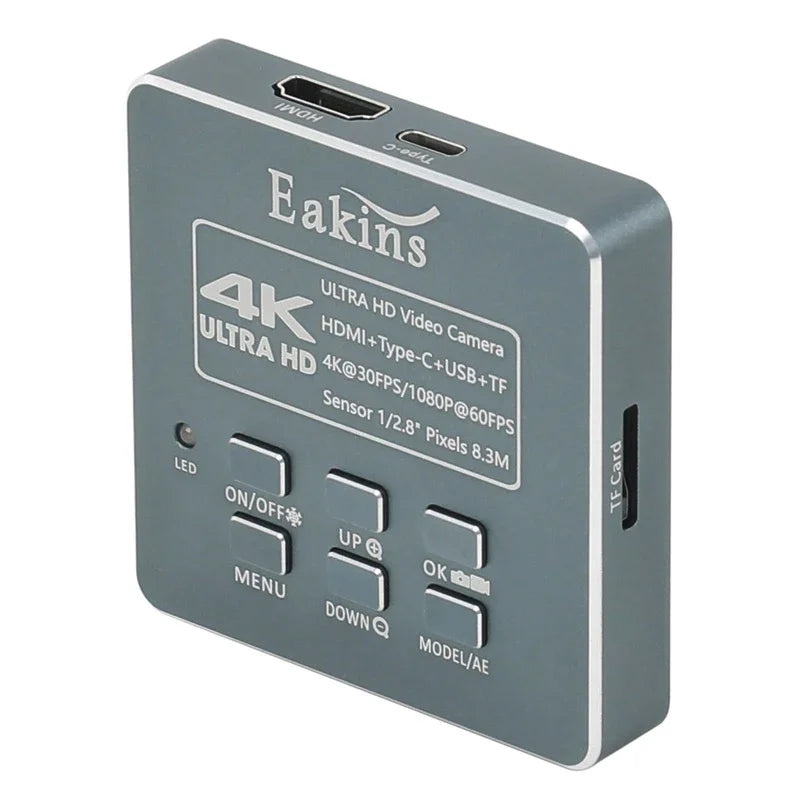

8.3MP 1080p 4K HDMI USB Digital Microscope Camera

Inspect fine details with greater clarity using this 8.3MP digital microscope camera, designed for PCB soldering, electronics inspection and phone repair. With 4K HDMI output, USB connectivity, adjustable exposure and white balance, it provides a versatile viewing and recording solution for detailed bench work.

Key Features

• 8.3MP High-Resolution Sensor: Uses a 1/2.8-inch image sensor for detailed digital microscope imaging.
• 4K HDMI Output: Supports 3840 × 2160 resolution at 30fps for clear viewing on compatible displays.
• 1080p at 60fps: Provides smoother Full HD video for detailed inspection and live viewing.
• USB Type-C Output: Driver-free USB output supports multiple resolutions for compatible computers and devices.
• 4K Photo Capture: Capture detailed still images in JPG format for inspection, documentation and reference.
• Video Recording: Supports video recording through HDMI and TF card storage.
• Adjustable Exposure: Choose automatic, manual or one-key exposure with exposure compensation.
• Adjustable White Balance: Automatic, manual and one-key white balance with RGB adjustment.
• Electronic Zoom: Convenient digital zoom helps examine fine details more closely.
• On-Screen Measurement Guides: Includes 16 adjustable lines plus a centre crosshair for easier alignment and inspection.
• Remote Control: Take photos and operate key functions remotely to help minimise camera movement.
• Adjustable LED Illumination: Compatible with a 56-LED adjustable microscope ring light for bright, focused illumination.
• C/CS Mount Compatibility: Works with compatible C/CS mount microscope lenses.
• Durable Aluminium Housing: CNC-machined aluminium alloy casing provides a solid enclosure for workshop use.
• Versatile Applications: Suitable for PCB inspection, soldering, phone repair, electronics work, biological microscopes and compatible stereo or trinocular microscope setups.

Specifications

• Product Type: Digital Microscope Camera
• Sensor: 1/2.8-inch Sony IMX415
• Resolution: 8.3MP
• HDMI Output: 3840 × 2160 at 30fps; 1920 × 1080 at 60fps
• USB Output: Up to 3840 × 2160 at 30fps
• USB Interface: Type-C
• HDMI Interface: HDMI
• Lens Mount: C/CS Mount
• Electronic Zoom: Yes
• Exposure: Automatic, Manual and One-Key Exposure
• Exposure Compensation: Supported
• White Balance: Automatic, Manual and One-Key with RGB Adjustment
• Image Format: JPG
• Storage: TF Card, up to 64GB
• Measurement Guides: 16 Adjustable Lines and Centre Crosshair
• Remote Control: Supported
• Input Voltage: DC 5V
• Compatible Systems: Stereo, Biological and Trinocular Microscopes
• Recommended Applications: PCB Soldering, Electronics Inspection and Phone Repair
• Housing: CNC-Machined Aluminium Alloy
• Ring Light Compatibility: 56-LED Adjustable Microscope Ring Light

Lens Option:

• Old 130X Lens: 40–200mm working distance, 0.12–2.2X optical magnification, approximately 8–130X display magnification

Package Contents

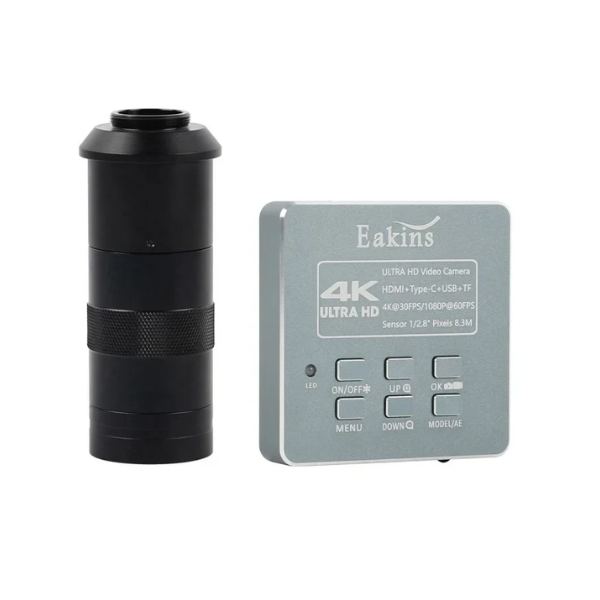

• 1 × Digital Microscope Camera
• 1 × C-MOUNT Lens (Old 130x)
• 1 × Power Adapter

What Makes This a Smart Buy:

With 4K HDMI output, USB connectivity, image capture and versatile C/CS lens compatibility, this microscope camera is well suited to detailed electronics and repair work. Its adjustable imaging controls and optional illumination make it a flexible solution for both inspection and documentation.
