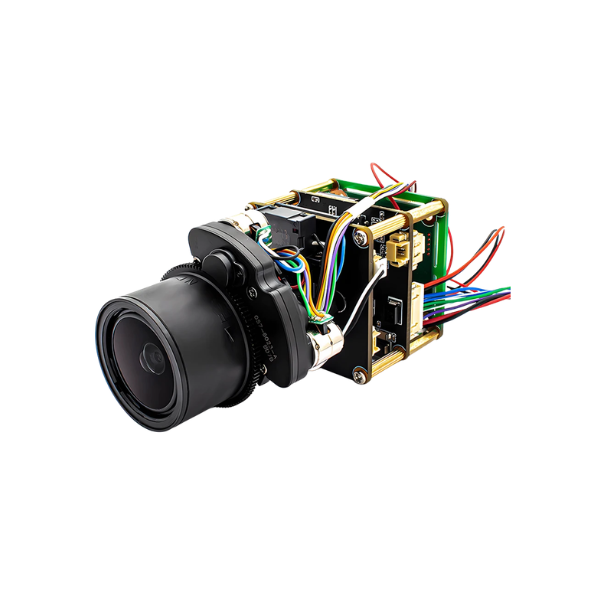

8MP IP Camera Module 5X Zoom Auto Focus PoE

Capture detailed 4K surveillance footage with a compact 8MP IP camera module designed for flexible security and embedded applications. With 5X motorised optical zoom, auto focus, intelligent human detection and PoE connectivity, it provides a powerful combination of clarity, versatility and easy system integration.

Key Features

• 8MP 4K high-definition imaging for detailed surveillance and monitoring

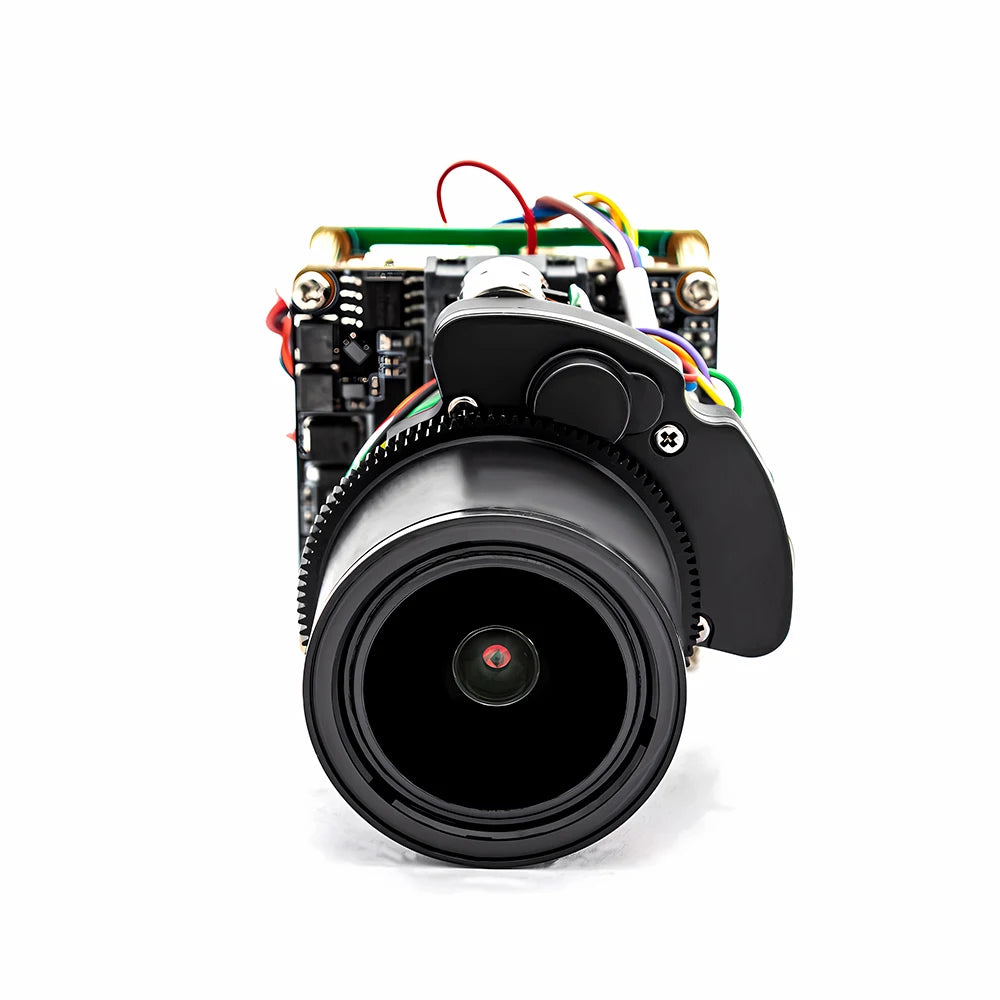

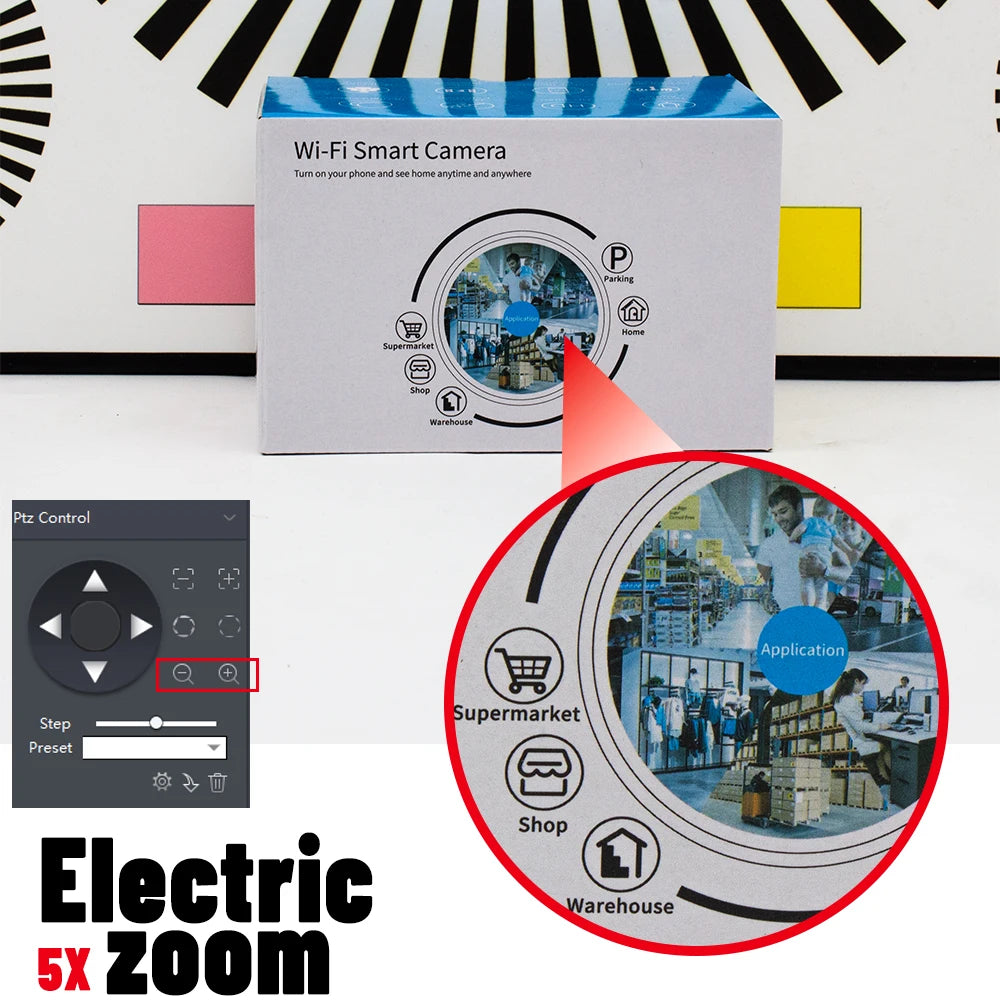

• 5X motorised optical zoom for flexible wide-angle and close-up viewing
• Auto focus helps keep subjects sharp as the lens position changes
• 2.7–13.5mm motorised zoom lens for adaptable viewing coverage
• PoE connectivity allows power and network data to be delivered through a compatible Ethernet connection
• Supports H.265+, H.265 and H.264 video compression for efficient bandwidth and storage use
• HDR support helps retain more detail in bright, dark and backlit scenes

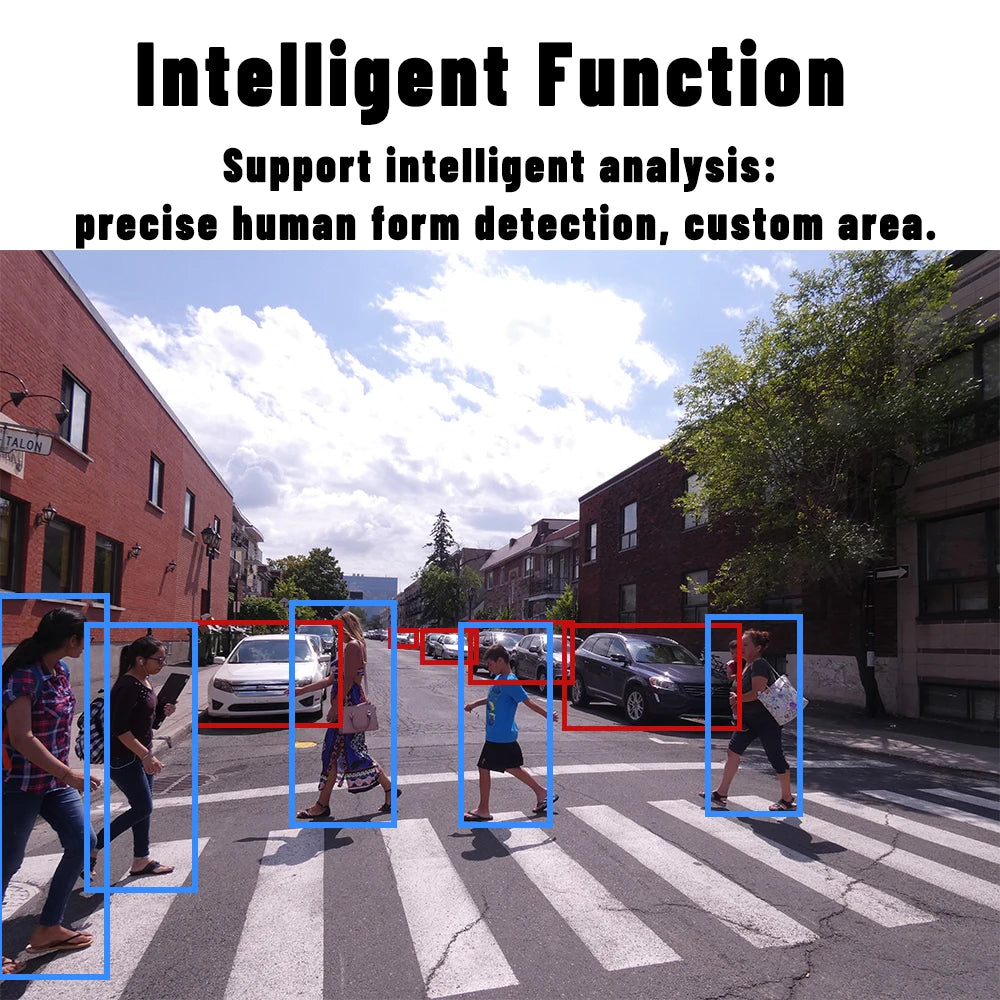

• Intelligent human detection helps improve alert accuracy
• Customisable detection areas for targeted monitoring
• Day and night operation with integrated IRCUT switching
• Supports infrared and warm-light control for flexible lighting configurations
• Two-way audio support with audio input and output
• ONVIF, RTSP and other network protocols support integration with compatible surveillance systems
• Mobile monitoring support with compatible iOS and Android systems

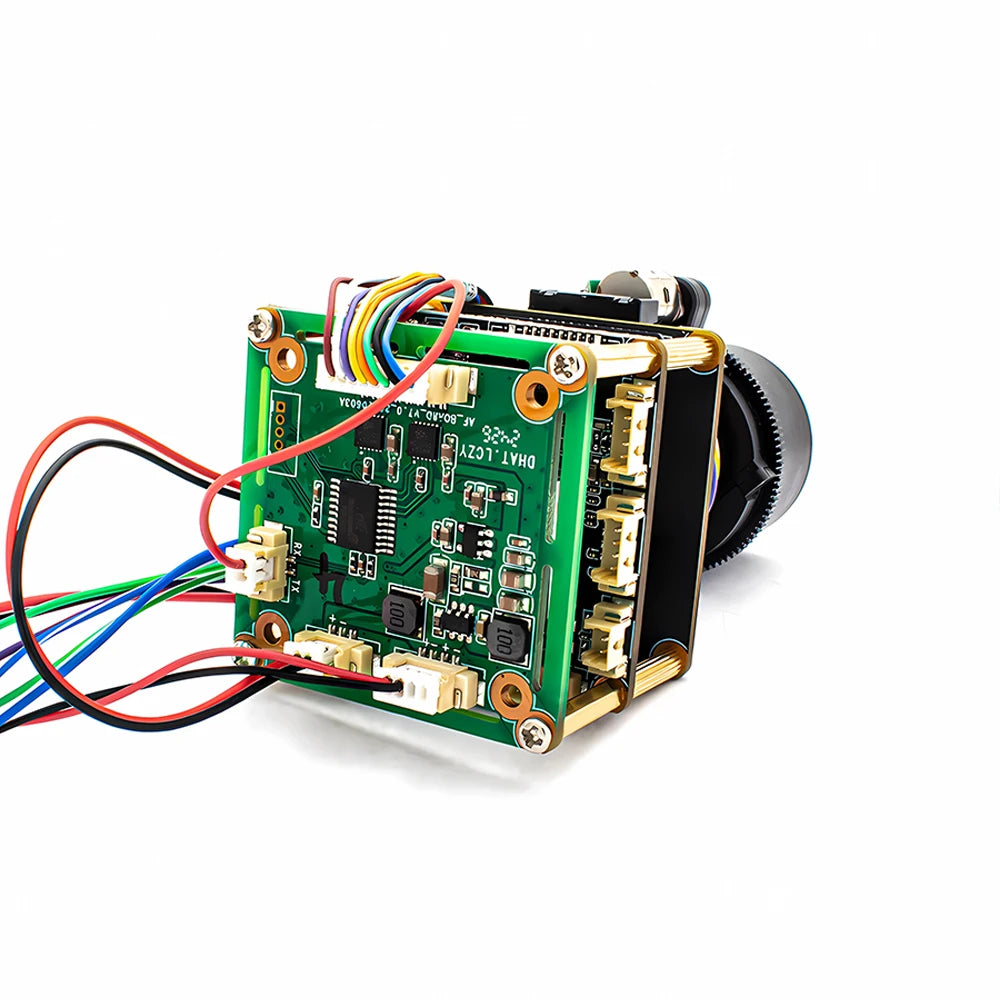

• Compact embedded design for custom security, industrial and electronic applications
• Suitable for machinery, POS systems, display equipment, medical devices, vending machines, access systems and custom surveillance projects

Specifications

• Resolution: 8MP
• Maximum Resolution: 3840 × 2160 at 20FPS
• Image Sensor: 1/2.8-inch CMOS IMX415
• Lens: 2.7–13.5mm motorised zoom
• Zoom: 5X optical zoom
• Focus: Auto focus
• Video Compression: H.265+, H.265, H.264
• Frame Rate: Up to 20FPS at 4K
• Network Interface: 1 × RJ45 Ethernet, 10/100M adaptive
• Power: PoE compatible; DC12V input
• Audio: 1-channel audio input and 1-channel audio output
• Network Protocols: HTTP, RTSP, DHCP, NTP, ONVIF and P2P
• Smart Detection: Human detection, custom area detection and alarm functions
• Day/Night Control: Integrated IRCUT switching
• Lighting Control: CDS, PWM infrared and PWM warm light
• Mobile Monitoring: Compatible with supported iOS and Android systems
• Installation: Embedded
• Colour: Black
• Operating Temperature: -40°C to +85°C
• Dimensions: Approximately 38 × 38mm
• Storage: No internal storage

Package Contents

• 1 × 8MP IP Camera Module (POE48V)

What Makes This a Smart Buy:

This 8MP 4K module delivers detailed imaging with the flexibility of 5X motorised zoom and auto focus in a compact form factor. Its PoE capability, intelligent detection and broad network compatibility make it a versatile solution for custom security systems, industrial equipment and specialist monitoring applications.
