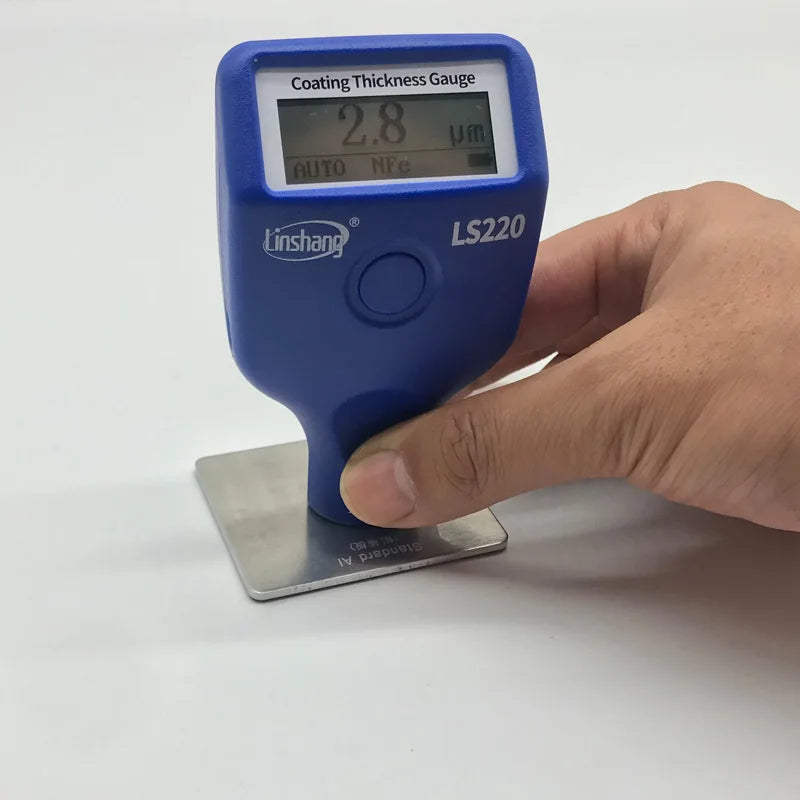

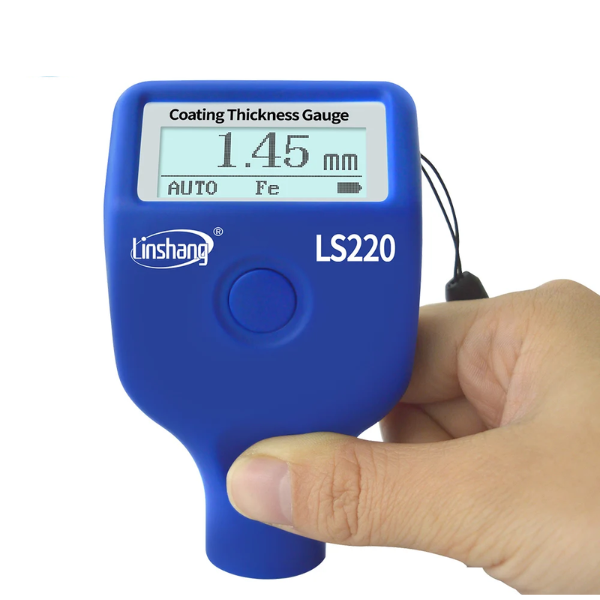

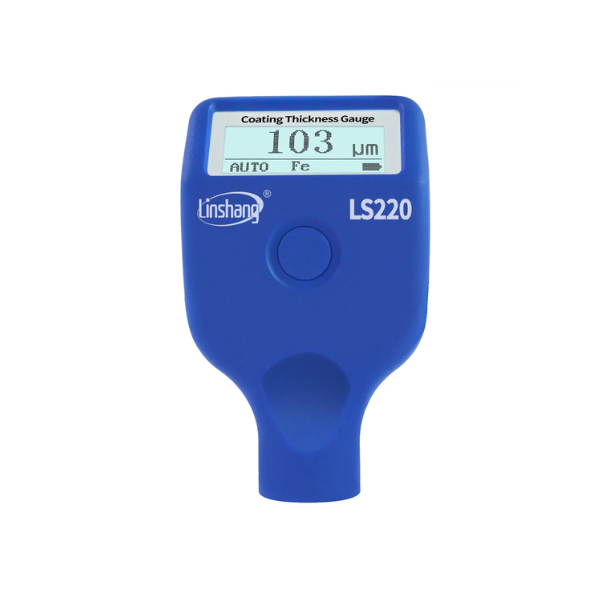

Auto Coating Thickness Gauge 2000μm Fe NFe Metal Tester

Inspect paint and coating thickness quickly with this compact digital coating thickness gauge. Designed for both ferrous and non-ferrous metal substrates, it measures coatings such as paint, varnish, enamel, chrome and galvanising with a fast 0.5-second measuring interval.

Key Features

• Dual Measurement Technology: Uses Hall Effect measurement for ferrous substrates and eddy current measurement for non-ferrous substrates
• Wide 0–2000μm Range: Suitable for measuring a broad range of coating thicknesses
• Automatic Substrate Detection: Automatically identifies Fe and NFe substrates and switches measurement modes
• Versatile Coating Testing: Measures non-magnetic coatings on steel or iron and non-conductive coatings on aluminium, copper, brass and other non-magnetic metals
• Fast Measurements: Provides readings at approximately 0.5-second intervals for efficient inspection
• High Measurement Accuracy: Accuracy of ≤±(3% of reading + 2μm)
• Fine Resolution: Provides 0.1μm resolution for thin coatings, with progressively adjusted resolution across the measurement range

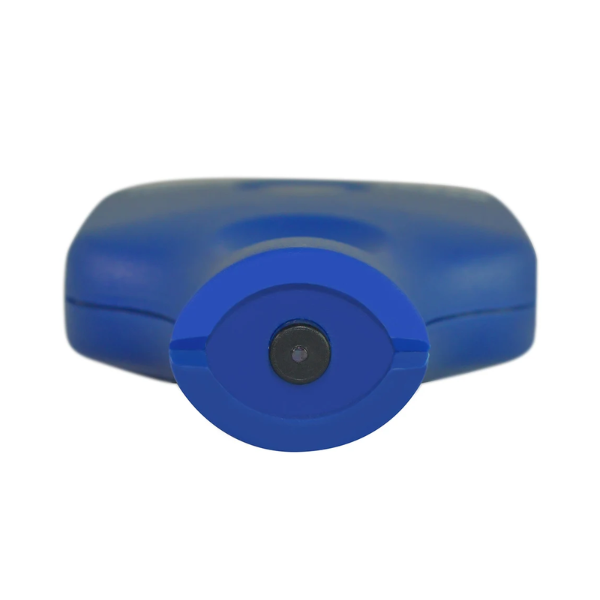

• Ruby Probe Tip: Wear-resistant ruby fixed probe tip is designed for repeated measurement use
• Simple Operation: One-button operation with zero adjustment makes routine thickness checks straightforward
• Temperature Compensation: Helps maintain reliable measurement performance across the specified operating temperature range
• Backlit LCD: EL backlight makes measurements easier to read in different lighting conditions
• Multiple Measurement Modes: Supports Fe, NFe and automatic Fe/NFe measurement modes

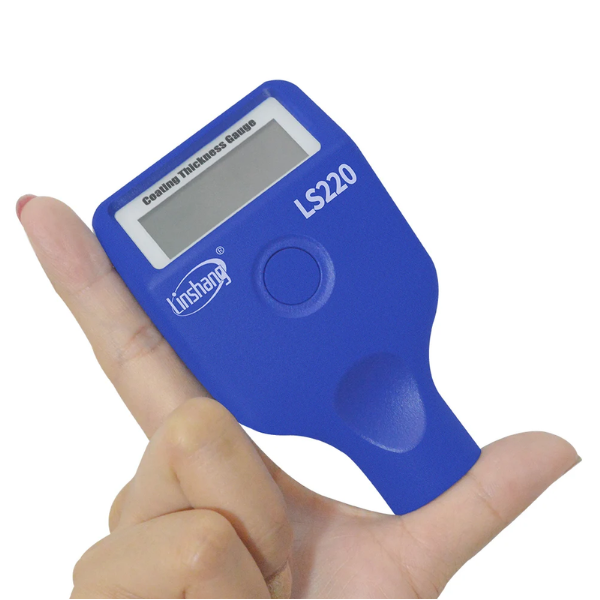

• Compact and Lightweight: Weighing just 79g, it is easy to carry for mobile inspection work
• Built-In Probe: Integrated probe design keeps the gauge compact and ready for quick measurements
• Data Storage: Stores up to 20 files with up to 99 measurement values per file

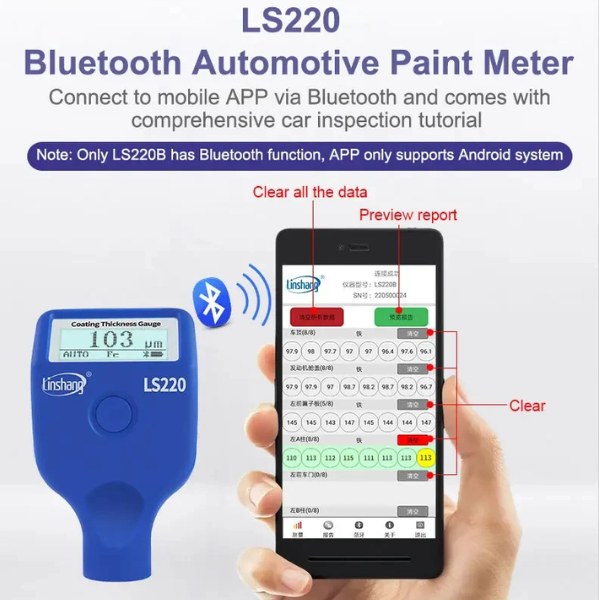

• RS232 Connectivity: Serial communication interface allows compatible data transfer applications

Specifications

• Product Type: Digital Coating Thickness Gauge
• Model: LS220
• Measuring Principle: Fe Hall Effect / NFe Eddy Current
• Probe Type: Built-in integrated probe
• Probe Tip: Ruby fixed
• Measurement Range: 0.0–2000μm
• Resolution: 0.1μm (0–99.9μm) / 1μm (100–999μm) / 0.01mm (1.00–2.00mm)
• Accuracy: ≤±(3% reading + 2μm)
• Measurement Units: μm / mil
• Measurement Interval: 0.5 seconds
• Measurement Modes: Fe / NFe / Fe-NFe
• Minimum Measuring Area: Ø25mm
• Minimum Convex Curvature: 5mm
• Minimum Concave Curvature: 25mm
• Minimum Substrate Thickness: Fe 0.2mm / NFe 0.05mm
• Display: 128 × 48 dot matrix LCD with EL backlight
• Data Storage: Up to 20 files, up to 99 values per file
• Communication: RS232 serial port
• Operating Temperature: 0°C–50°C
• Storage Temperature: -20°C–60°C
• Host Dimensions: 101 × 62 × 28mm
• Probe Dimensions: 71 × 26 × 22mm
• Weight: 79g
• Power Supply: 2 × 1.5V AAA alkaline batteries, not included

Package Contents

• Digital Coating Thickness Gauge

What Makes This a Smart Buy:

With automatic Fe/NFe detection, fast readings and a 0–2000μm measurement range, this gauge is a practical choice for checking automotive paint, industrial coatings and metal finishes. Its compact design and simple one-button operation make coating inspections quick and convenient.
