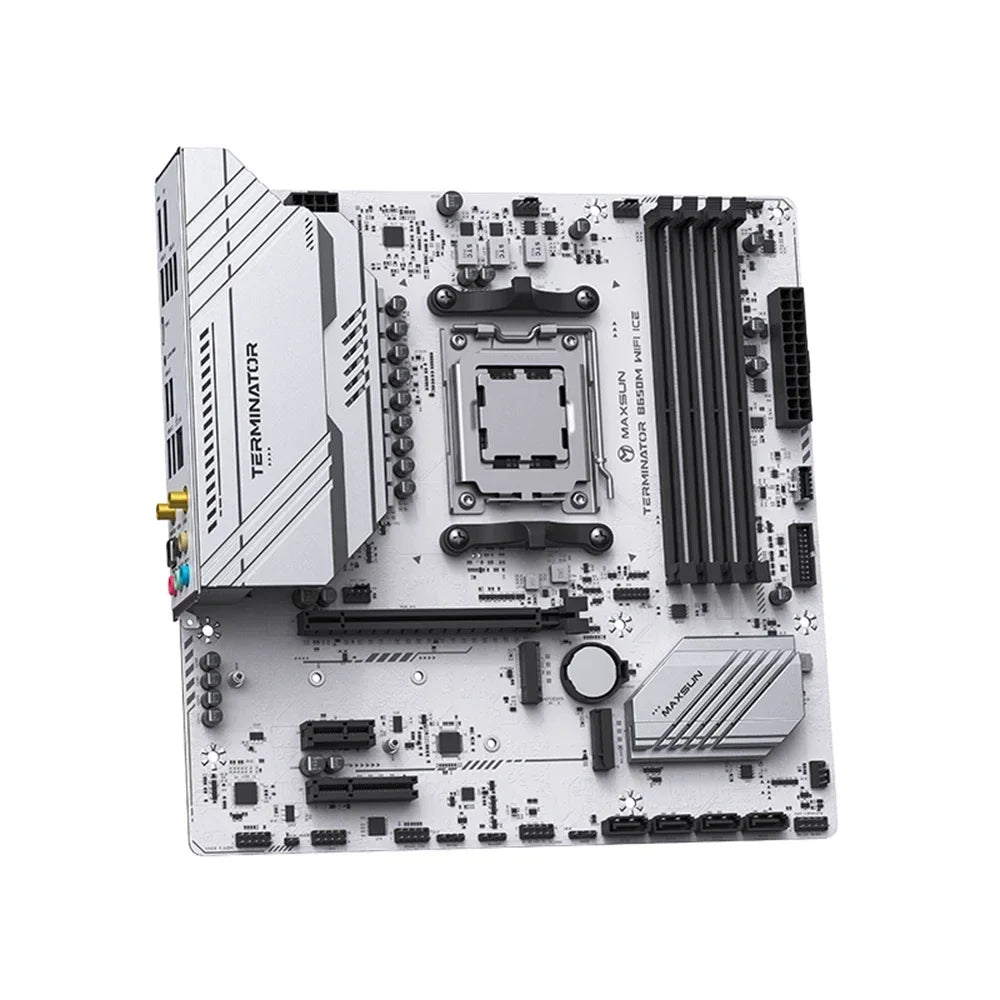

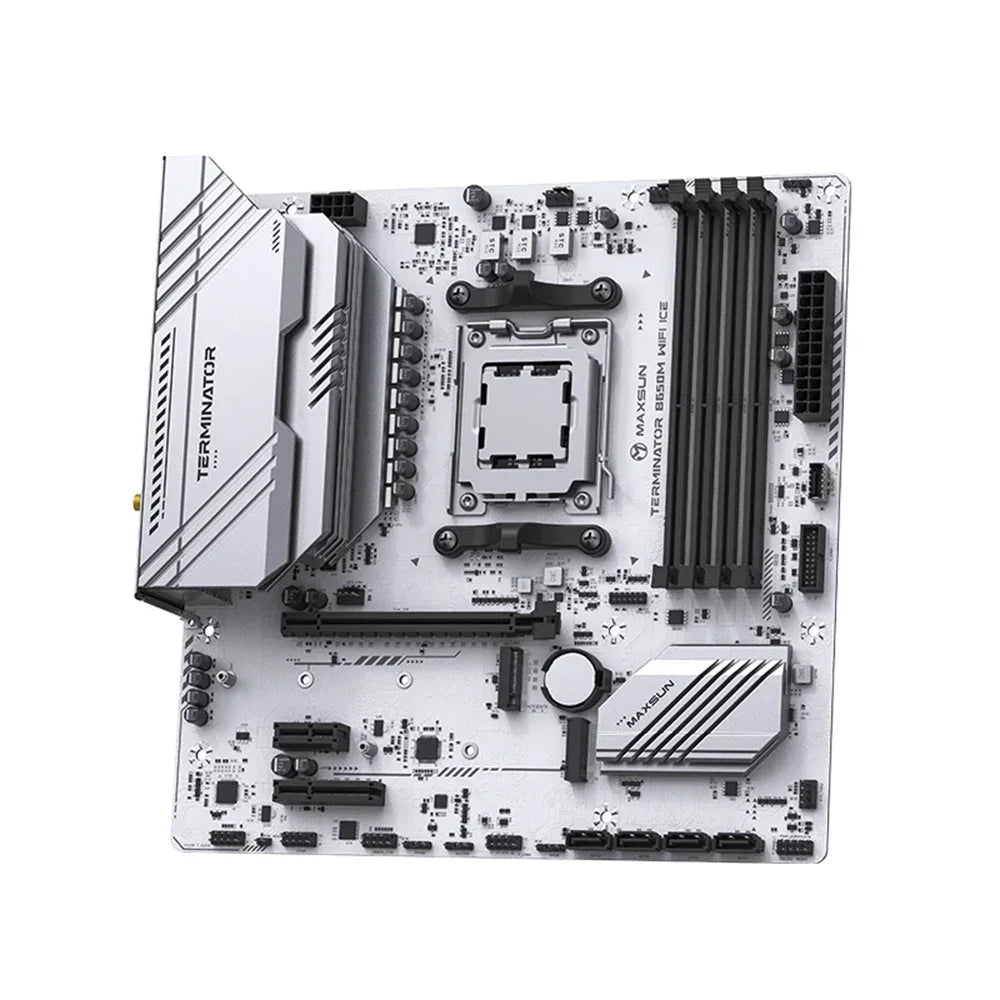

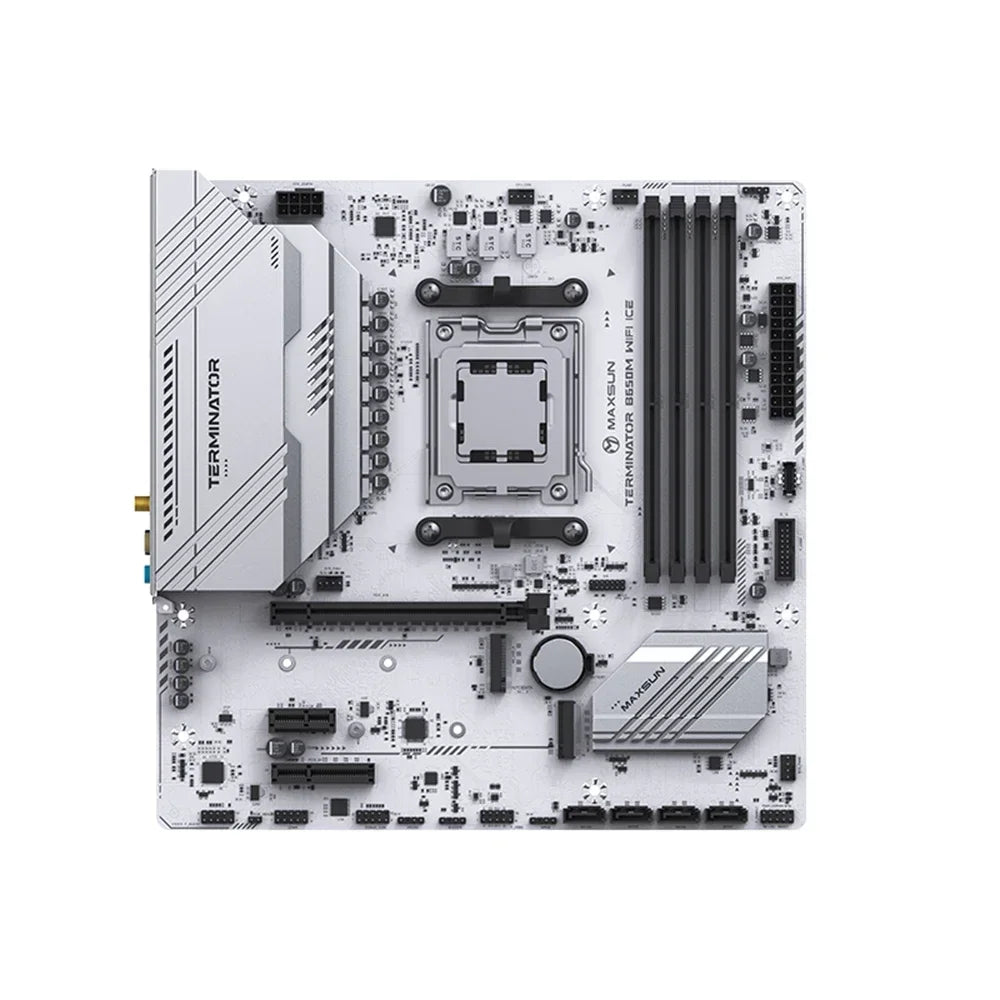

B650M AM5 WiFi DDR5 Motherboard 192GB

Upgrade your desktop build with a compact MicroATX motherboard designed for modern AMD Ryzen processors and high-speed DDR5 memory. With WiFi 6, PCIe 5.0, dual M.2 storage support and up to 192GB RAM, it provides a versatile foundation for gaming, productivity and content creation.

Key Features

• Supports AMD Ryzen 7000, 8000 and 9000 Series processors with Socket AM5
• AMD B650 chipset delivers a strong platform for modern desktop builds

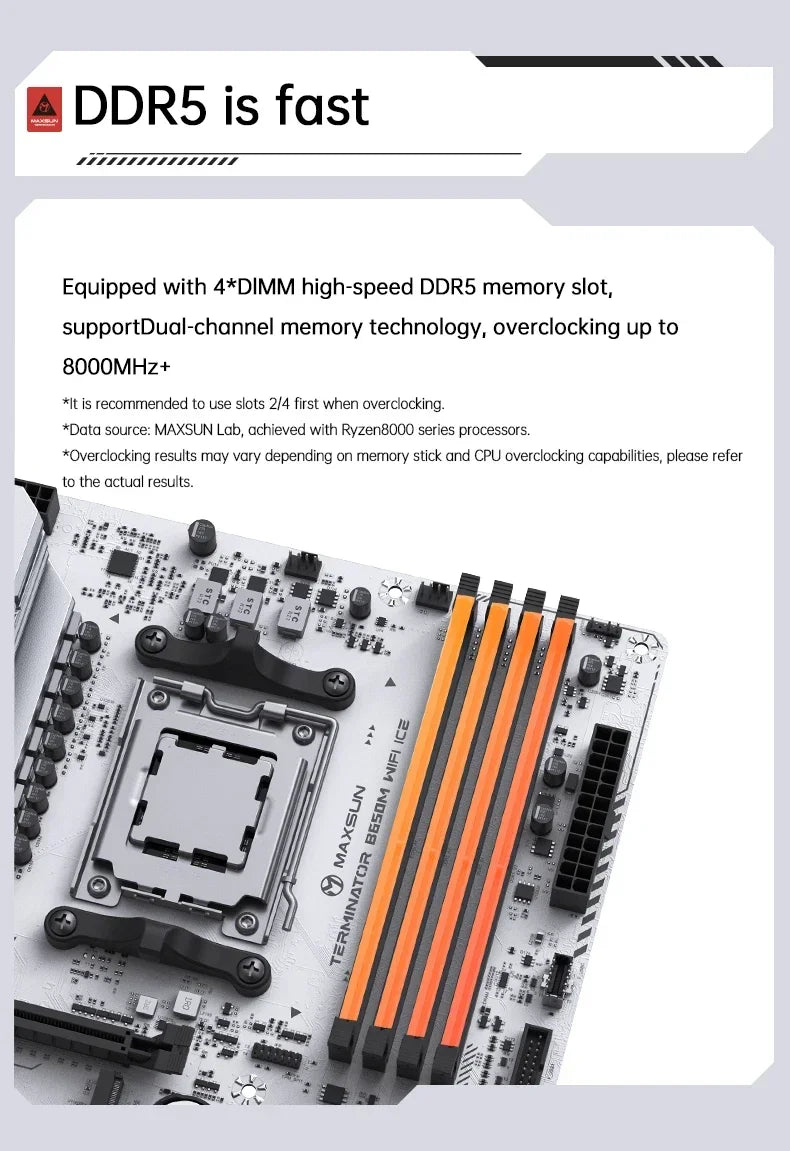

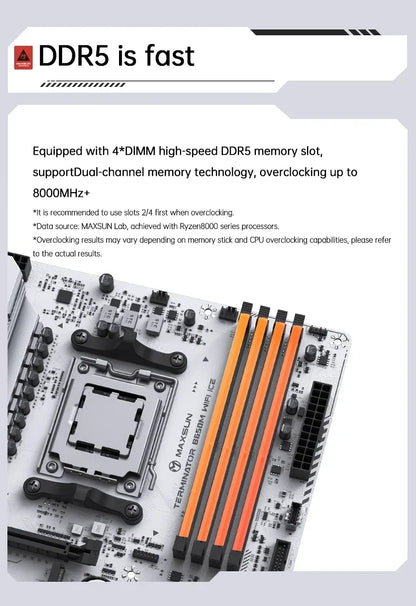

• Four DDR5 DIMM slots support up to 192GB of memory
• Supports DDR5 4800MHz, 5200MHz and higher overclocked memory frequencies

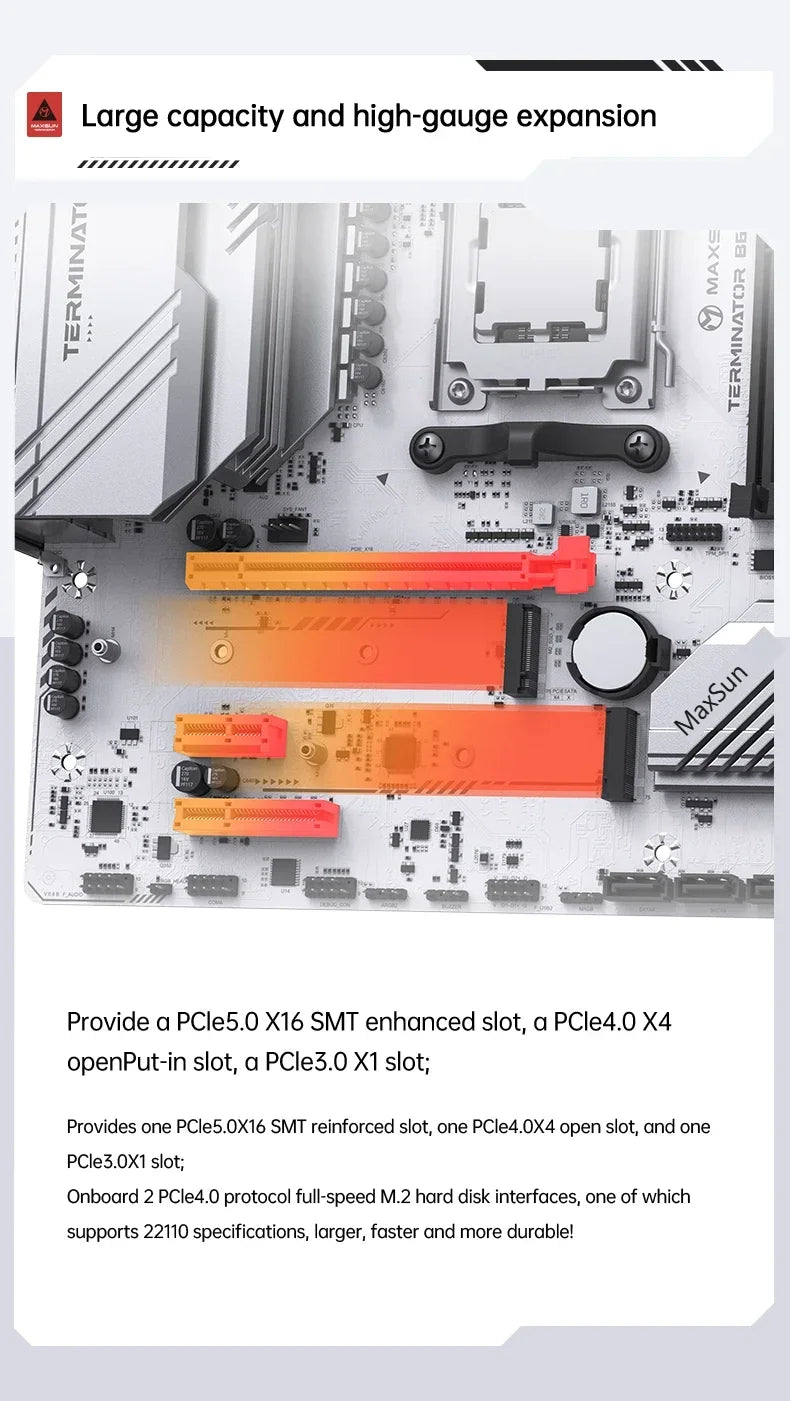

• PCIe 5.0 x16 slot supports modern dedicated graphics cards
• Additional PCIe 4.0 x4 and PCIe 3.0 x1 expansion slots

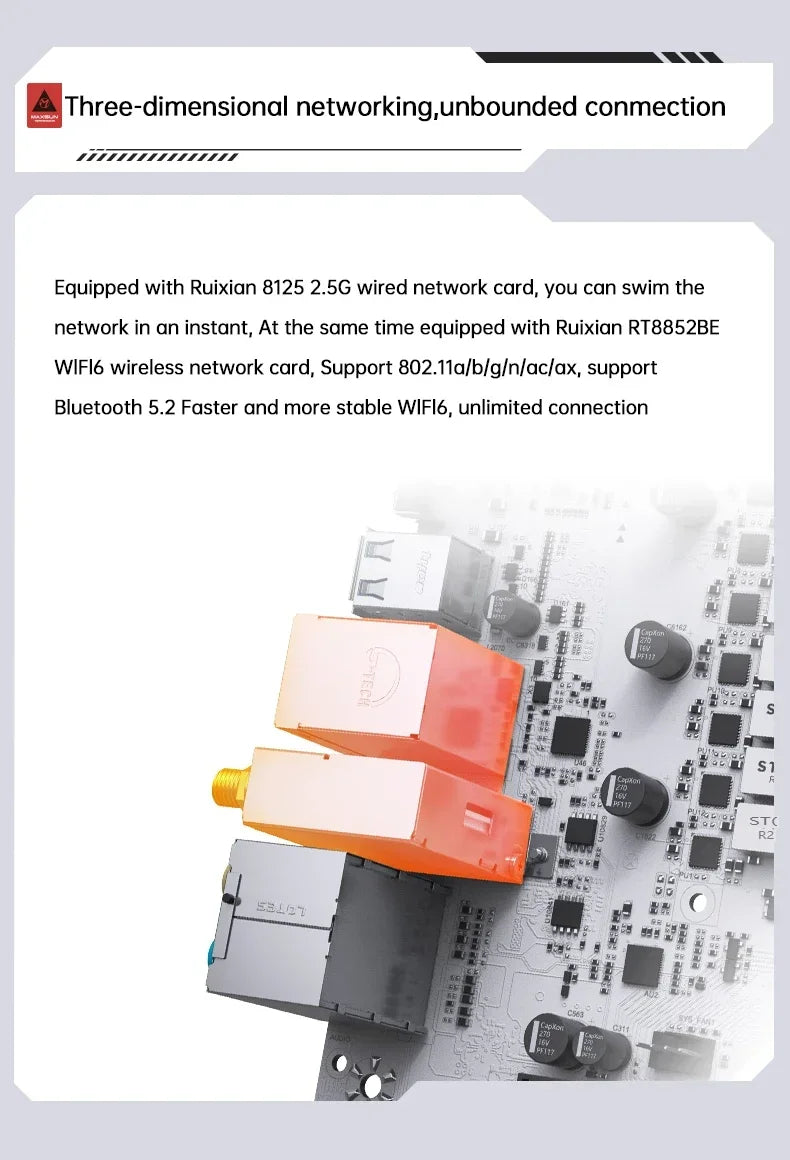

• Built-in WiFi 6 provides fast and convenient wireless connectivity
• Bluetooth 5.2 supports compatible wireless peripherals and accessories
• 2.5Gb Ethernet provides high-speed wired networking
• Dual M.2 slots support fast NVMe SSD storage in 2280 and 22110 formats
• Four SATA 3.0 ports provide additional storage connectivity
• HDMI and DisplayPort outputs support high-resolution displays

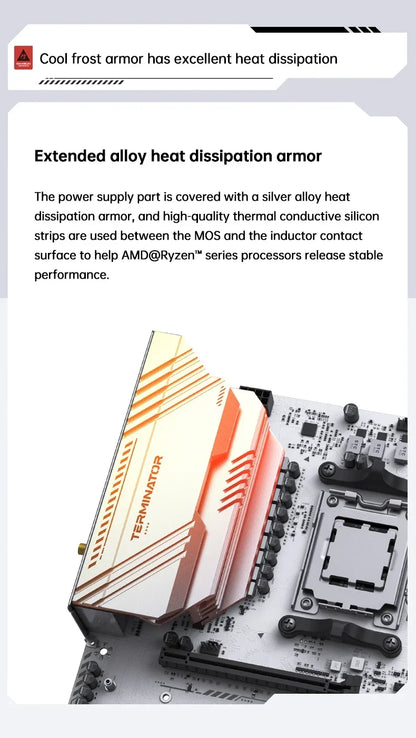

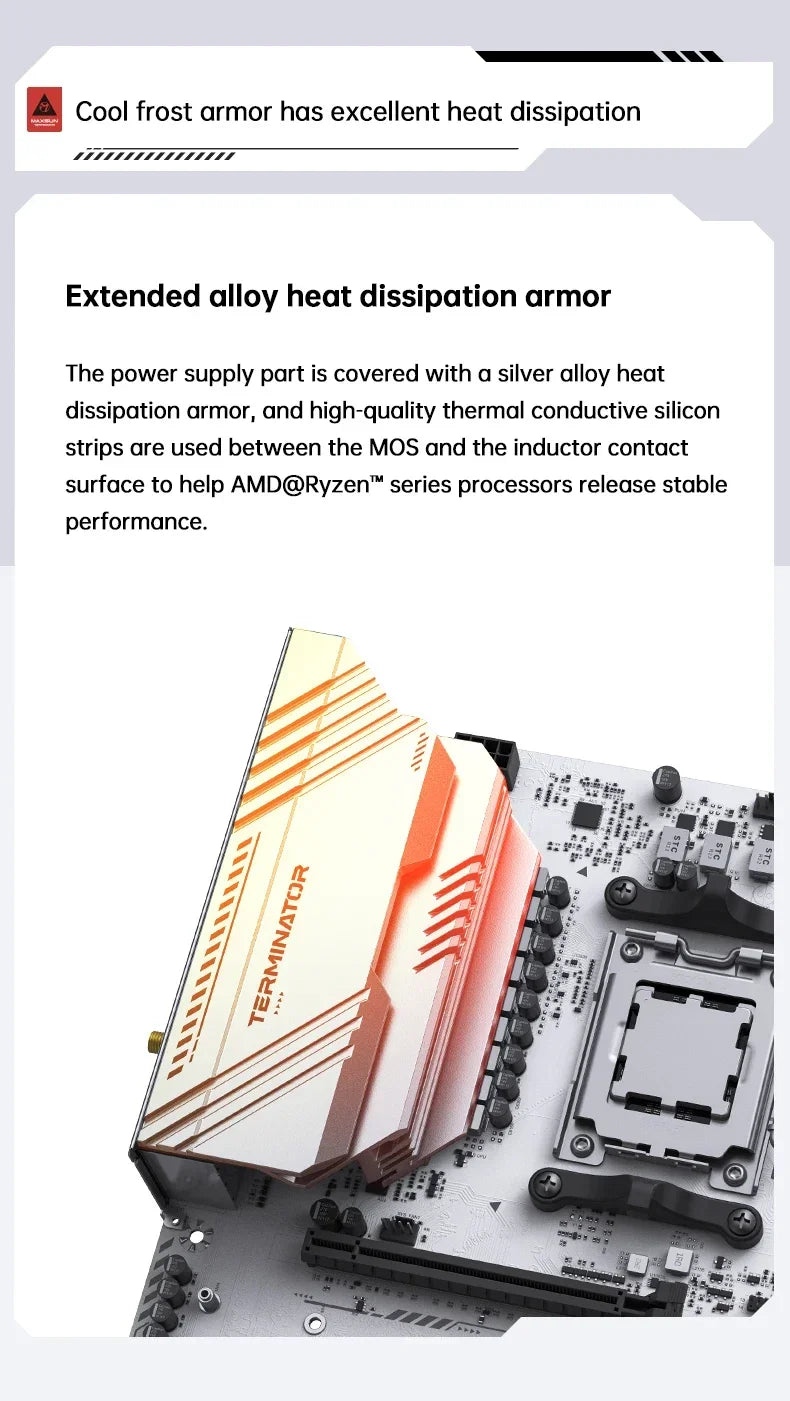

• Integrated cooling features help manage heat during demanding workloads
• Intelligent fan control supports automated temperature-based cooling
• Suitable for gaming, video production, enthusiast builds and everyday office use

Specifications

• Form Factor: MicroATX
• Dimensions: 245 x 245mm
• CPU Socket: AM5
• Chipset: AMD B650
• Supported Processors: AMD Ryzen 7000, 8000 and 9000 Series
• Maximum CPU TDP: 170W
• Memory Type: DDR5
• Memory Slots: 4 DIMM
• Maximum Memory Capacity: 192GB
• Memory Configuration: Dual-channel
• Supported Memory Speed: 4800MHz / 5200MHz / OC+
• PCIe x16: 1 x PCIe 5.0
• PCIe x4: 1 x PCIe 4.0
• PCIe x1: 1 x PCIe 3.0
• M.2 Slots: 2, supporting 2280/22110 NVMe SSDs
• SATA Ports: 4 x SATA 3.0
• Wired Network: 2.5Gb Ethernet
• Wireless Network: WiFi 6
• Bluetooth: 5.2

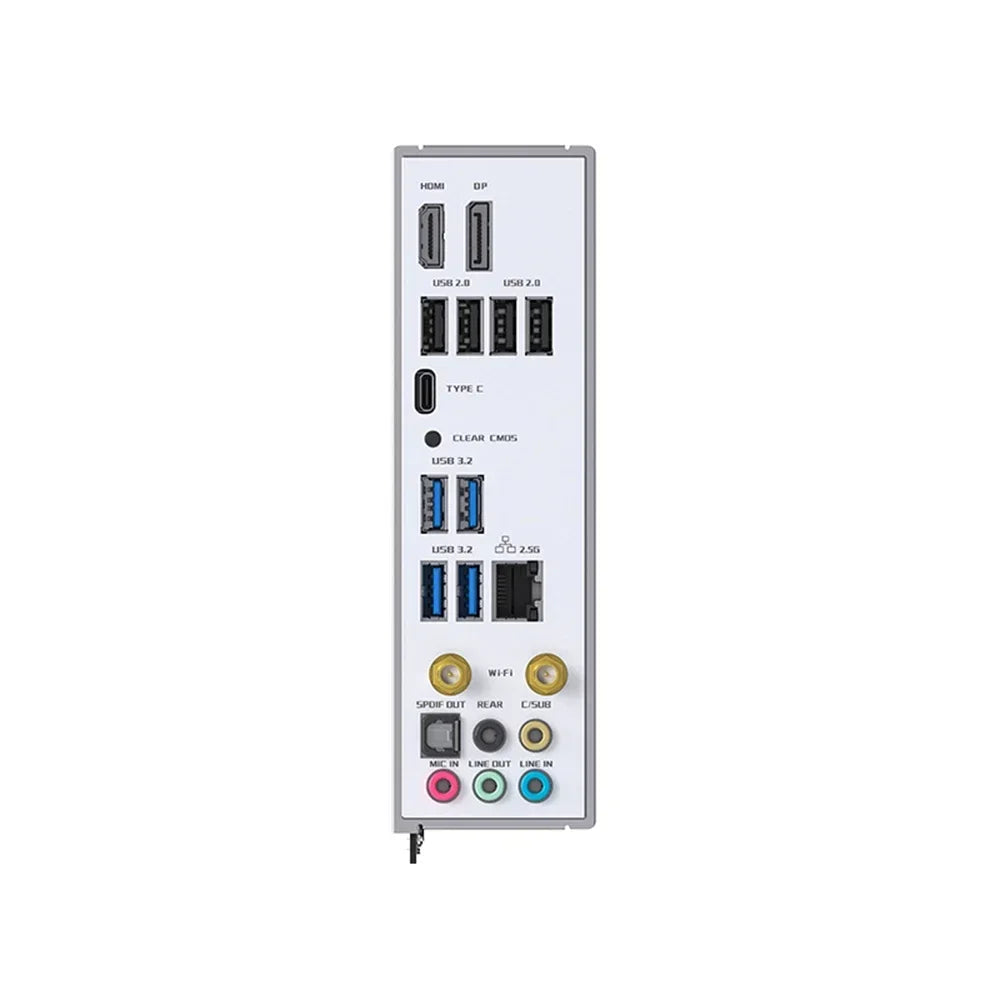

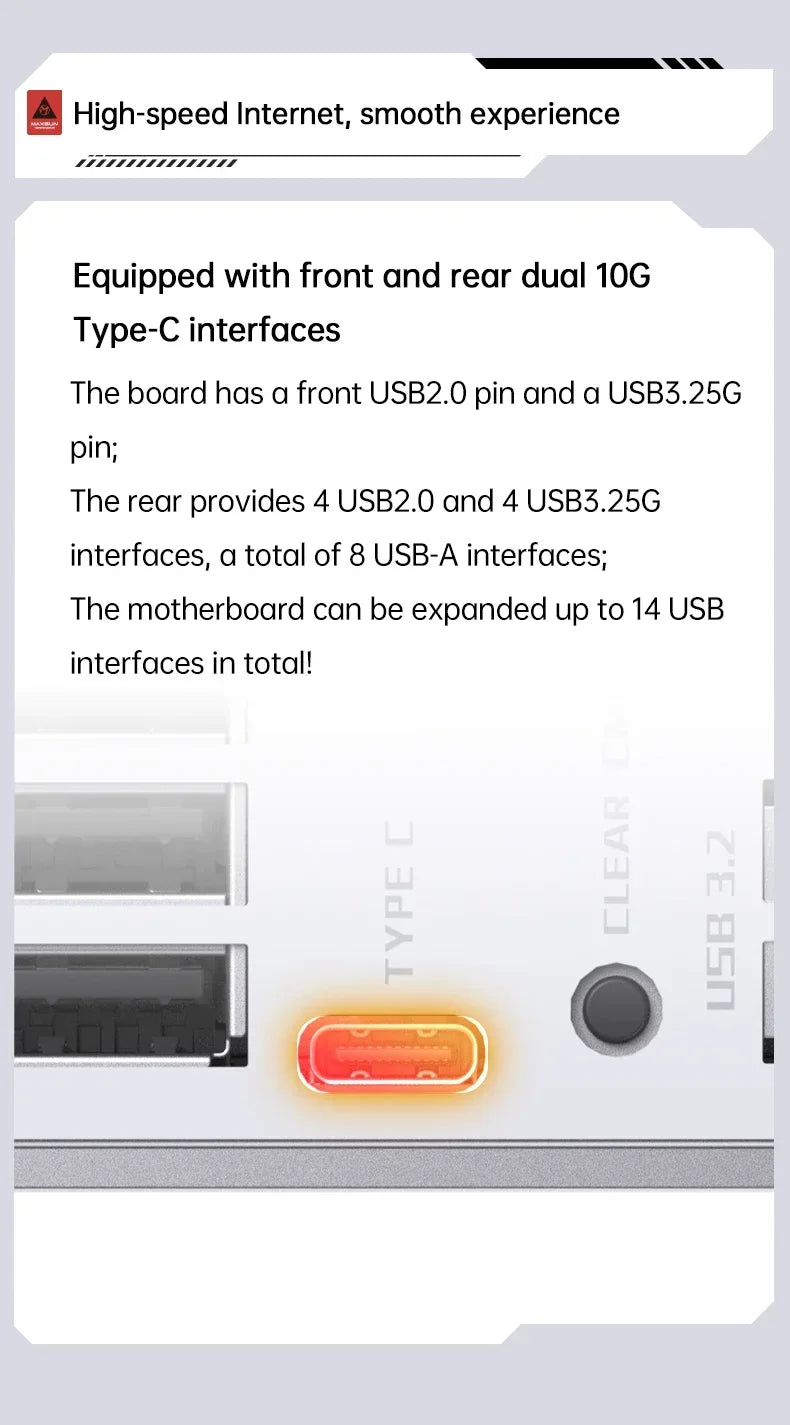

• Rear USB: 4 x USB 3.2 Gen 1, 4 x USB 2.0, 1 x USB Type-C 10Gbps
• Video Outputs: 1 x HDMI 1.4, 1 x DisplayPort
• HDMI Maximum Resolution: 4096 x 2160 @ 30Hz
• DisplayPort Maximum Resolution: 4096 x 2160 @ 60Hz
• Audio: Integrated high-definition audio with optical output
• Operating System Support: Windows 10 64-bit, Windows 11 64-bit and Ubuntu 64-bit

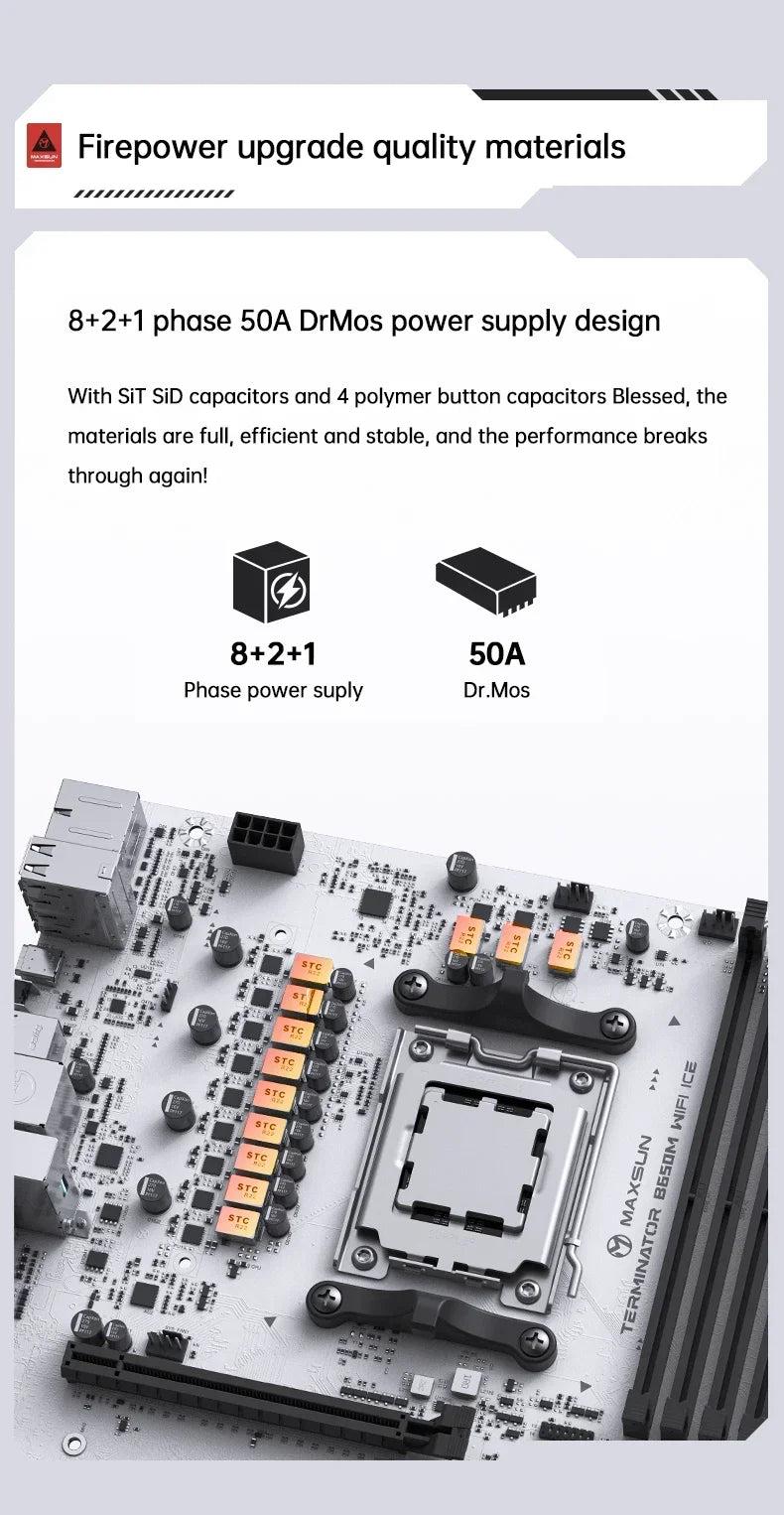

• Power Connectors: 24-pin ATX and 8-pin ATX 12V
• CPU Cooling: 1 x CPU fan header and 1 x pump fan header
• System Cooling: 2 x system fan headers
• Weight: Approx. 864.8g

Package Contents

• 1 x B650M AM5 MicroATX Motherboard

What Makes This a Smart Buy:
A versatile foundation for building or upgrading a modern AMD desktop, with DDR5 support, WiFi 6, PCIe 5.0 and dual NVMe storage connectivity. Its compact MicroATX design packs plenty of expansion and connectivity into a space-efficient platform for gaming, work and creative applications.
