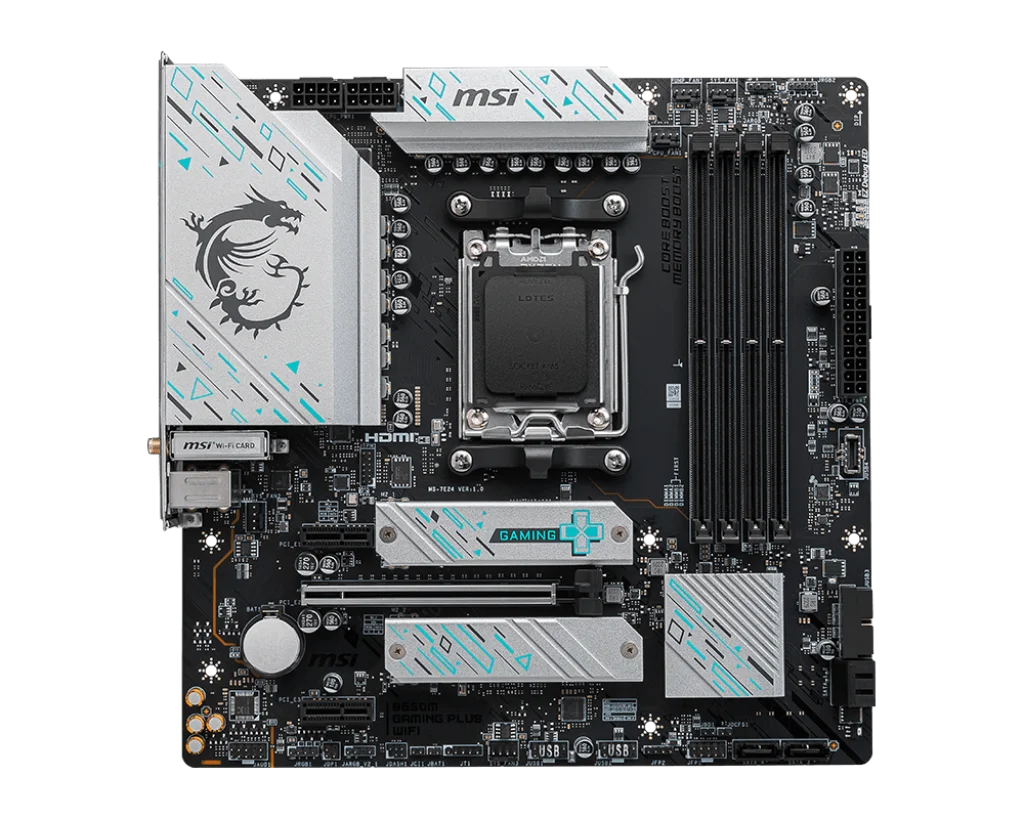

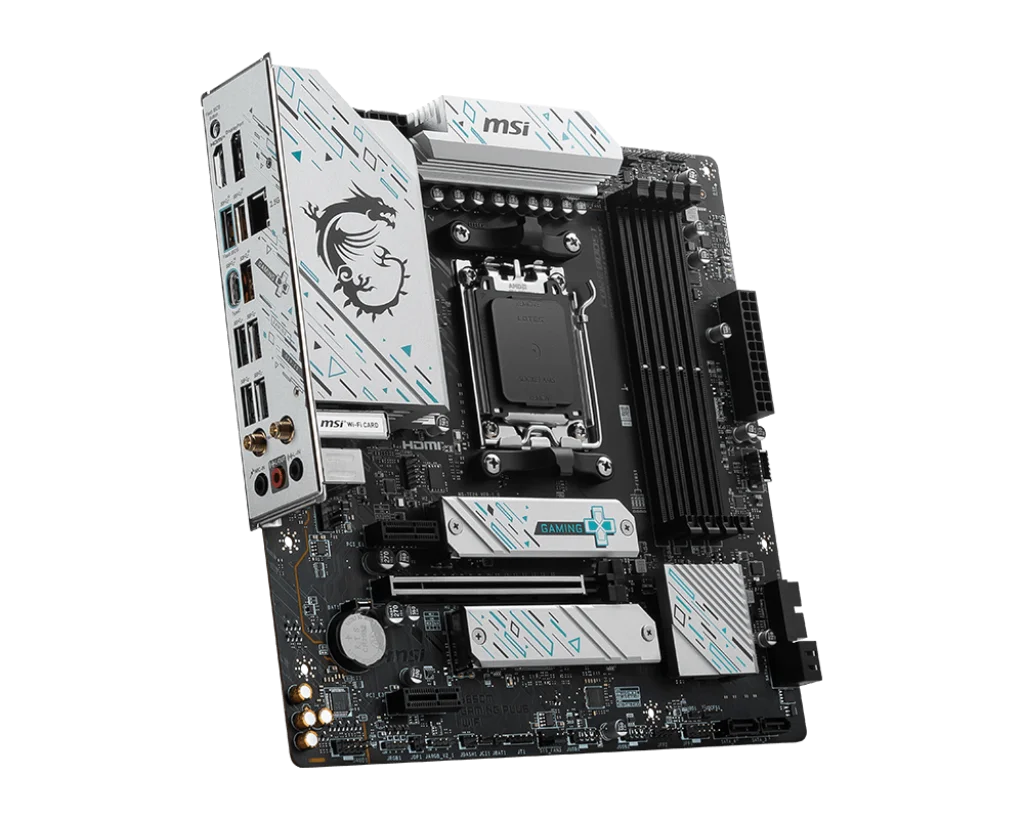

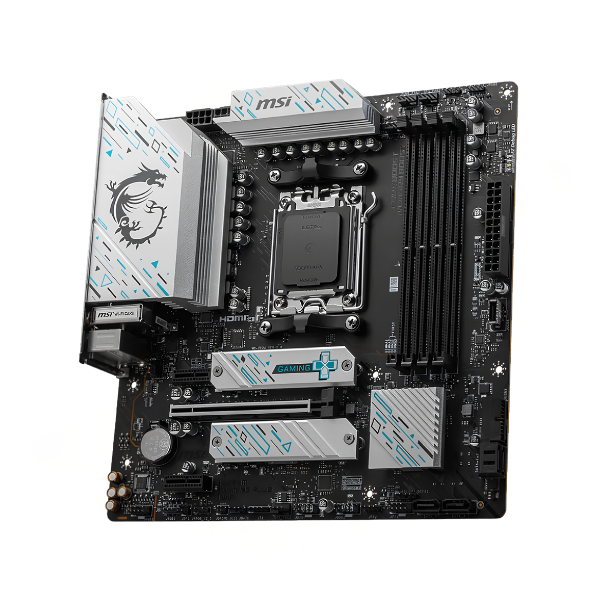

B650M Gaming Plus WiFi AM5 DDR5 Motherboard

Build a powerful, modern desktop with a compact B650M motherboard designed for AMD Ryzen processors and high-speed DDR5 memory. With Wi-Fi 6E, PCIe 4.0, dual M.2 storage and 2.5Gbps LAN, it provides a strong foundation for gaming, content creation and everyday computing.

Key Features

• AMD AM5 Platform: Supports AMD Ryzen 7000 and 8000 Series desktop processors for a capable modern PC build
• High-Speed DDR5: Supports up to DDR5-7200+ MHz (OC) for responsive performance and efficient multitasking
• Up to 192GB RAM: Four DDR5 DIMM slots support high-capacity memory configurations
• PCIe 4.0 Performance: High-bandwidth PCIe 4.0 connectivity provides fast data transfer for compatible components
• Dual M.2 Storage: Two M.2 Gen4 x4 slots support fast NVMe SSD storage for quicker boot and load times

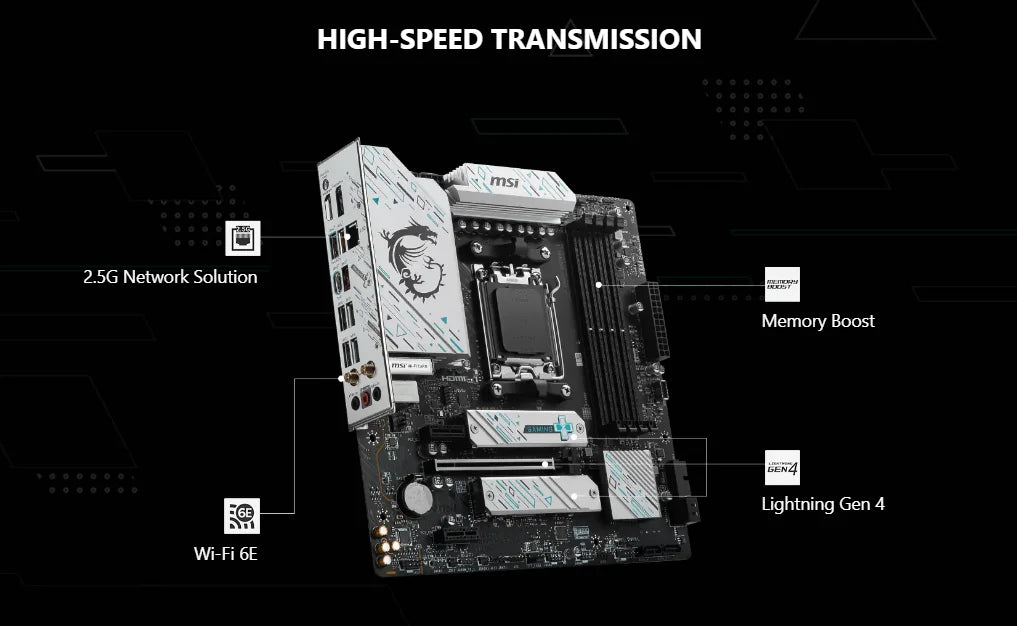

• 2.5Gbps LAN: High-speed wired networking is ideal for gaming, streaming, large file transfers and demanding online use
• Wi-Fi 6E: Fast wireless connectivity with access to the 6GHz spectrum for compatible networks

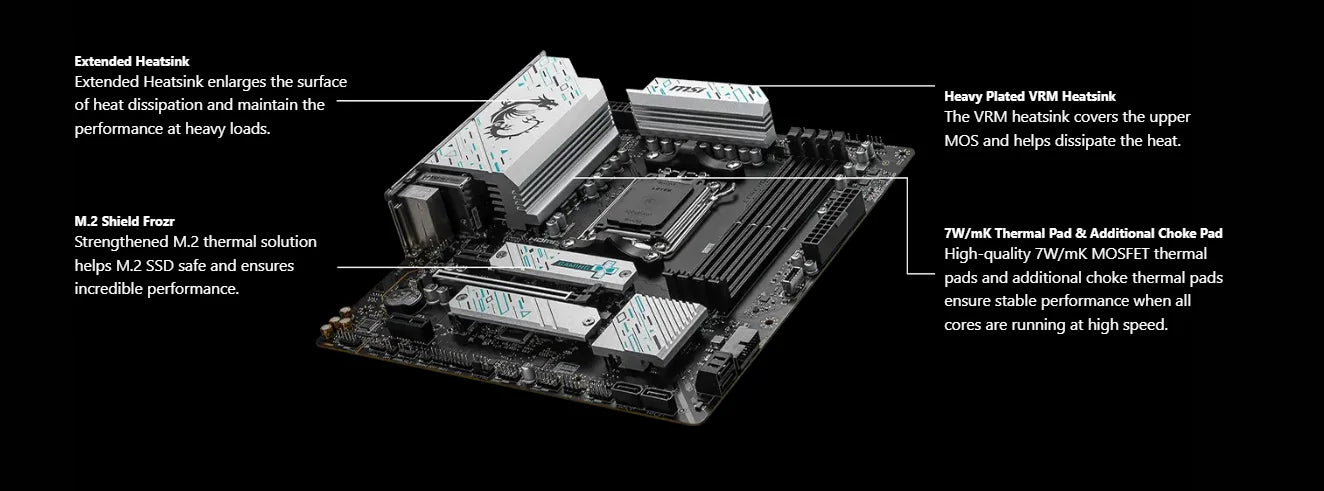

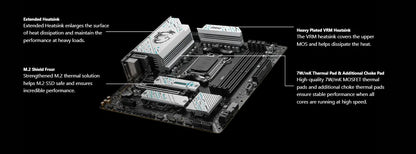

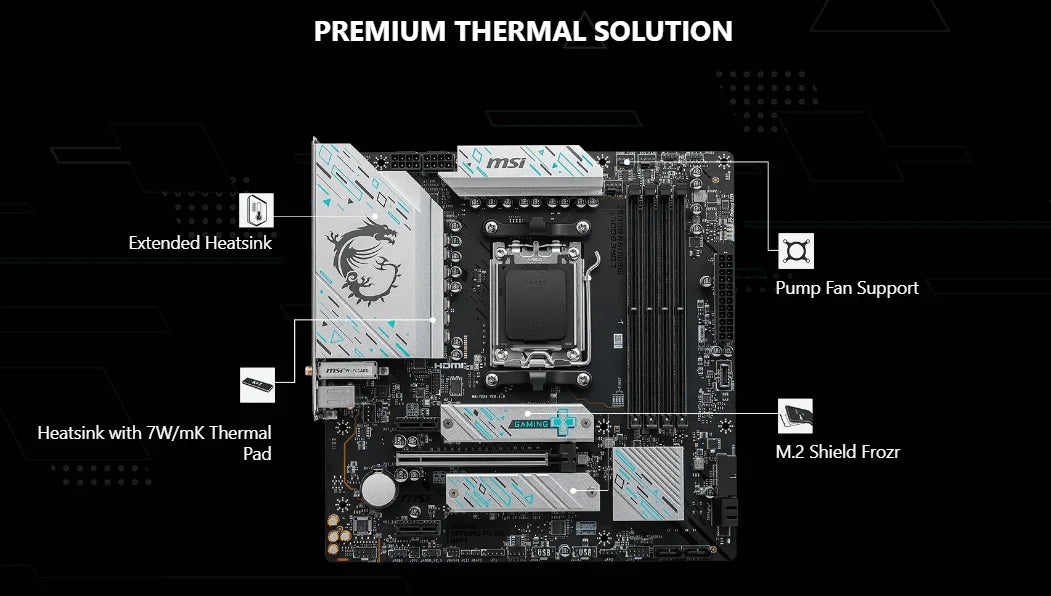

• Enhanced Cooling: Extended heatsinks, VRM cooling and M.2 thermal protection help maintain stable performance under heavy workloads

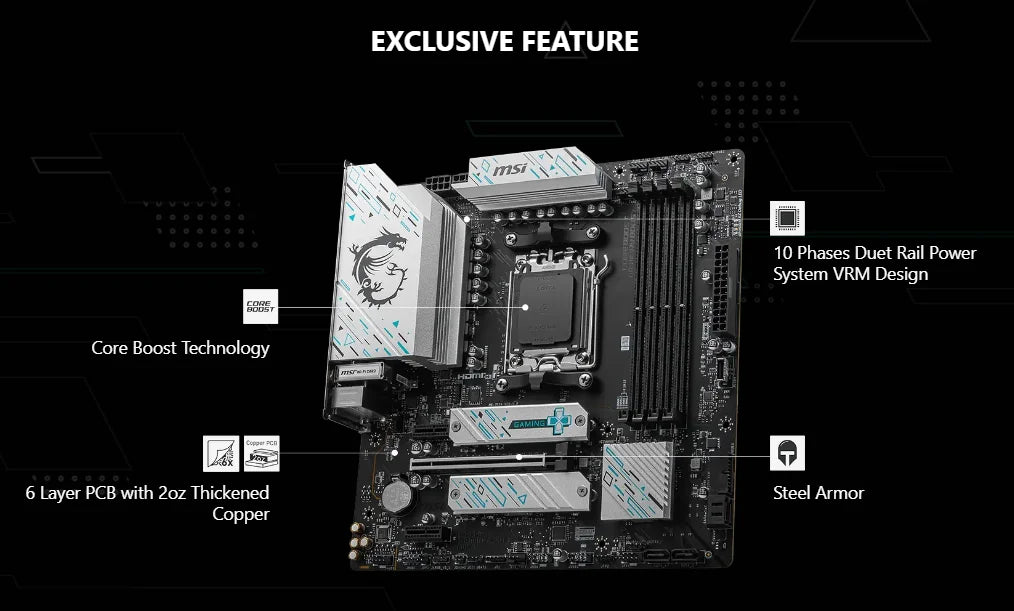

• Strong Power Design: 10-phase power delivery and digital power management help provide reliable power to compatible processors
• Gaming-Ready Audio: 7.1-channel HD audio delivers immersive sound for games, entertainment and multimedia

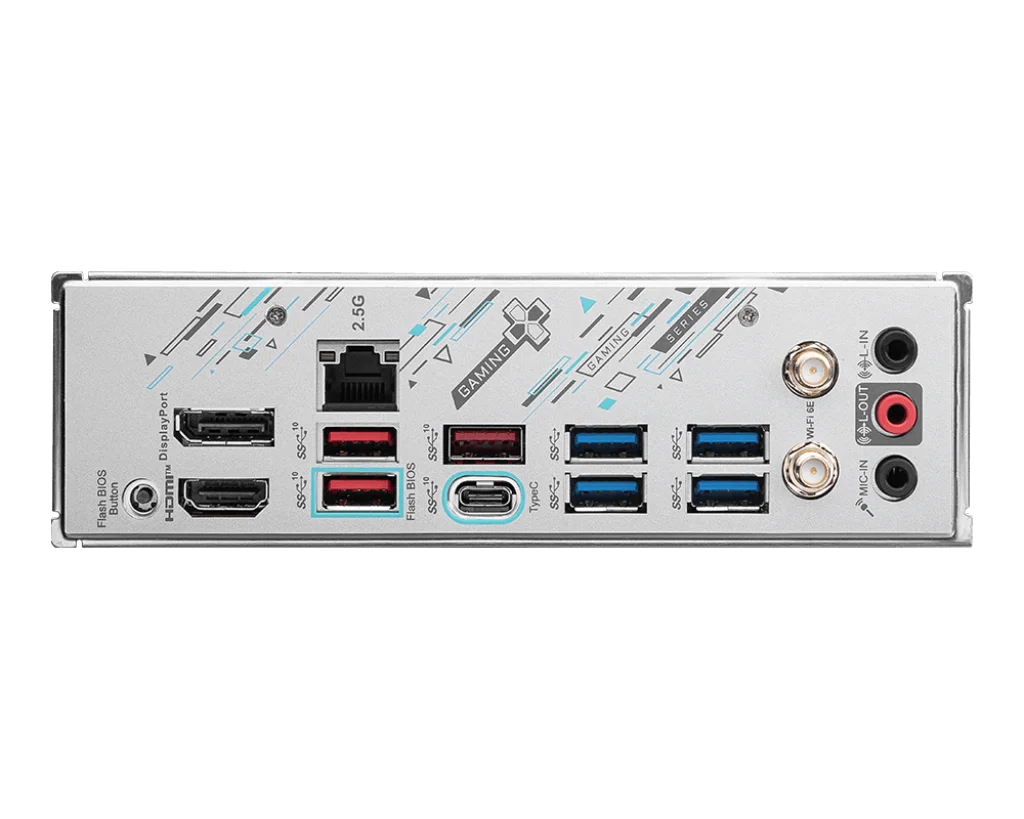

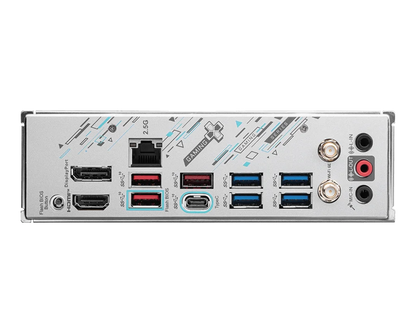

• Multiple USB Connections: Includes USB 3.2 Gen 2, USB 3.2 Gen 1 and USB 2.0 ports for versatile peripheral connectivity
• 4K Display Support: HDMI 2.1 supports up to 4K at 60Hz when paired with a compatible processor featuring integrated graphics
• EXPO Memory Support: Enables convenient memory tuning with compatible DDR5 EXPO profiles

Specifications

• Product Type: Micro-ATX desktop motherboard
• Chipset: AMD B650
• CPU Socket: AM5
• Processor Support: AMD Ryzen 7000 and 8000 Series desktop processors
• Memory Type: DDR5
• Memory Slots: 4 DIMM
• Memory Channel: Dual Channel
• Maximum RAM: Up to 192GB
• Memory Speed: Up to DDR5-7200+ MHz (OC)
• PCIe Standard: PCIe 4.0
• Graphics Slot: 1 x PCIe 4.0 x16
• Additional PCIe Slot: 1 x PCIe x8
• M.2 Slots: 2 x M.2 Gen4 x4
• SATA Ports: 4 x SATA 6Gb/s
• SATA RAID: RAID 0, 1, 10
• LAN: 1 x RJ45 2.5Gbps
• Wireless: Wi-Fi 6E
• HDMI: HDMI 2.1, up to 4K @ 60Hz with supported processor graphics
• DisplayPort: DisplayPort 1.4
• USB 3.2 Gen 2: 5 ports, including 3 x Type-A and 2 x Type-C
• USB 3.2 Gen 1: 6 ports
• USB 2.0: 4 x Type-A
• Audio: 8-channel / 7.1 HD audio
• Supported Uses: Gaming, office, design, audio/video and general desktop computing
• CPU Included: No

Package Contents

• 1 x B650M AM5 DDR5 Motherboard

What Makes This a Smart Buy:

With support for high-speed DDR5, Ryzen AM5 processors, PCIe 4.0 NVMe storage, Wi-Fi 6E and 2.5Gbps networking, this motherboard gives you plenty of room to build a fast and versatile desktop. Its compact Micro-ATX format also makes it well suited to space-conscious gaming and workstation builds.
