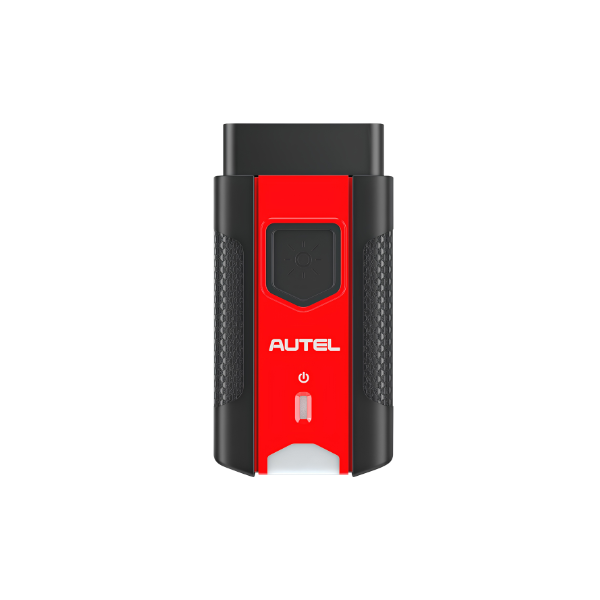

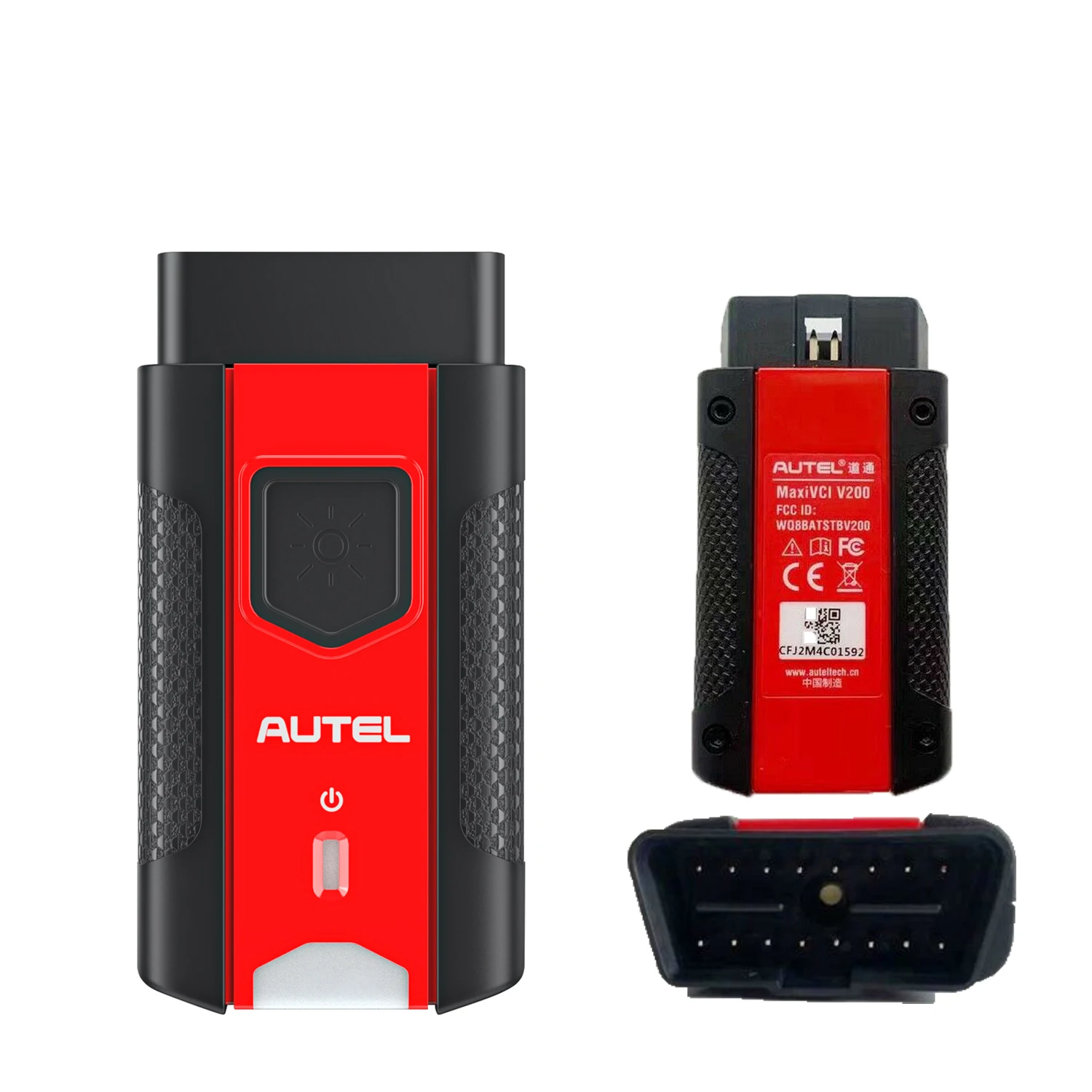

Bluetooth Vehicle Communication Interface CAN FD Diagnostic Connector

This compact Bluetooth vehicle communication interface connects to a vehicle’s OBD-II diagnostic port and communicates wirelessly with compatible diagnostic tablets or a computer. Designed for fast, flexible vehicle data transmission, it helps technicians perform comprehensive diagnostics with greater freedom around the vehicle.

Key Features

• Wireless Bluetooth Connectivity: Connects to compatible diagnostic tablets or computers without the need for a physical data cable.
• CAN FD Support: Enables communication with modern vehicle electronic control units and advanced vehicle systems.
• OBD-II Vehicle Connection: Plugs directly into the vehicle’s diagnostic connector for convenient access to vehicle data.
• Lightweight and Portable: Compact design makes it easy to carry and practical for use in workshops or mobile diagnostic situations.
• Flexible Diagnostic Access: Allows technicians to work away from the vehicle while maintaining a wireless connection to compatible diagnostic equipment.
• Fast Data Transmission: Designed to reduce communication time for efficient vehicle diagnostics and testing.
• USB Connectivity: Supports USB 2.0 for wired communication when required.
• Software Update Support: Can be updated to help maintain compatibility with supported diagnostic systems.

Specifications

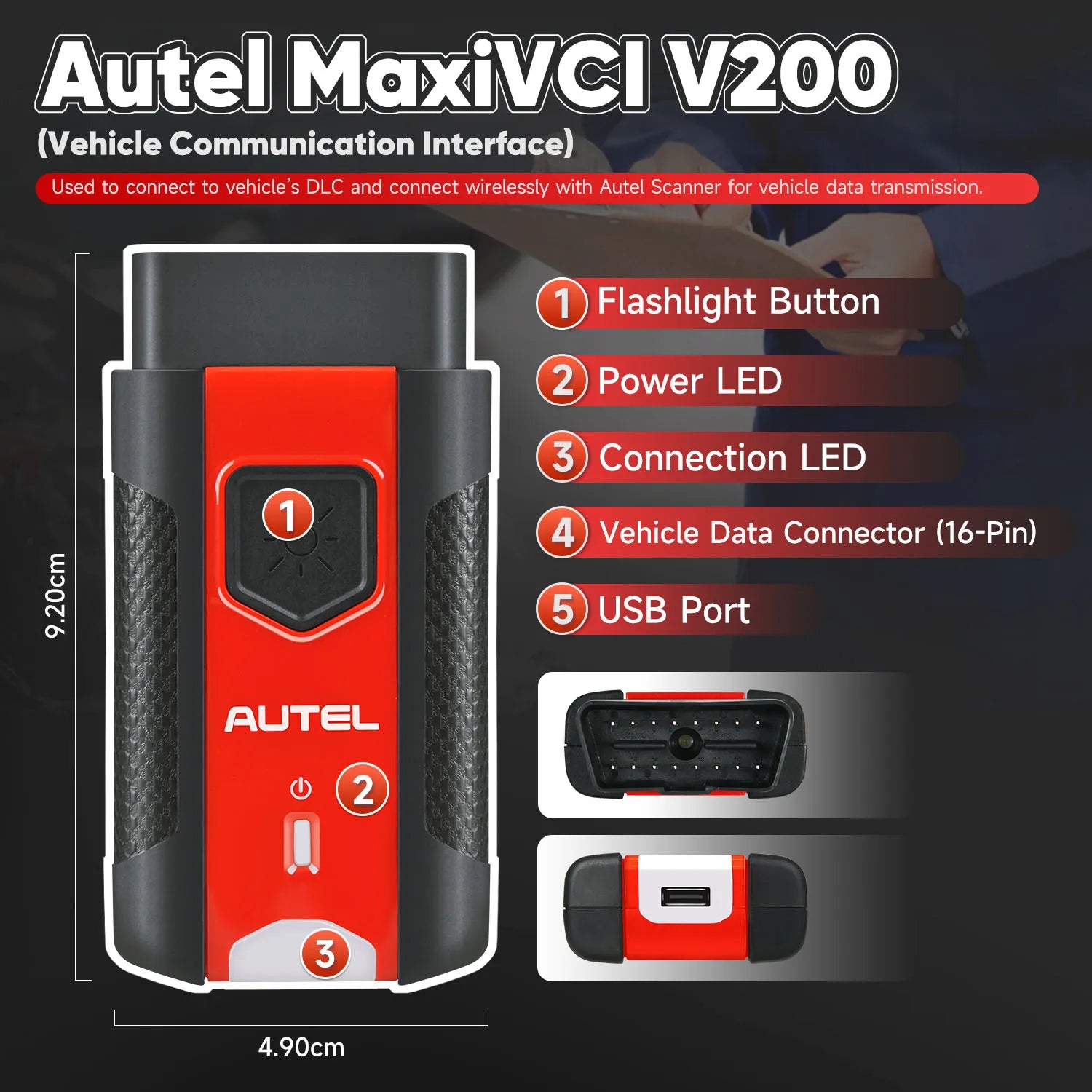

• Product Type: Vehicle Communication Interface
• Model: V200
• Communication Interfaces: Bluetooth, USB 2.0, OBD-II
• Wireless Technology: BLE + EDR
• Wireless Frequency: 2.4GHz
• Vehicle Voltage Range: 6–36V DC
• Supply Current: 150mA at 12V DC
• Operating Temperature: -10°C to 60°C
• Storage Temperature: -40°C to 80°C
• Built-In Battery: 3.7V lithium battery
• Indicator Light: White LED
• Software Version: V1.31
• Hardware Version: 2026

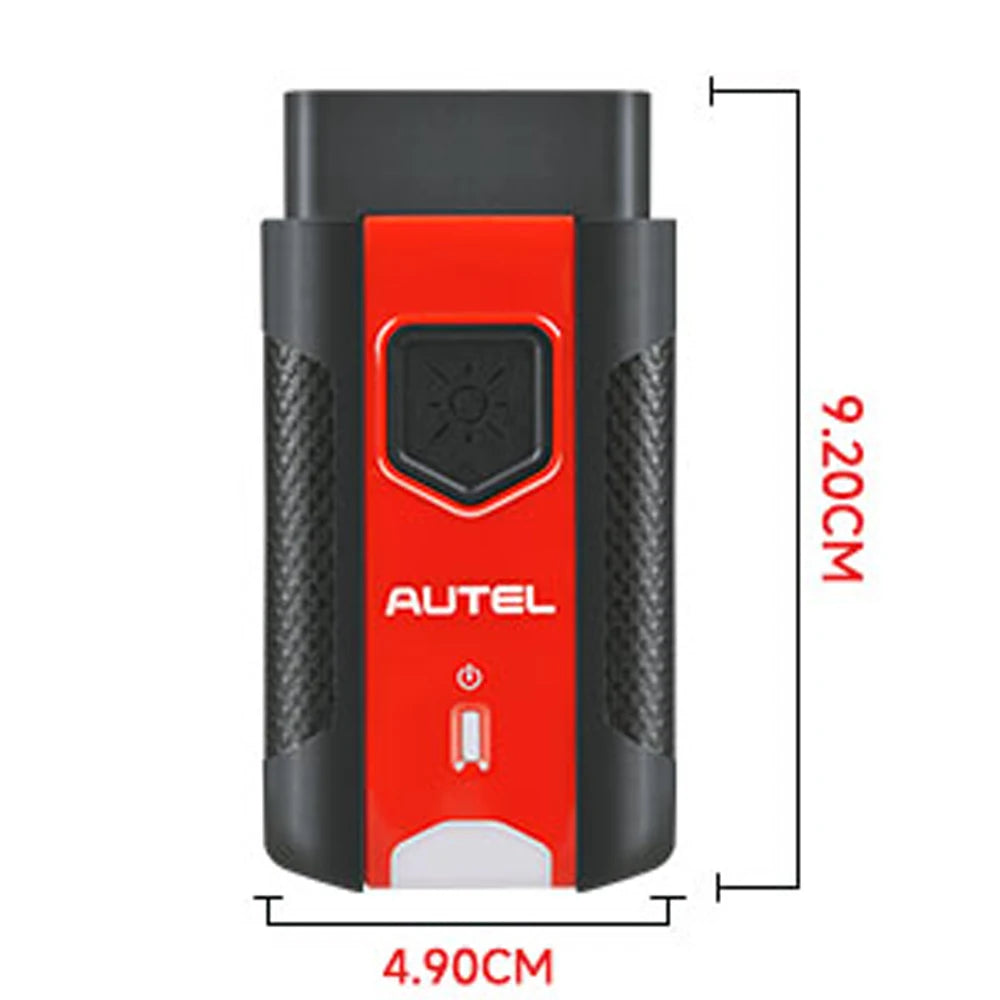

• Dimensions: 9.2 x 4.9 x 2.2cm
• Weight: Approx. 100g
• Material: Plastic

Package Contents

• 1 x Bluetooth Connector Vehicle Communication Interface

What Makes This a Smart Buy:

Compact, wireless and designed for flexible vehicle diagnostics, this interface makes it easier to connect compatible diagnostic equipment to modern vehicles. Its Bluetooth connectivity, CAN FD support and portable design offer practical versatility for workshops and mobile technicians alike.
