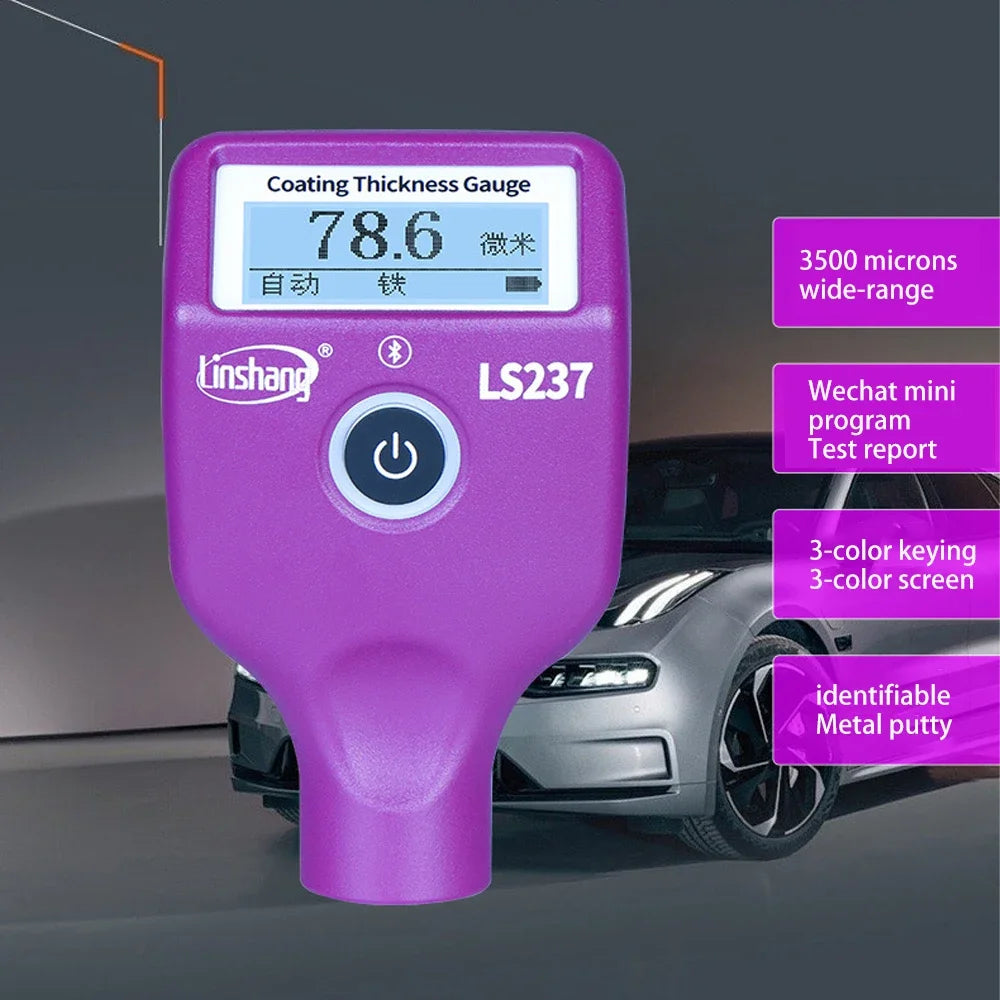

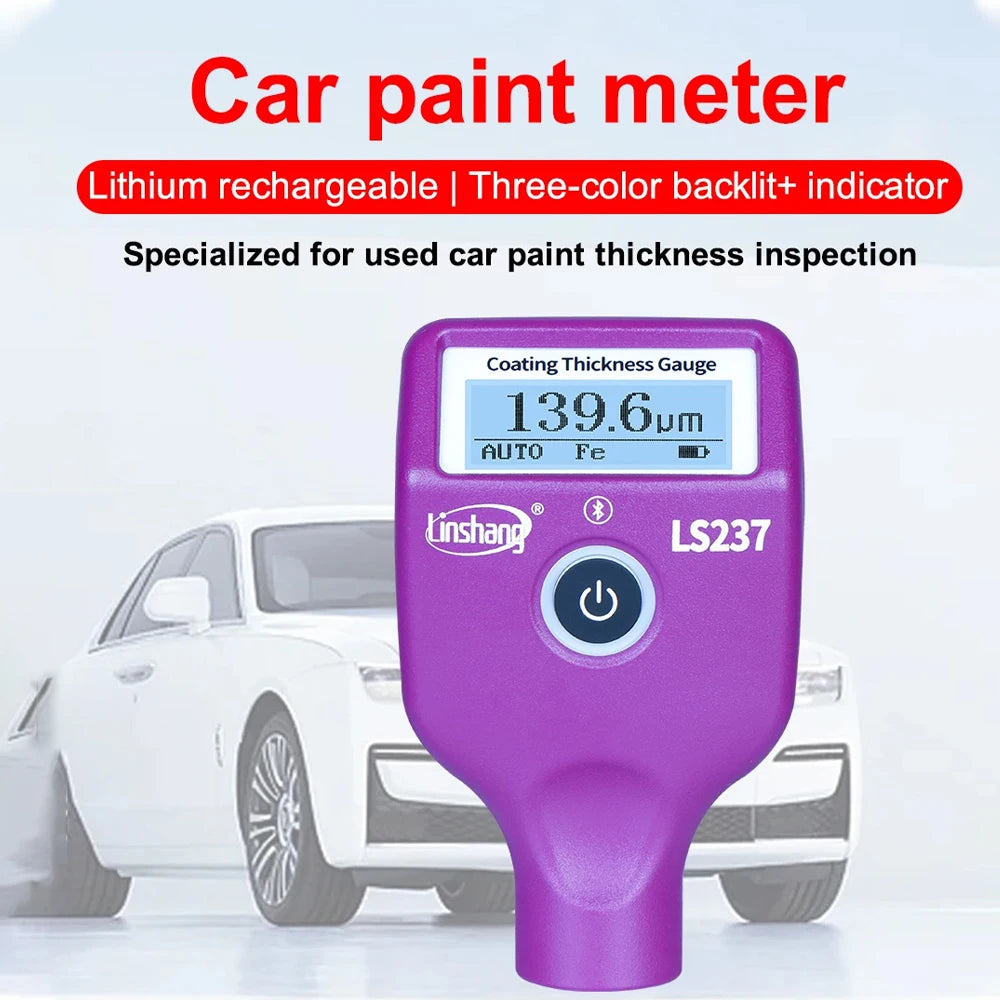

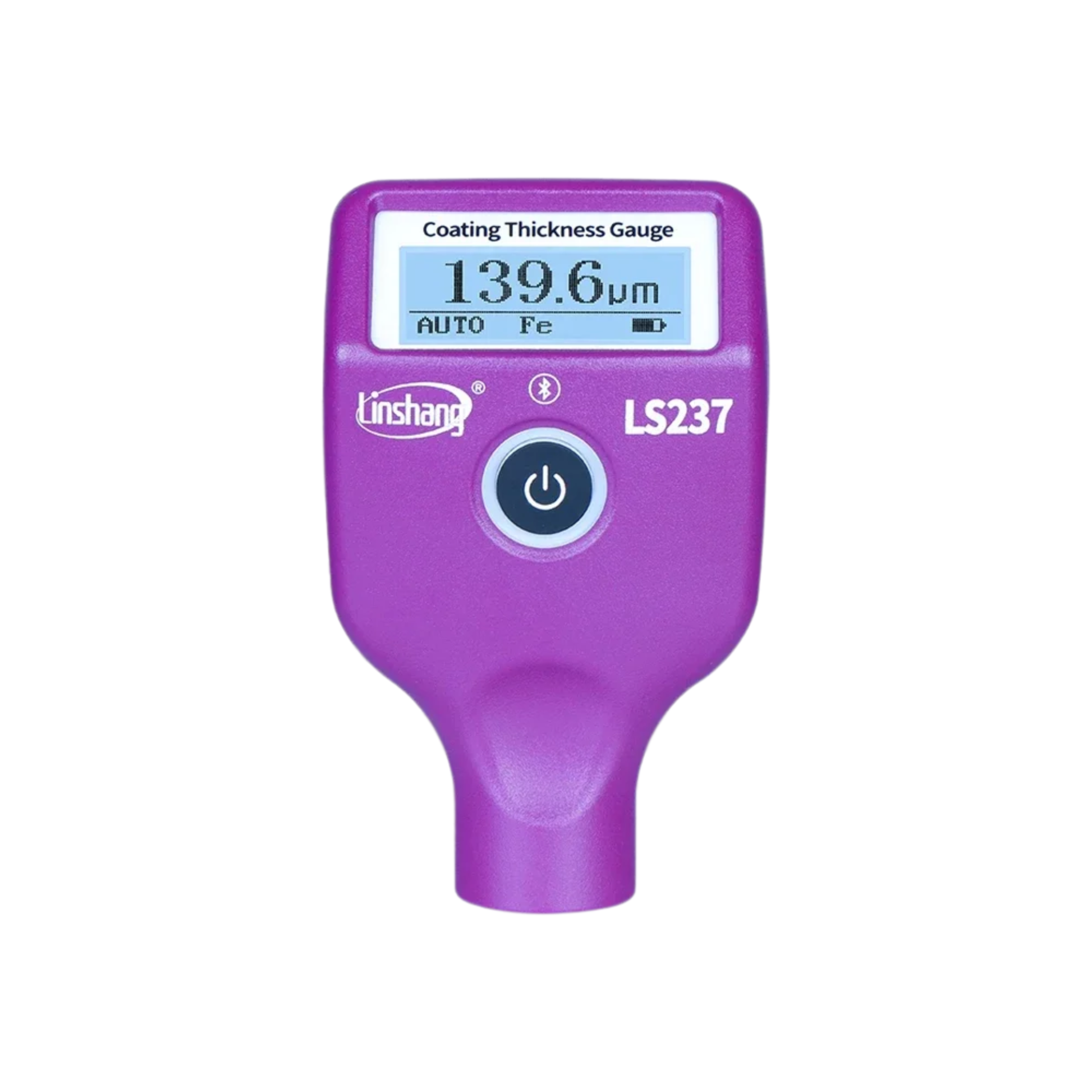

Car Paint Thickness Gauge with Rotatable LCD Display

Accurately check automotive paint, coatings, and putty with this high-precision thickness gauge. Designed for professionals and car enthusiasts, it delivers fast, reliable readings and easily identifies ferrous, non-ferrous, and putty layers, helping you maintain vehicle quality and avoid hidden damage.

Key Features

• Measures paint thickness on ferrous and aluminum surfaces with high accuracy

• Detects non-metallic coatings, ferrous putty, and galvanized layers

• Three-color backlight and indicator system for instant thickness alerts

• Rotatable LCD display for easy viewing from any angle

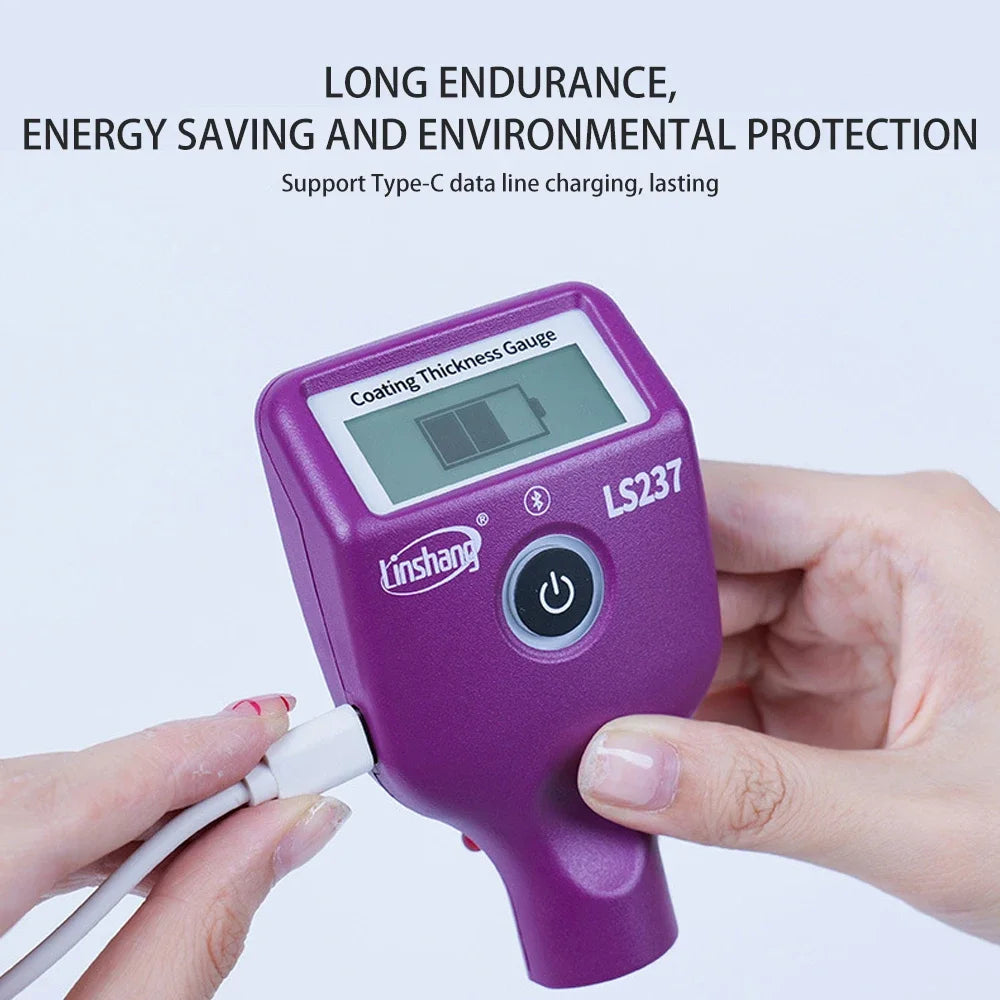

• Rechargeable lithium battery with low power consumption for long-lasting use

• Fast 0.5-second measurement interval for efficient inspections

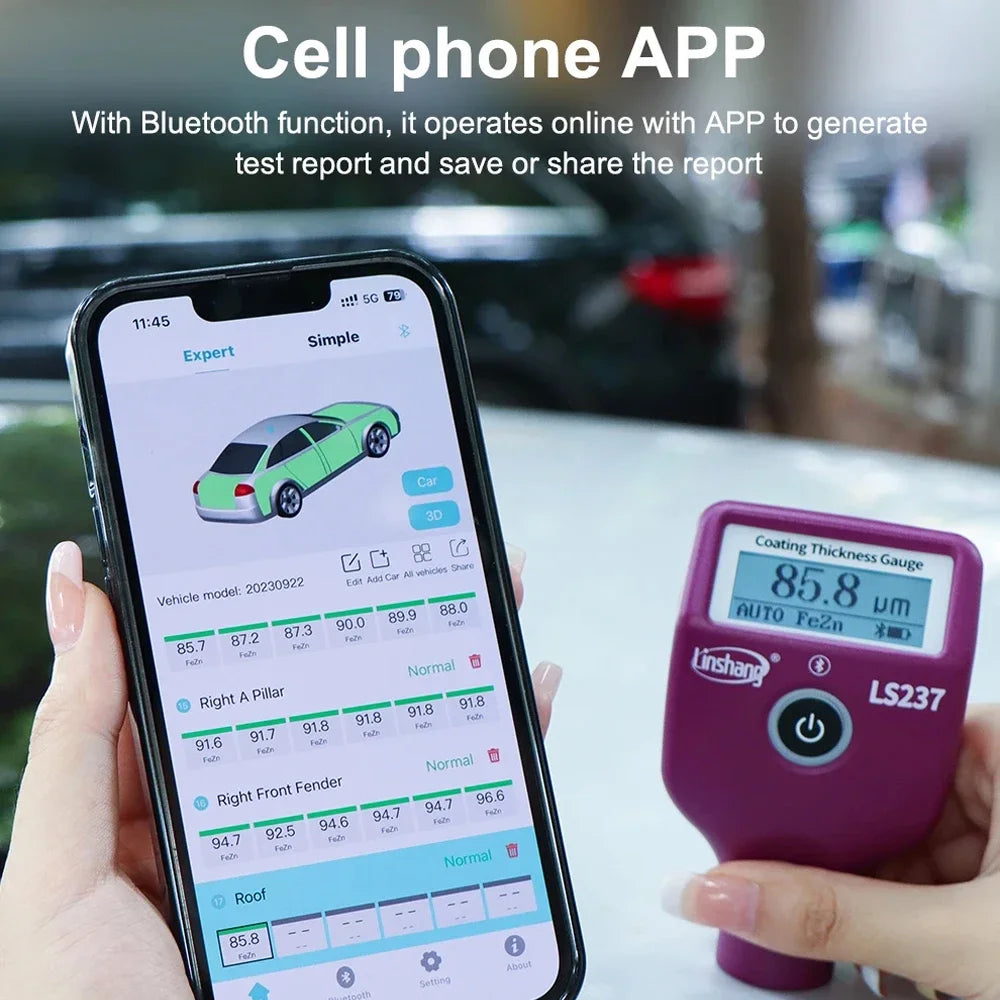

• Bluetooth connectivity with app support for report export and sharing

• Ruby-tipped integrated probe for durable, precise measurements

• Supports multiple units: μm / mil

• Compact and lightweight design for portable, on-site inspections

Specifications

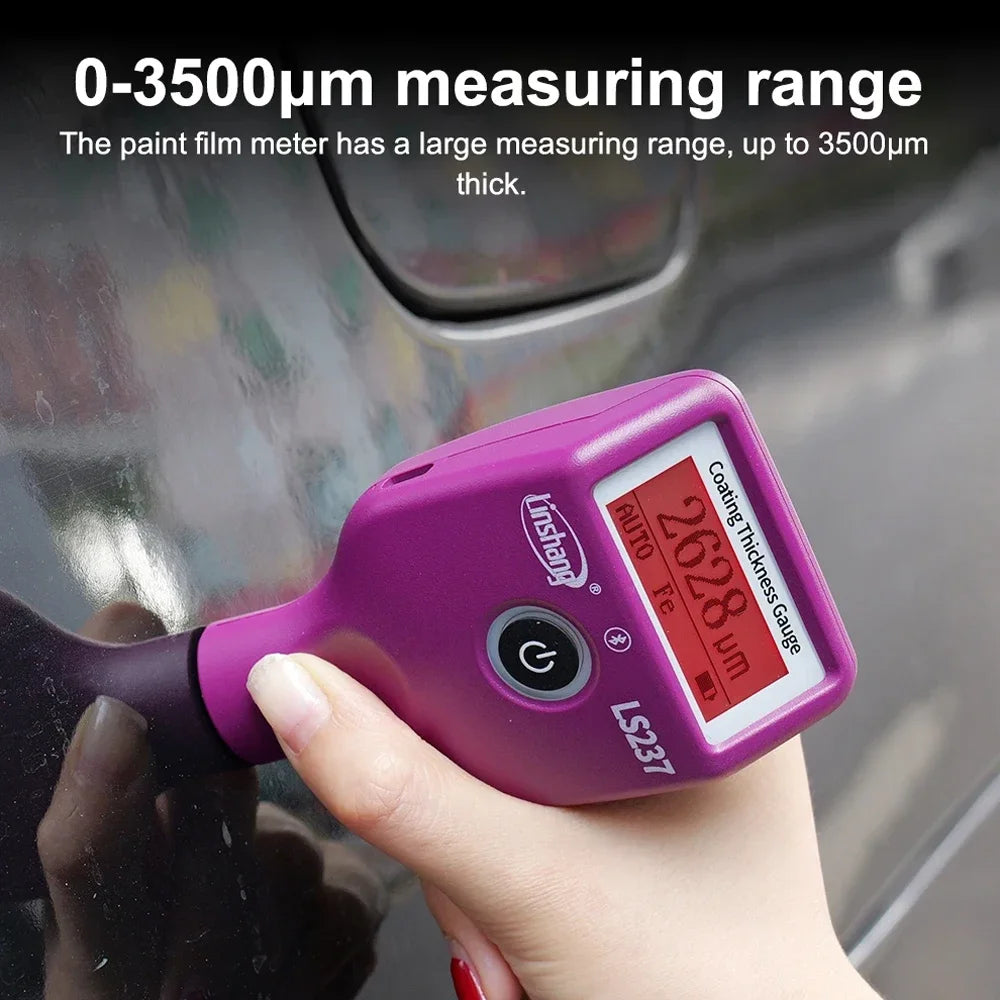

• Measuring Range: 0.0–3500μm

• Resolution: 0.1μm (0–99.9μm), 1μm (100–3500μm)

• Accuracy: ≤ ±(3% reading + 2μm)

• Minimum Measuring Area: Ø 25mm

• Minimum Curvature: Convex: 5mm / Concave: 25mm

• Minimum Substrate Thickness: Fe: 0.2mm / Al: 0.05mm

• Display: 128×48 dot matrix LCD, rotatable

• Power Supply: Rechargeable lithium battery 3.7V @ 1200mAh

• Measurement Interval: 0.5 seconds

• Operating Temperature: -20°C – 50°C

• Storage Temperature: -20°C – 60°C

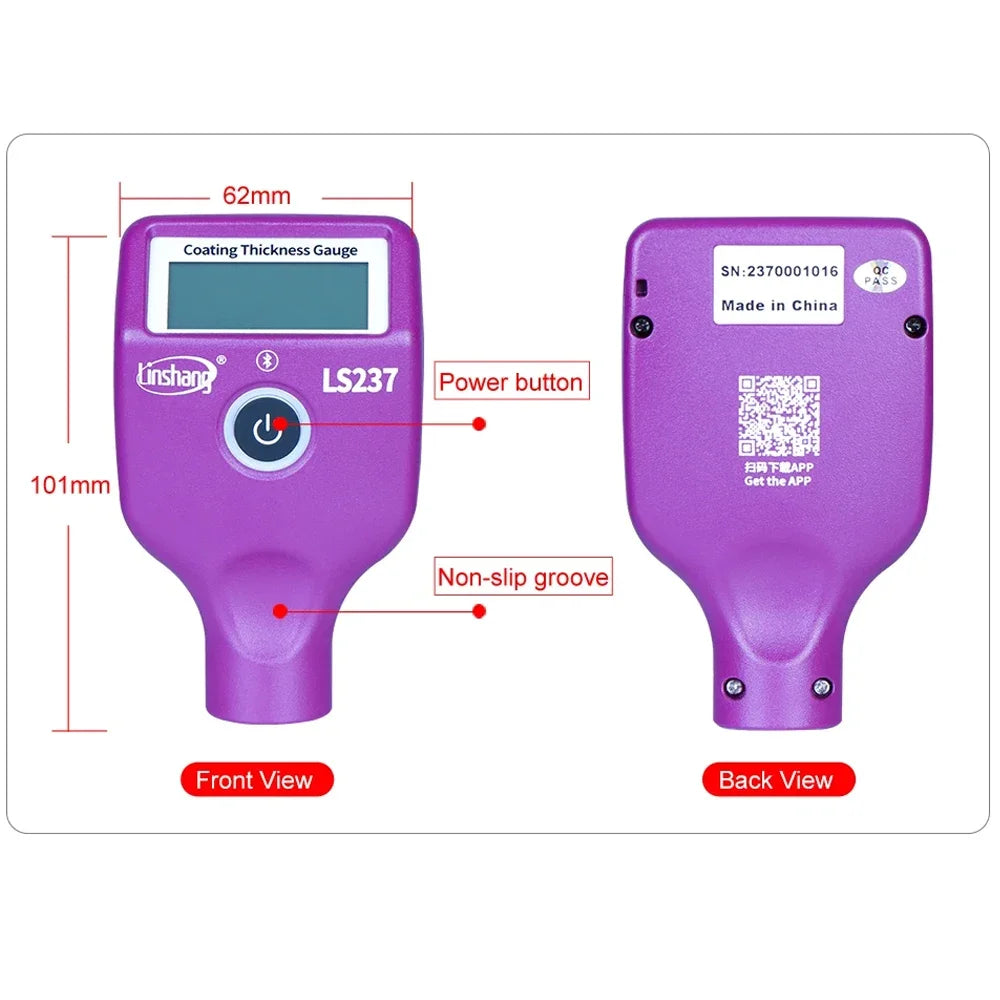

• Host Size: 101 × 62 × 28 mm

• Weight: 76g (including battery)

Package Contents

• Car Paint Thickness Gauge LS237 × 1

• Rechargeable Battery (built-in)

• User Manual × 1

What Makes This a Smart Buy:
Combining precise measurements, quick readings, and smart color-coded alerts, this gauge is perfect for body shops, mechanics, and car enthusiasts. Its Bluetooth connectivity and portable design make it a versatile tool for professional-grade inspections anytime, anywhere.
