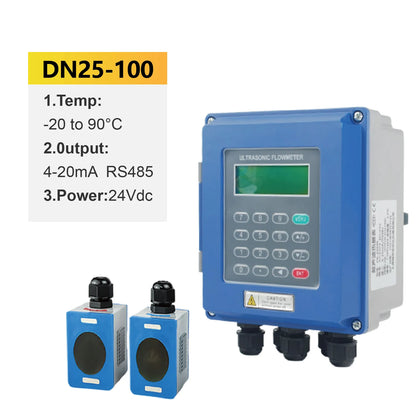

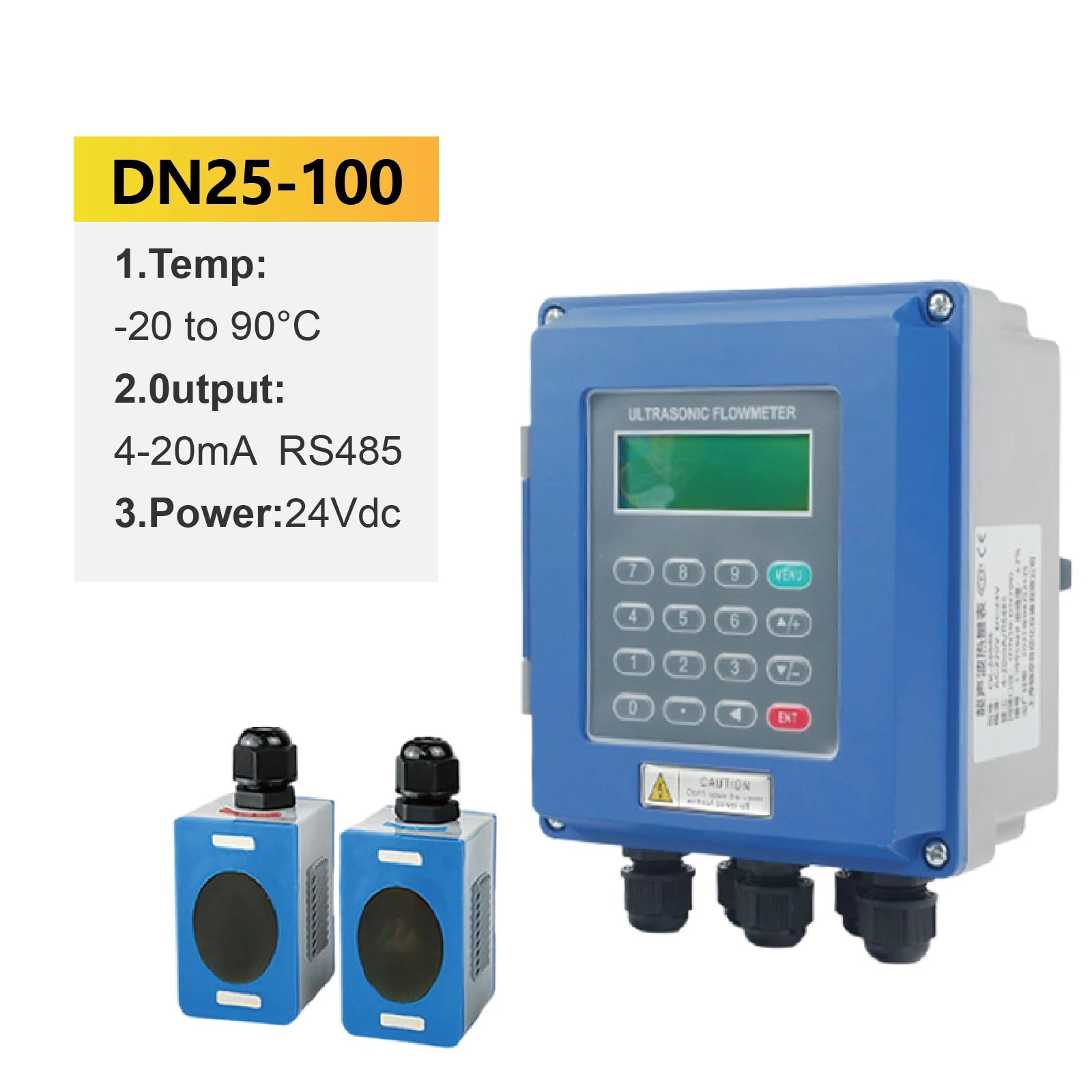

Clamp-On Ultrasonic Flow Meter S-Probe DN25–DN100

Easily measure liquid flow in smaller pipes with this S-Probe ultrasonic flow meter. Its clamp-on design ensures non-invasive installation, delivering accurate bi-directional readings for water, oils, and chemical liquids without disrupting pipe systems.

Key Features

• Non-invasive clamp-on installation for quick setup

• High-accuracy bi-directional flow measurement with ±1% precision

• Supports water, industrial fluids, oil, chemicals, and beverages

• RS485 and 4–20mA output for seamless integration with monitoring systems

• IP68 waterproof rating for reliable indoor and outdoor use

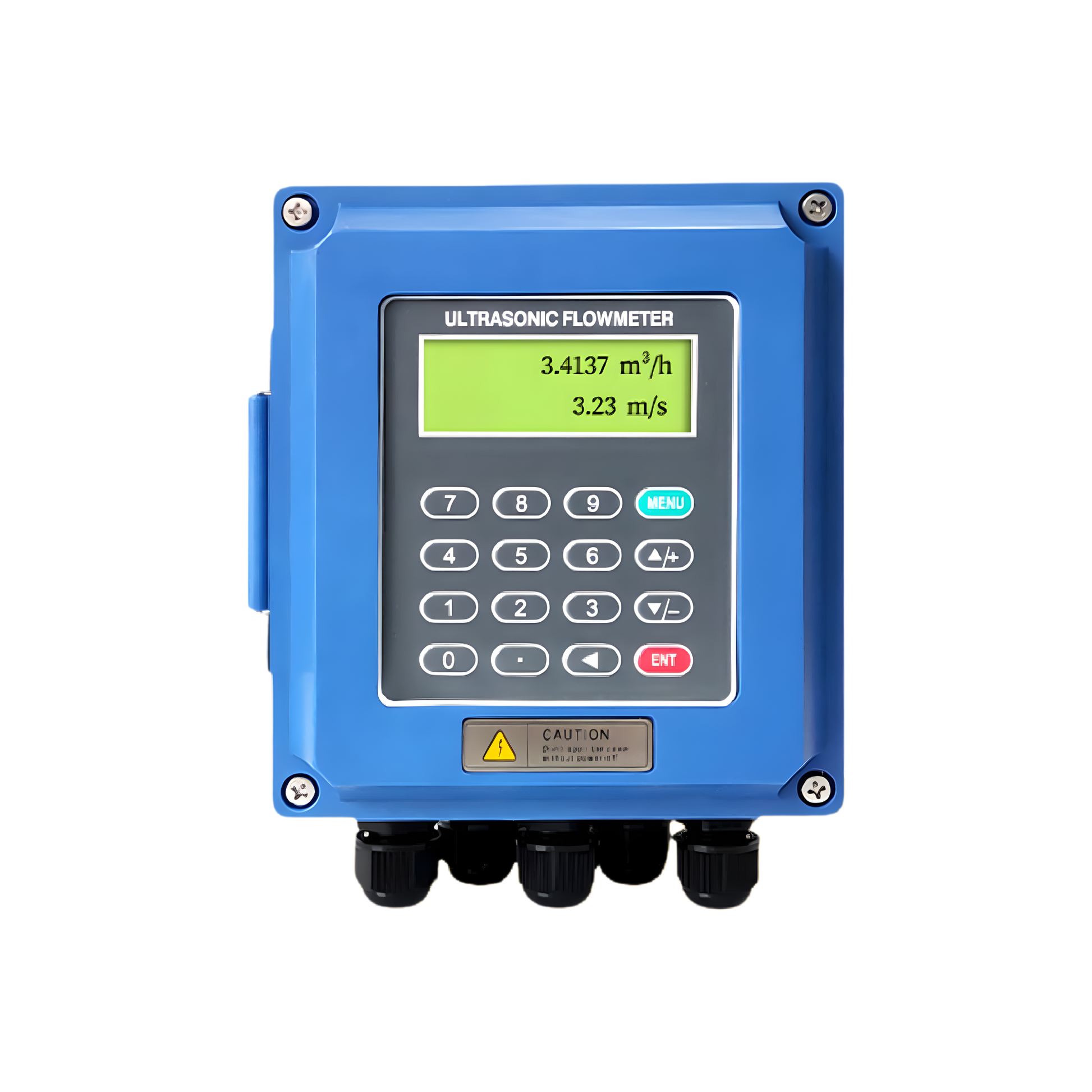

• LCD backlit display shows totalised flow, instantaneous flow, velocity, and time

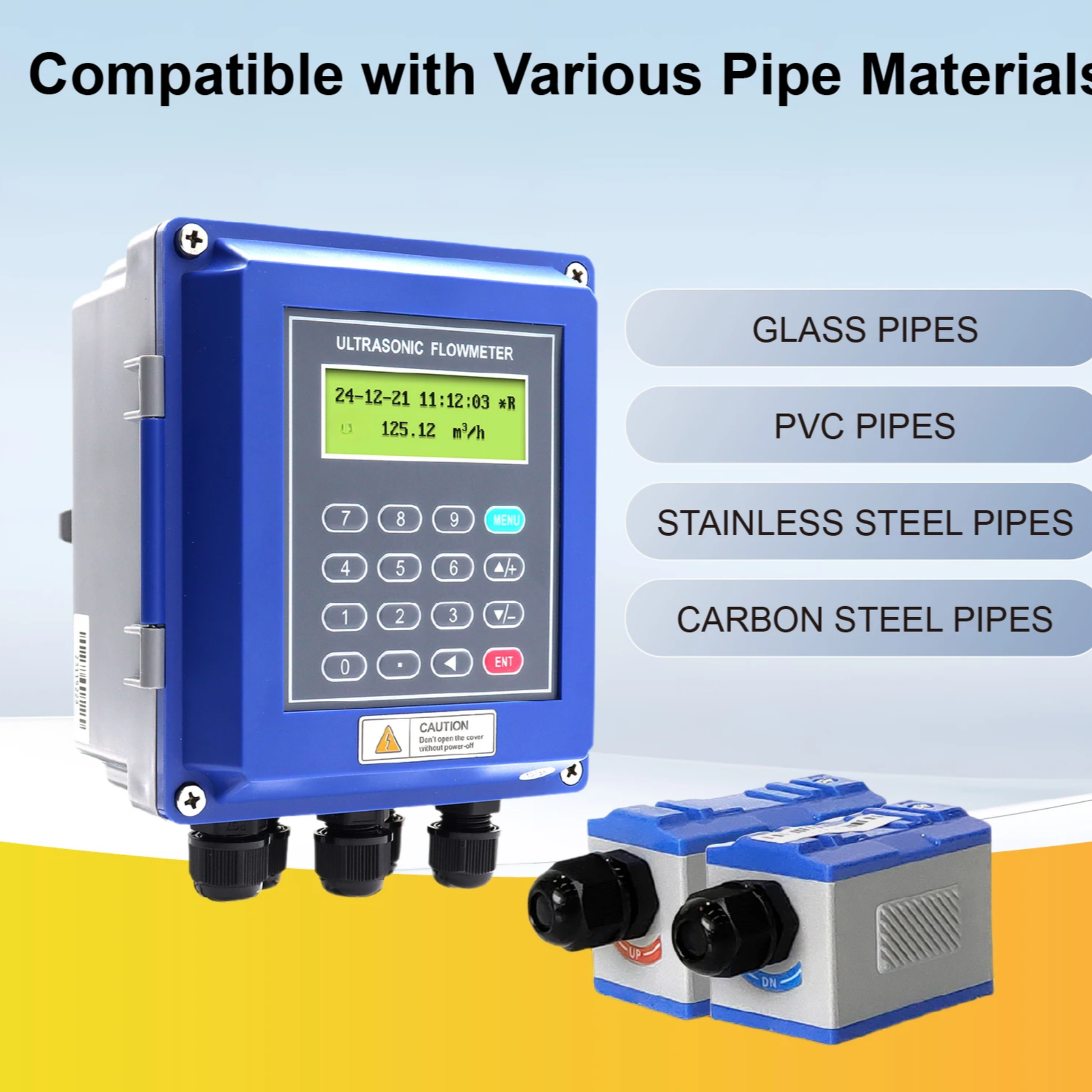

• Compatible with steel, PVC, copper, aluminium, glass, and FRP pipes

Specifications

• Measurement range: DN25–DN100

• Accuracy: ±1%, Repeatability: 0.2%

• Measurement principle: Transit-time ultrasonic

• Display: LCD with backlight

• Output: 4–20mA, 0–20mA, frequency signal 1–9999Hz, RS485

• Flow direction: Bi-directional

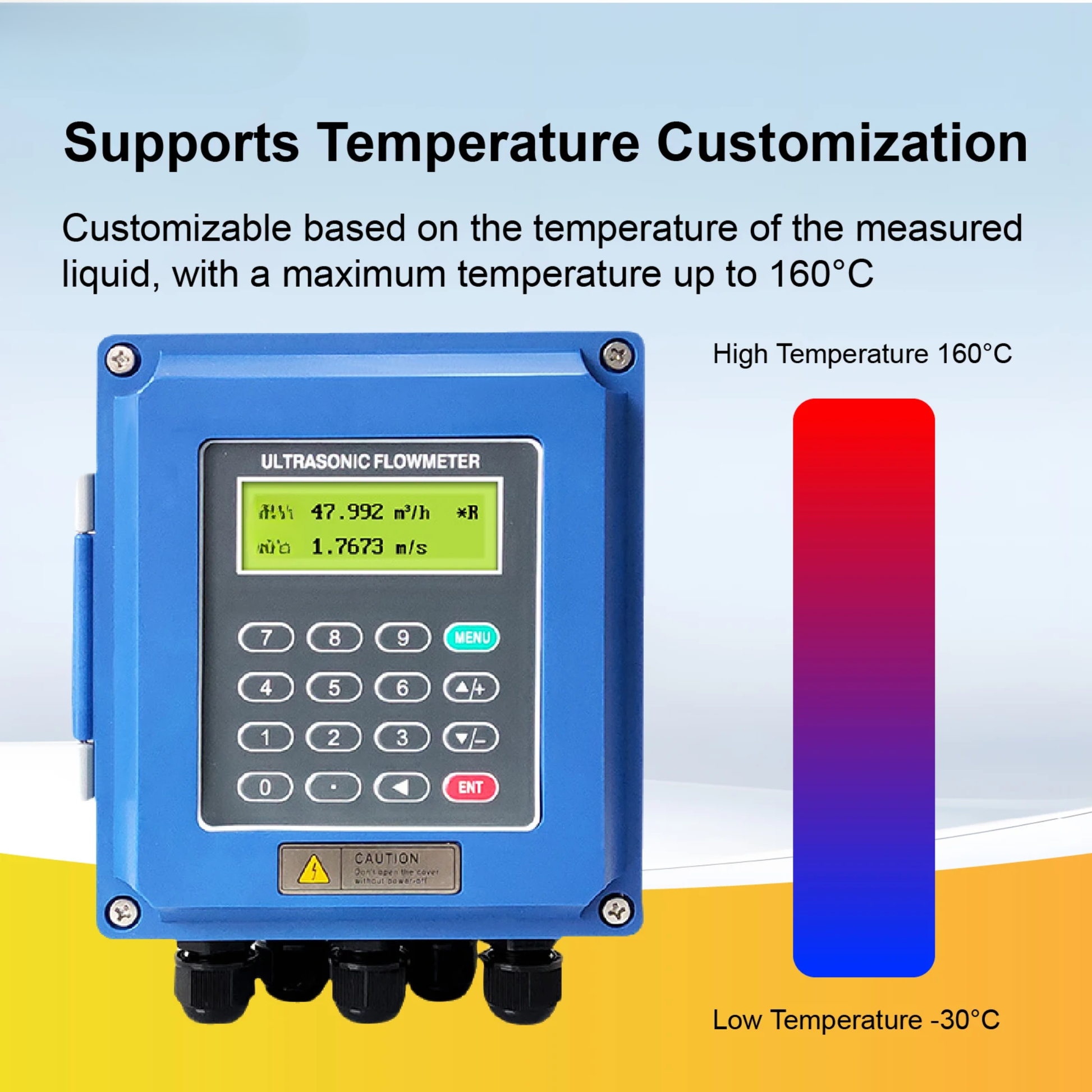

• Operating temperature: Main unit -30–80°C, Transducer -40–110°C

• Power supply: AC220V or DC24V, Power consumption <1.5W

• Cable: Twisted pair 20m standard (extendable up to 500m)

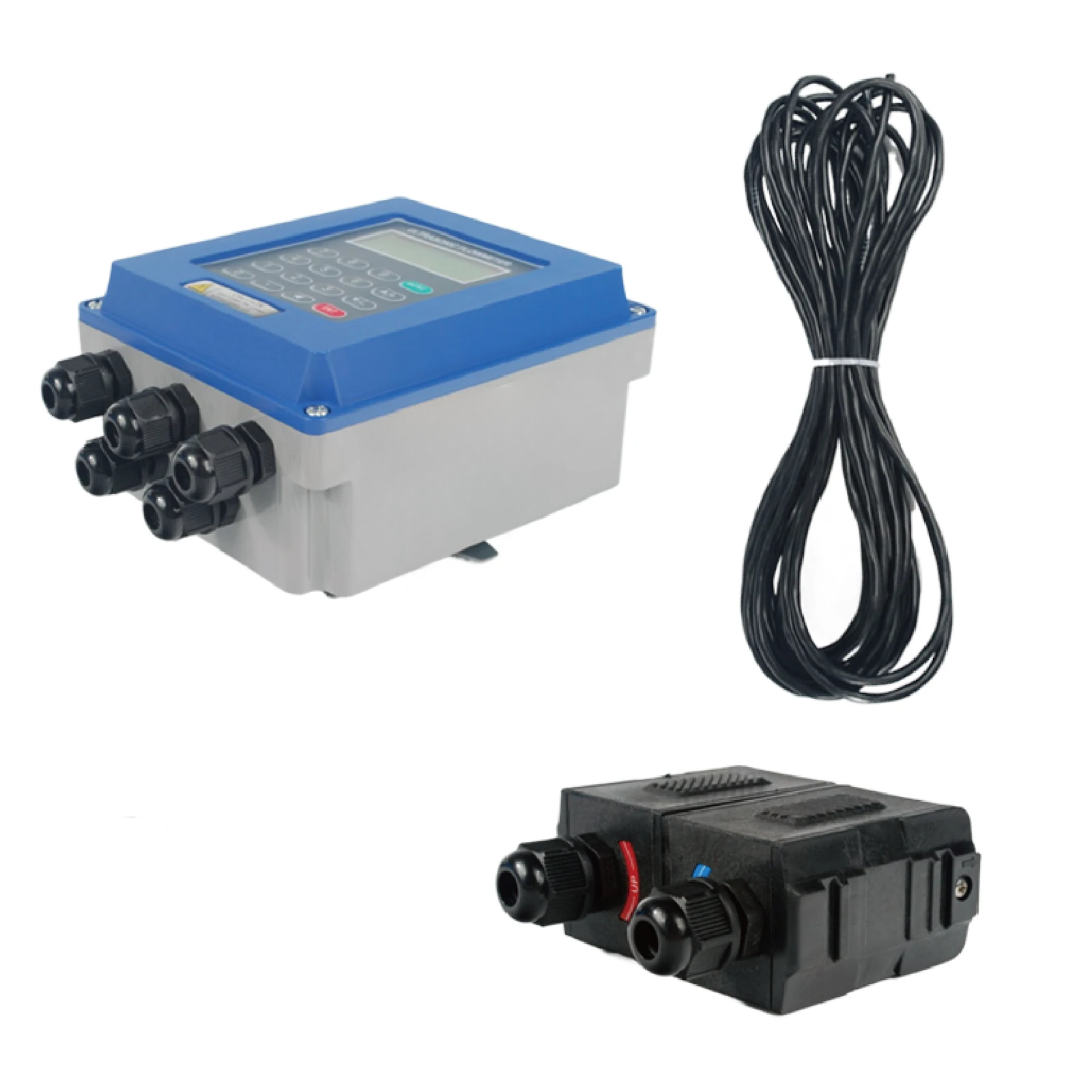

Package Contents

• 1 × Ultrasonic Flow Meter Main Unit

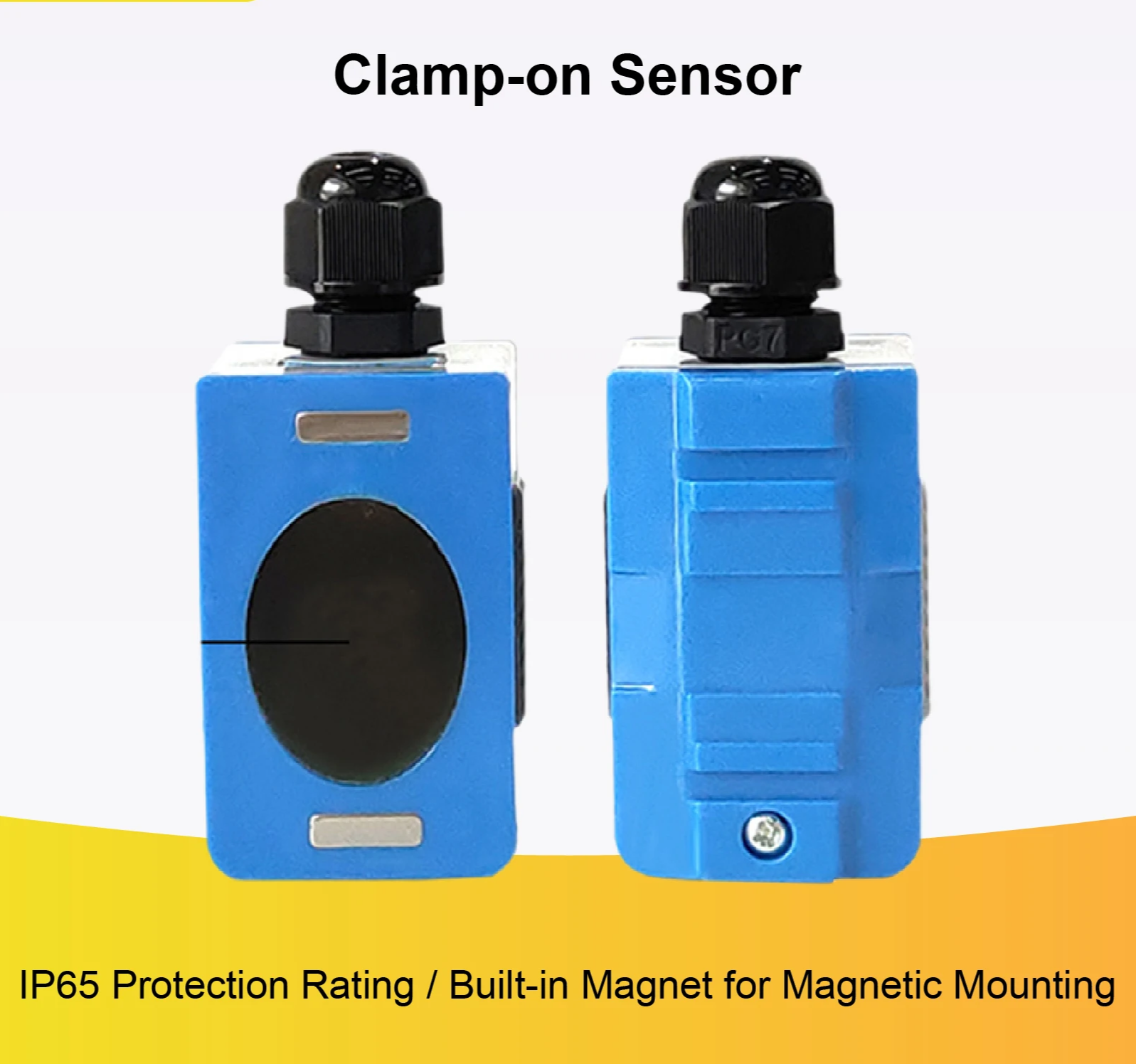

• 1 × S-Type Transducer Probe

• 1 × 20m Standard Twisted Pair Cable

• 1 × User Manual

What Makes This a Smart Buy:
This compact flow meter delivers industrial-grade accuracy in small-diameter pipes, offering reliable, non-invasive monitoring for water, chemical, and oil pipelines.
