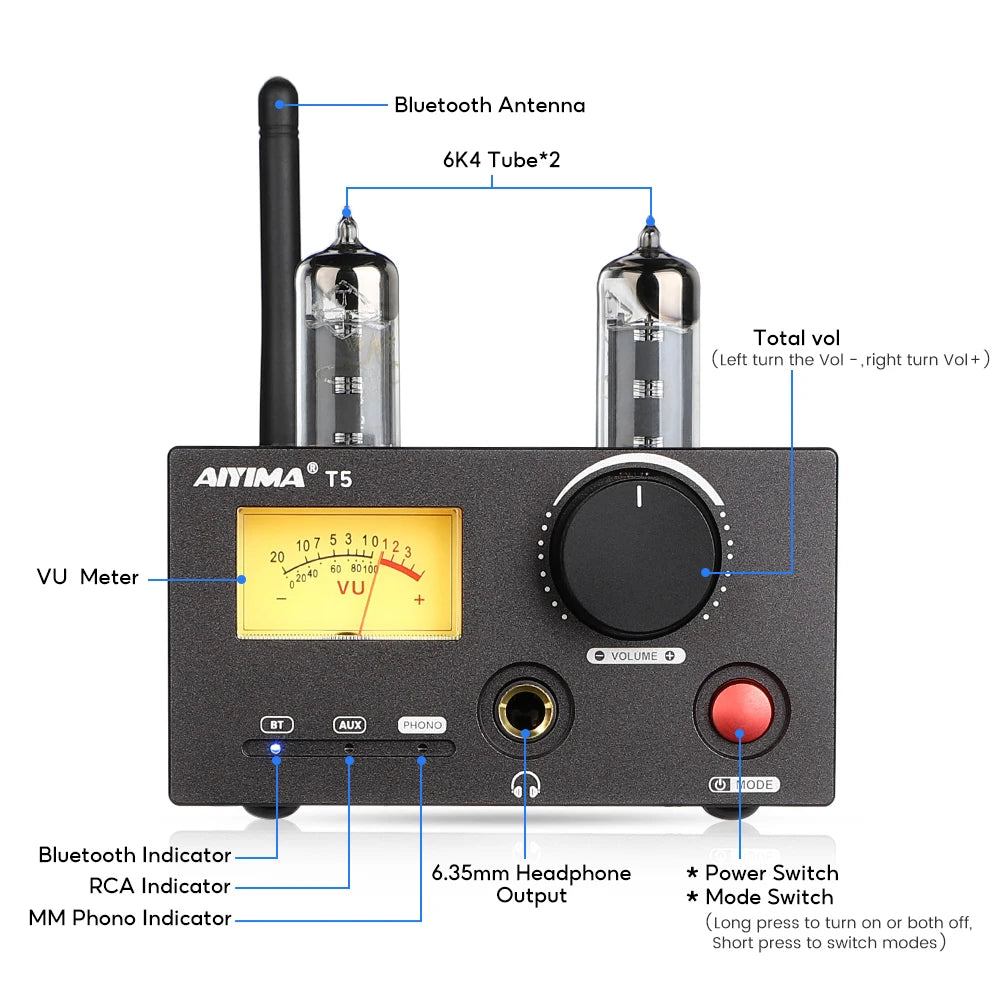

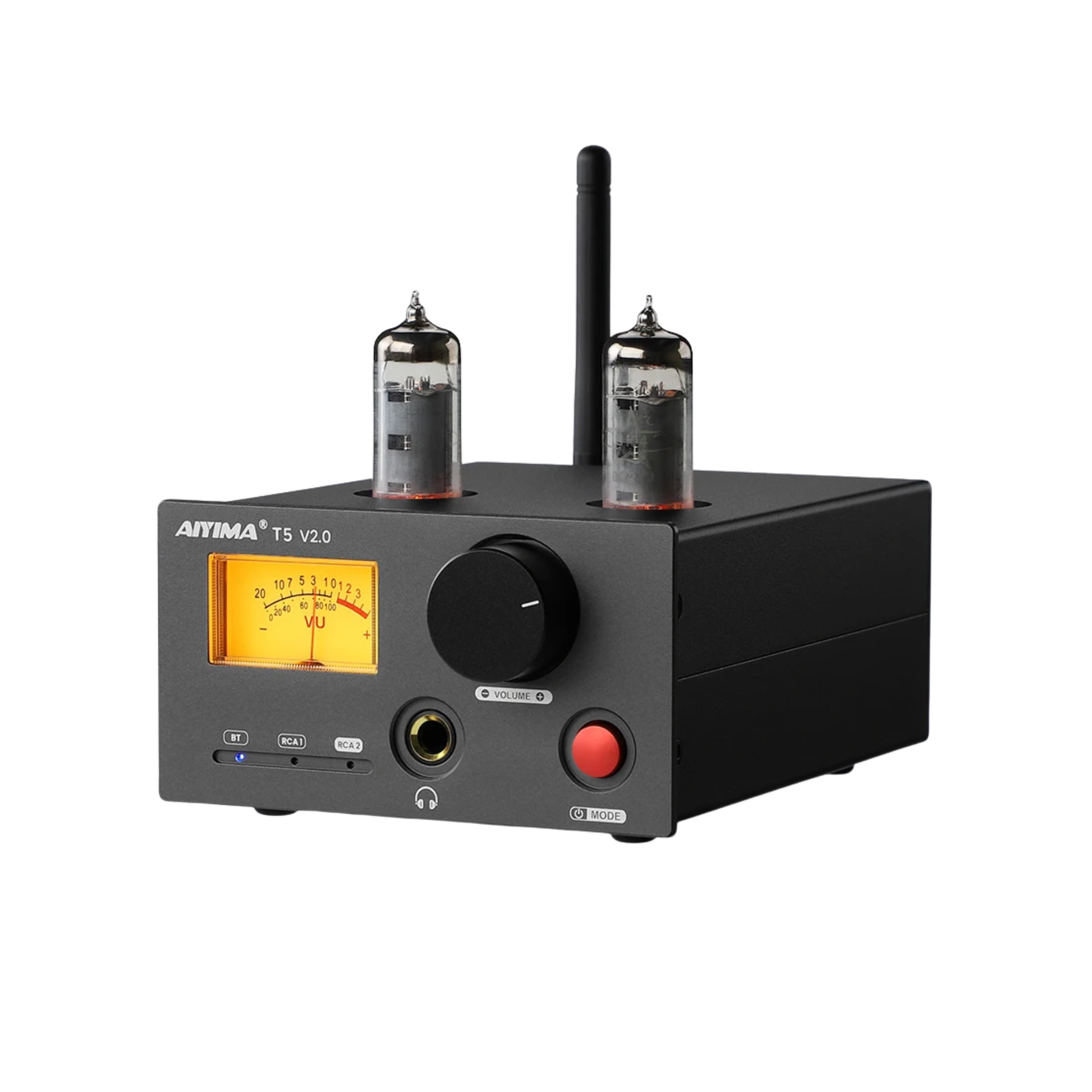

Class D 2.0 Channel Amplifier with VU Meter

Bring studio-quality sound to your home audio setup with this Class D 2.0 channel amplifier. Featuring vacuum tube warmth, Bluetooth 5.1 connectivity, and a VU meter, it delivers powerful, immersive audio for headphones and passive speakers alike.

Key Features

• Class D 2.0 channel amplifier delivering up to 160W × 2 for dynamic, high-fidelity sound

• Integrated 6K4 vacuum tubes add rich warmth and natural tonal depth

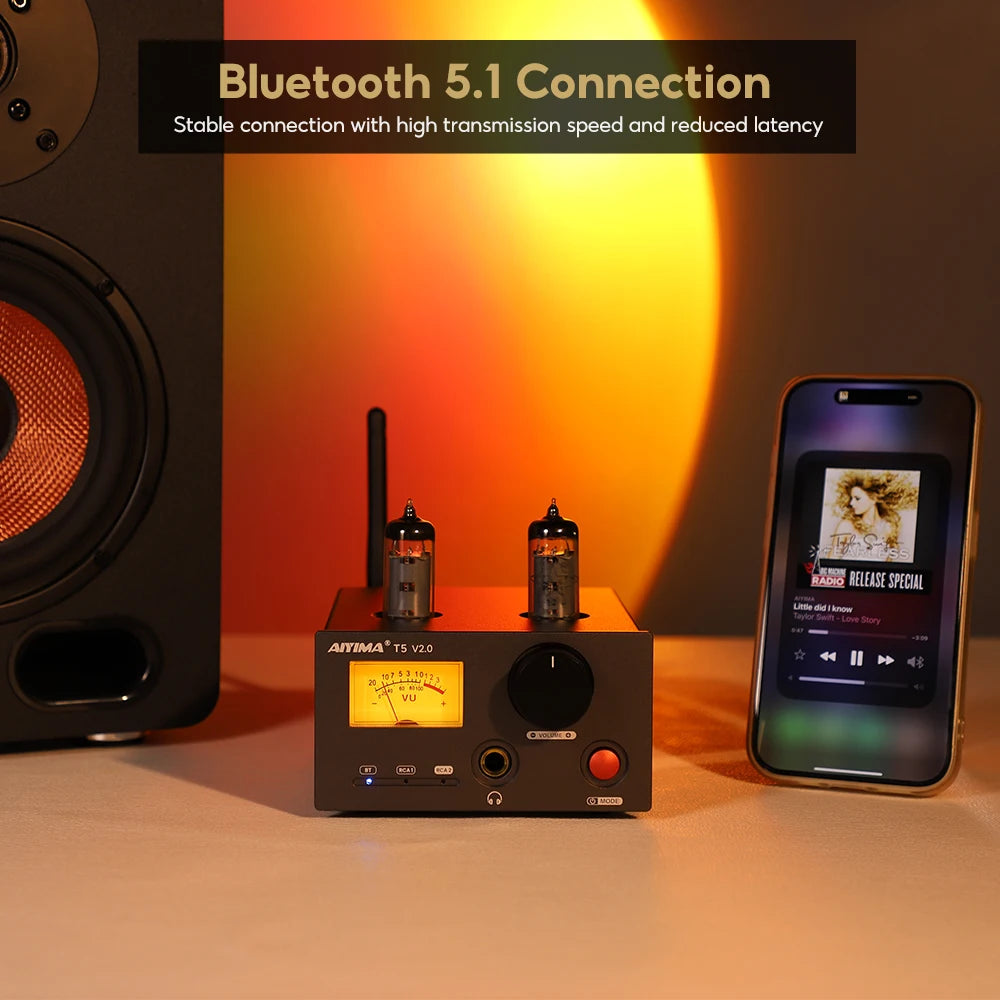

• Bluetooth 5.1 support with SBC, AAC, APTX, APTX-HD, and APTX-LL codecs

• VU meter displays real-time output levels for a professional look and feel

• Ultra-low distortion (THD 0.1%) and high SNR (≥92dB) for clean, crisp audio

• Versatile connectivity: Bluetooth, RCA1, RCA2 for multiple devices

• Headphone amplifier output supports 16–300Ω for almost any headphone

Specifications

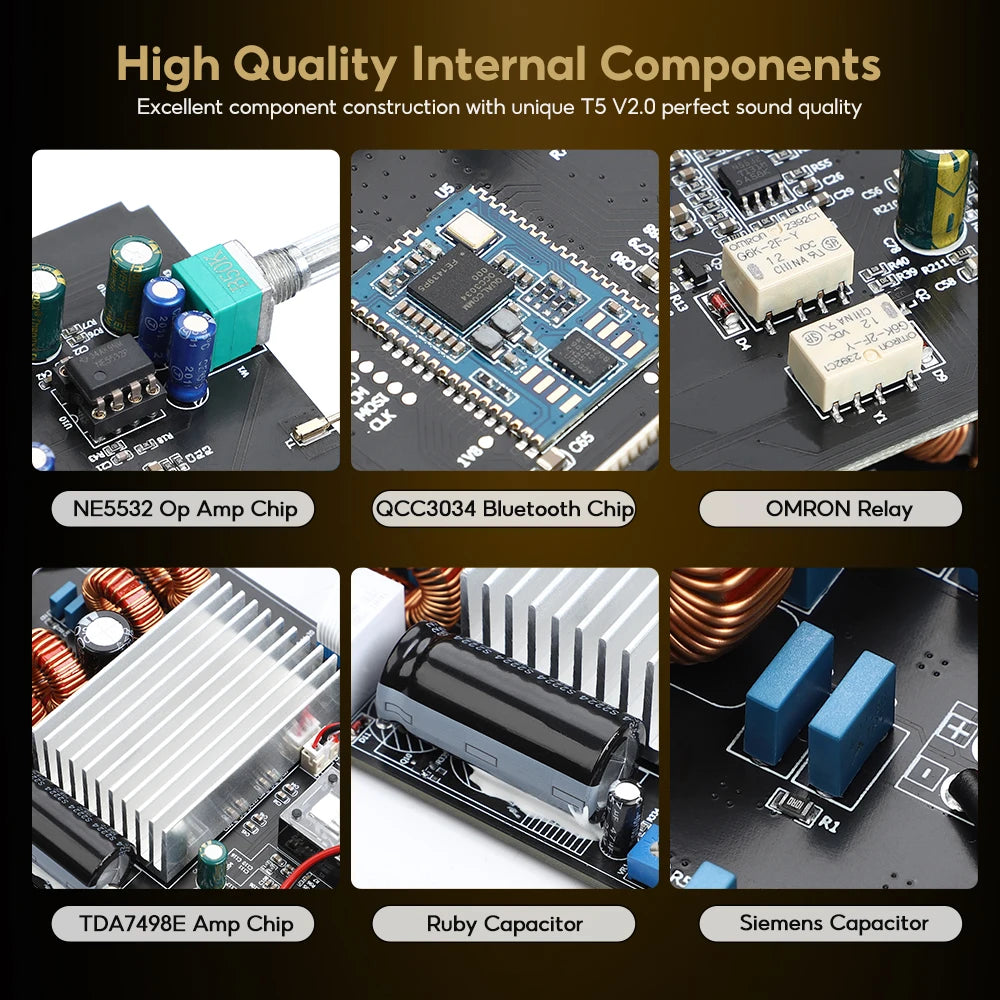

• Chipset: 6K4 + TDA7498E ×1 + NE5532P ×2 + NJM4580 + QCC3034 + HT97220

• OP Amp Chips: NE5532P ×2 (replaceable with OPA2604AP, OPA2134, MUSE02, OPA2107AP, etc.)

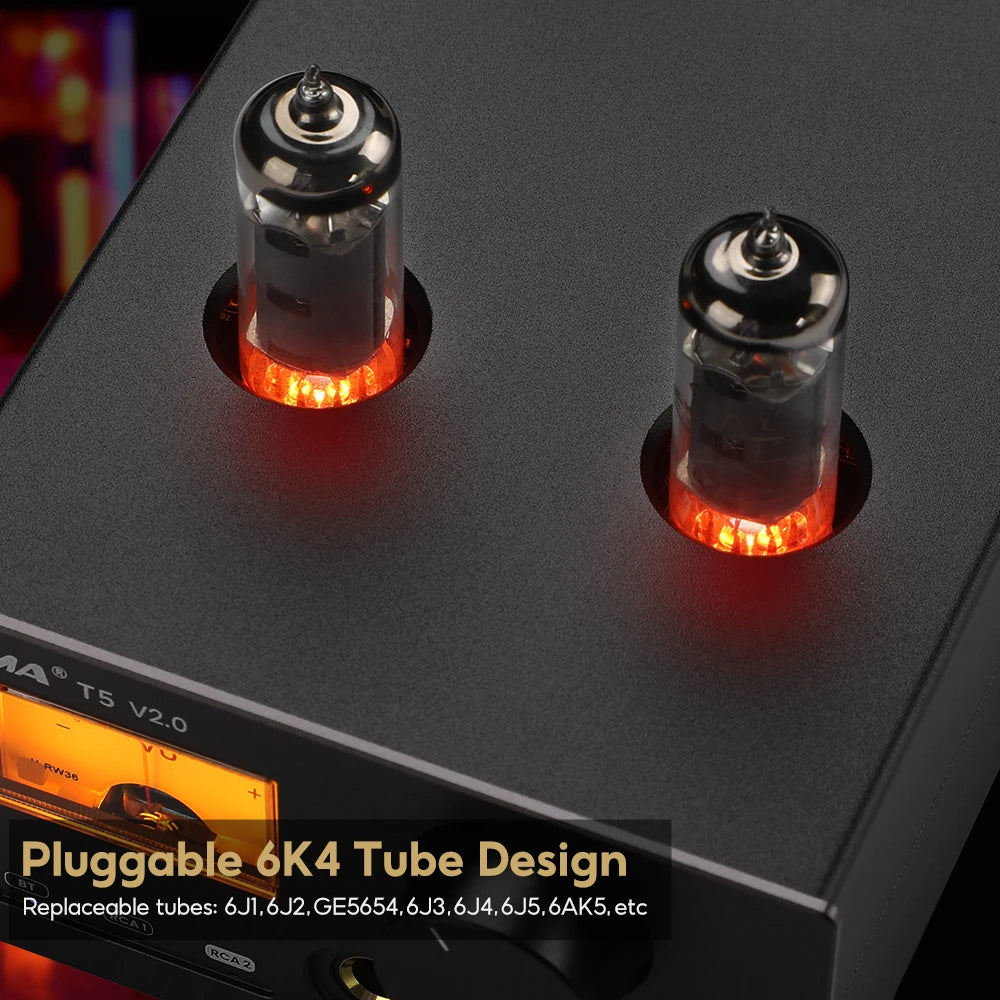

• Tube Model: 6K4 (replaceable with 6J1, 6J2, GE5654, 6J3, 6J4, 6J5, 6Ж1п, 6AK5)

• Output Power: 140W × 2 (4Ω), Max 160W × 2 (36V)

• Headphone Output: 125mW (32Ω)

• Frequency Response: 20Hz–20kHz (±3dB)

• Speaker Impedance: 2–8Ω

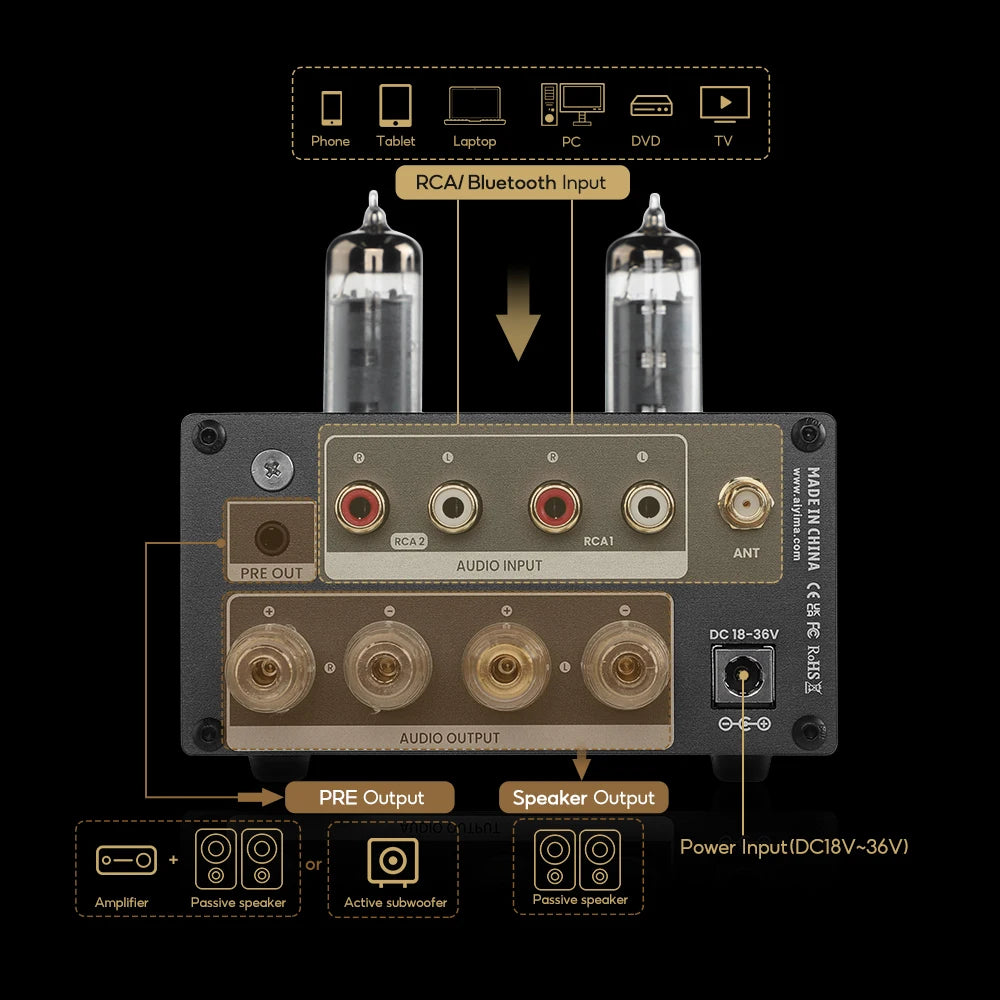

• Input Modes: Bluetooth / RCA1 / RCA2

• Output Mode: Passive Speaker

• Working Power Supply: DC 18–36V

• Product Size: 105 × 133 × 54mm

• Net Weight: 780g

Package Contents

• 1 × T5 V2.0 Amplifier

• 1 × Bluetooth Antenna

• 2 × 6K4 Vacuum Tubes

• 1 × User Manual

• 1 × Power Supply (AU Plug)

What Makes This a Smart Buy:
This amplifier combines modern digital power with classic tube warmth, delivering rich, high-fidelity sound for both speakers and headphones. Its versatile connectivity, Bluetooth 5.1, and real-time VU meter make it a premium choice for music lovers seeking professional-quality audio at home.
