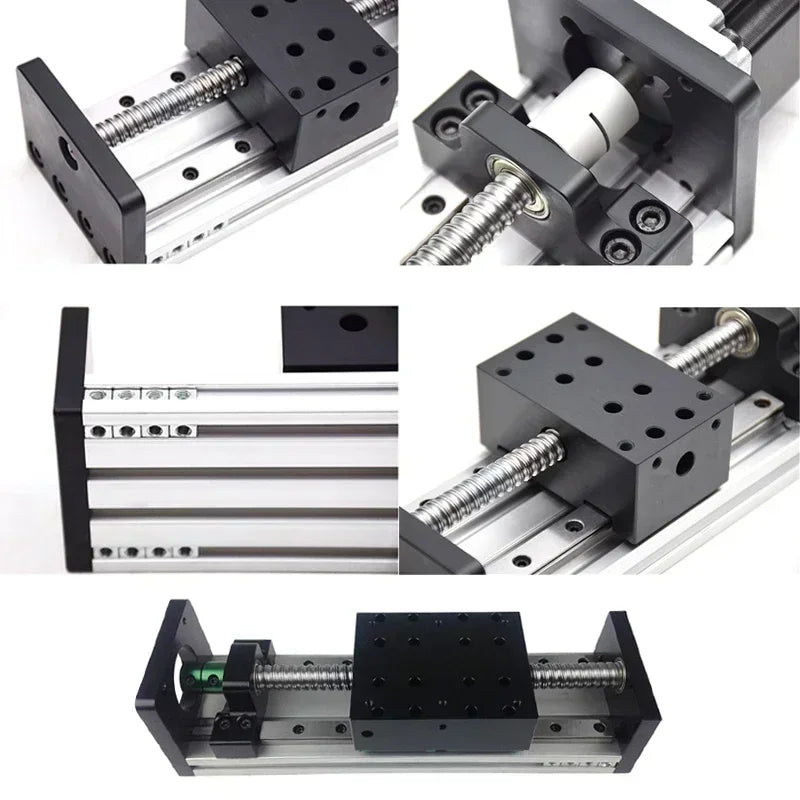

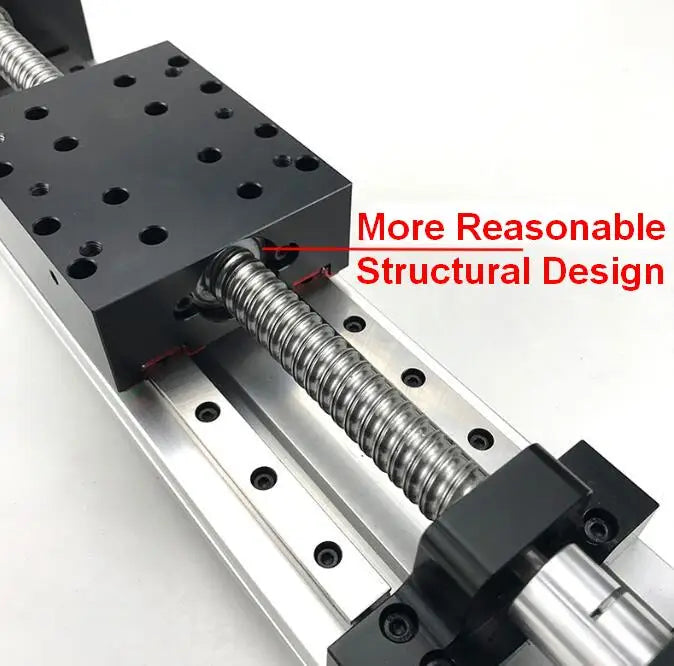

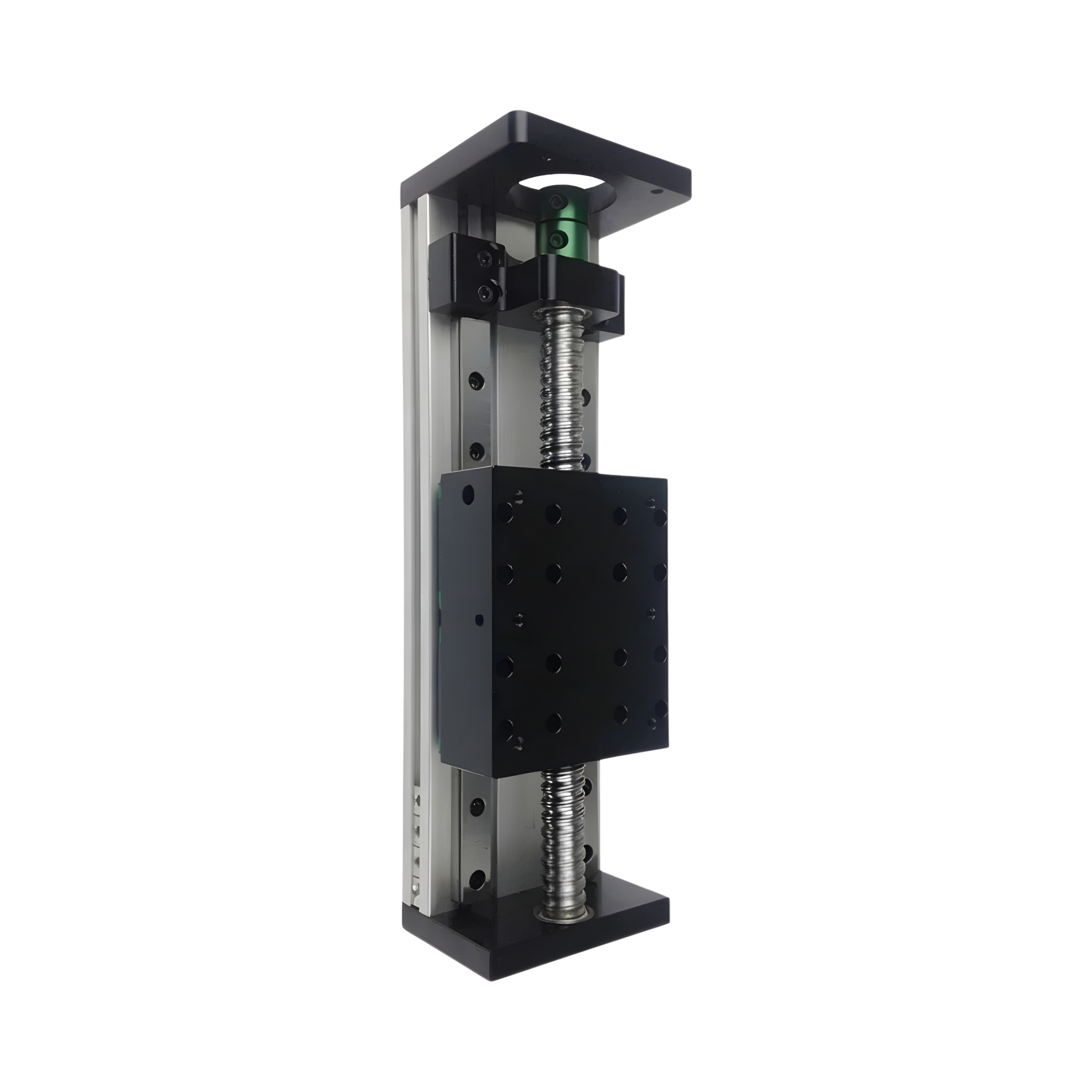

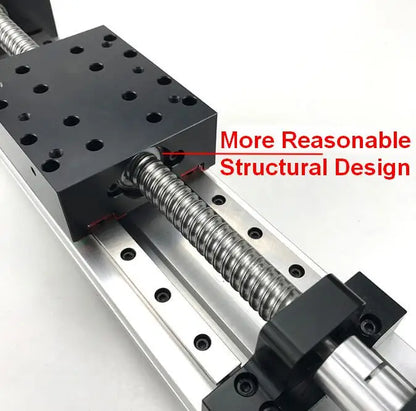

CNC Ball Screw Sliding Table 100x80 800mm Stroke

Enhance long-axis CNC projects with the 100x80 CNC Ball Screw Sliding Table 800mm. Its extended stroke and double rail design allow smooth, precise movement for large-scale automation and machining tasks.

Key Features

• Extended Stroke: 800mm effective travel for large workpieces

• High Accuracy: SFU1605 ballscrew with C7 precision, 0.02–0.03mm repeat positioning

• Stable Double Rail: 4MGN12H sliders and 2MGN12R rails for vibration-free operation

• Durable Construction: Aviation aluminum base supports heavy-duty applications

• Fast Operation: Speeds up to 500mm/s for efficient CNC workflow

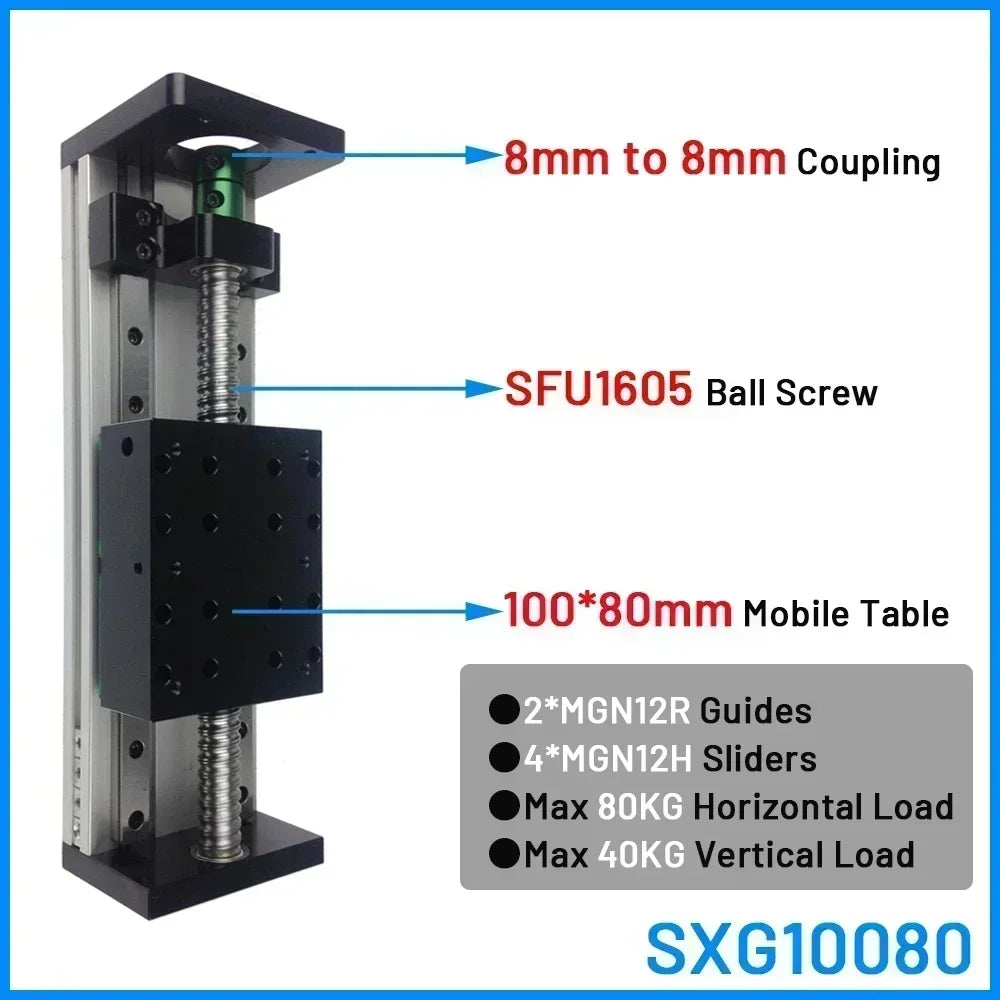

Specifications

• Ballscrew Type: SFU1605

• Effective Stroke: 800mm

• Guide Type: 2*MGN12R, Diameter 12mm

• Repeat Positioning Accuracy: 0.02–0.03mm

• Slider Type: 4*MGN12H

• Maximum Speed: 500mm/s

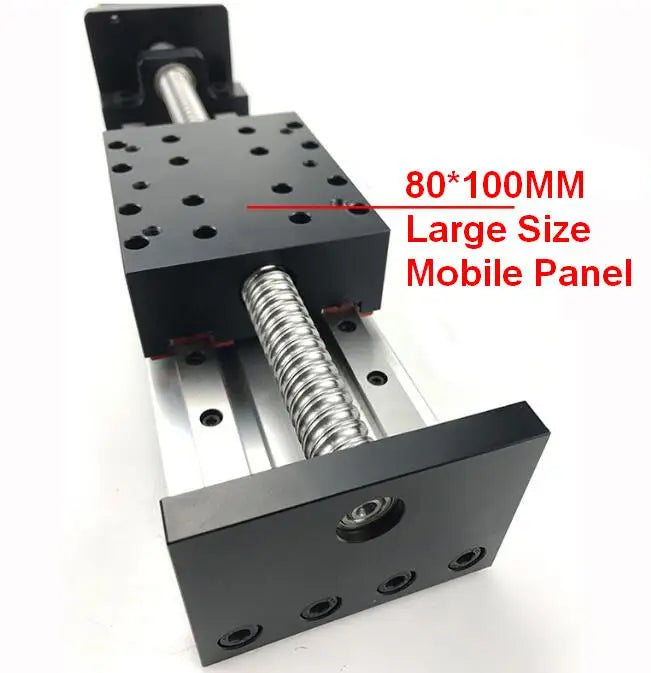

• Panel Size: 100x80mm

Package Contents

• 1 × Sliding Table SFU1605 100x80mm (800mm Stroke)

• 1 × 8mm to 8mm Coupling

What Makes This a Smart Buy:
With its long stroke and precise construction, this table delivers reliable, smooth motion for complex CNC builds, making large-scale milling and automation simpler and more accurate.
