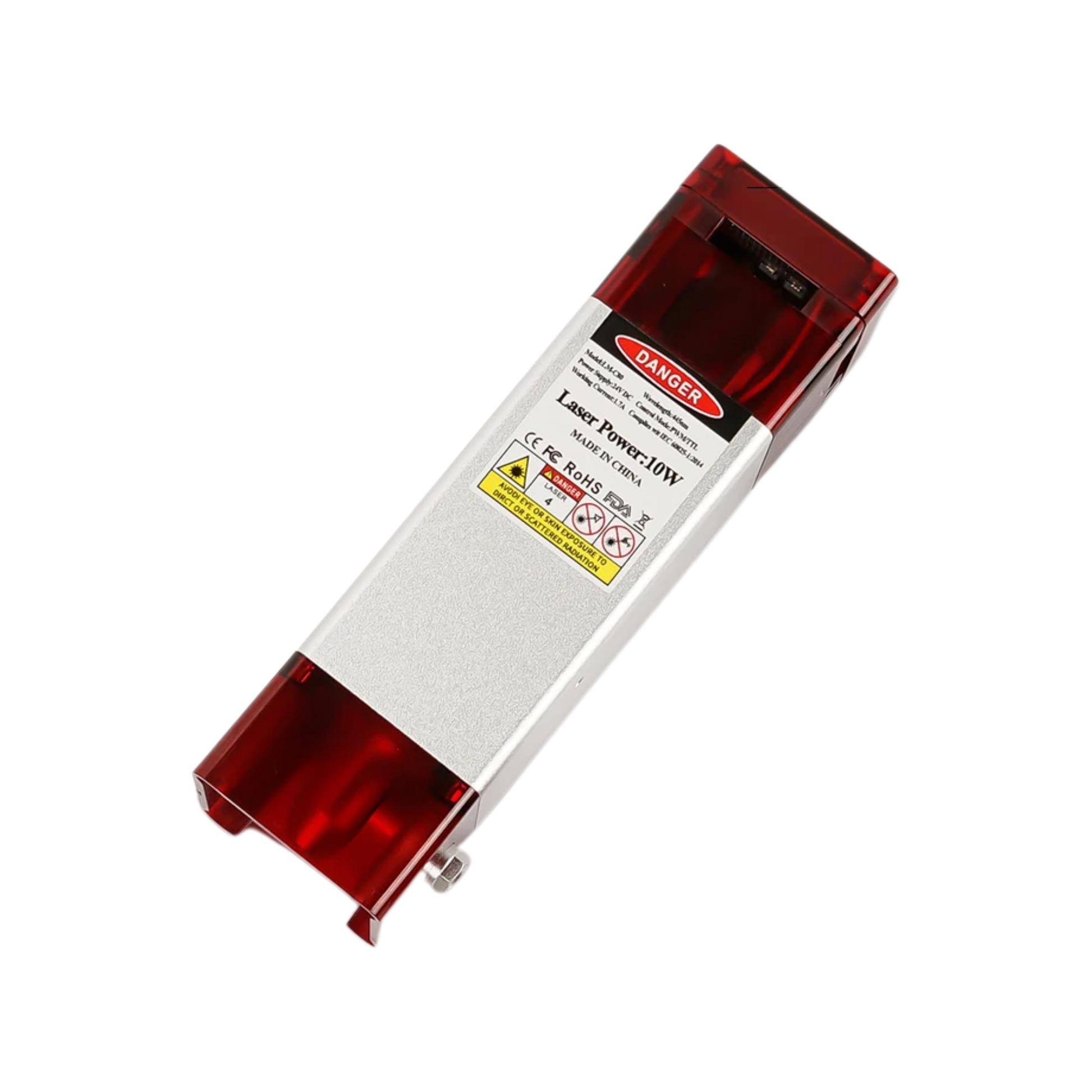

CNC Laser Module 10W for Precision Carving and Cutting

Take your CNC projects to the next level with this 10W high-power laser module. With enhanced stability and air assist, it’s perfect for intricate engravings and cutting tougher materials with precision.

Key Features

• High-power 10W blue laser for fast, detailed engraving

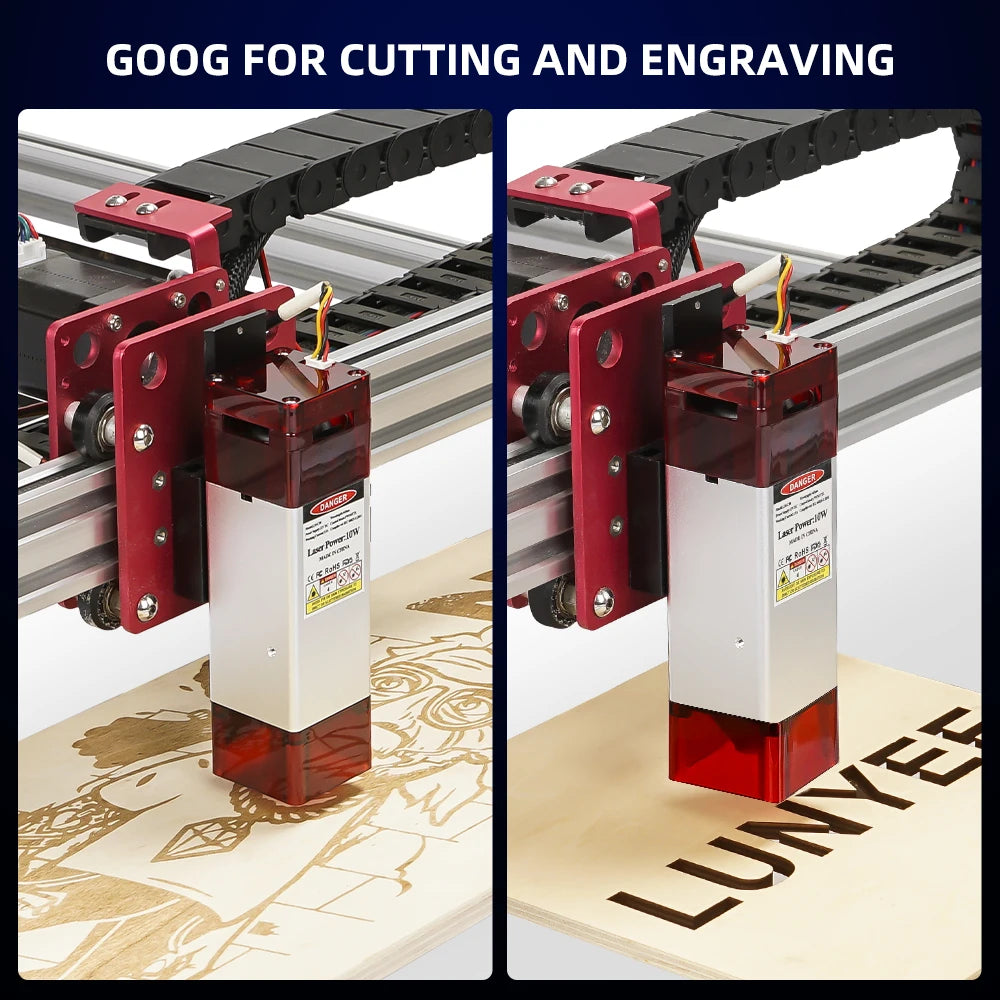

• Fixed-focus head compatible with most three-axis CNC machines

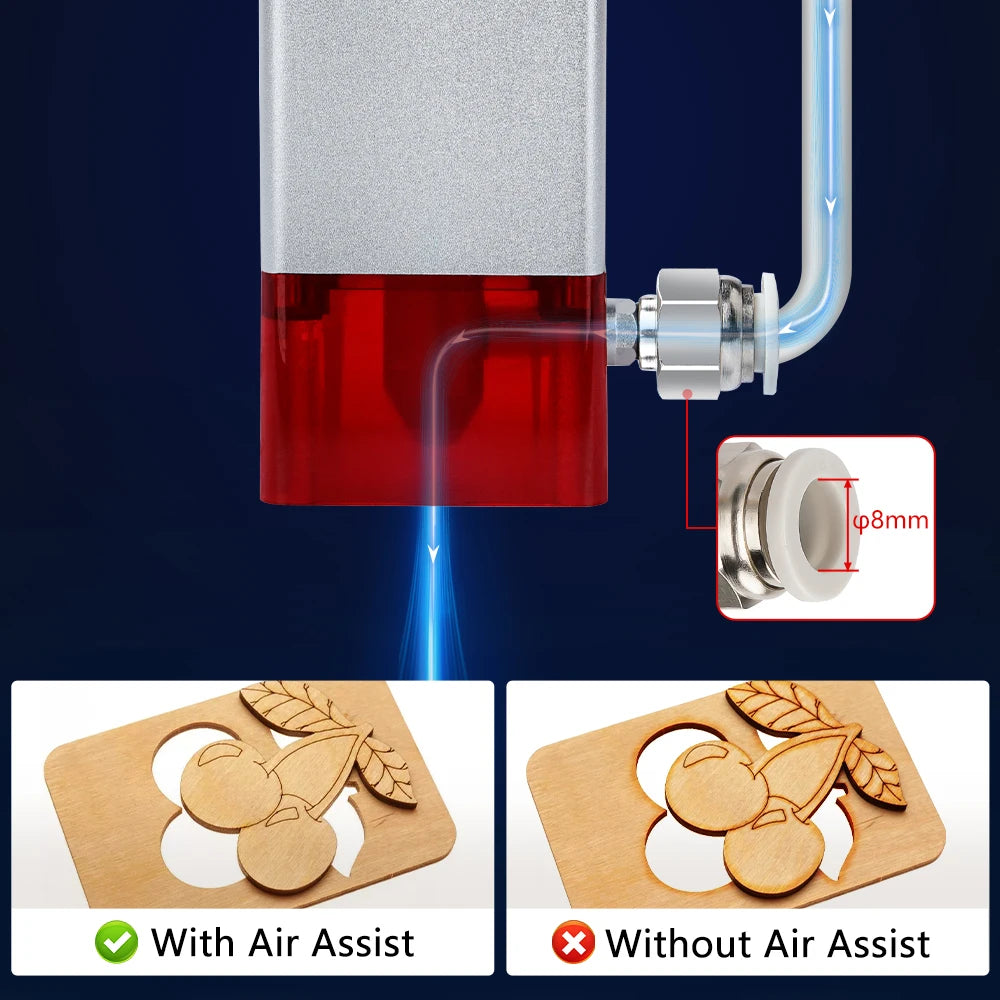

• Air assist system improves cutting performance and reduces burn marks

• Laser protective cover for safer operation without goggles

• Compact and easy to install, suitable for professional use

Specifications

• Laser Wavelength: 445nm (blue)

• Optical Power Output: 10W

• Input Voltage: DC 12V

• Drive Mode: External ACC constant current drive

• Cooling Method: Forced air

• Operating Current: 3.8A (12V)

• Shell Material: Aluminium alloy

• Life Expectancy: 10,000 hours

• Applicable Materials: Wood, plywood, bamboo, MDF, leather, rubber, ceramics, coated glass, stone, acrylic, stainless steel

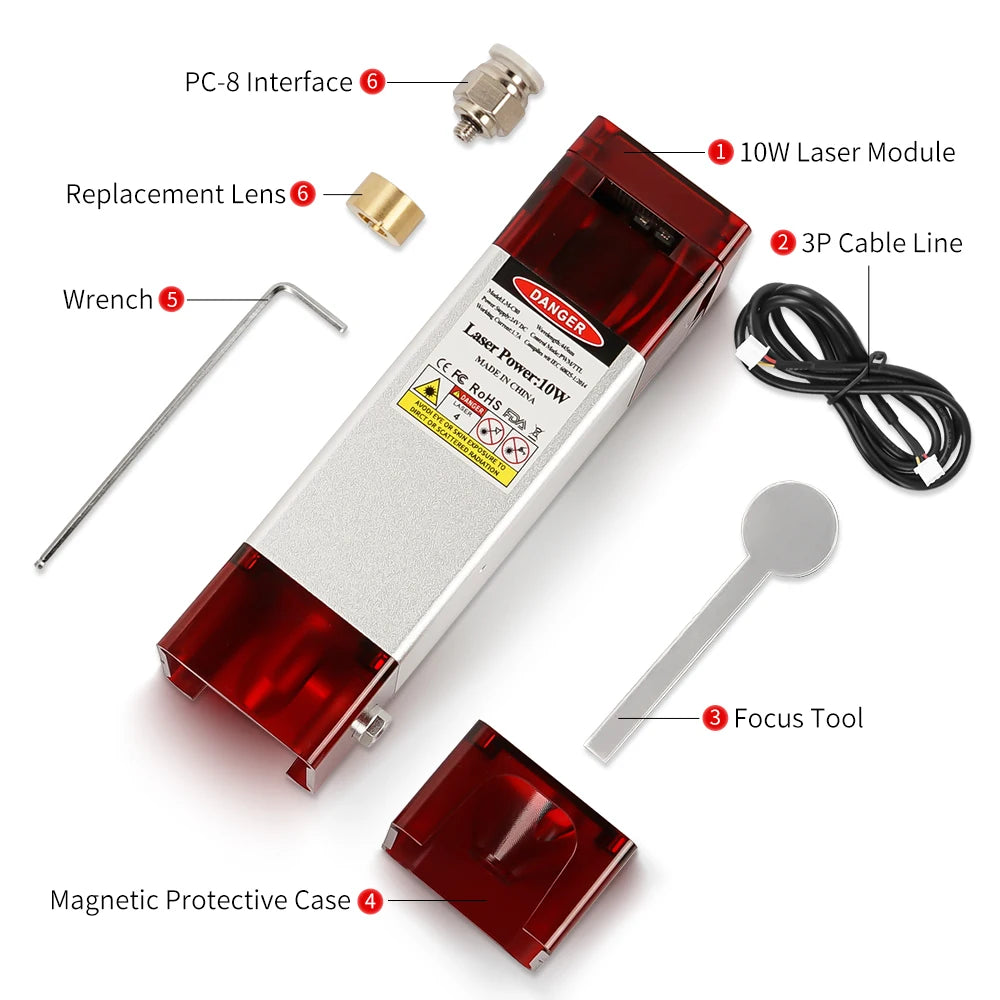

Package Contents

• 1 × 10W Laser Module

• 1 × Air Assist Nozzle

• 1 × 3-Pin Cable (Red +, Black –, Yellow PWM)

What Makes This a Smart Buy:
Delivering maximum cutting power with precise control, this 10W module is ideal for professionals and makers. Its reliable air assist and robust optical system ensure consistent, high-quality results on a wide range of materials.
