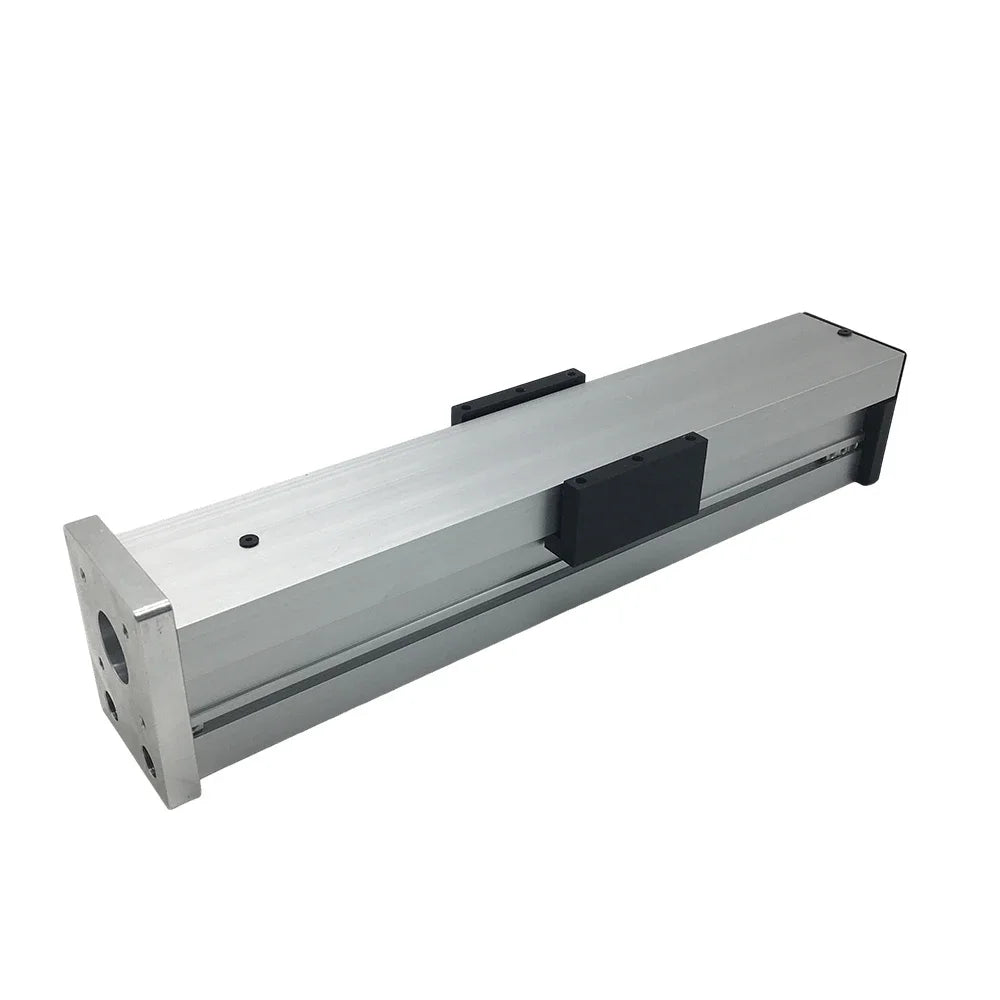

Achieve precise motion control with this CNC linear actuator aluminium rail guide. Built for smooth and stable travel, it’s ideal for automation, robotics, and CNC machining, providing reliable positioning for heavy-duty applications.
Key Features
- Precision linear actuator for CNC, automation, and robotics
- Aluminium rail provides strong, lightweight support
- Handles horizontal loads up to 40kg, vertical loads up to 20kg
- Repeat positioning accuracy of 0.03–0.05mm ensures reliable results
- Compatible with Nema17/Nema23 stepper motors for flexible integration

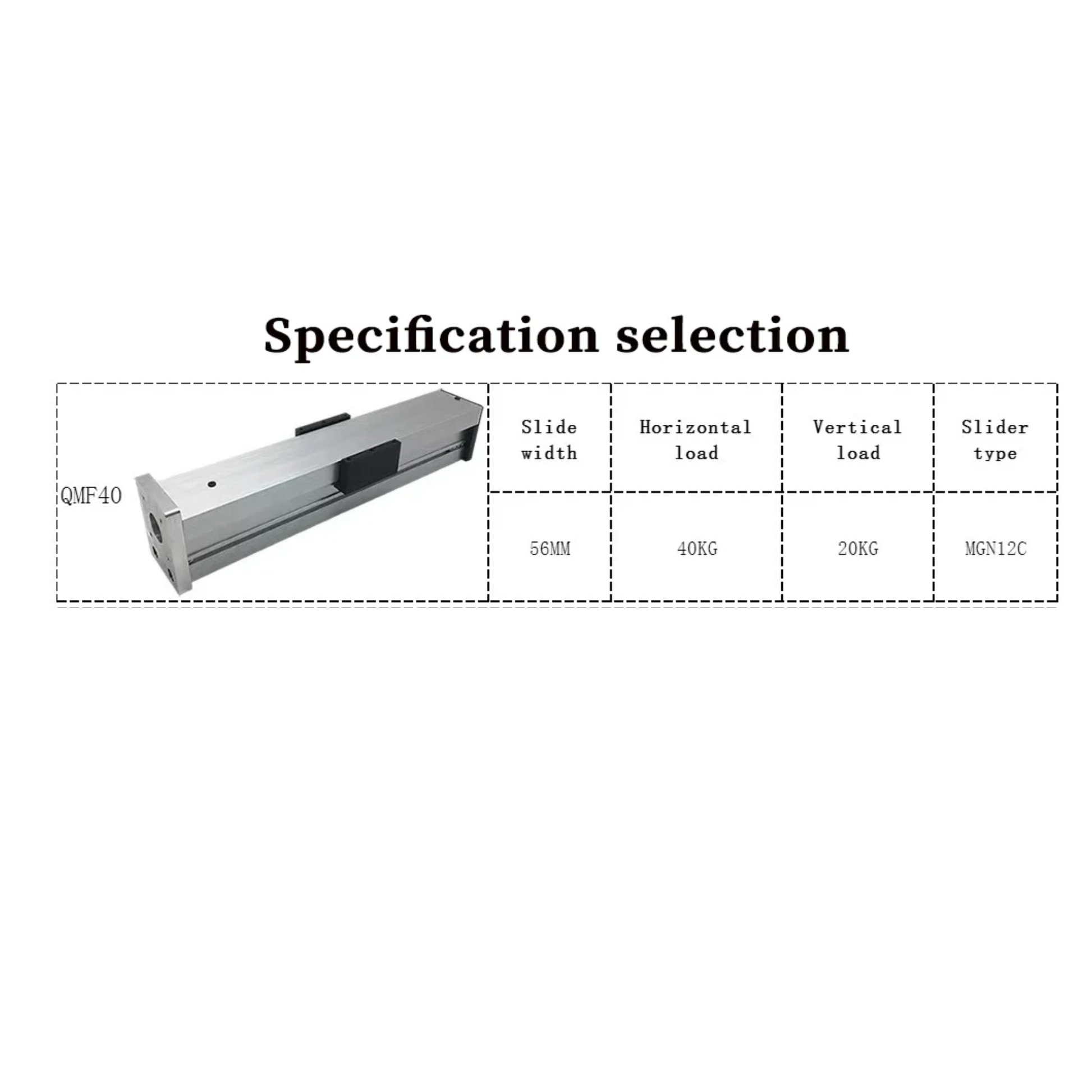

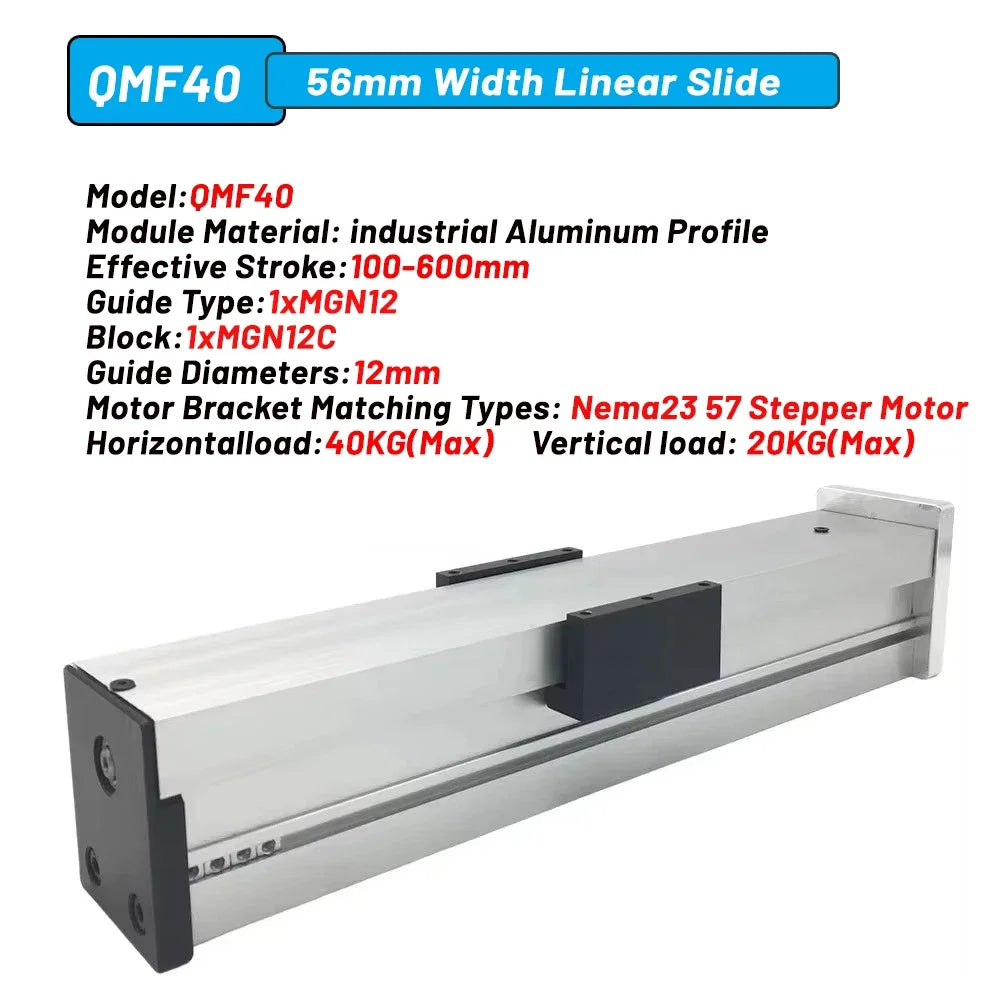

Specifications
- Model: QMF40
- Effective Stroke: 100mm
- Module Width: 56mm
- Module Material: Industrial Aluminium Profile

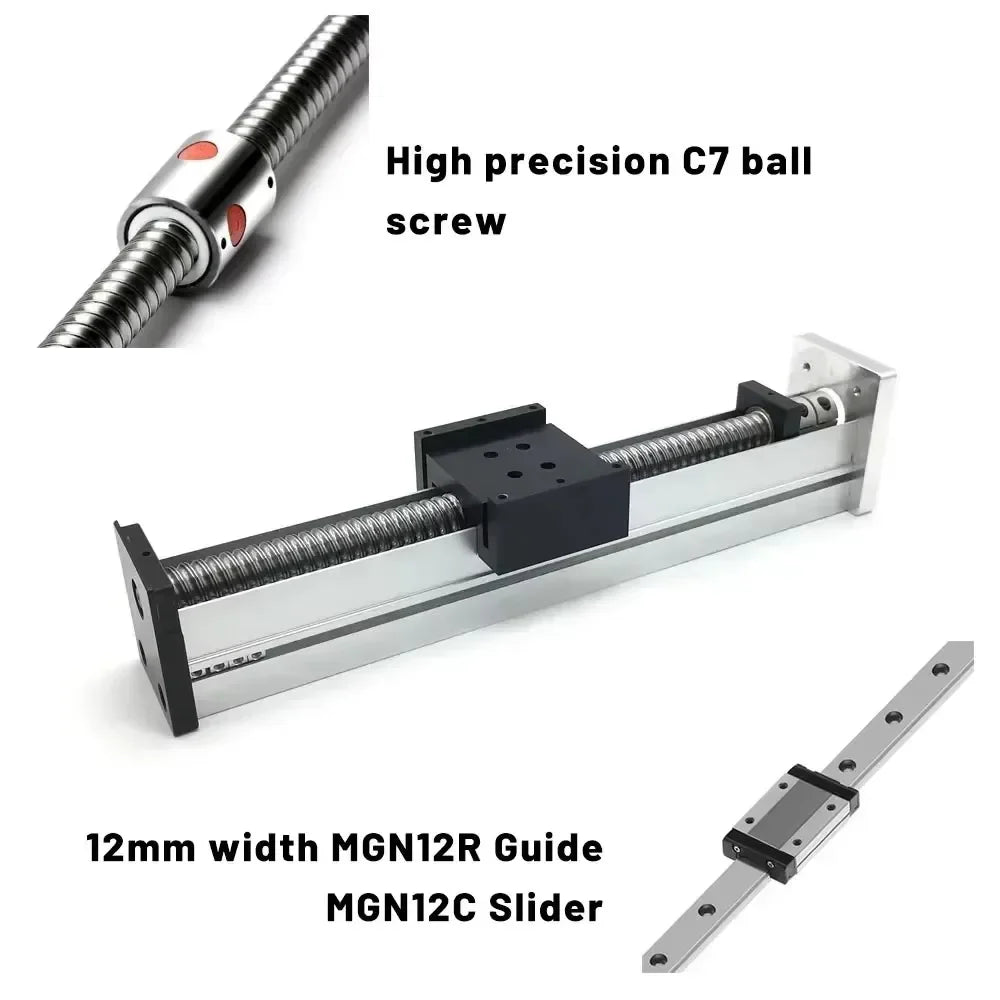

- Ballscrew Type: SFU1610
- Ballscrew Material: Bearing Steel
- Ballscrew Accuracy: C7
- Max Moving Speed: 250mm/s
- Guide Rail: 1 x MGN12R
- Slider: 1 x MGN12C
Package Contents
- 1 x Sliding Table
- 1 x Coupling
What Makes This a Smart Buy:
This linear actuator provides accurate, repeatable motion in a compact aluminium design, perfect for CNC machines, single-axis robots, and automated processes. It’s a practical solution for professional and hobby projects alike.
