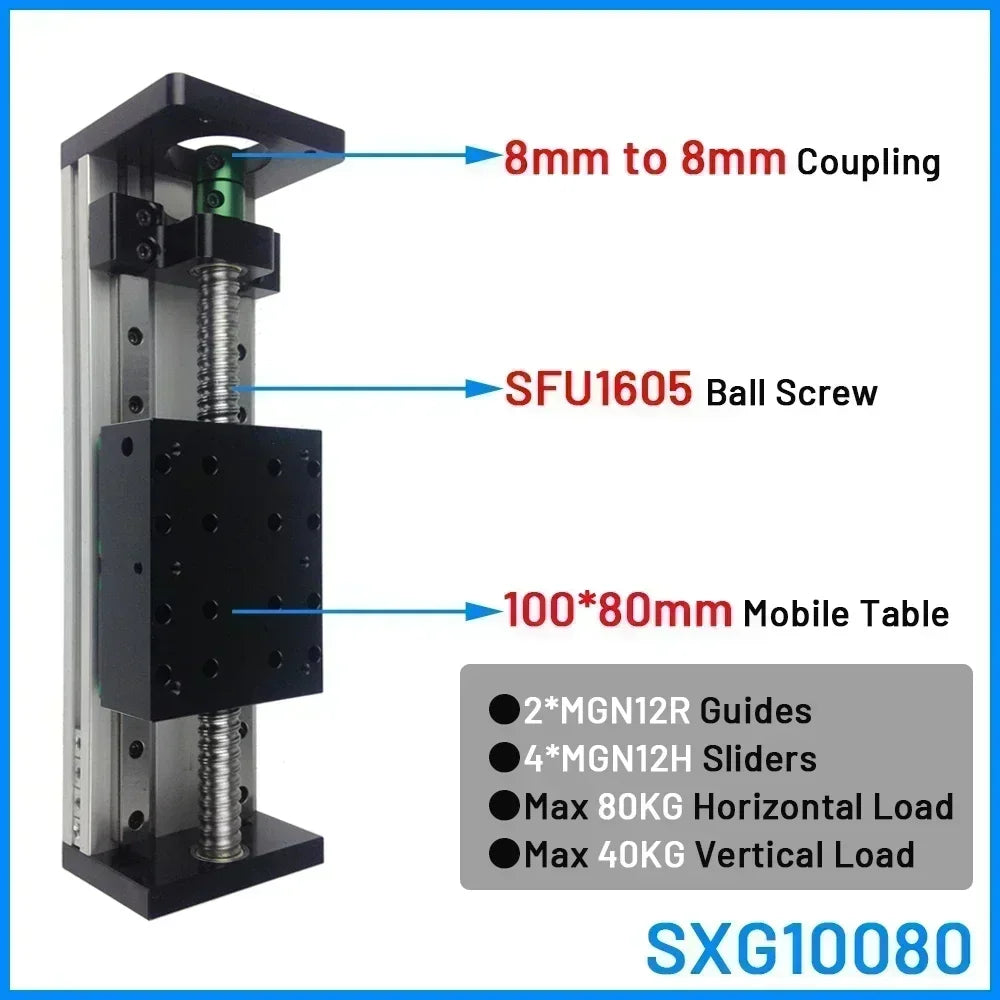

CNC XYZ Axis Linear Guide Table 200mm Stroke

Achieve precise multi-axis movement with the CNC XYZ Axis Linear Guide Table 200mm. Designed for accuracy and stability, it’s perfect for integrating into XYZ gantry systems, milling machines, or automation equipment.

Key Features

• Precision Multi-Axis Motion: C7 SFU1605 ballscrew with 0.02–0.03mm repeat accuracy

• Stable Double Rails: 4MGN12H sliders on 2MGN12R linear guides

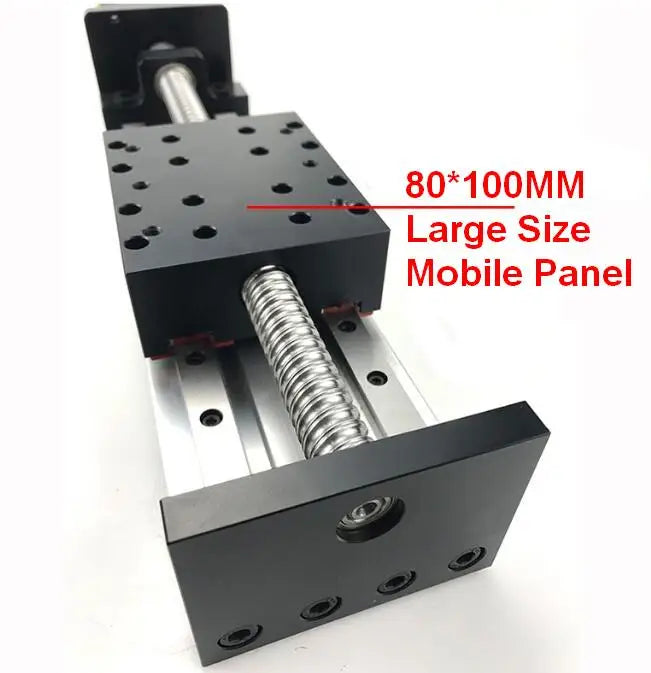

• Compact Yet Strong: 100x80mm aluminum panel supports 80kg horizontal load

• Fast & Smooth: Max speed 500mm/s for efficient CNC operations

• Customizable Integration: Supports Nema23 motor bracket and multi-axis setups

Specifications

• Ballscrew Type: SFU1605

• Effective Stroke: 200mm

• Guide Type: 2*MGN12R, Diameter 12mm

• Repeat Positioning Accuracy: 0.02–0.03mm

• Slider Type: 4*MGN12H

• Maximum Speed: 500mm/s

• Panel Size: 100x80mm

Package Contents

• 1 × Sliding Table SFU1605 100x80mm (200mm Stroke)

• 1 × 8mm to 8mm Coupling

What Makes This a Smart Buy:
This table delivers precise, smooth multi-axis movement in a compact package, perfect for hobbyist and professional CNC builds that require accuracy, speed, and durability.
