Compact 1.2Nm Linear Motion Module for CNC

Achieve precise CNC movement in a compact package with this 1.2Nm linear motion module. Ideal for smaller builds or lighter-duty automation, it combines a ball screw module with a robust stepper motor for accurate, repeatable motion on your Z axis, milling, or engraving projects.

Key Features

• Compact linear guide rail CNC motion stage for tight spaces
• 1.2Nm Nema23 stepper motor provides reliable torque for precision tasks
• Supports sliding table loads up to 60kg horizontally and 30kg vertically
• Smooth, accurate movement with 0.02–0.03mm repeat positioning accuracy
• Works seamlessly with motorized linear table, Z axis sliding table, or CNC motion stage setups

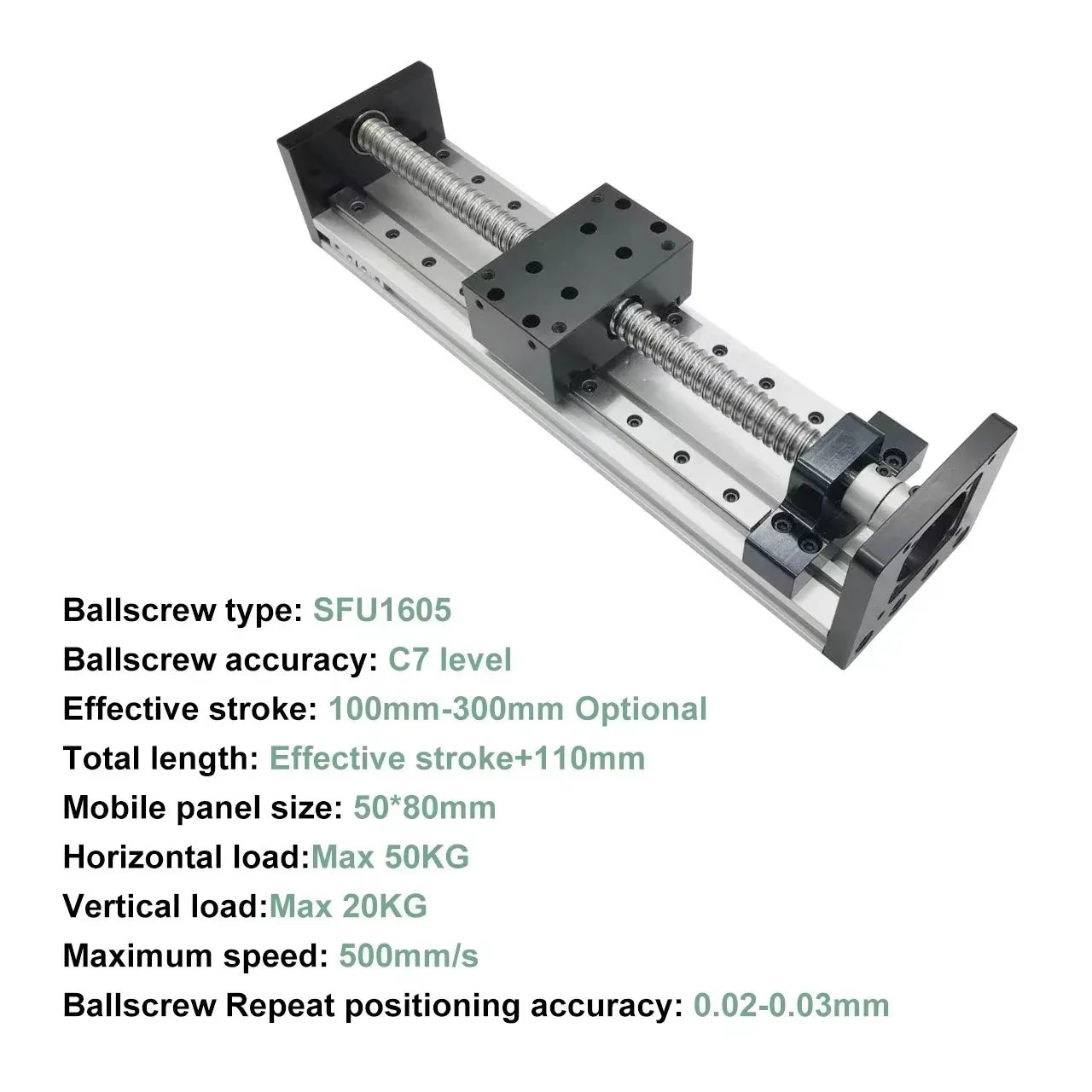

Specifications

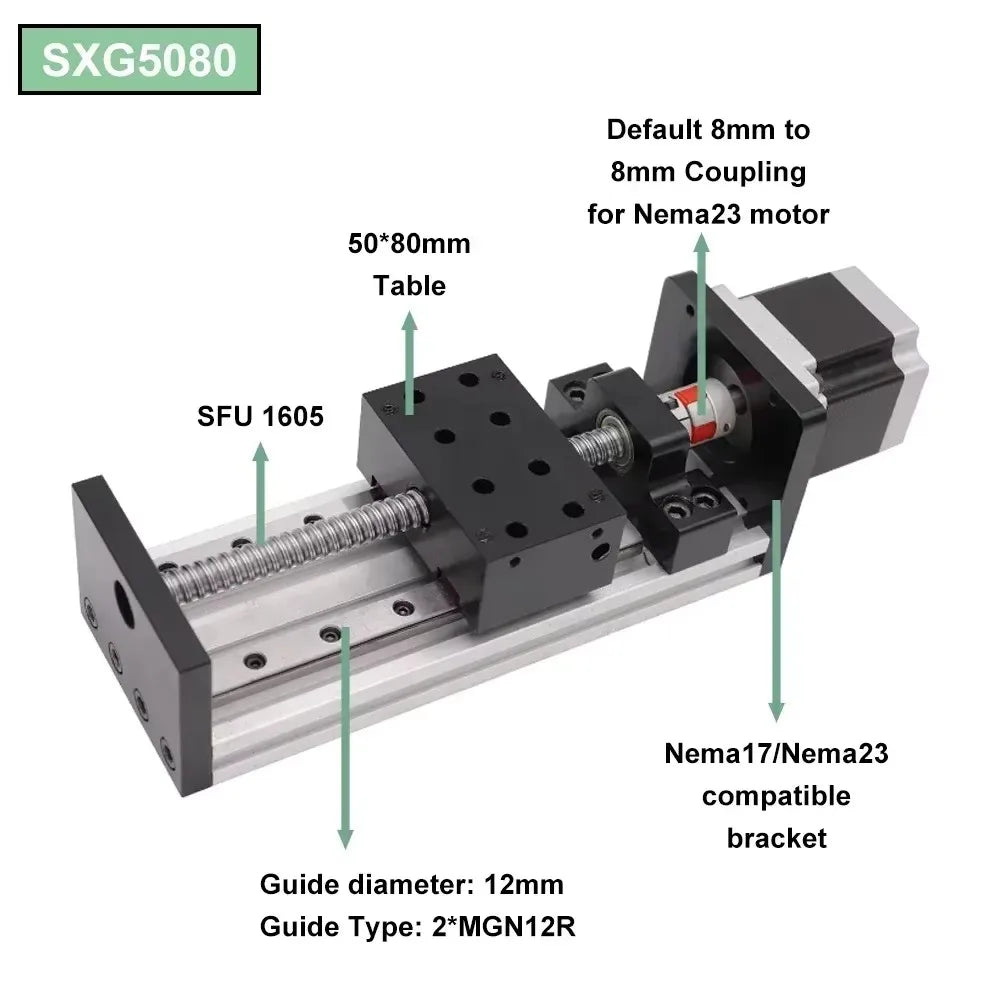

• Ballscrew type: SFU1605, accuracy: C7
• Effective stroke: 100–300mm optional

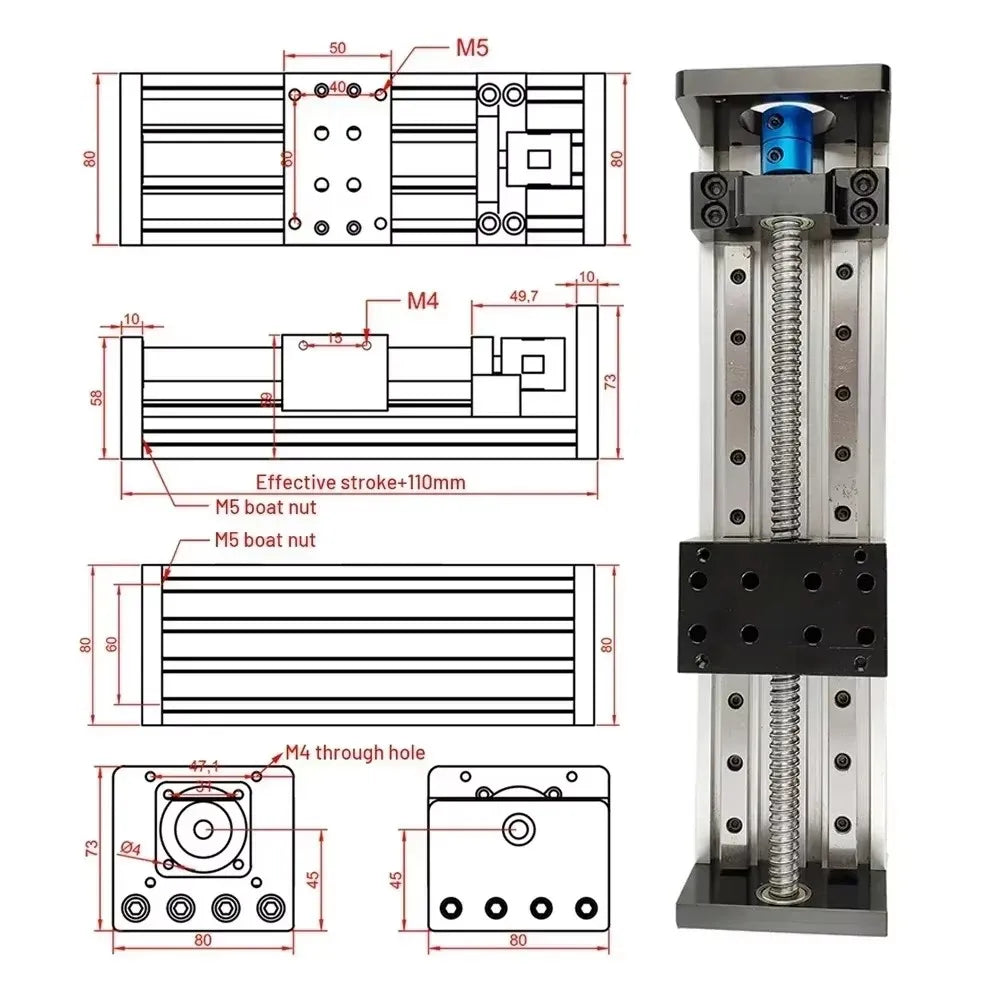

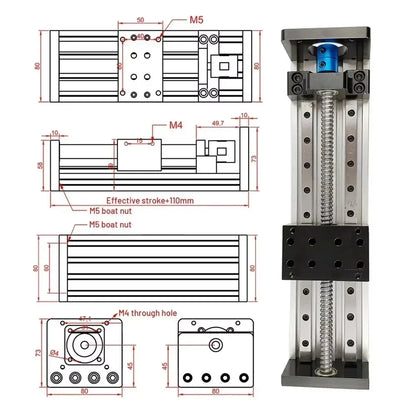

• Module width: 80mm, total length: stroke + 100mm
• Guide diameter: 12mm
• Maximum speed: 500mm/s
• Module material: industrial aluminium profile
• Motor bracket: supports Nema 17 or Nema 23 stepper motors

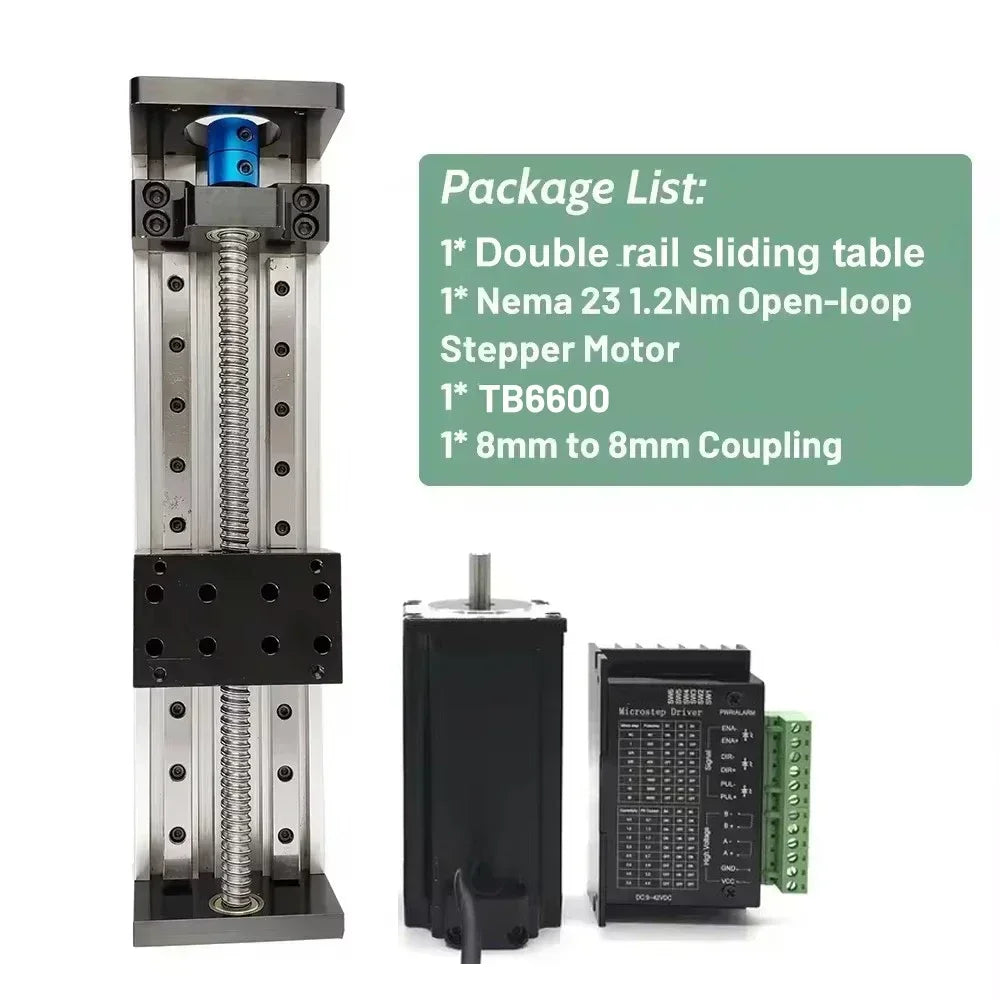

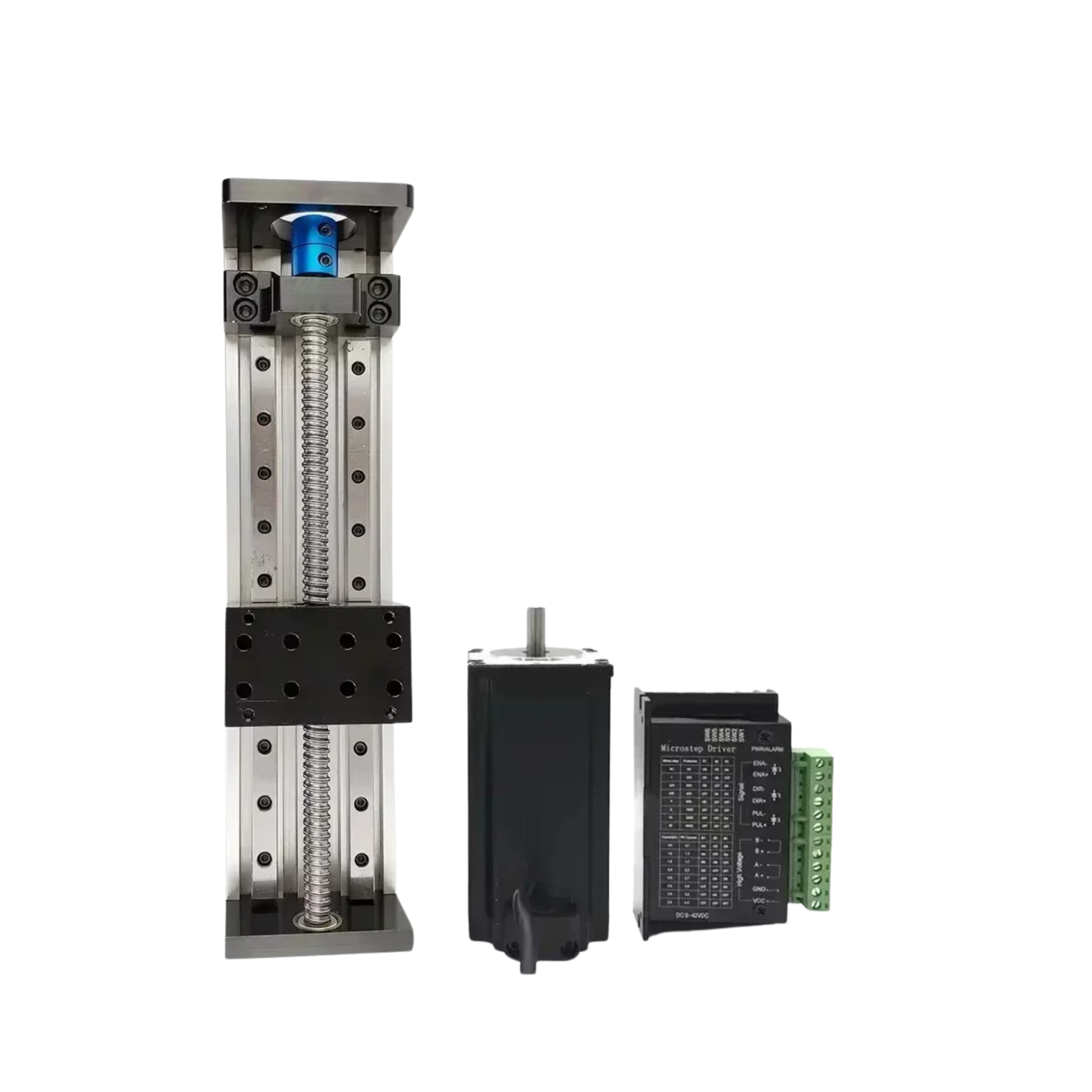

Package Contents

• 1× SFU1605 double rail slide table
• 1× Nema23 57mm open-loop stepper motor
• 1× TB6600 motor driver
• 1× 8mm-to-8mm coupling

What Makes This a Smart Buy:
This compact kit delivers precision motion in a small footprint, perfect for CNC builds where space is tight. Its versatility and high accuracy make it a cost-effective solution for hobbyists and small-scale projects.
