Compact 1.5Nm Linear Slide Table 100mm Stroke

Ideal for smaller projects or lighter loads, this 1.5Nm all-in-one linear slide table delivers precision motion in a compact form factor. Perfect for DIY automation, 3D printing, and small CNC machines.

Key Features

• Compact 1.5Nm closed-loop stepper motor with integrated drive

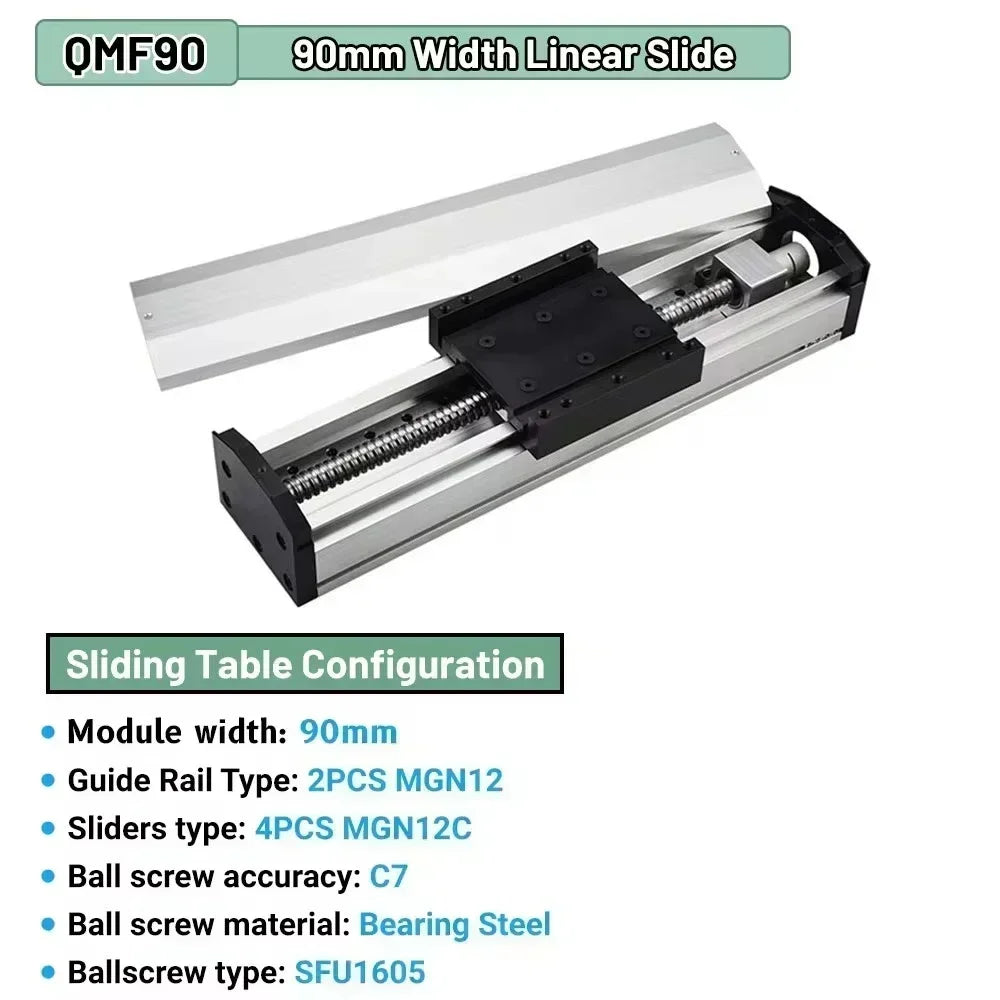

• Smooth, precise linear movement with SFU1605 ball screw and MGN12C rails

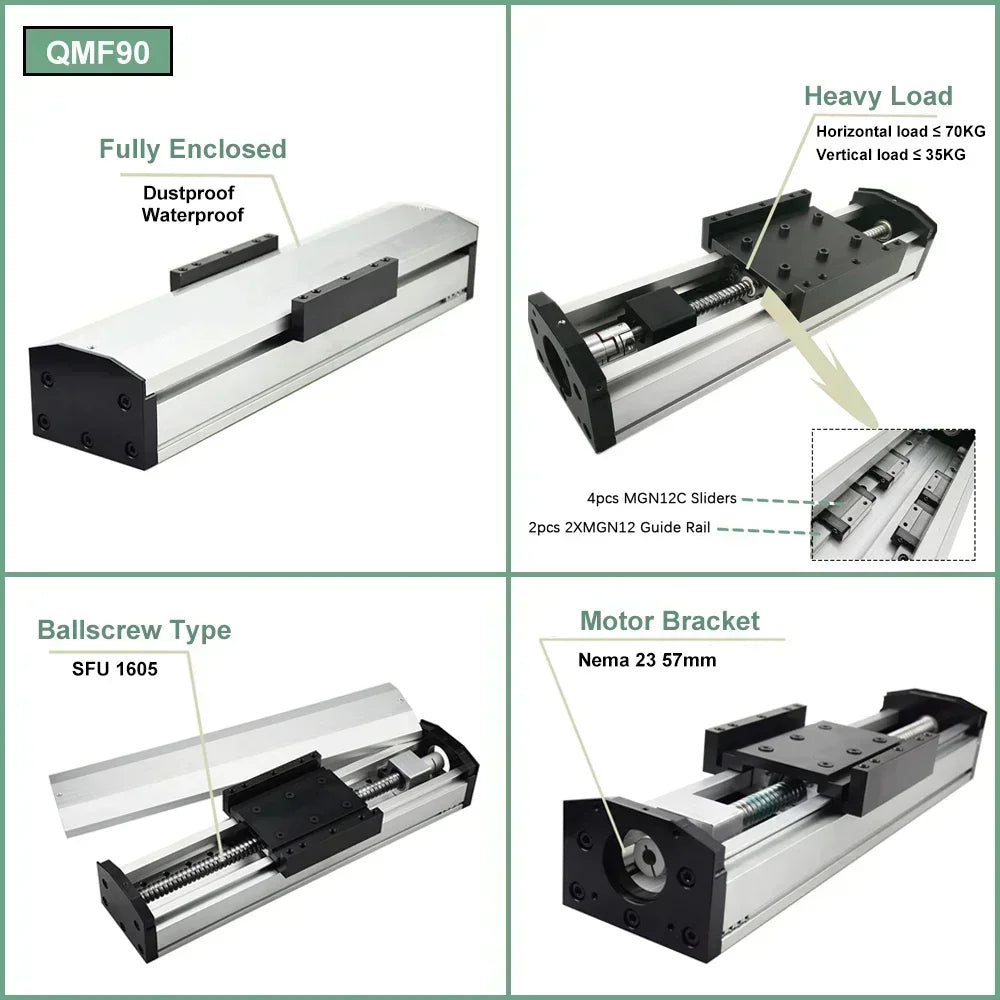

• Fully enclosed slide table for durability and dust protection

• Handles horizontal loads up to 70kg and vertical loads up to 35kg

• Easy to integrate into CNC, 3D printer, or automation setups

Specifications

• Motor: Nema23 57mm closed-loop, 1.5Nm holding torque

• Ball screw accuracy: C7, type SFU1605

• Repeat positioning accuracy: 0.03–0.05mm

• Module width: 90mm, industrial aluminum profile

• Effective stroke: 100mm (adjustable to 300mm)

• Total length: Effective stroke + 170mm

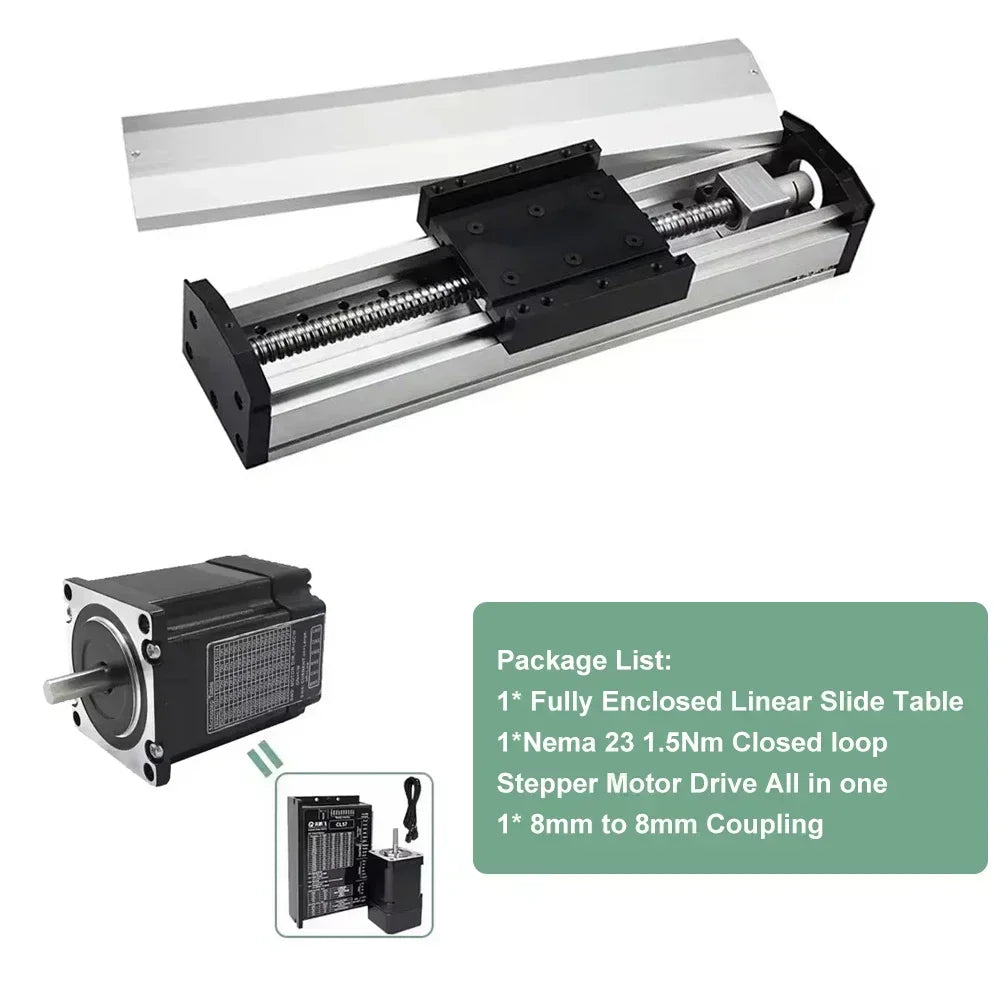

Package Contents

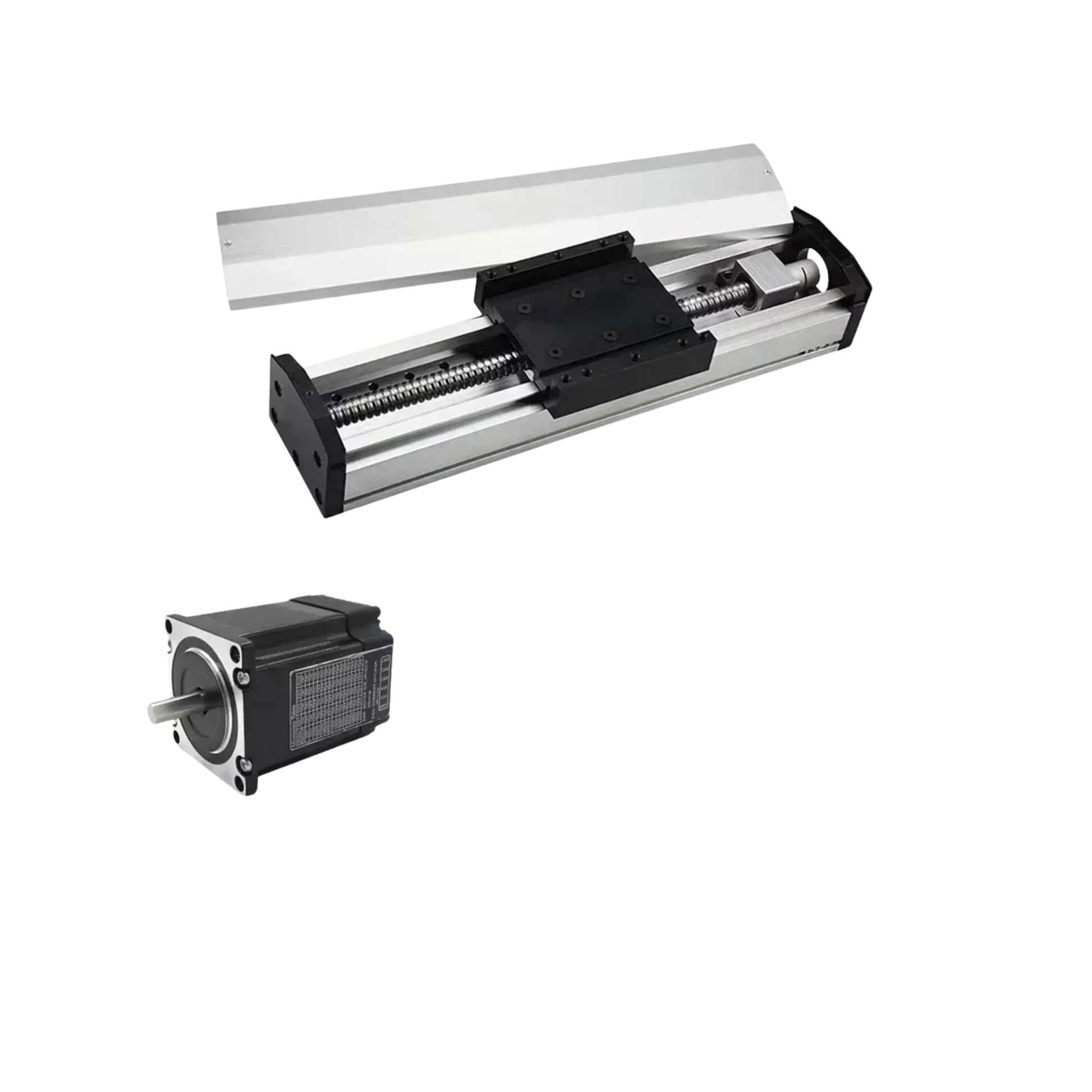

• 1 × Fully enclosed linear slide table (1.5Nm All in one kit)

• 1 × Nema23 57mm closed-loop motor drive

• 1 × 8mm-to-8mm coupling

What Makes This a Smart Buy:
Compact yet precise, this kit provides smooth, accurate motion for lighter-duty projects, offering high value and easy installation for makers and small-scale automation users.
