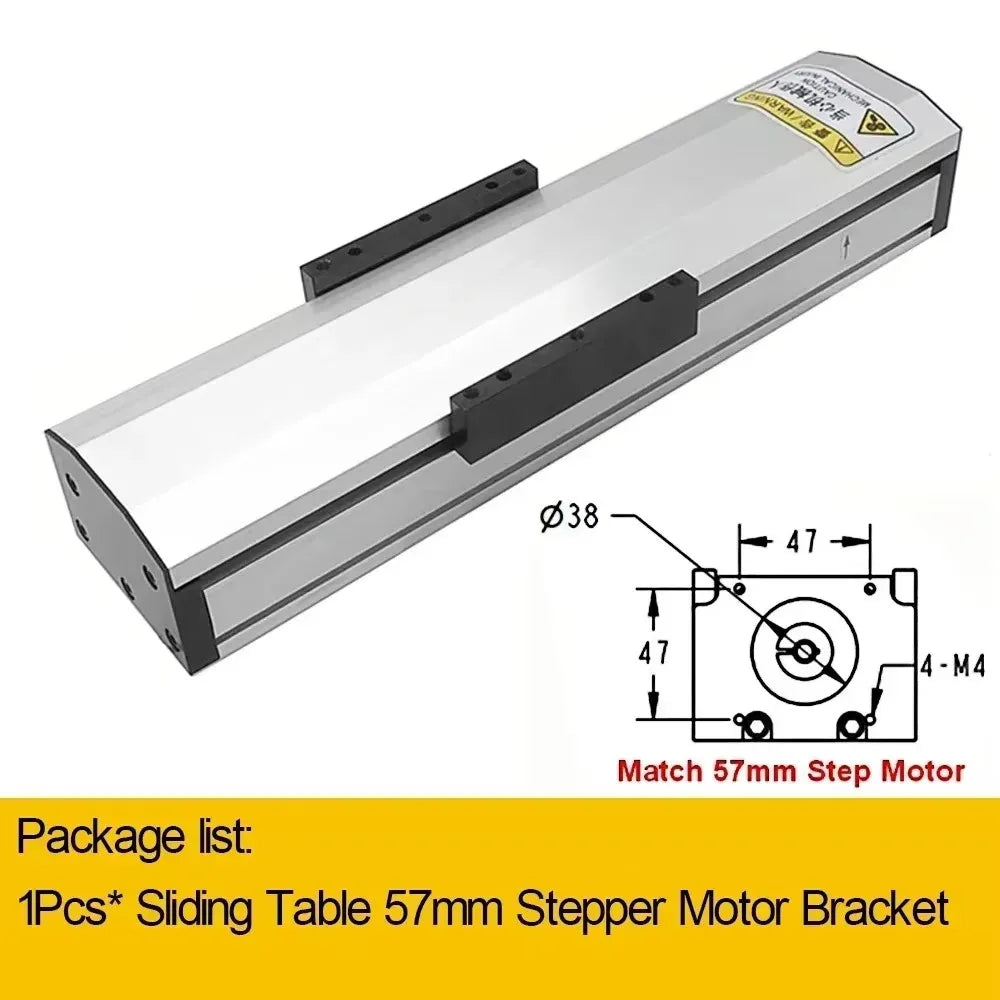

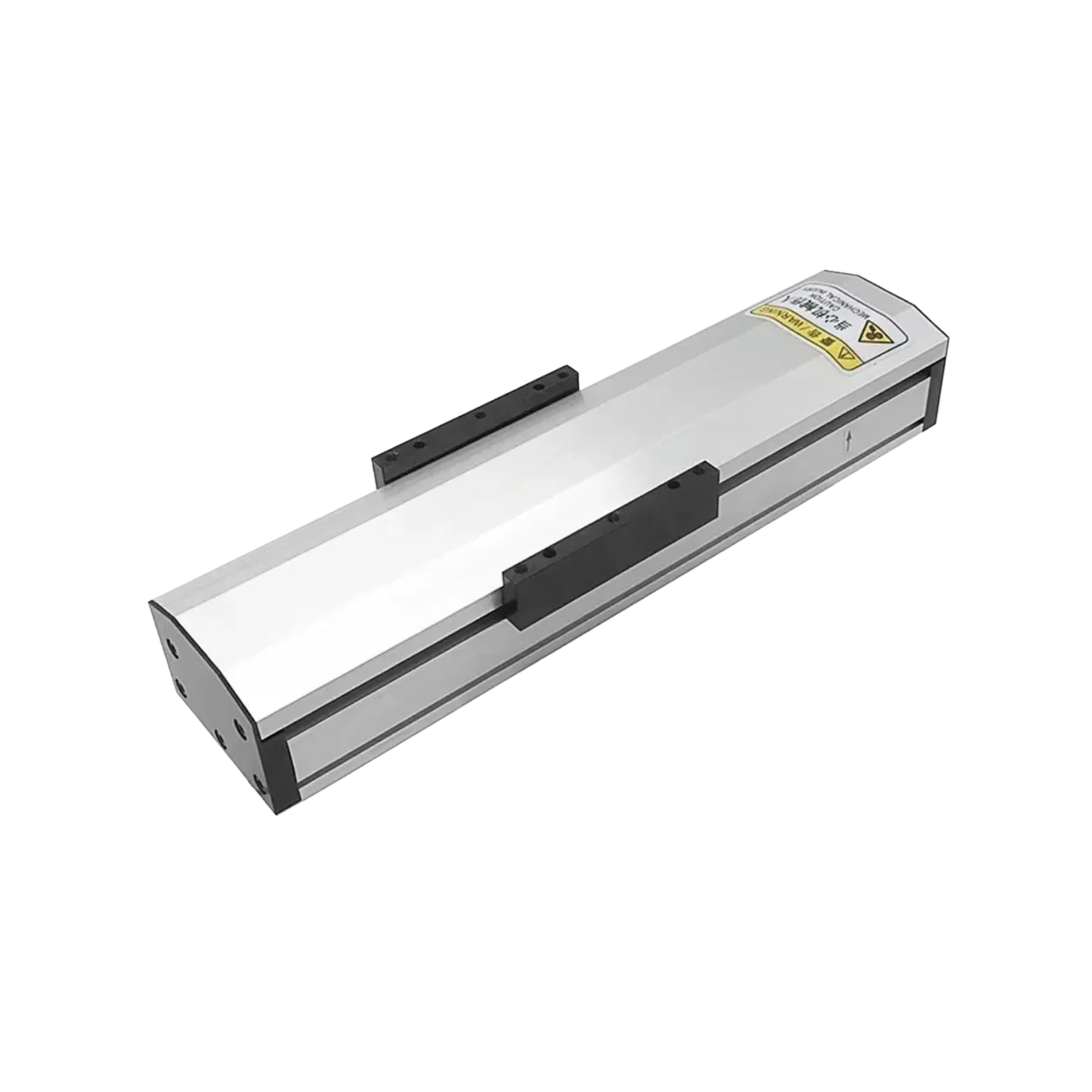

Compact 57mm Stepper Bracket Linear Stage – 800mm Stroke

This compact linear motion stage is built for precise, controlled movement in CNC systems, automation rigs, and custom engineering projects. With an 800mm stroke, it provides a balanced mix of reach and rigidity for medium-length travel applications.

Its ball screw-driven design ensures smooth operation, high accuracy, and dependable repeat positioning—making it well-suited for projects where precision and consistency matter.

Key Features

• 800mm stroke for versatile mid-range motion control

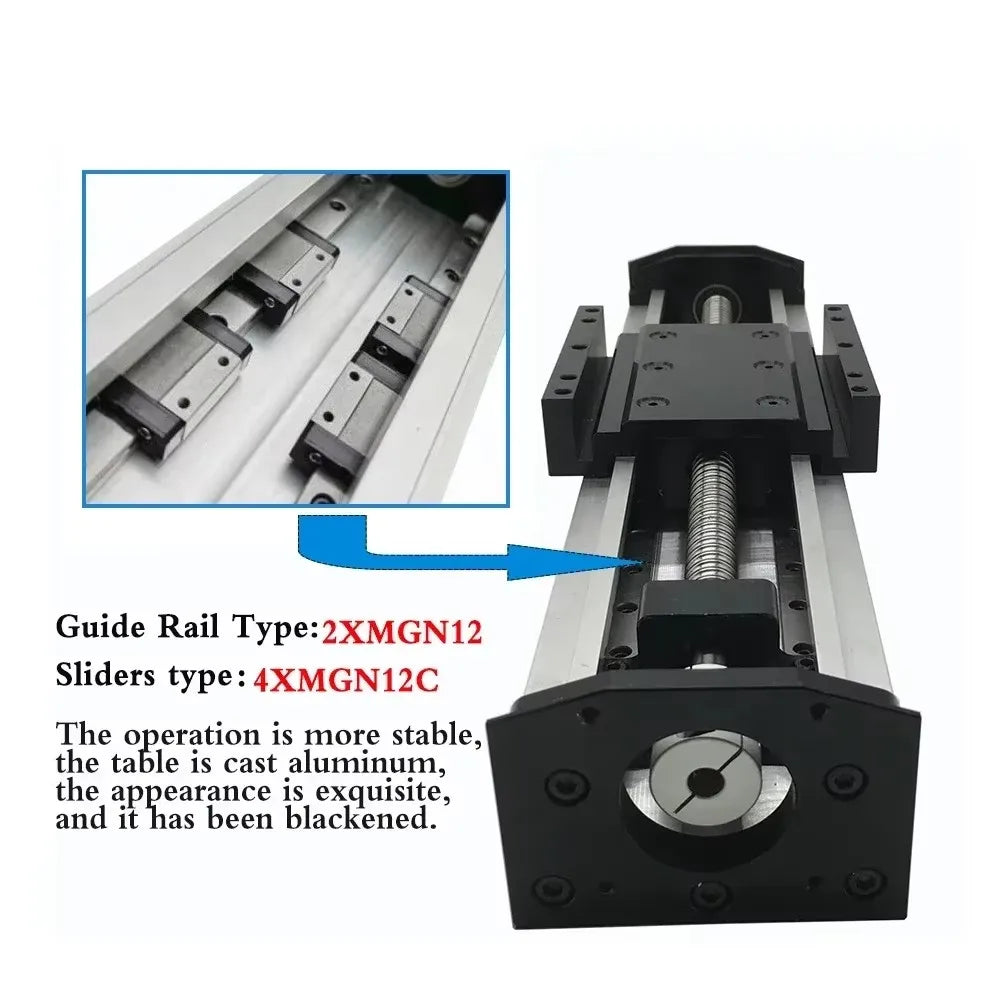

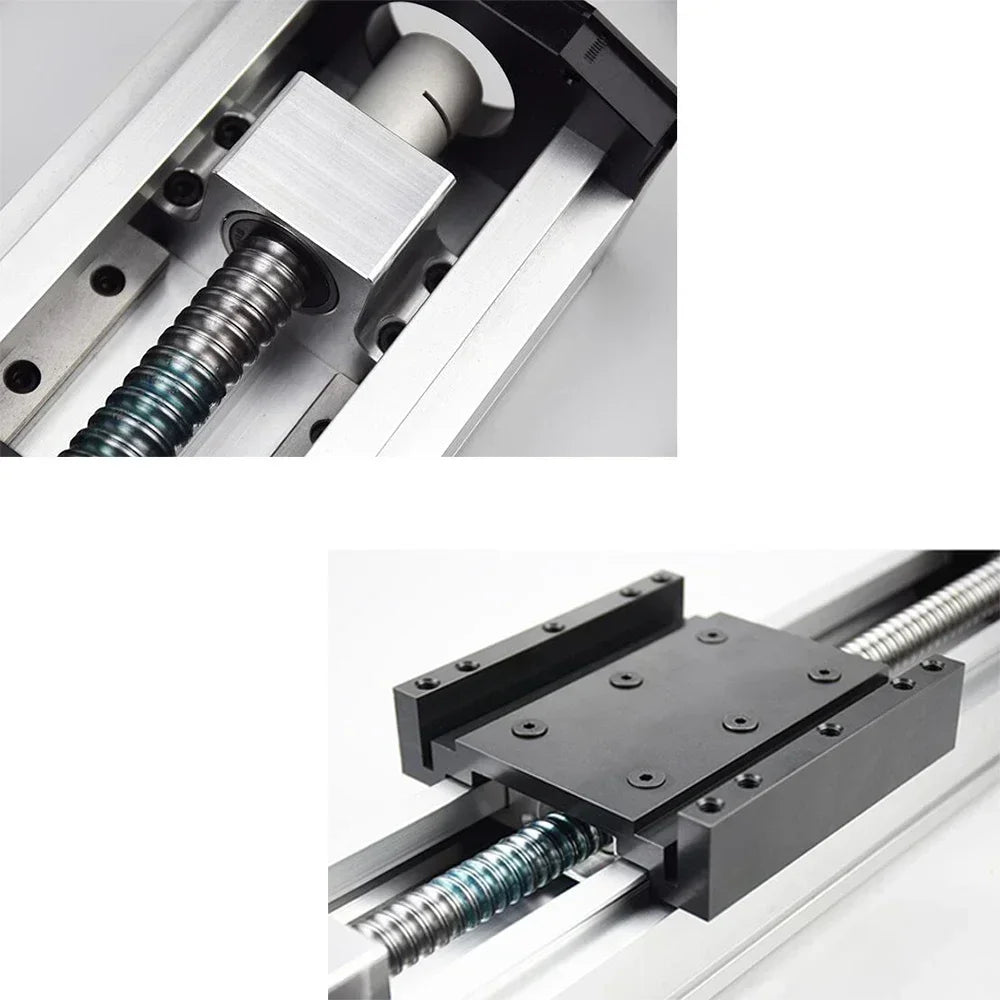

• Precision ball screw drive for smooth, stable operation
• High load capacity for demanding mechanical applications
• Compact 57mm bracket design for easy integration
• Reliable repeatable positioning for accurate performance
• Ideal for CNC machines, automation systems, and robotics

Specifications

• Ball screw accuracy: C7
• Ballscrew type: SFU1605 / SFU1610 compatible
• Module width: 90mm
• Horizontal load: up to 70kg
• Vertical load: up to 35kg
• Repeat positioning accuracy: 0.03mm – 0.05mm
• Max moving speed: up to 250mm/s (SFU1605) / 500mm/s (SFU1610)
• Screw pitch: 5mm / 10mm
• Screw model: Ball screw
• Model number: QMF90

Package Contents

• 1 × Linear motion stage (800mm stroke assembly)
• Mounting bracket components

What Makes This a Smart Buy:
This 800mm version is ideal for builders who need precision motion in a slightly more compact footprint. It delivers strong performance, smooth travel, and dependable accuracy—making it a versatile upgrade for a wide range of automation and CNC applications.
