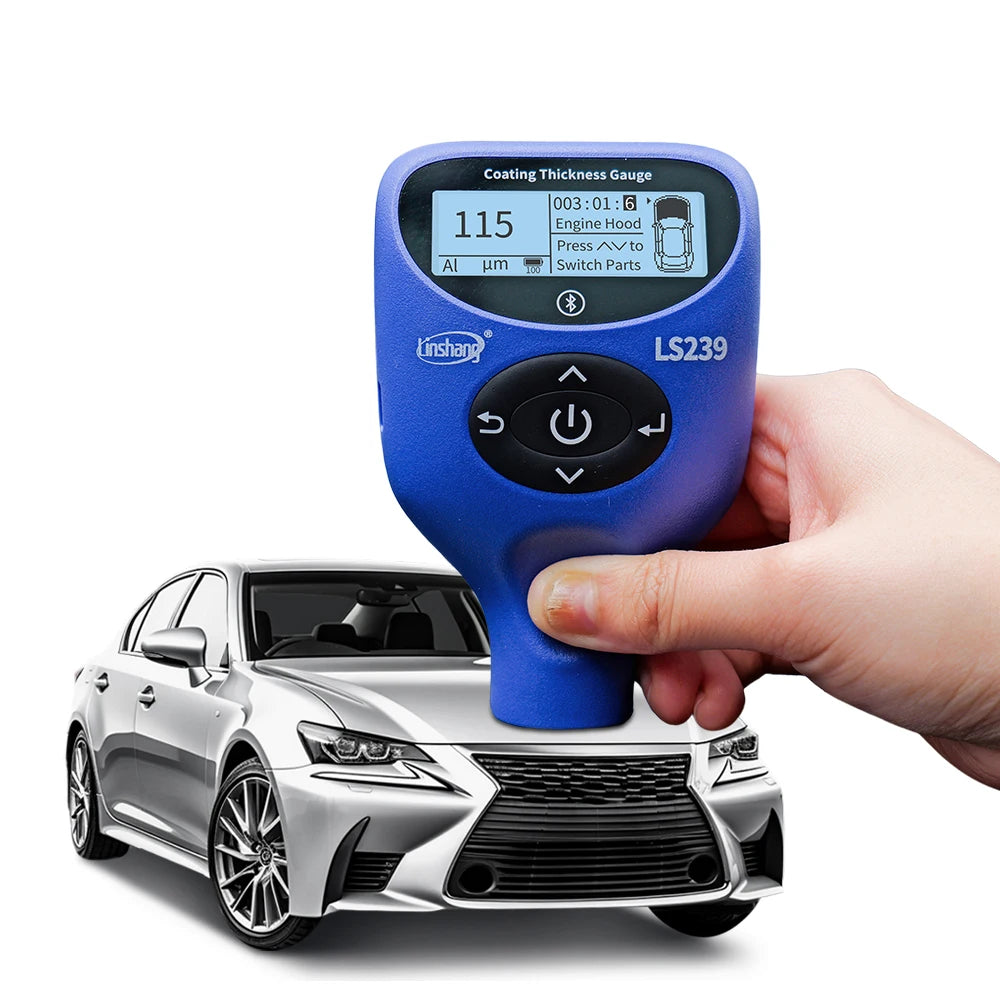

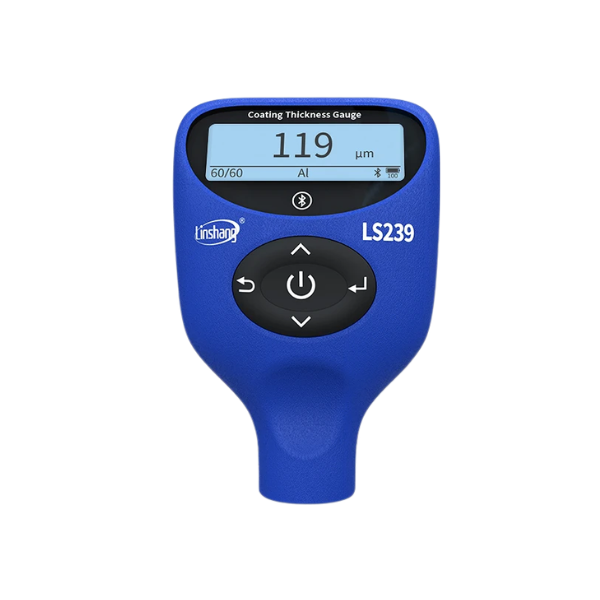

Digital Car Paint Thickness Gauge High Precision Tester

This high-precision digital paint thickness gauge helps quickly assess vehicle paintwork and identify potential repairs, refinishing or bodywork. With automatic material recognition, a 0–5000μm measurement range and Bluetooth data transfer, it’s a practical tool for vehicle inspections, buying checks and professional assessments.

Key Features

• Measures paint and coating thickness accurately on vehicle body panels
• Supports both ferrous and non-ferrous surfaces, including steel and aluminium
• Automatically recognises Fe, Zn, Al and non-metal substrates
• Detects ferrous putty to help identify repaired or refinished panels
• Wide 0–5000μm measurement range handles thin paint through to heavy coatings
• Fast measurement response of approximately 0.5 seconds

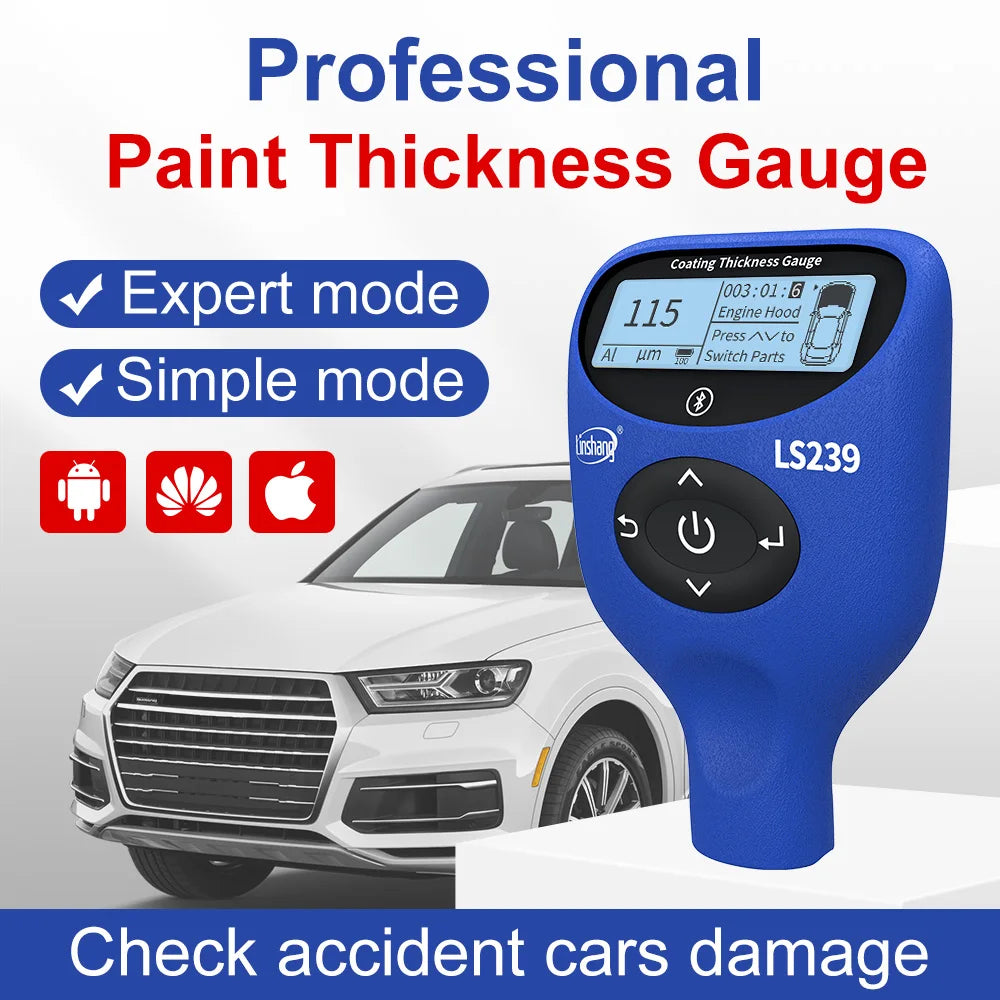

• Simple and Expert measurement modes suit beginners and professional users

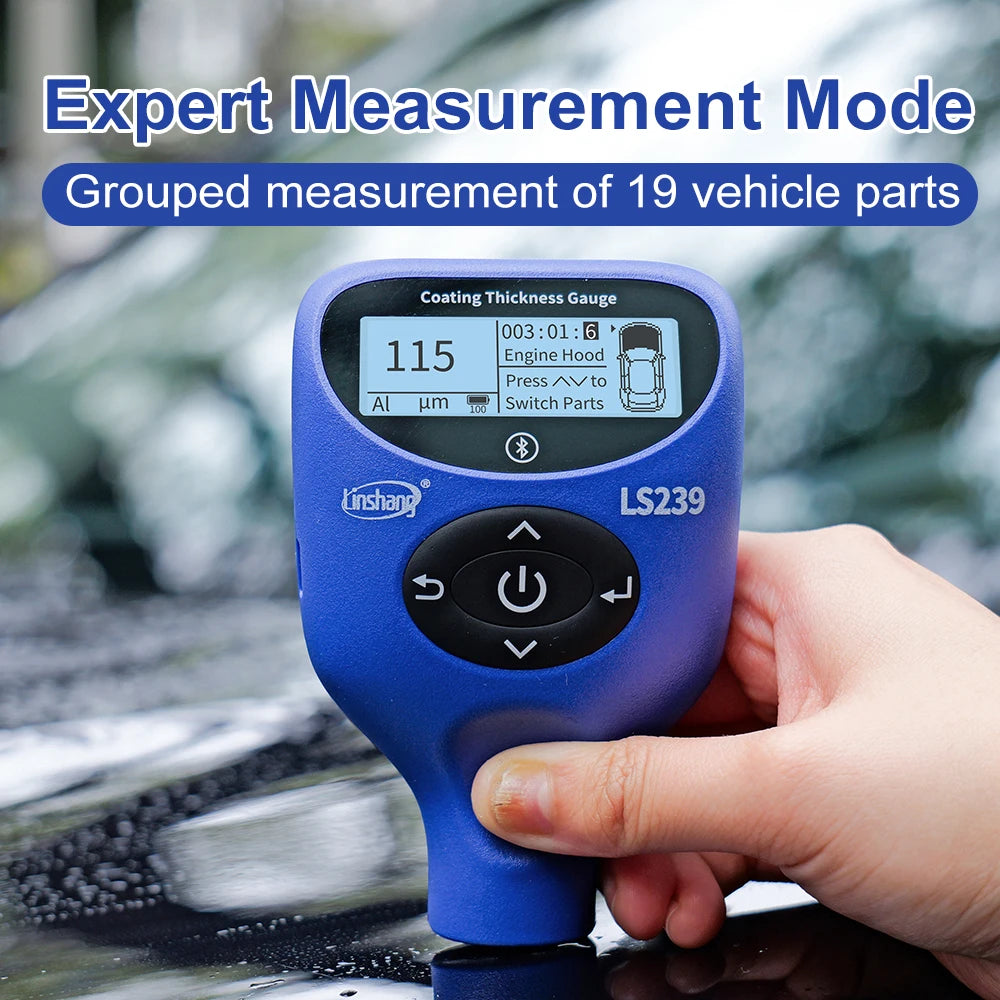

• Expert Mode divides a vehicle into 19 areas with up to 6 measurement points per area
• Stores inspection data for up to 999 vehicles in Pro Mode

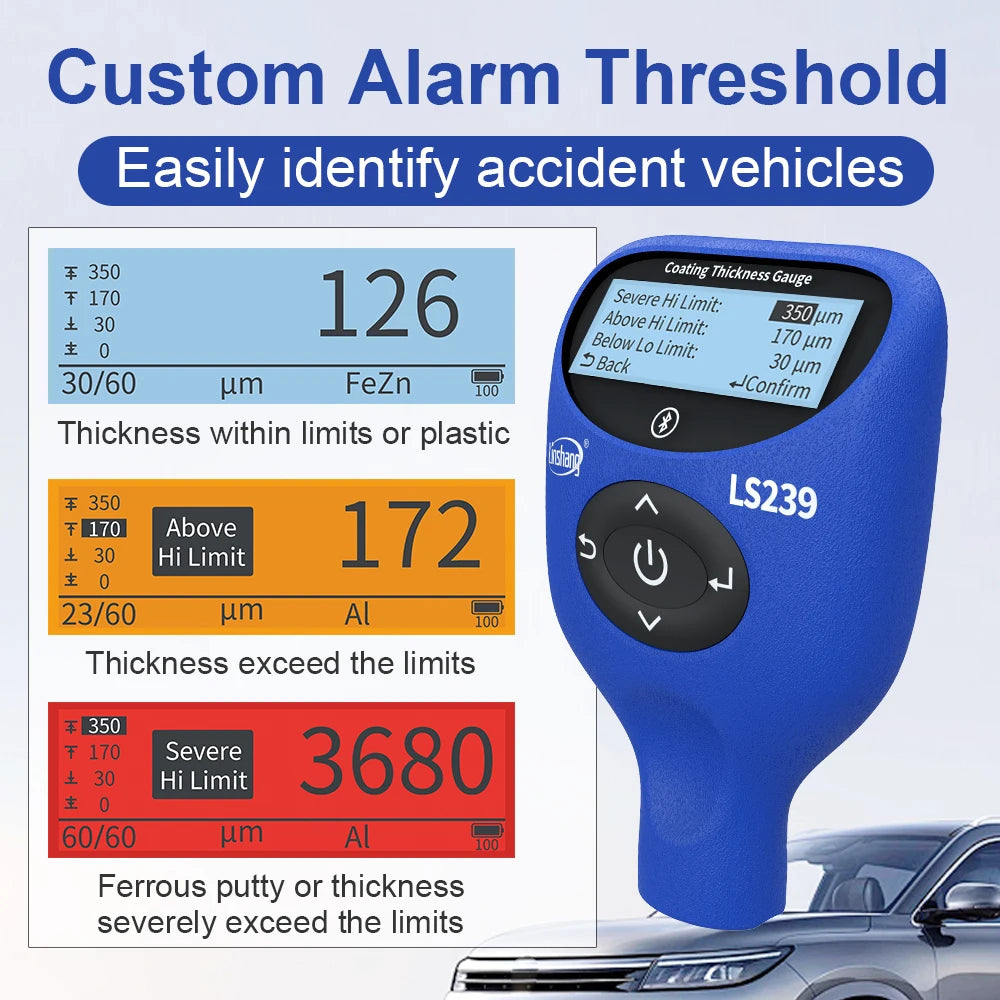

• Customisable thickness thresholds provide visual and audible warnings
• Three-colour backlight makes different thickness levels easier to identify

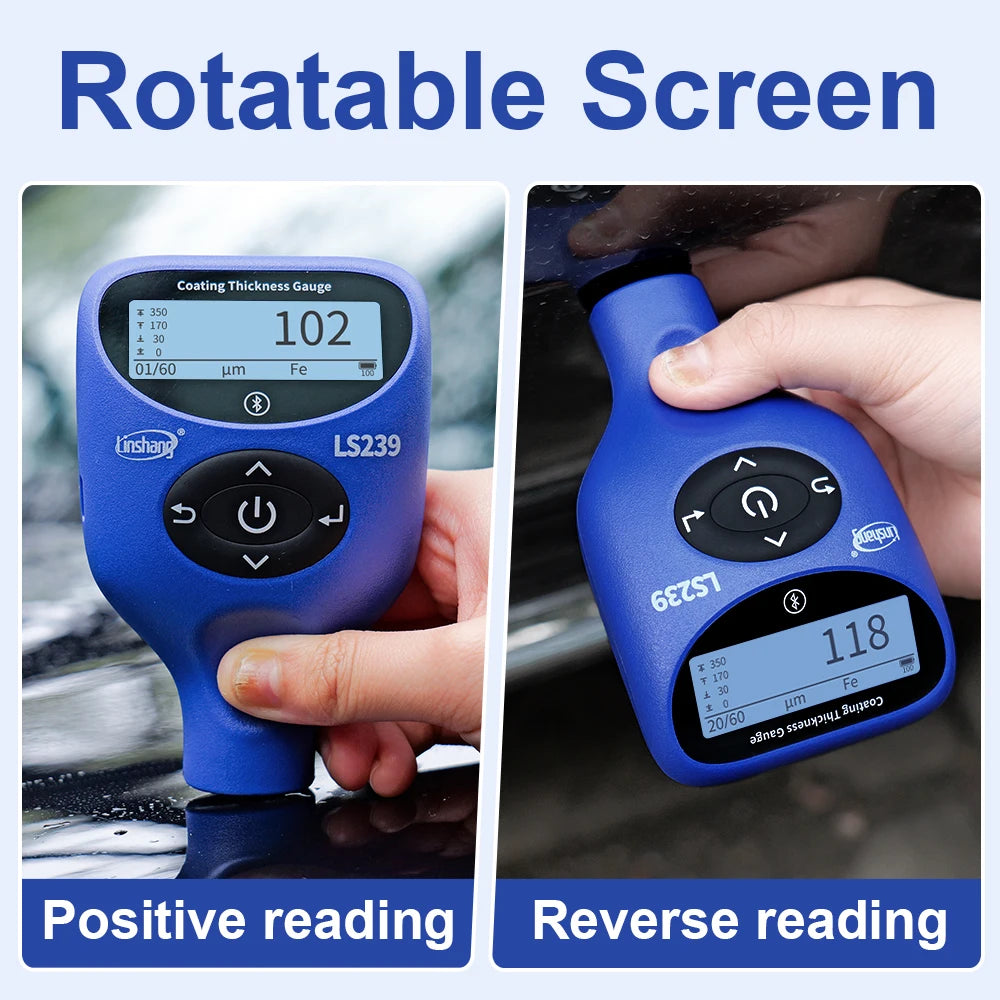

• Rotatable display improves readability from different viewing angles

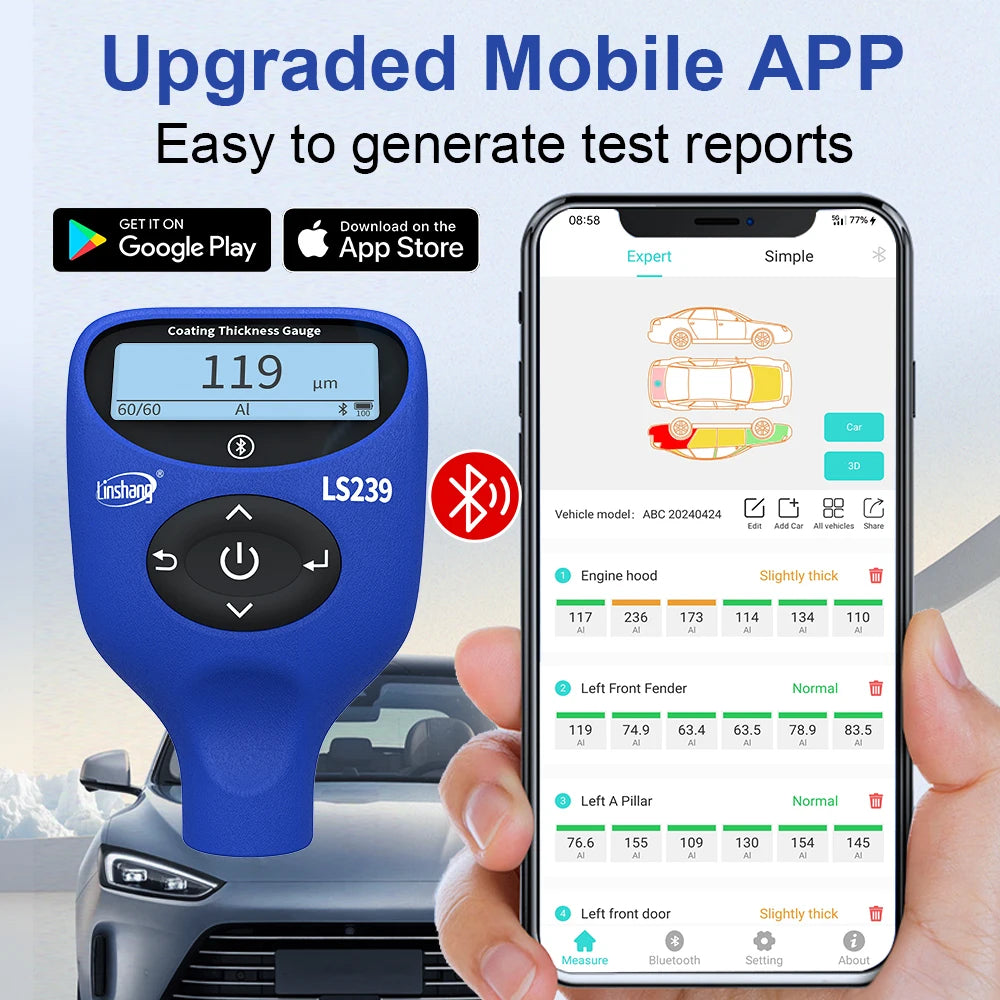

• Bluetooth connectivity allows measurements to be transferred to a compatible mobile app
• App support enables vehicle inspection records and report generation
• Temperature compensation helps maintain stable measurement results
• Compact, lightweight design is easy to carry for on-site vehicle inspections
• Rechargeable battery provides convenient cordless operation

Specifications

• Product Type: Digital Car Paint & Coating Thickness Gauge
• Model: LS239
• Measurement Principle: Hall Effect / Eddy Current
• Probe Type: Integrated
• Measuring Range: 0–5000μm
• Resolution: 0.1μm / 1μm / 10μm
• Accuracy:
  • 0–3000μm: ≤ ±(3%H + 2μm)
  • 3000–5000μm: ≤ ±(5%H + 2μm)
• Measurement Units: μm / mil
• Measuring Interval: Approximately 0.5 seconds
• Minimum Measuring Area: Ø25mm
• Minimum Convex Radius: 5mm
• Minimum Concave Radius: 25mm
• Minimum Substrate Thickness: Fe 0.2mm / Al 0.05mm
• Display: 192 x 64 Dot Matrix LCD
• Connectivity: Bluetooth
• Battery: 3.7V 1200mAh Rechargeable Lithium Battery
• Working Temperature: -20°C to 50°C
• Storage Temperature: -20°C to 60°C
• Host Dimensions: 108 x 70 x 31mm
• Weight: Approximately 88.8g including battery
• Application: Automotive Paint, Coating and Bodywork Inspection

Package Contents

• 1 x Coating Thickness Gauge
• 1 x Wrist Lanyard
• 2 x Reference Plate
• 1 x Calibration Fois
• 1 x Carrying Case
• 1 x User Manual

What Makes This a Smart Buy:

A fast, wide-range measurement capability combined with automatic material recognition makes it easier to spot inconsistencies in vehicle paintwork without guesswork. Bluetooth connectivity and detailed inspection modes also make it a versatile choice for car buyers, dealers, inspectors and automotive professionals.
