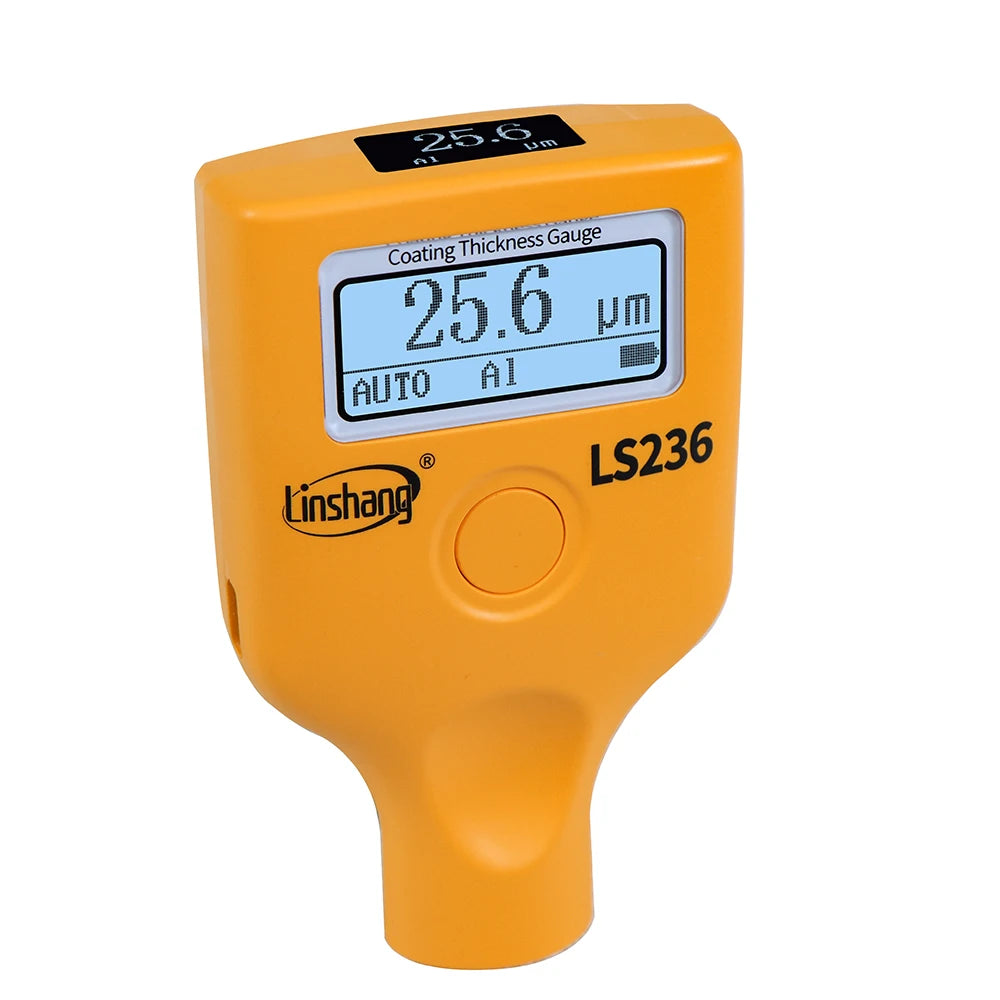

Digital Coating Thickness Gauge Automotive Paint Tester

The Digital Coating Thickness Gauge is a precision inspection tool designed to measure automotive paint and coating thickness quickly and accurately. Ideal for vehicle checks, repairs, and quality inspections, it helps identify paint inconsistencies, refinished areas, and hidden bodywork with ease.

Key Features

• Professional paint thickness measurement tool for automotive inspection and coating analysis

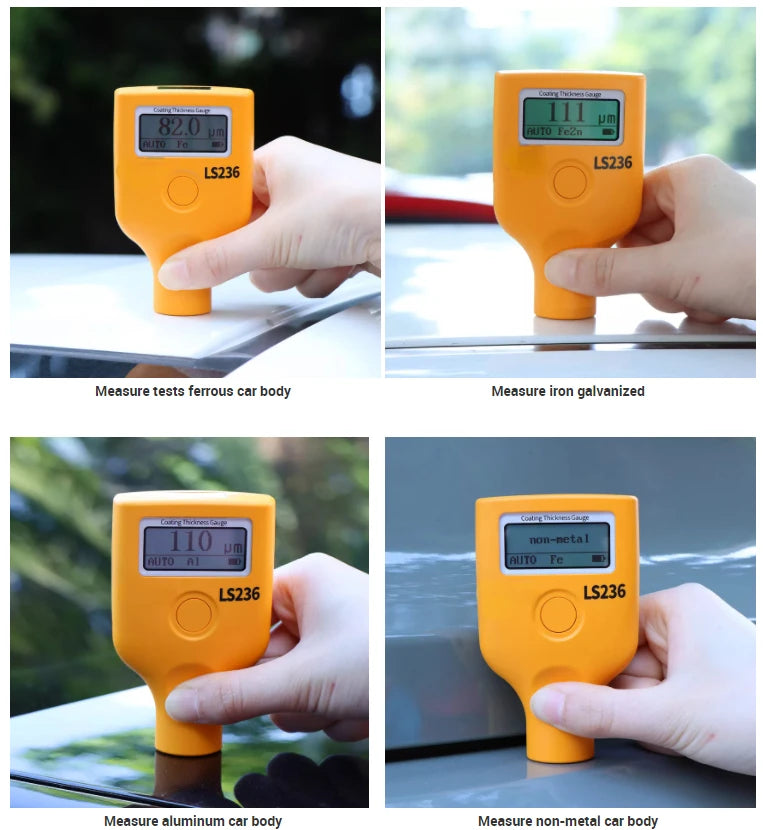

• Automatically identifies iron, aluminium, galvanized surfaces, and non-metal substrates

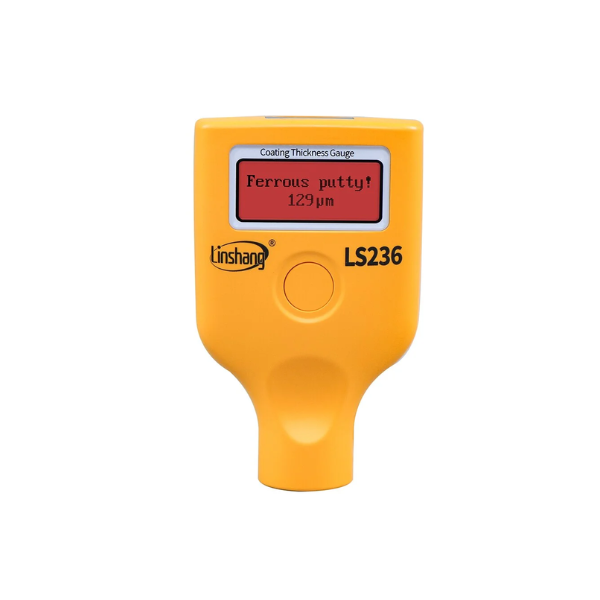

• Helps detect repaired areas with metallic putty for easier vehicle condition assessment
• Wide measuring range from 0 to 2000μm for various coating thickness applications
• High accuracy measurement with up to 0.1μm resolution for detailed readings
• Dual-screen display with LCD and OLED screens allows easy viewing from different angles
• Ultra-low temperature operation supports reliable use in temperatures as low as -40°C
• Three-colour backlight system provides quick material recognition feedback
• Built-in probe design offers convenient one-handed operation
• Compact and lightweight design makes it easy to carry for inspections on the go

Specifications

• Product Type: Digital Coating Thickness Gauge
• Measuring Range: 0.0 - 2000μm
• Resolution:
  • 0.1μm (0μm - 99.9μm)
  • 1μm (100μm - 999μm)
  • 0.01mm (1.00mm - 2.00mm)
• Accuracy: ±(3% reading + 2μm)
• Measurement Units: μm / mil
• Measuring Interval: 0.5 seconds
• Probe Type: Built-in Integrated Probe
• Measuring Principle:
  • Hall Effect for Ferrous Materials
  • Eddy Current for Non-Ferrous Materials
• Display:
  • Front LCD: 128 × 48 Dot Matrix
  • Top OLED: 128 × 64 Dot Matrix
• Operating Temperature: -40°C to 50°C
• Storage Temperature: -50°C to 60°C
• Power Supply: 2 x AAA Batteries
• Size: 101 x 60 x 24mm
• Weight: Approx. 80g
• Suitable For: Automotive Paint Inspection, Bodywork Checks, Coating Measurement

Package Contents

• 1 x Digital Coating Thickness Gauge
• 1 x User Manual

What Makes This a Smart Buy:

This compact coating thickness gauge provides fast, accurate readings to help assess vehicle paint conditions and detect hidden repairs. With broad material compatibility, durable performance, and easy-to-read displays, it is a valuable tool for automotive inspections and professional use.
