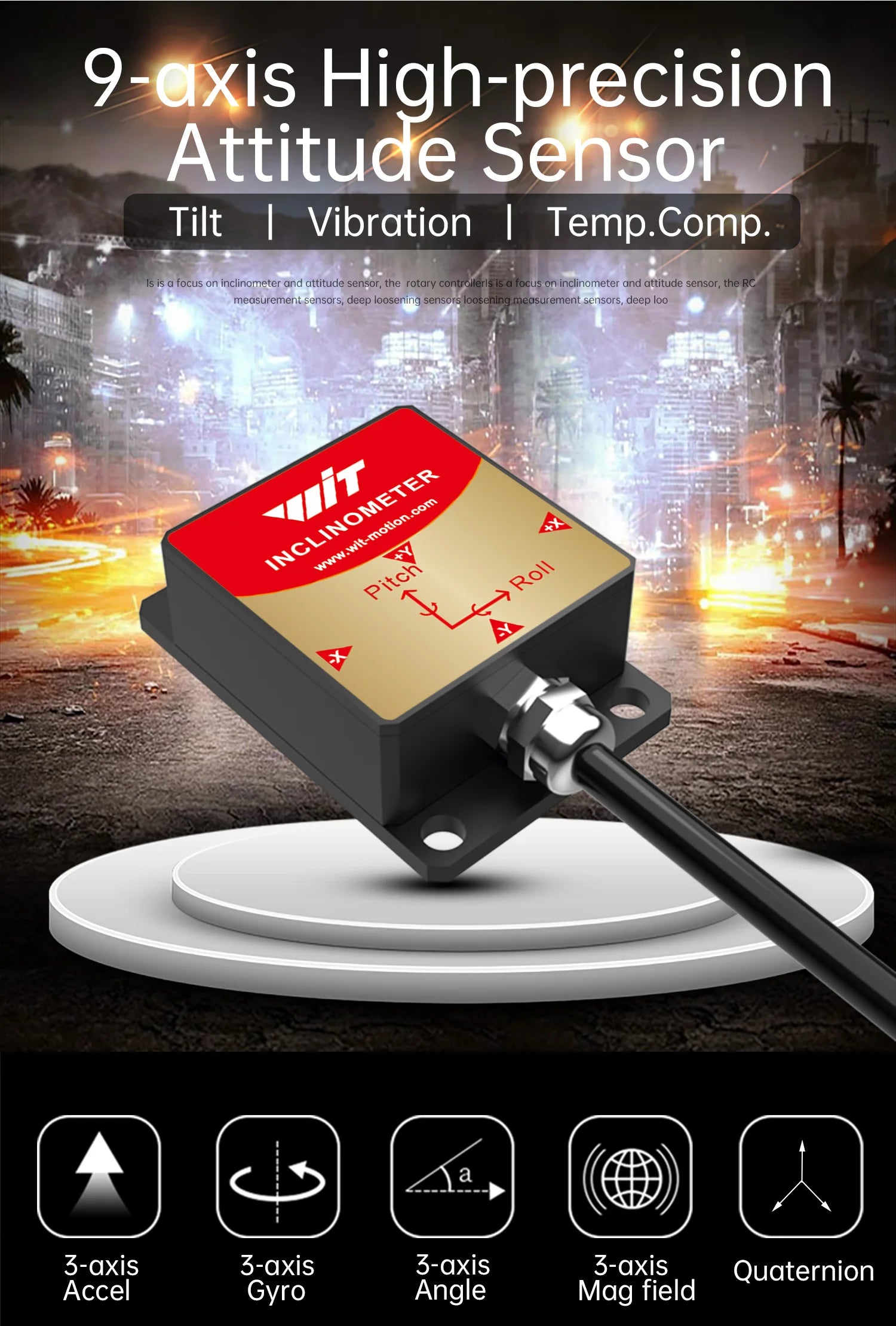

Monitor tilt angles and orientation with military-grade precision using this RS232 inclinometer. It’s ideal for industrial machinery, robotics, or research projects where accuracy and reliability are critical.
Key Features
- 3-axis tilt and angular measurement with X/Y 0.05°, Z 1°
- Digital compass, gyro, and accelerometer integration for versatile sensing
- Temperature and magnetometer compensation for stable readings
- RS232 output for seamless connection to PCs or industrial controllers
- IP67 waterproofing protects against dust and moisture
- Wide 5–36V input for flexible deployment
Specifications
- Measurement Range: X/Z ±180°, Y ±90°
- Measurement Accuracy: X/Y 0.05°, Z 1°
- Output Frequency: 0.2Hz–200Hz
- Dimensions: 55mm × 36.8mm × 24mm
- Current Consumption: <40mA
- Interface: RS232
- Built-in Chip: RM3100 module + SCA3300 accelerometer
- Output: Digital
- Type: Acceleration Sensor
Package Contents

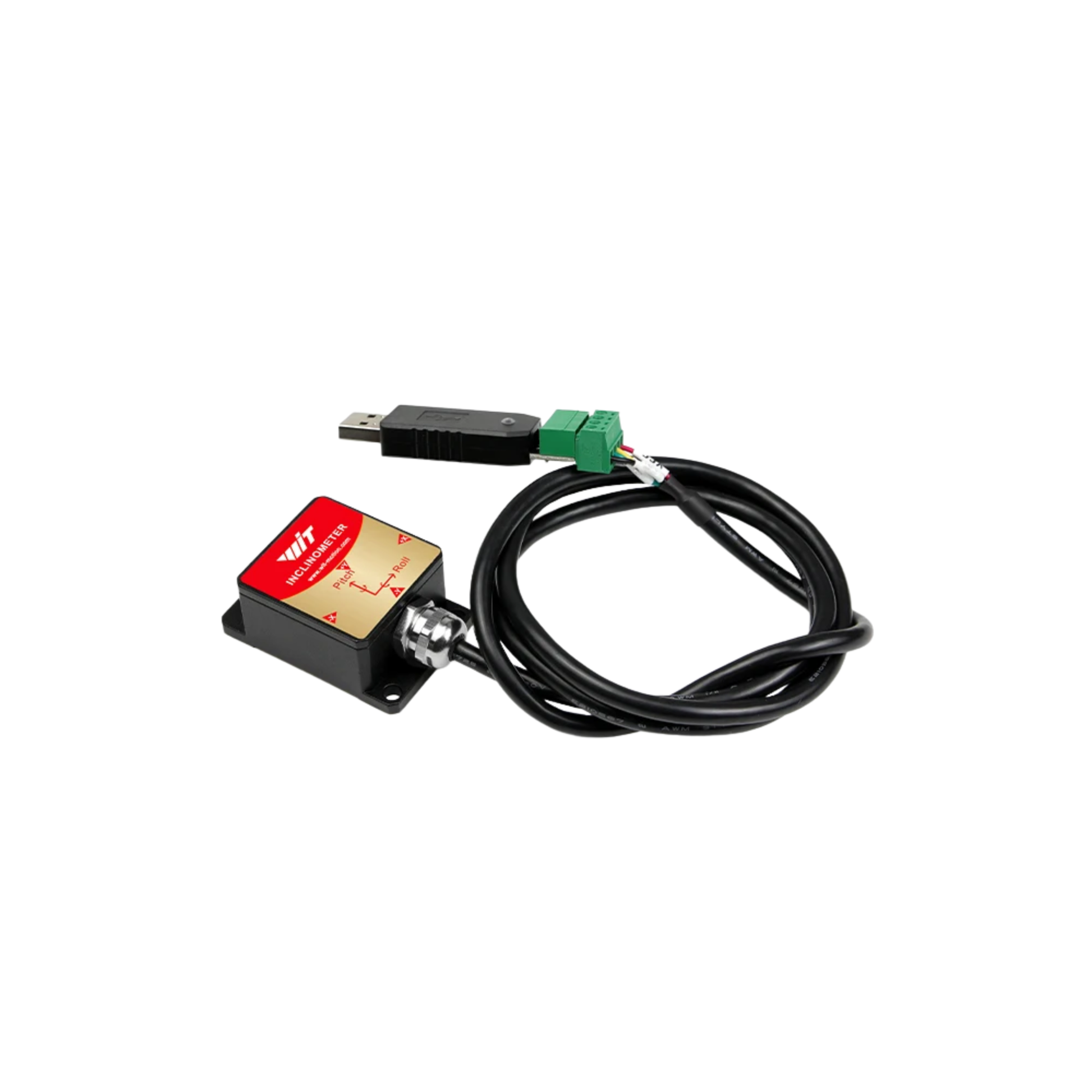

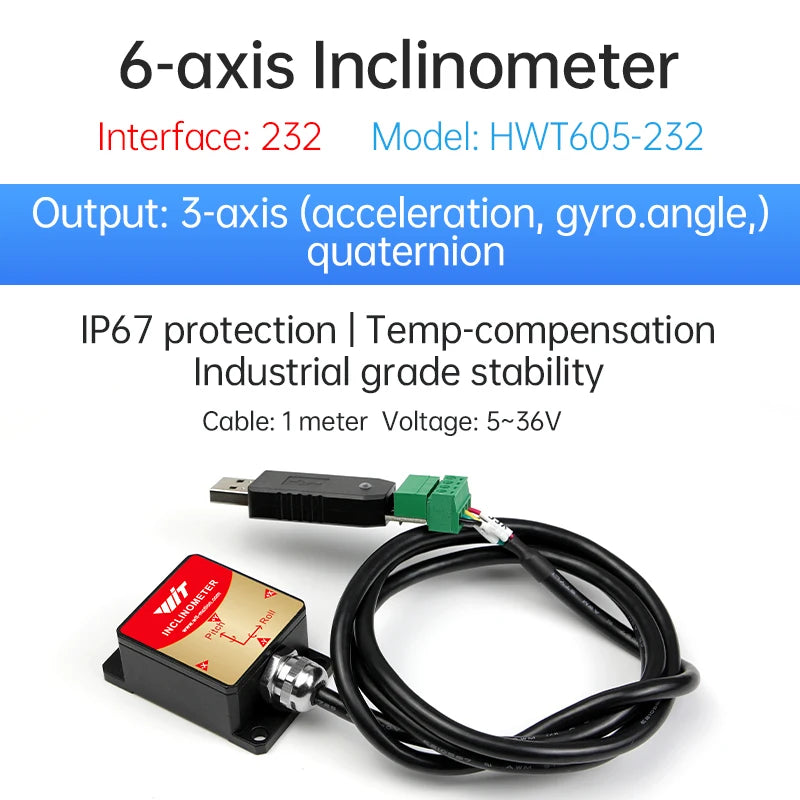

- HWT605-RS232 Inclinometer
- User manual and technical documentation
- Sample code for PC and Android integration
What Makes This a Smart Buy:
This RS232 inclinometer combines military-grade accuracy with a rugged, waterproof design. It’s perfect for professional and industrial use where dependable measurements matter.
