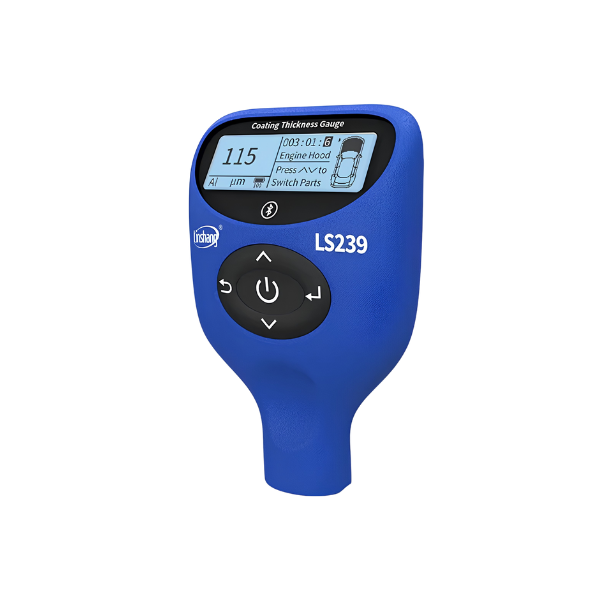

Digital Paint Thickness Gauge 5000um Auto Coating Meter

Check paint and coating thickness quickly with this digital coating thickness gauge, designed for automotive inspections and surface analysis. With a 0–5000μm measurement range, rapid 0.3-second readings and automatic substrate recognition, it helps identify variations across vehicle panels with greater confidence.

Key Features

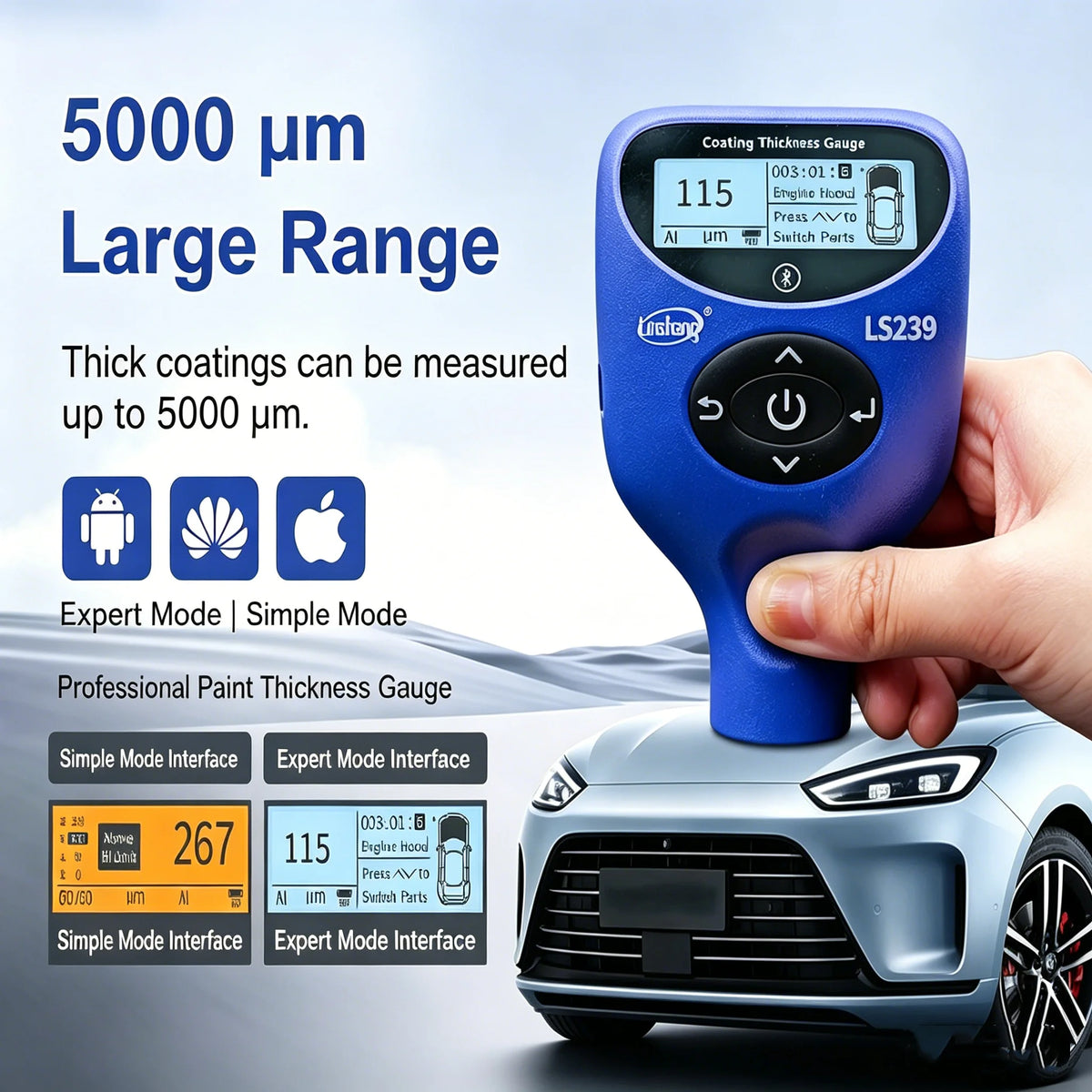

• Wide 0–5000μm Measurement Range – Measures thin paint layers through to substantially thicker coatings for versatile inspection
• Fast 0.3-Second Readings – Provides rapid measurements for efficient panel-by-panel checking
• High Measurement Accuracy – Accuracy of ≤±(3%H + 2μm) for dependable coating thickness readings

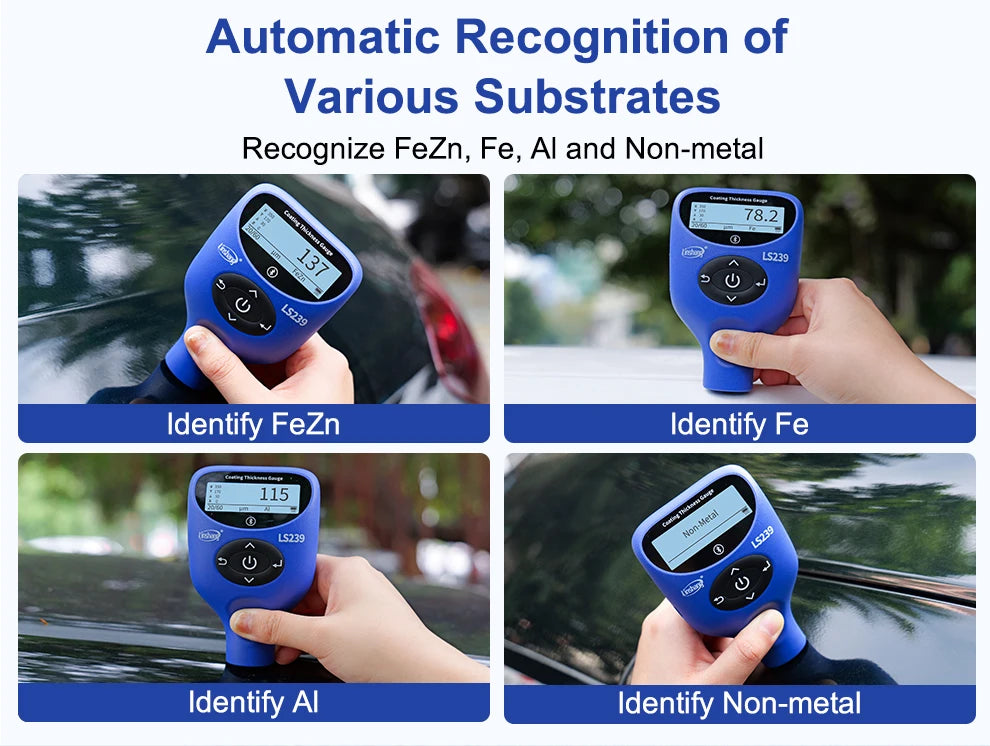

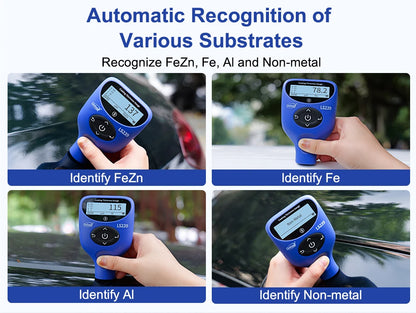

• Automatic Material Recognition – Identifies steel, aluminium, galvanised steel and non-metal substrates

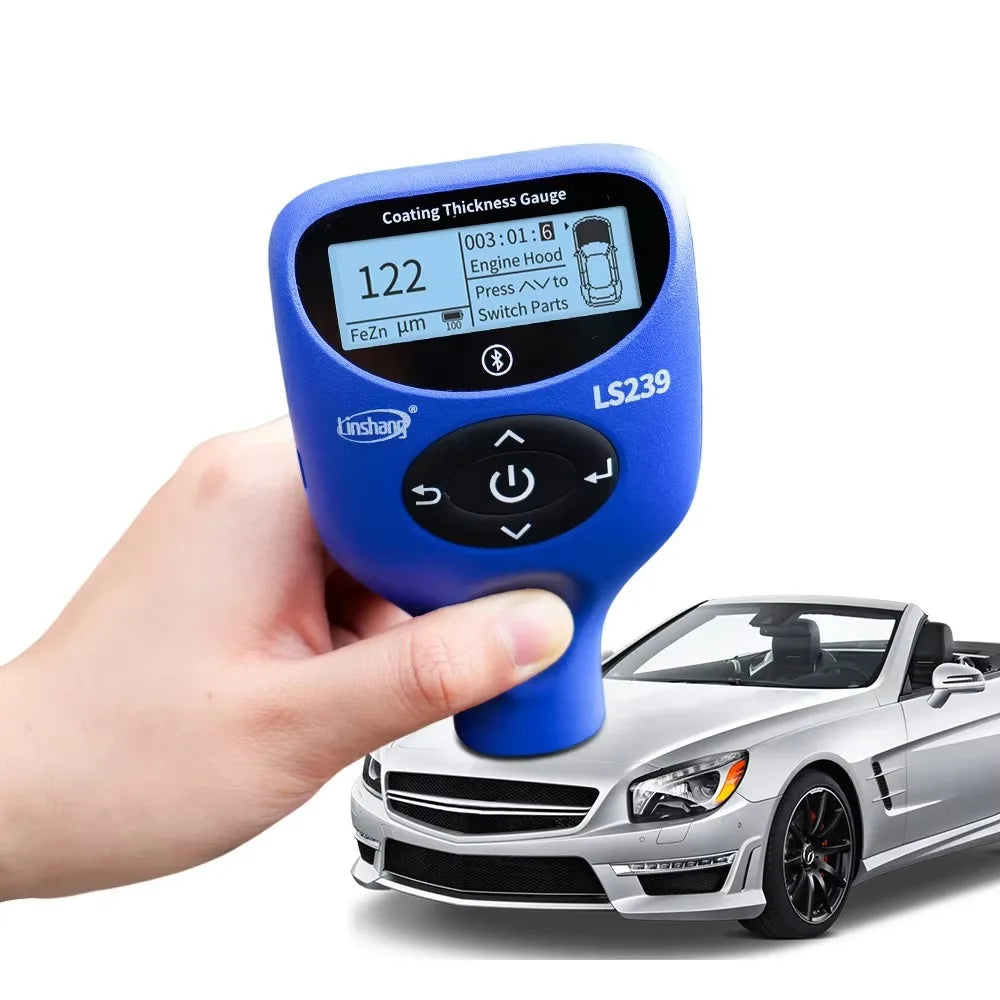

• Paint & Coating Inspection – Useful for checking vehicle paintwork, refinished panels, putty layers and coating variations
• Ferrous Putty Detection – Intelligent detection helps identify areas that may have been repaired or filled
• Simple & Expert Modes – Choose straightforward threshold-based measurements or detailed vehicle inspection

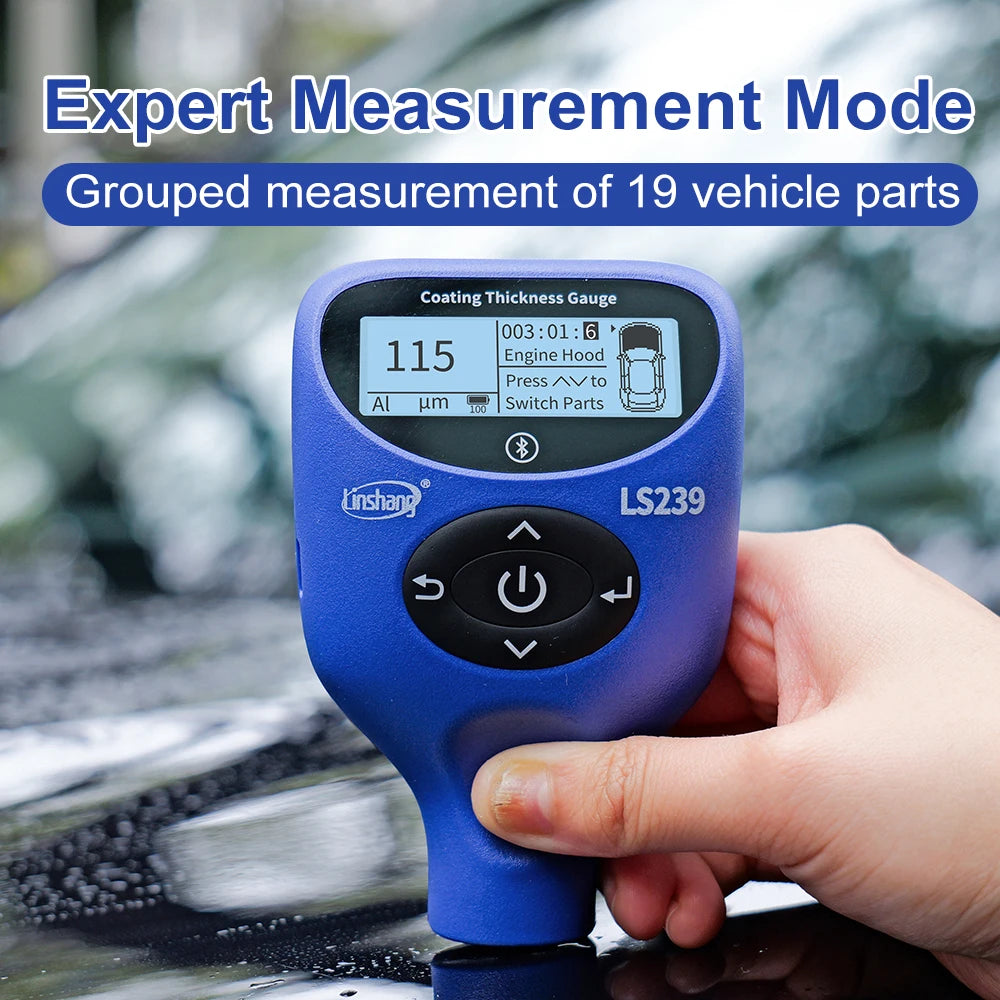

• 19-Part Vehicle Analysis – Expert Mode can organise measurements across 19 vehicle areas with up to 6 data points per area

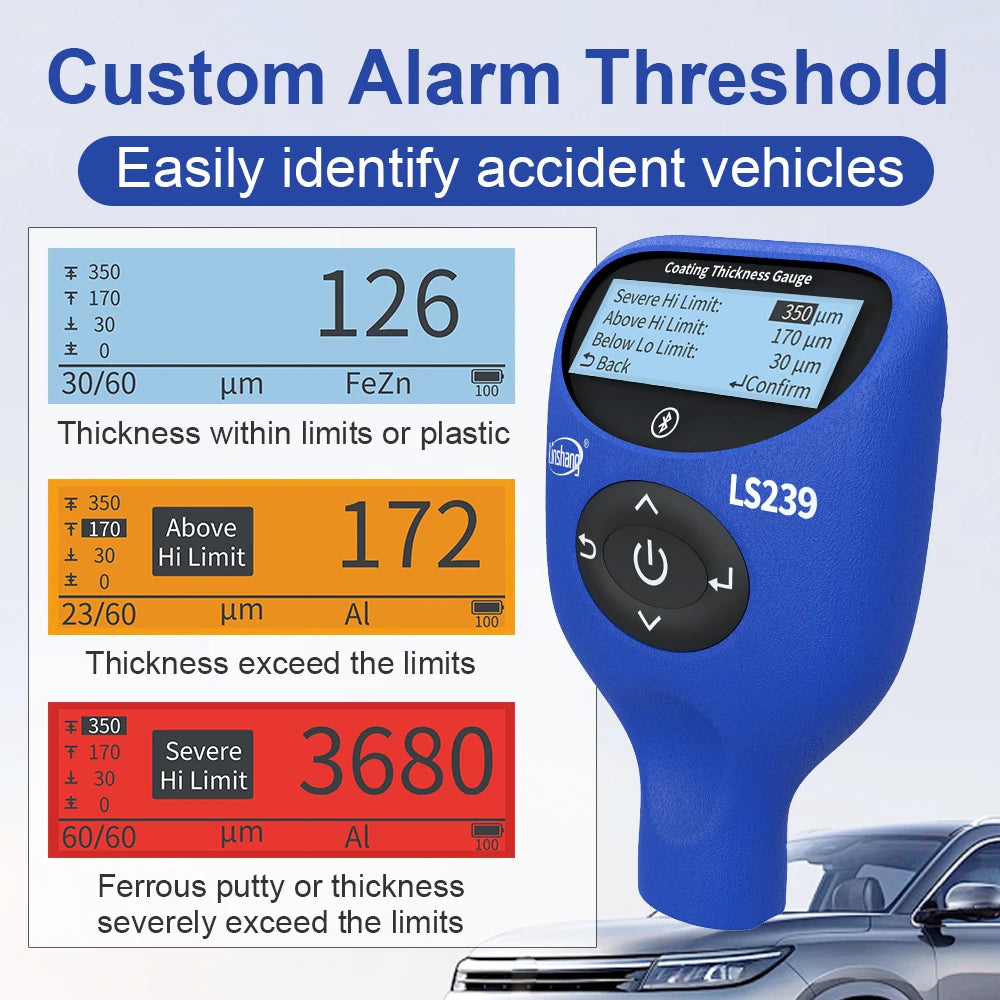

• Custom Alert Thresholds – Set measurement limits and receive visual warnings when readings exceed the selected threshold
• Tri-Colour Backlight – Colour-coded display makes measurement results easier to interpret at a glance

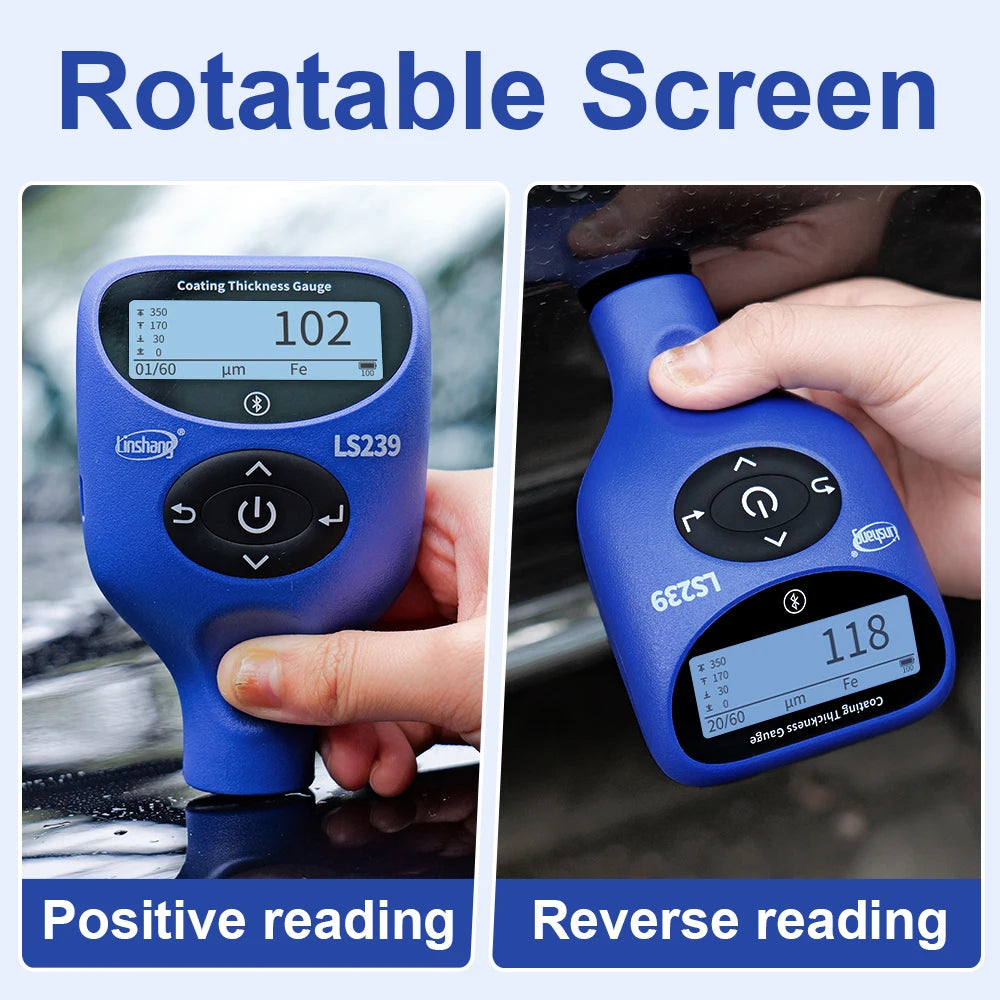

• Rotatable Display – Adjust the screen orientation for more comfortable viewing from different positions

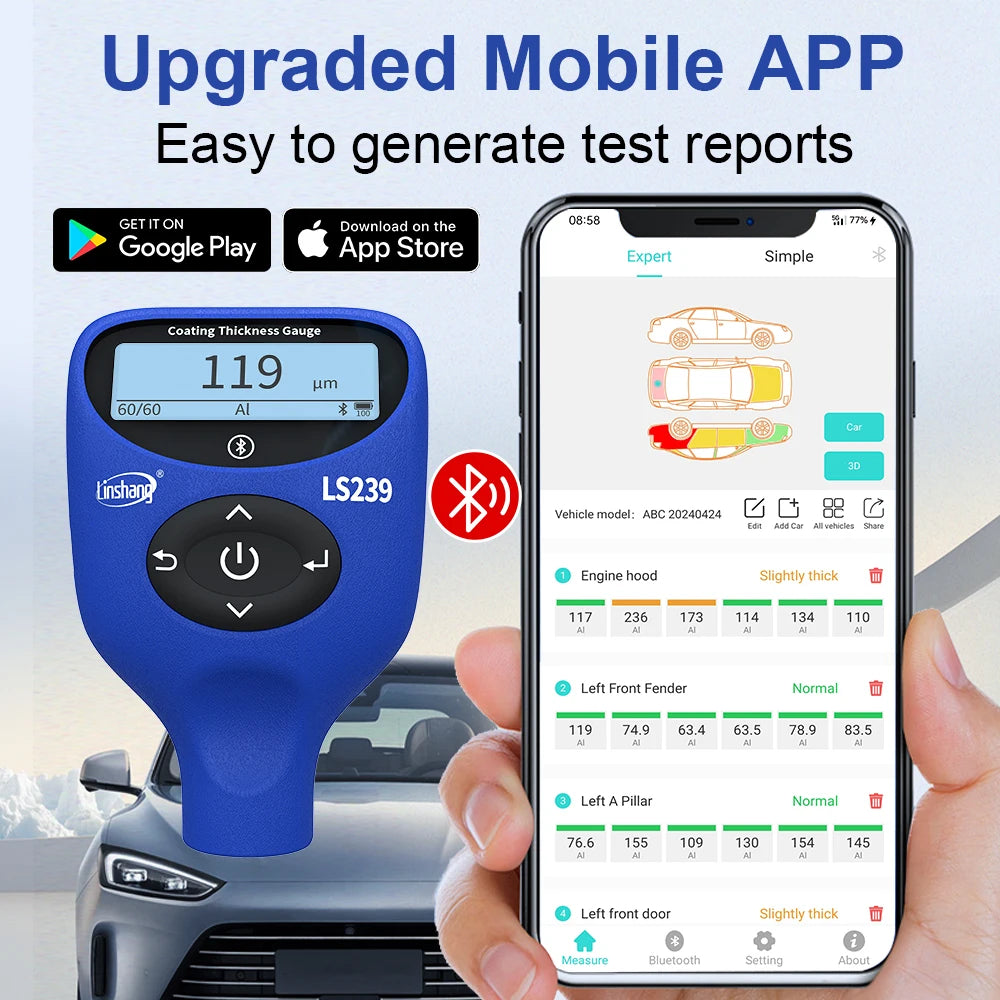

• Bluetooth App Connectivity – Connect to a compatible mobile app to record measurements and organise vehicle inspection data
• Large Data Storage – Pro Mode supports data storage for up to 999 vehicles
• External Cable Probe – Flexible probe design makes it easier to access different vehicle panels and surfaces
• Compact Handheld Design – Small enough to carry between inspections without adding unnecessary bulk

Specifications

• Product Type: Digital Coating Thickness Gauge
• Model: LS239
• Measurement Range: 0.0–5000μm
• Resolution: 0.1μm / 1μm / 10μm
• Accuracy: ≤±(3%H + 2μm)
• Measuring Interval: 0.3 seconds
• Measurement Units: μm / mil
• Probe Type: External Cable Probe
• Probe Tip: Ruby
• Substrate Recognition: Steel, aluminium, galvanised steel and non-metal
• Display: Backlit, tri-colour
• Display Rotation: Supported
• Bluetooth: Supported
• App Connectivity: Supported
• Measurement Modes: Simple Mode / Expert Mode
• Expert Mode: 19 vehicle parts, up to 6 data points per part
• Data Storage: Up to 999 vehicles in Pro Mode
• Host Dimensions: 101 × 62 × 28mm
• Weight: Approx. 250g
• Material: Plastic
• Battery: Not included

Package Contents

• 1 x Coating Thickness Gauge
• 1 x Calibration Fois
• 1 x Wrist Lanyard
• 1 x Carrying Case
• 1 x User Manual

What Makes This a Smart Buy:

From checking used-car paintwork to inspecting repaired panels and coatings, this gauge provides fast, detailed measurements in a compact handheld design. Its wide 5000μm range, material recognition, visual alerts and app connectivity make it a versatile tool for automotive inspection and coating analysis.
