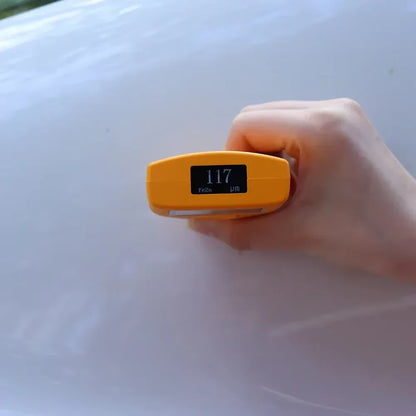

Digital Paint Thickness Gauge for Car Body Inspection

Check paint and coating thickness quickly and accurately with this digital paint thickness gauge, designed for automotive body inspection. Its automatic material detection and dual-screen display make it practical for assessing vehicle panels, repairs and refinished areas from different viewing angles.

Key Features

• Automotive Paint Inspection: Designed to measure paint and coating thickness on vehicle body panels.
• Wide Measuring Range: Measures coating thickness from 0 to 2000μm for a broad range of automotive applications.
• Automatic Material Detection: Automatically identifies iron, non-ferrous metals such as aluminium, galvanised iron and non-metallic substrates.
• Metallic Putty Detection: Intelligent detection helps identify areas that may have been repaired using metallic putty.
• Dual-Screen Display: Front LCD and top OLED displays make measurements easier to read from different angles.
• High Measurement Resolution: Provides 0.1μm resolution for measurements from 0 to 99.9μm.
• Fast Measurements: Approximately 0.5-second measuring interval allows quick inspection across multiple panels.
• Low-Temperature Operation: Designed to operate in temperatures as low as -40°C, making it suitable for demanding environments.
• Multiple Measurement Units: Switch between μm and mil units according to your preferred measurement system.
• Visual Material Indicators: Different backlight colours provide a quick indication of the detected substrate material.
• Compact and Lightweight: Measuring approximately 101 x 60 x 24mm and weighing around 80g, it is easy to carry during vehicle inspections.
• Integrated Probe: Built-in probe design allows convenient one-handed operation during measurements.

Specifications

• Measurement Principle: Fe - Hall Effect / NFe - Eddy Current
• Probe Type: Built-in integrated probe
• Probe Tip: Ruby
• Measurement Range: 0.0–2000μm
• Resolution: 0.1μm from 0–99.9μm; 1μm from 100–999μm; 0.01mm from 1.00–2.00mm
• Accuracy: ≤ ±(3% of reading + 2μm)
• Measurement Interval: 0.5 seconds
• Measurement Units: μm / mil
• Minimum Measuring Area: Ø25mm
• Minimum Convex Curvature: 5mm
• Minimum Concave Curvature: 25mm
• Minimum Substrate Thickness: Fe 0.2mm / NFe 0.05mm
• Front Display: 128 x 48 dot matrix LCD
• Top Display: 128 x 64 dot matrix OLED
• Operating Temperature: -40°C to 50°C
• Storage Temperature: -50°C to 60°C
• Dimensions: 101 x 60 x 24mm
• Weight: Approximately 80g

Package Contents

• 1 x Digital Paint Thickness Gauge
• 1 x Calibration Accessories
• 1 x User Manual
• 1 x Storage Case

What Makes This a Smart Buy:

A useful tool for checking vehicle paintwork, this gauge helps identify variations in coating thickness that may indicate repairs or refinishing. Its fast measurements, automatic material detection and compact design make it a practical addition to automotive inspection kits.
