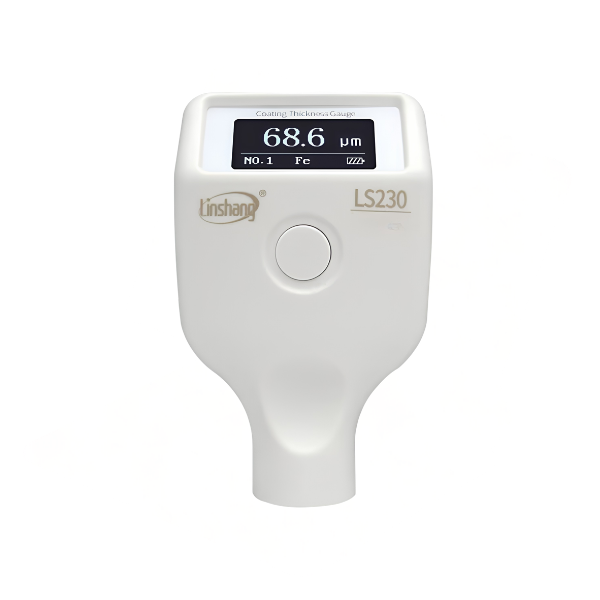

Digital Paint Thickness Meter 0-3500um Car Coating Tester

The Digital Paint Thickness Meter is a compact inspection tool designed to quickly measure vehicle paint and coating thickness. Using dual measurement technology, it can help identify differences across iron and aluminium panels, making it useful for used-car inspections, bodywork checks and coating assessment.

Key Features

• 0–3500μm Measurement Range: Measures a wide range of paint and coating thicknesses for detailed inspection.
• Dual Measurement Technology: Uses Hall effect and eddy current principles to measure coatings on ferrous and non-ferrous surfaces.
• Fast 0.5-Second Testing: Quickly obtain a reading for efficient panel-by-panel vehicle inspection.
• Ferrous & Non-Ferrous Detection: Supports inspection of iron, galvanised iron and aluminium surfaces, as well as non-metallic substrates.
• Automatic Substrate Identification: Helps identify the underlying material during inspection.
• Three Measurement Modes: Select Fe, Al or Fe/Al modes to suit different testing requirements.
• Temperature Compensation: Helps maintain stable sensor performance across changing temperatures.
• Wear-Resistant Ruby Probe: Durable probe construction is designed for repeated measurements and everyday use.
• Low-Temperature OLED Display: Designed to remain operational in temperatures as low as -40°C.
• Simple One-Button Operation: Power on and measure with minimal setup.
• Bluetooth Connectivity: Connect with a compatible mobile device to create and manage inspection reports.
• Portable Design: Compact format makes it convenient for vehicle inspections, workshops and field use.
• Multilingual Interface: English

Specifications

• Product Type: Digital Paint Thickness Meter
• Model: LS230
• Measurement Range: 0–3500μm
• Measurement Speed: Approx. 0.5 seconds
• Measurement Principles: Hall Effect and Eddy Current
• Measurement Modes: Fe / Al / Fe-Al
• Display: OLED with Backlight
• Probe Material: Wear-Resistant Ruby
• Temperature Compensation: Yes
• Low-Temperature Operation: Down to -40°C
• Bluetooth: Yes
• Mobile App: Supported
• Report Generation: Save and share inspection reports via compatible mobile device
• Battery: Not included
• Applications: Used-car inspection, automotive paint checking, bodywork assessment and coating measurement

Package Contents

• 1 x Digital Paint Thickness Meter
• 1 x Lanyard
• 1 x Cloth Bag
• 1 x User Manual

What Makes This a Smart Buy:

Fast readings, multiple substrate modes and Bluetooth reporting make this a practical tool for checking vehicle panels with greater confidence. Its wide 0–3500μm range and durable ruby probe also make it suitable for repeated inspection work beyond basic car checks.
