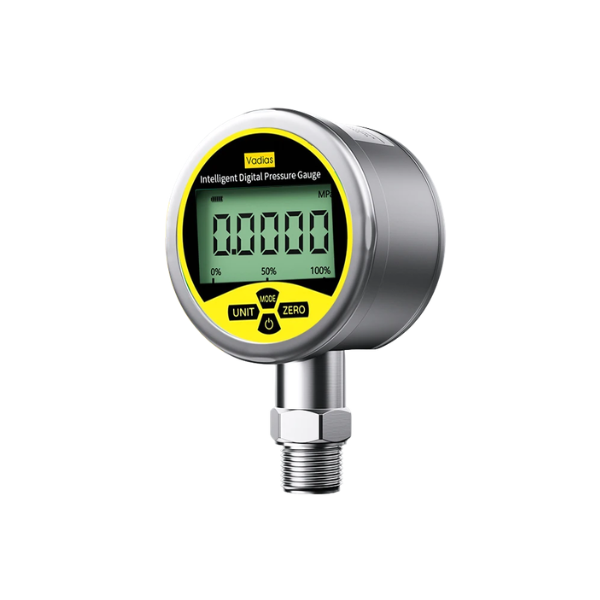

Digital Pressure Gauge 0-0.25MPa 80mm SS304

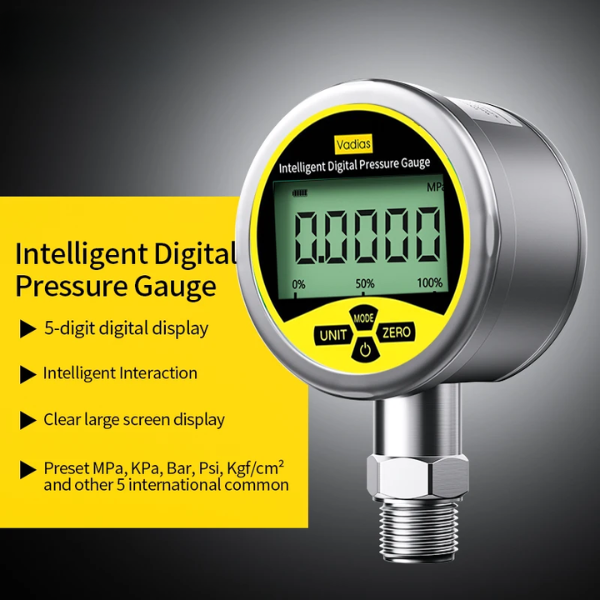

Measure pressure with confidence using this digital pressure gauge, featuring a large 80mm display, high 0.2% FS accuracy and a durable stainless steel construction. With multiple pressure units, peak value recording and low-power operation, it is a practical choice for industrial equipment, hydraulic systems, compressors and pressure testing.

Key Features

• High Measurement Accuracy: Provides up to 0.2% FS accuracy for precise and consistent pressure monitoring.
• Large 80mm Display: Easy-to-read digital screen makes pressure readings clear at a glance.
• Wide Measuring Range: Supports pressure ranges from vacuum applications through to high-pressure measurement, depending on configuration.
• Multiple Pressure Units: Switch between common units such as MPa, PSI and bar for greater measurement flexibility.
• Peak Value Recording: Records and displays maximum and minimum pressure readings for convenient monitoring.
• Pressure Percentage Display: Integrated percentage scale helps provide a quick visual indication of pressure level.

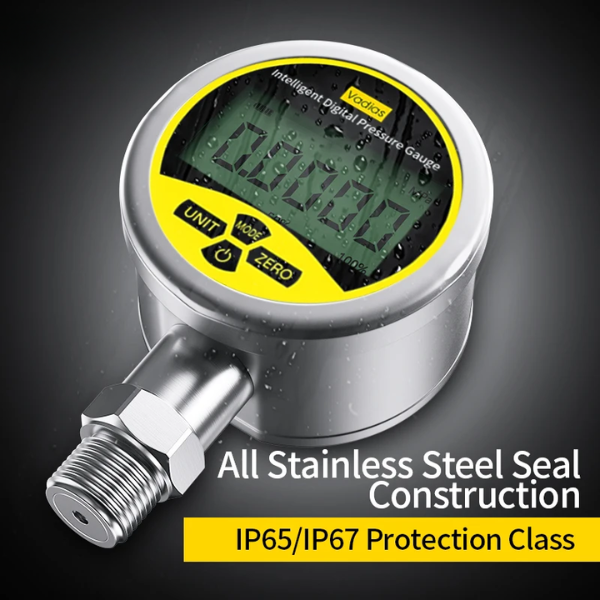

• Durable SS304 Construction: Stainless steel housing and connector offer excellent resistance to vibration, impact and corrosion.
• Low-Power Operation: Designed for extended battery operation with automatic power-off to help conserve energy.
• Backlit LCD Display: White backlight improves visibility when working in dim or poorly lit environments.
• Intelligent Functions: One-key zero adjustment, pressure unit switching and low-voltage indication simplify everyday operation.
• Versatile Applications: Suitable for hydraulic systems, air compressors, engineering equipment, water systems and general pressure testing.
• Non-Corrosive Media Compatible: Suitable for measuring compatible water, oil, gas and other non-corrosive media.

Specifications

• Product Type: Digital Pressure Gauge / Manometer
• Model: QDL80B
• Dial Diameter: 80mm
• Accuracy: 0.2% FS
• Measuring Range: -0.1 to 60MPa
• Display: Digital LCD with white backlight
• Pressure Units: MPa, PSI, bar and other selectable units
• Pressure Recording: Maximum and minimum peak values
• Housing Material: SS304 Stainless Steel

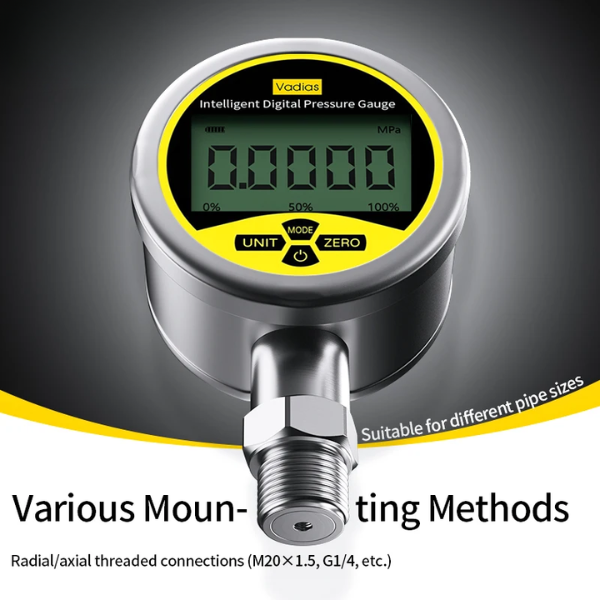

• Thread: M20 × 1.5

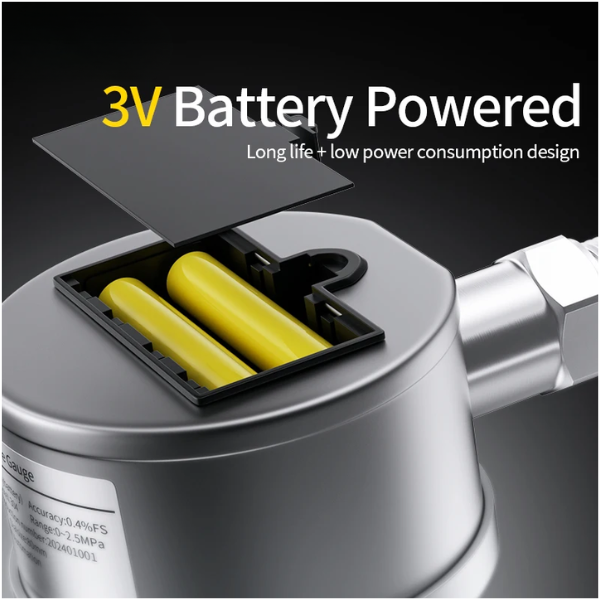

• Power Supply: 3V DC
• Battery: 2 × AAA
• Battery Life: Up to 12 months depending on usage
• Protection Rating: IP54 with protective sleeve
• Operating Temperature: -20°C to 70°C
• Media: Compatible water, oil, gas and other non-corrosive media

Package Contents

• 1 × Digital Pressure Gauge (0.1 80mm G1-4) (0-0.25Mpa)
• 2 × AAA Batteries
• 1 × User Manual

What Makes This a Smart Buy:

The combination of accurate digital measurement, a large 80mm display and flexible unit switching makes this gauge a practical tool for everyday pressure monitoring. Its stainless steel construction and compact design provide dependable versatility across workshops, machinery and industrial applications.
