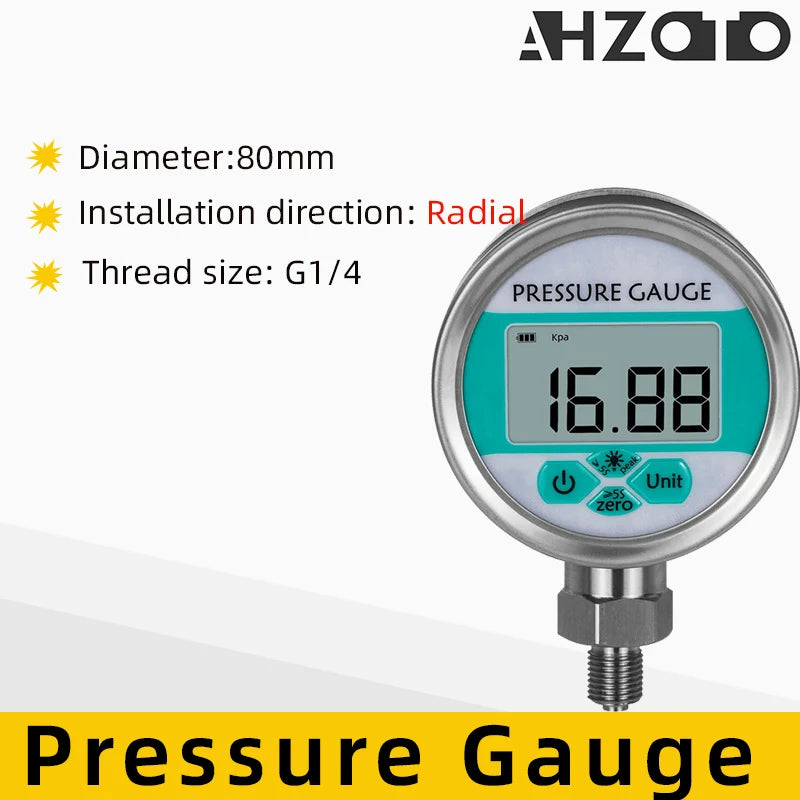

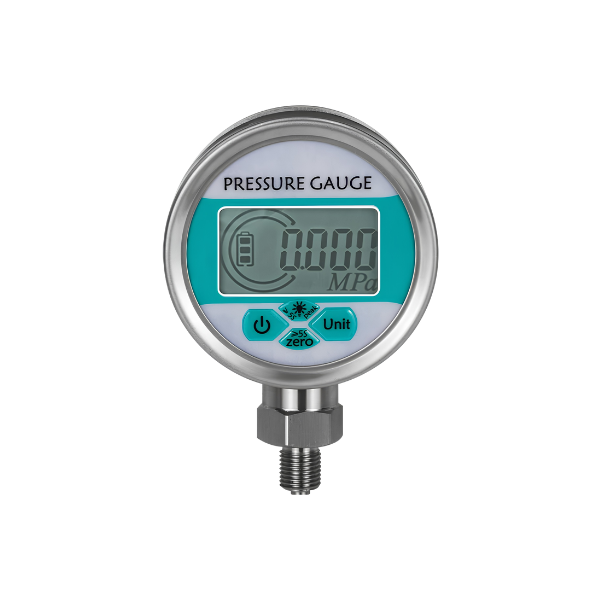

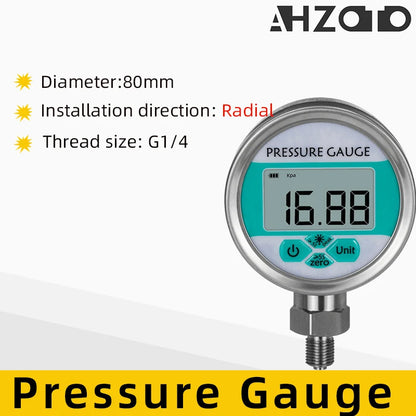

Digital Pressure Gauge 0-1000bar LCD Backlight G1/4

The Digital Pressure Gauge provides clear, real-time pressure readings across a wide measurement range from -1 to 1000 bar. Featuring a backlit LCD, selectable pressure units and a durable stainless steel housing, it’s designed for convenient monitoring in hydraulic, water, gas and industrial systems.

Key Features

• Wide Pressure Range: Measures from -1 to 1000 bar for versatile pressure monitoring
• Accurate Digital Readings: High-precision diffused silicon sensor provides stable, reliable measurements

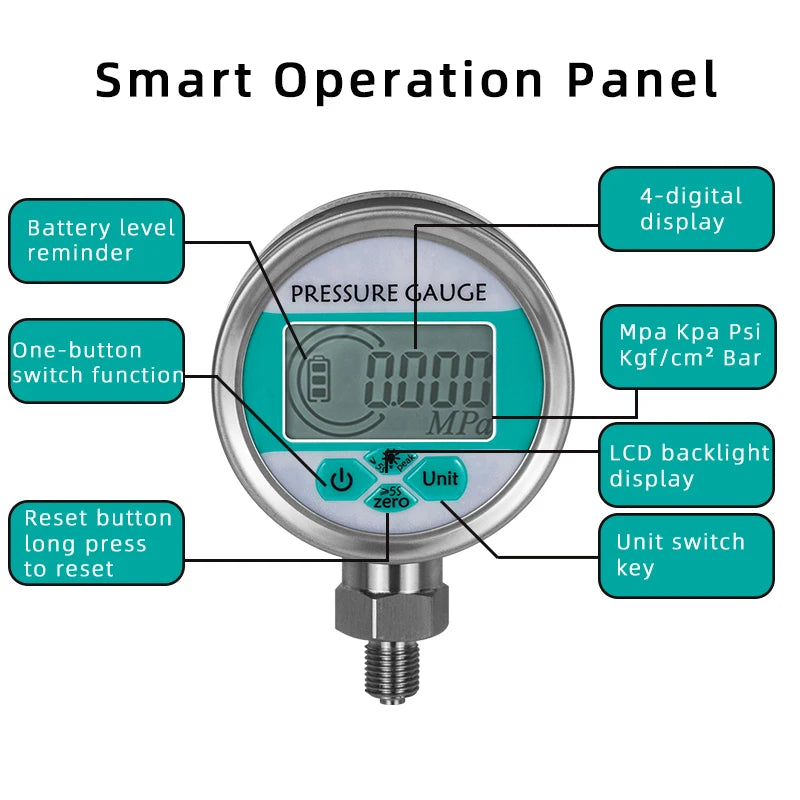

• Backlit LCD Display: Clear readings in dim or low-light working conditions
• Multiple Pressure Units: Easily switch between MPa, kPa, bar, kgf/cm² and psi
• One-Touch Reset: Quickly reset the display for convenient operation
• Battery Level Display: Monitor remaining battery power directly on the screen
• Overpressure Alert: Display flashes when pressure exceeds the selected measuring range

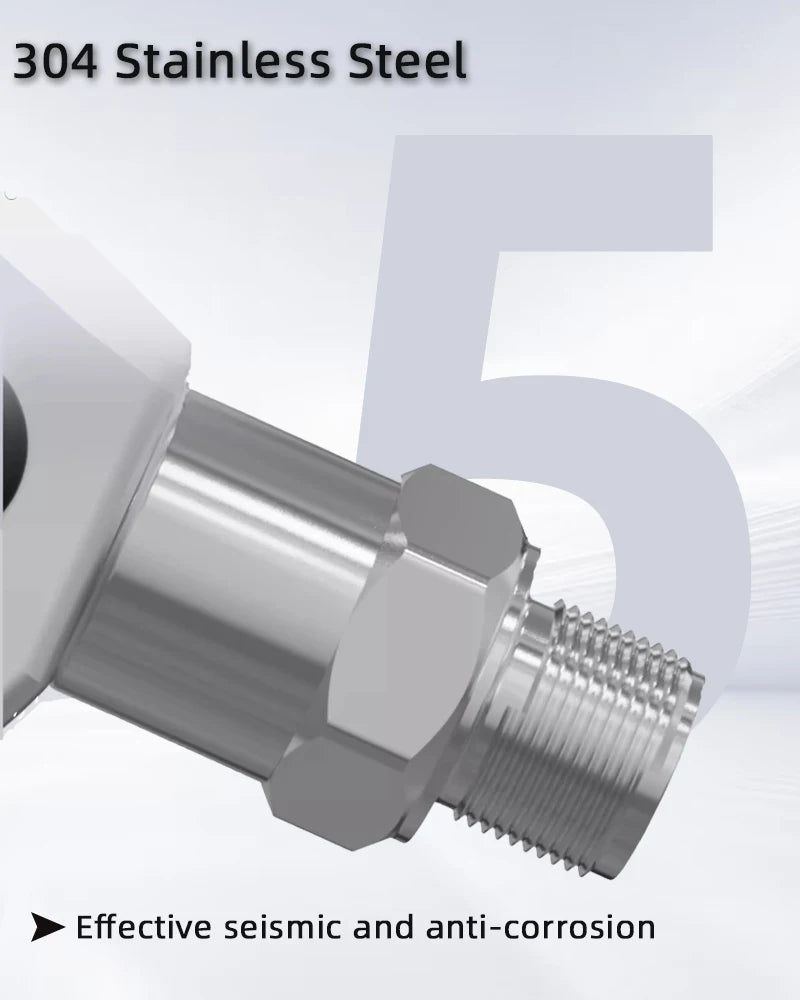

• Durable Stainless Steel Housing: 304 stainless steel construction provides strength and good resistance to vibration
• IP65 Protection: Helps protect the gauge against dust and water exposure
• Low-Power Operation: Designed for extended battery-powered use
• Flexible Installation: Radial installation is standard, with alternative configurations available depending on the selected model
• Broad Application Range: Suitable for hydraulic systems, water supply equipment, HVAC refrigeration and automated systems

Specifications

• Product Type: Digital Pressure Gauge
• Model: AH-DPG
• Display: Digital LCD with Backlight

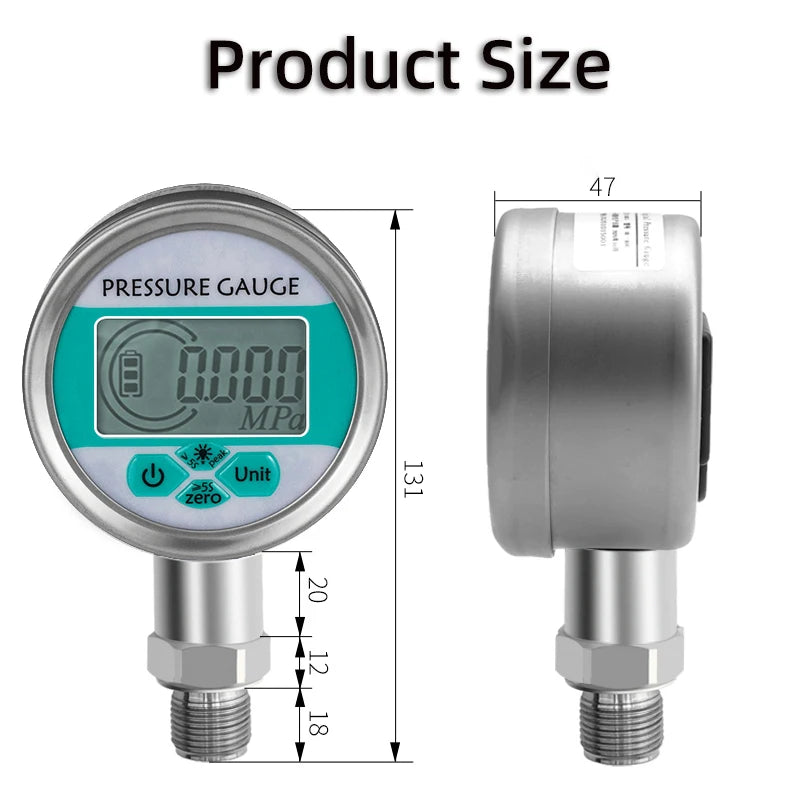

• Dial Diameter Options: 80mm
• Selected Dial Size: 80mm
• Measuring Range: -1 to 1000 bar
• Equivalent Range: -0.1 to 100 MPa
• Accuracy Options: 0.2%, 0.25%, 0.4% F.S.
• Default Accuracy: 0.4% F.S.
• Long-Term Stability: ±0.2% F.S. / 1 year
• Temperature Drift: ±0.03% F.S. / °C
• Overload Capacity: 150%
• Pressure Type: Gauge Pressure
• Pressure Units: MPa, kPa, bar, kgf/cm², psi
• Sensor Type: Diffused Silicon Sensor
• Power Supply: 2 × AA Batteries
• Protection Rating: IP65
• Housing Material: 304 Stainless Steel
• Compatible Media: Water, gas and compatible liquids
• Wetted Material Compatibility: SS316L
• Thread Options: G1/4
• Installation: Radial, with optional radial-with-edge configuration
• Output: Switching Quantity
• Certifications: CE, FCC, RoHS
• Applications: Hydraulic systems, water supply, HVAC refrigeration and automation equipment

Package Contents

• 1 × Digital Pressure Gauge (G1-4 Radial) (0-1000bar)

What Makes This a Smart Buy:

With a wide -1 to 1000 bar measurement range, backlit LCD and selectable pressure units, this gauge makes pressure monitoring quick and easy to read. Its durable stainless steel housing and IP65 protection make it a practical choice for demanding workshop, maintenance and industrial applications.
