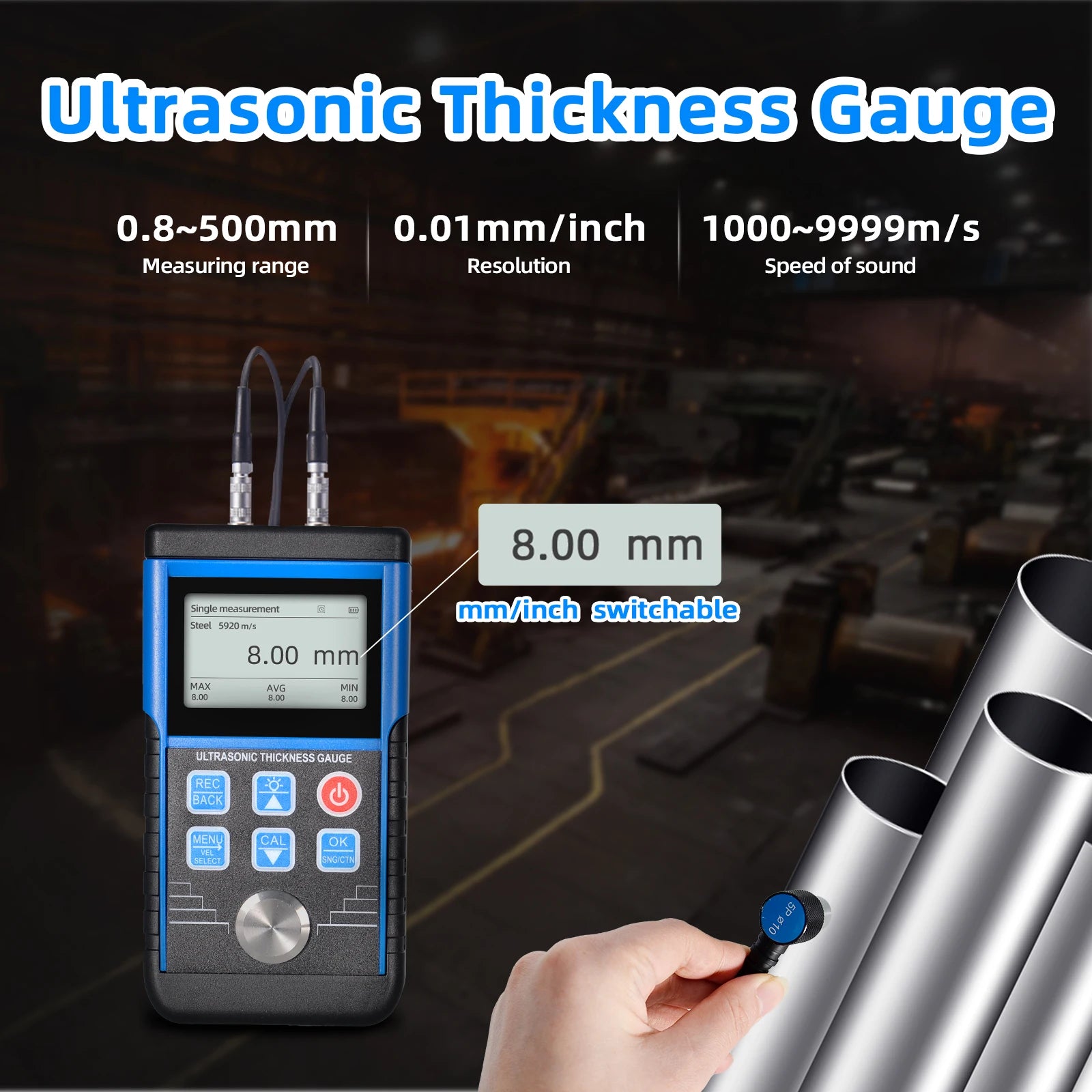

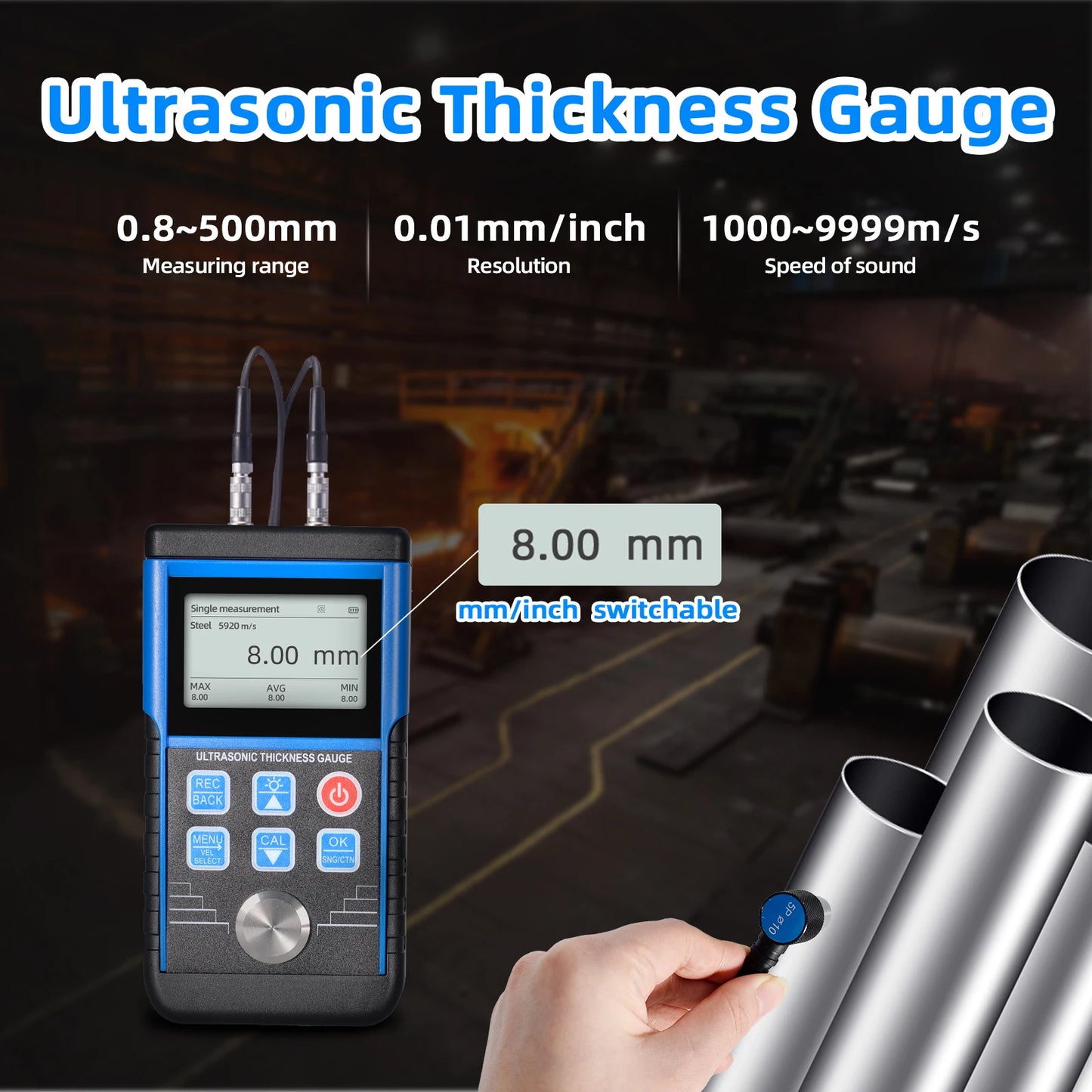

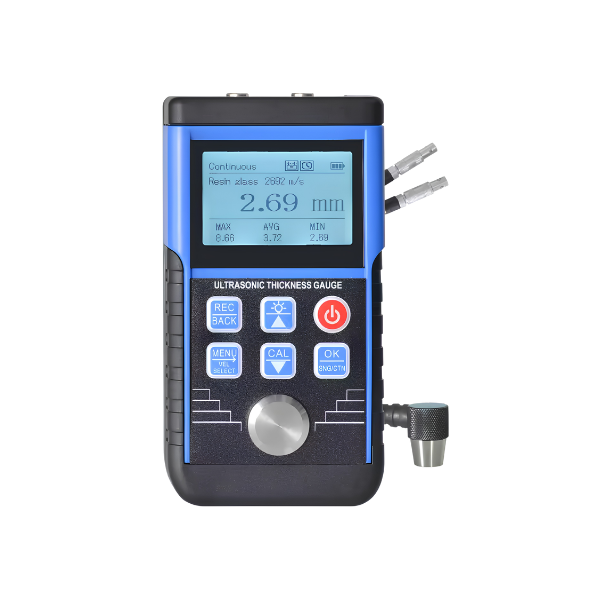

Digital Ultrasonic Thickness Gauge 1-350mm Metal Thickness Tester

Measure material thickness quickly and accurately with this Digital Ultrasonic Thickness Gauge 1–350mm Metal Thickness Tester. Designed for non-destructive testing, it provides reliable measurements without damaging the surface, making it ideal for automotive inspections, metal fabrication, manufacturing, and maintenance work.

Key Features

• Wide 1–350mm Measuring Range: Accurately measures the thickness of various high-density materials for versatile applications.
• Non-Destructive Ultrasonic Testing: Checks material thickness without cutting, drilling, or damaging the workpiece.
• High-Precision Measurement: Delivers accurate readings with fine display resolution for dependable results.

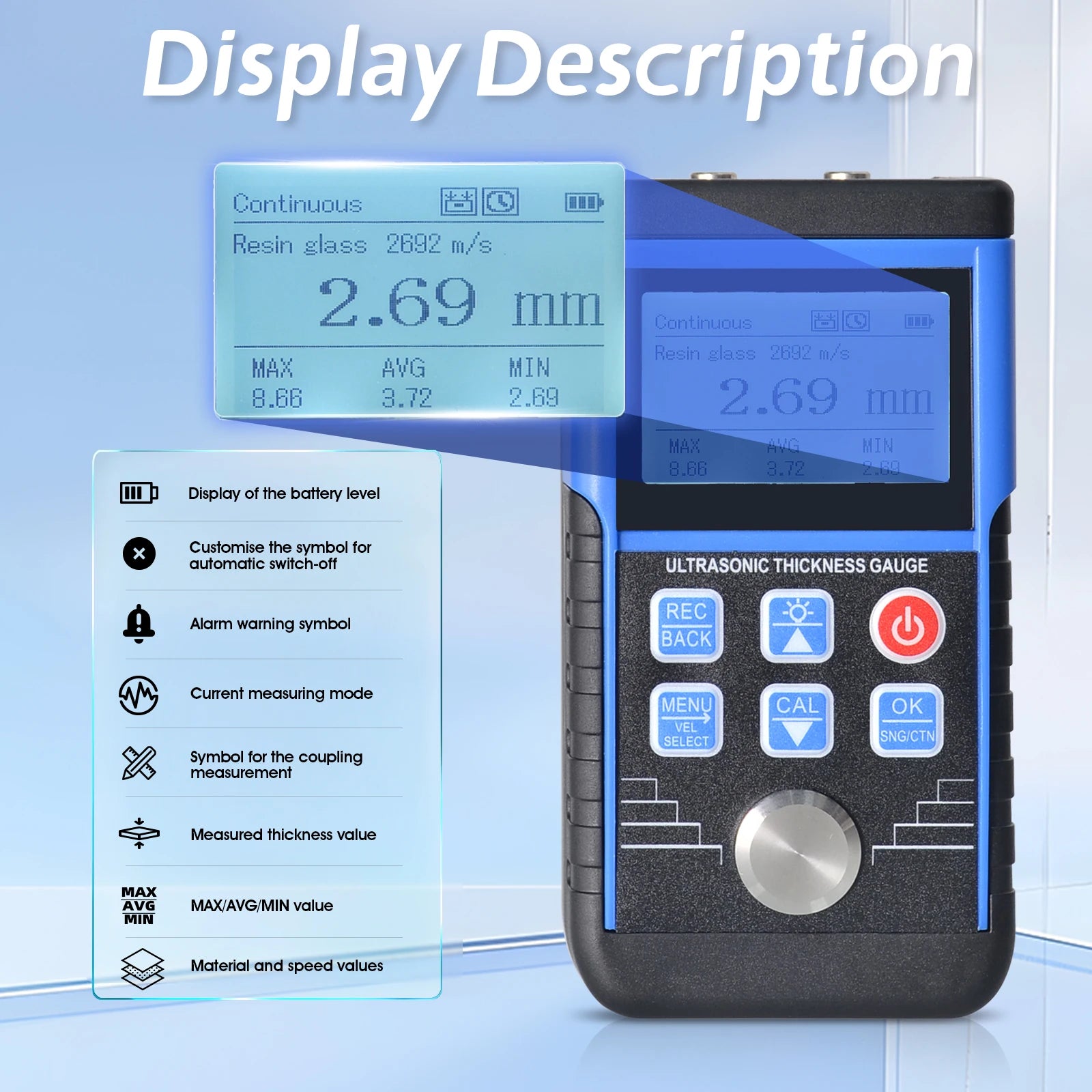

• Digital LCD Display: Easy-to-read screen with backlight for clear visibility in bright or low-light environments.
• Intelligent Microprocessor Control: Fast processing ensures stable and consistent measurements.
• Built-In Material Presets: Includes preset sound velocity settings for multiple common materials, simplifying operation.
• 5MHz Ultrasonic Transducer: Provides reliable performance for measuring metal plates, pipes, tanks, and structural components.
• Pipe Thickness Measurement: Suitable for measuring pipe walls with a minimum size of Φ20 × 3mm.
• Compact and Portable Design: Lightweight handheld unit is convenient for workshops, job sites, and field inspections.
• Ideal for Multiple Industries: Perfect for automotive servicing, metal processing, manufacturing, engineering, maintenance, and quality control.

Specifications

• Measuring Range: 1.0–350mm
• Measurement Principle: Ultrasonic Pulse Reflection
• Display: Digital LCD with Backlight
• Display Resolution: 0.01mm (1–99mm), 0.1mm (over 100mm)

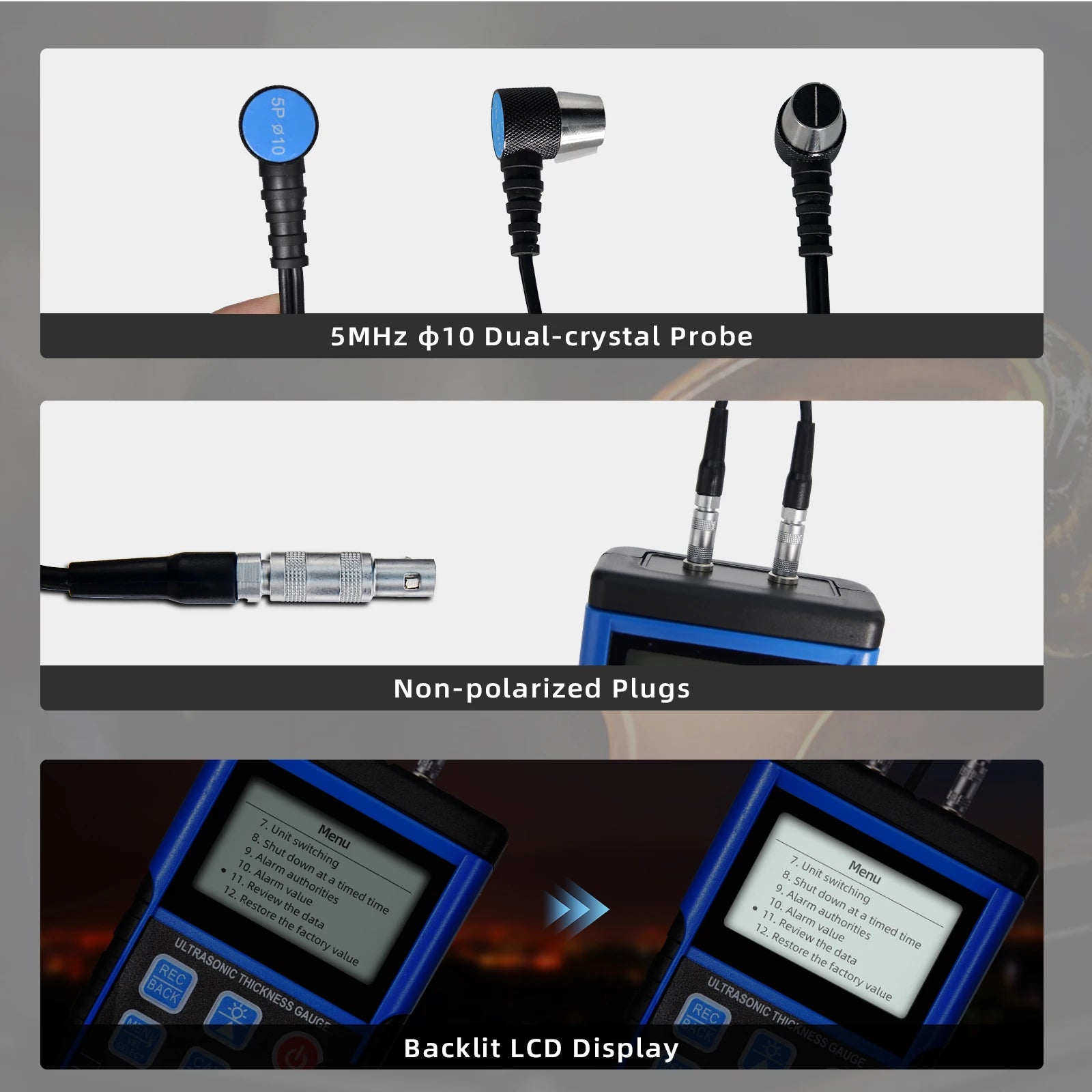

• Transducer: Φ10mm 5MHz
• Working Frequency: 5MHz (2.5MHz compatible with optional probe)
• Accuracy:
  • Below 10mm: ±0.05mm
  • 10–99mm: ≤ ±(0.01 + H/200)mm
  • Above 100mm: ≤ ±(0.1 + H/100)mm
• Minimum Pipe Measurement: Φ20 × 3mm
• Preset Material Sound Velocity: 10 material settings
• Dimensions: 135 × 36 × 72mm
• Power Supply: 3 × AA Alkaline Batteries (not included)
• Certification: CE

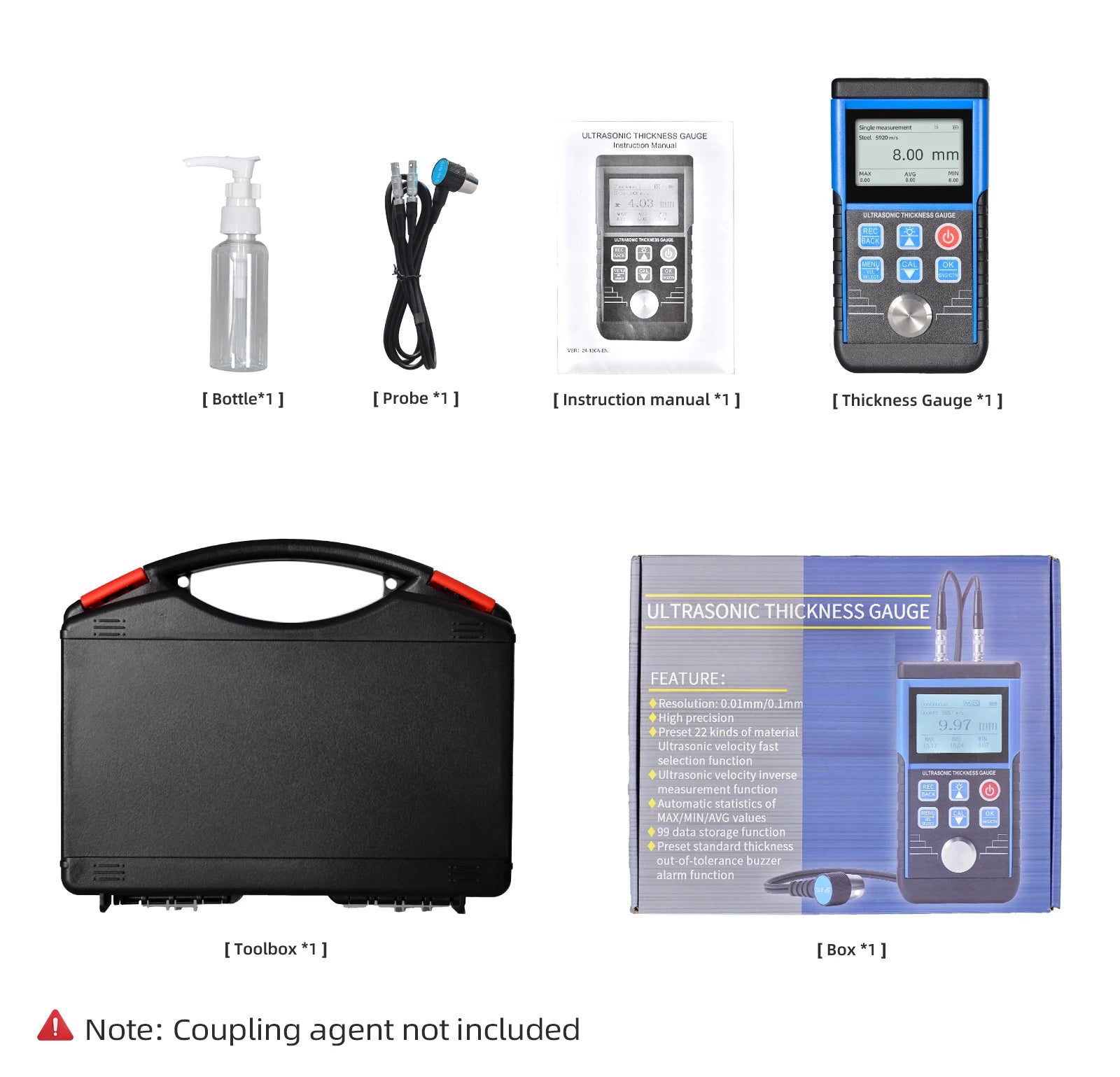

Package Contents

• 1 × Digital Ultrasonic Thickness Gauge
• 1 × Probe
• 1 × Bottle
• 1 × Toolbox
• 1 × User Manual

What Makes This a Smart Buy:

Whether you're inspecting vehicle panels, metal components, pipelines, or industrial equipment, this ultrasonic thickness gauge delivers fast, accurate, and non-destructive measurements. Its portable design, wide measuring range, and user-friendly operation make it a valuable tool for professionals and serious DIY users alike.
