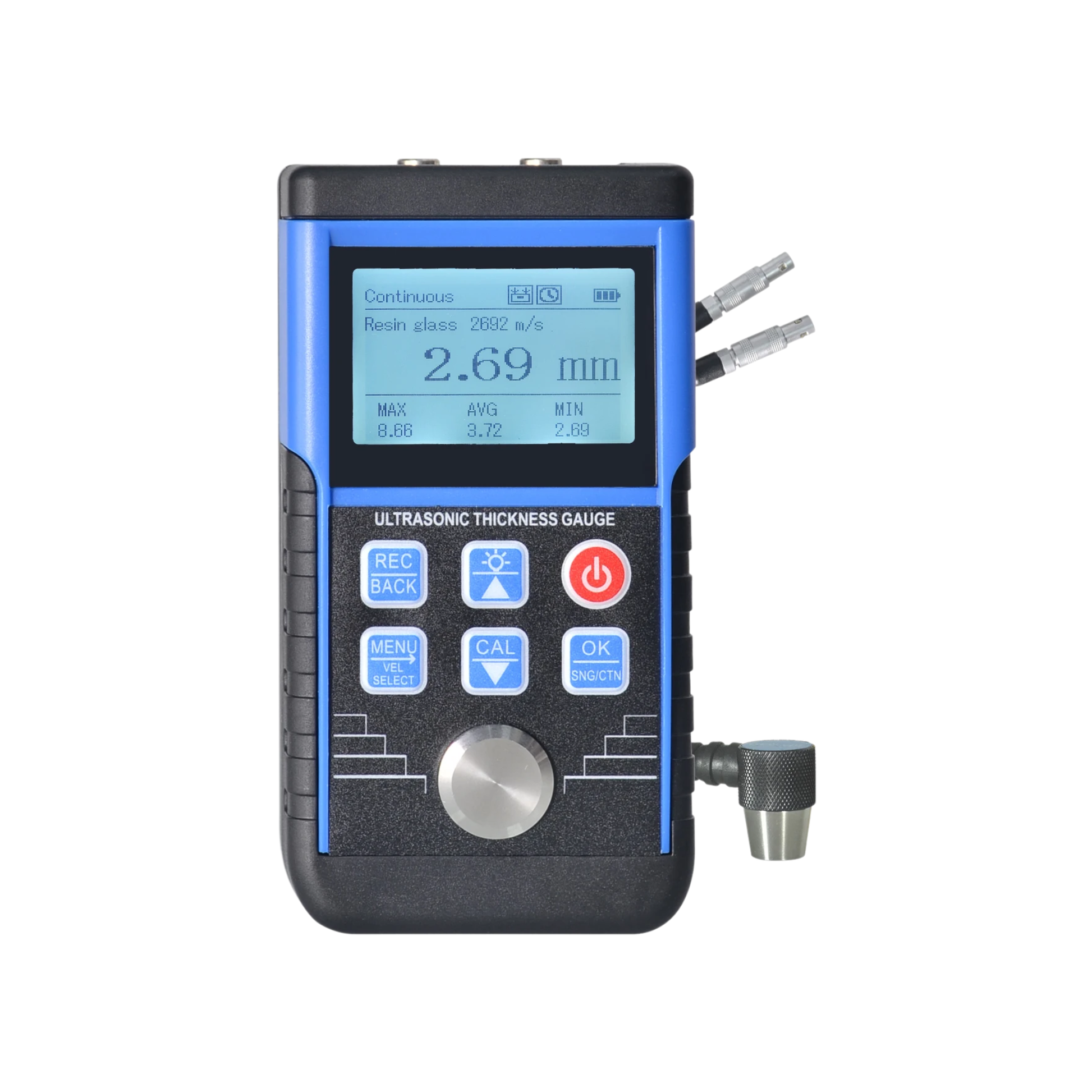

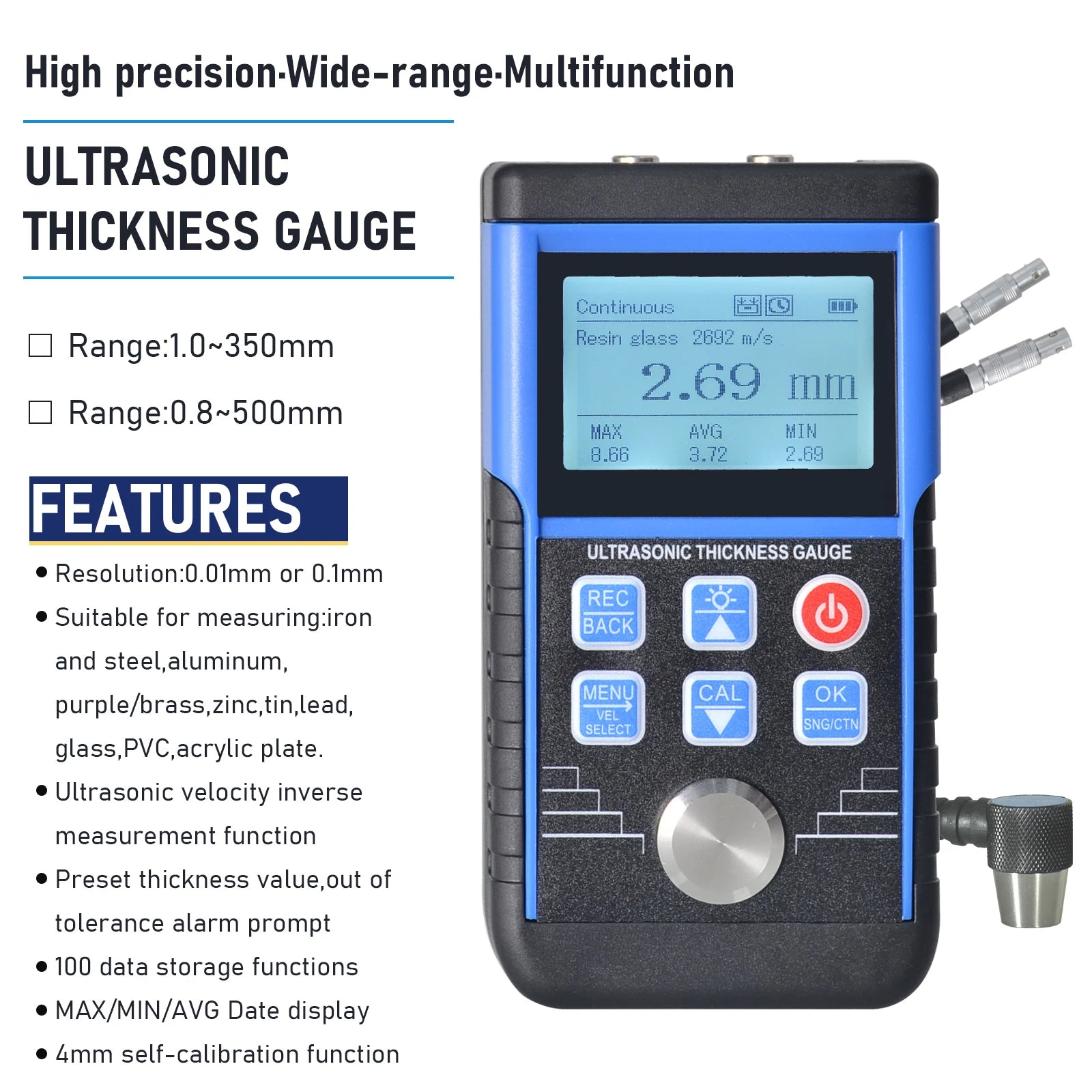

Digital Ultrasonic Thickness Gauge Meter 1–350mm

Easily measure the thickness of metals, plastics, glass, and more with this portable ultrasonic thickness gauge. Its precise readings, wide measuring range, and fast response make it ideal for industrial inspections, pipeline monitoring, and quality control.

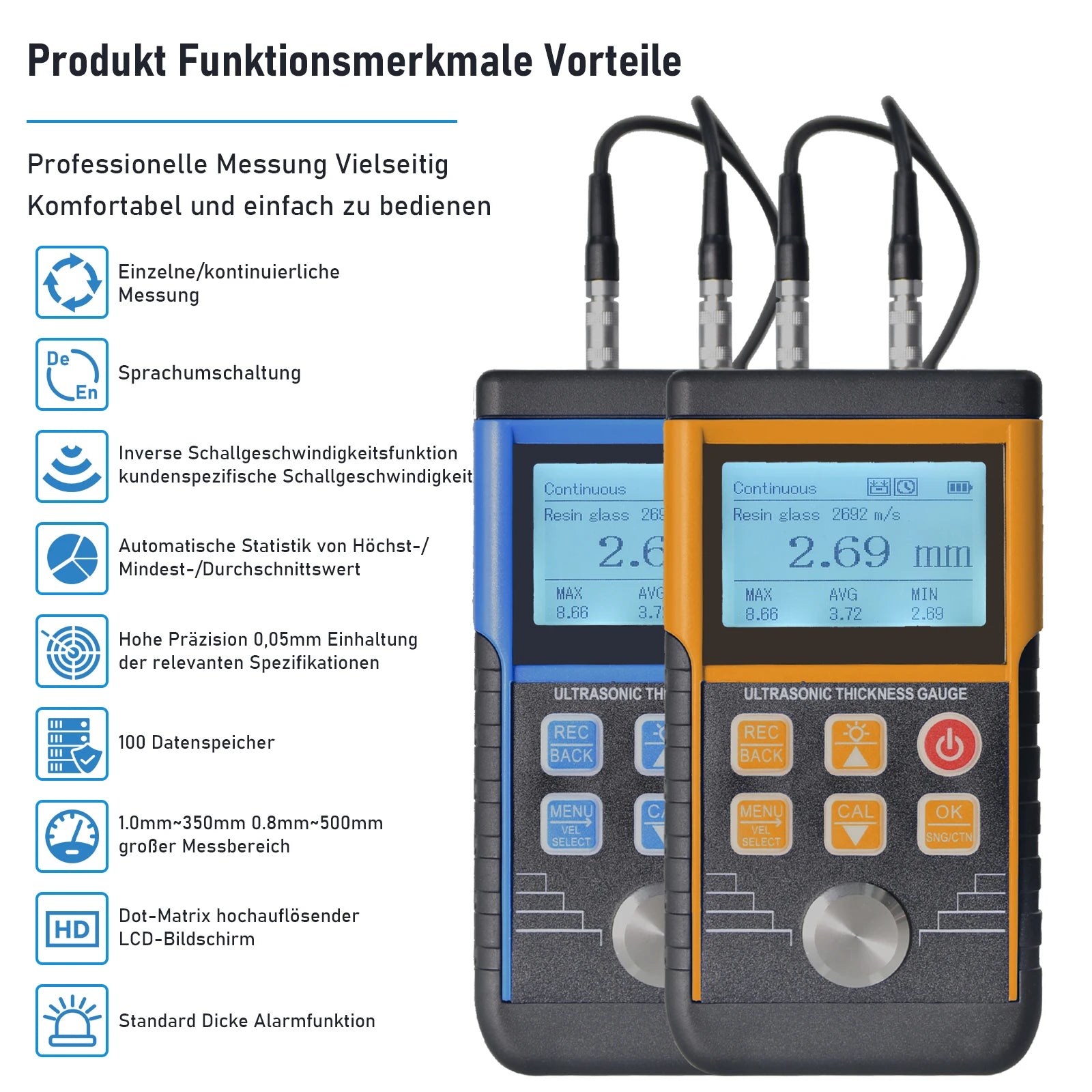

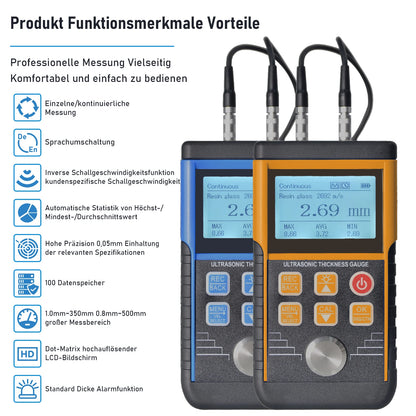

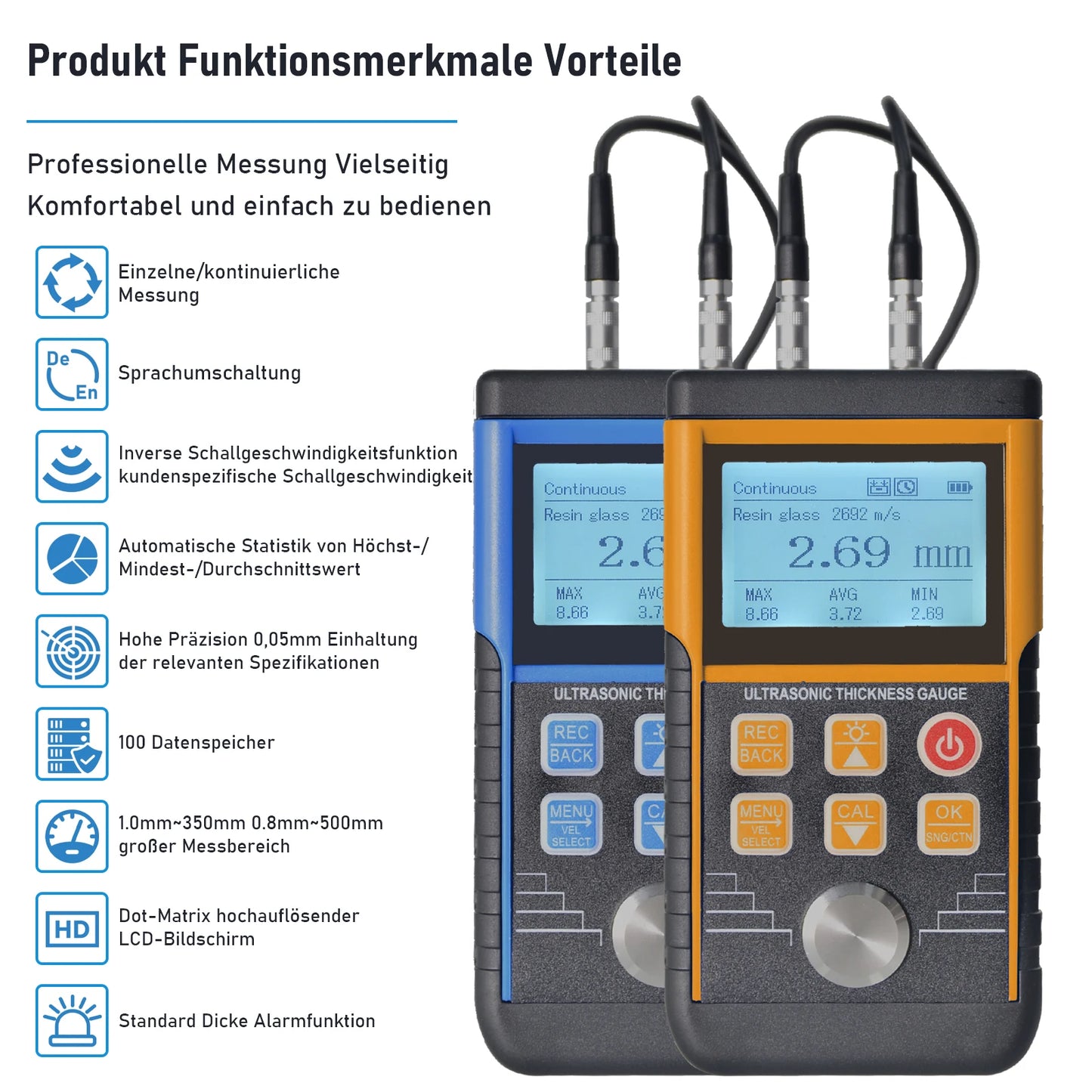

Key Features

• Accurate ultrasonic measurements with resolution up to 0.01mm

• Wide measuring range from 1.0–350mm for versatile applications

• Supports metals, plastics, ceramics, glass, and other ultrasonic-conductive materials

• Built-in memory stores up to 100 measurement records for easy tracking

• Adjustable sound velocity and 4mm self-calibration for precise readings

• Backlit LCD screen for clear display in low-light conditions

• Portable and lightweight design for fieldwork and industrial use

Specifications

• Model: T9-130S

• Measuring range: 1.0–350mm

• Operating frequency: 5MHz

• Resolution: 0.01mm (1.00–99.99mm), 0.1mm (100–350mm)

• Accuracy: H<10mm ±0.05mm, 10–99mm ≤±0.01+H/200mm, >100mm ≤±0.1+H/100mm

• Built-in material sound velocity: 11 preset values, adjustable 1000–9999m/s

• Power: 3 × 1.5V AA batteries (not included), approx. 20 hours runtime

• Operating temperature: 0–40°C (probe 0–60°C)

• Dimensions: 72 × 135 × 36mm

• Weight: 153g (including protective cover, battery not included)

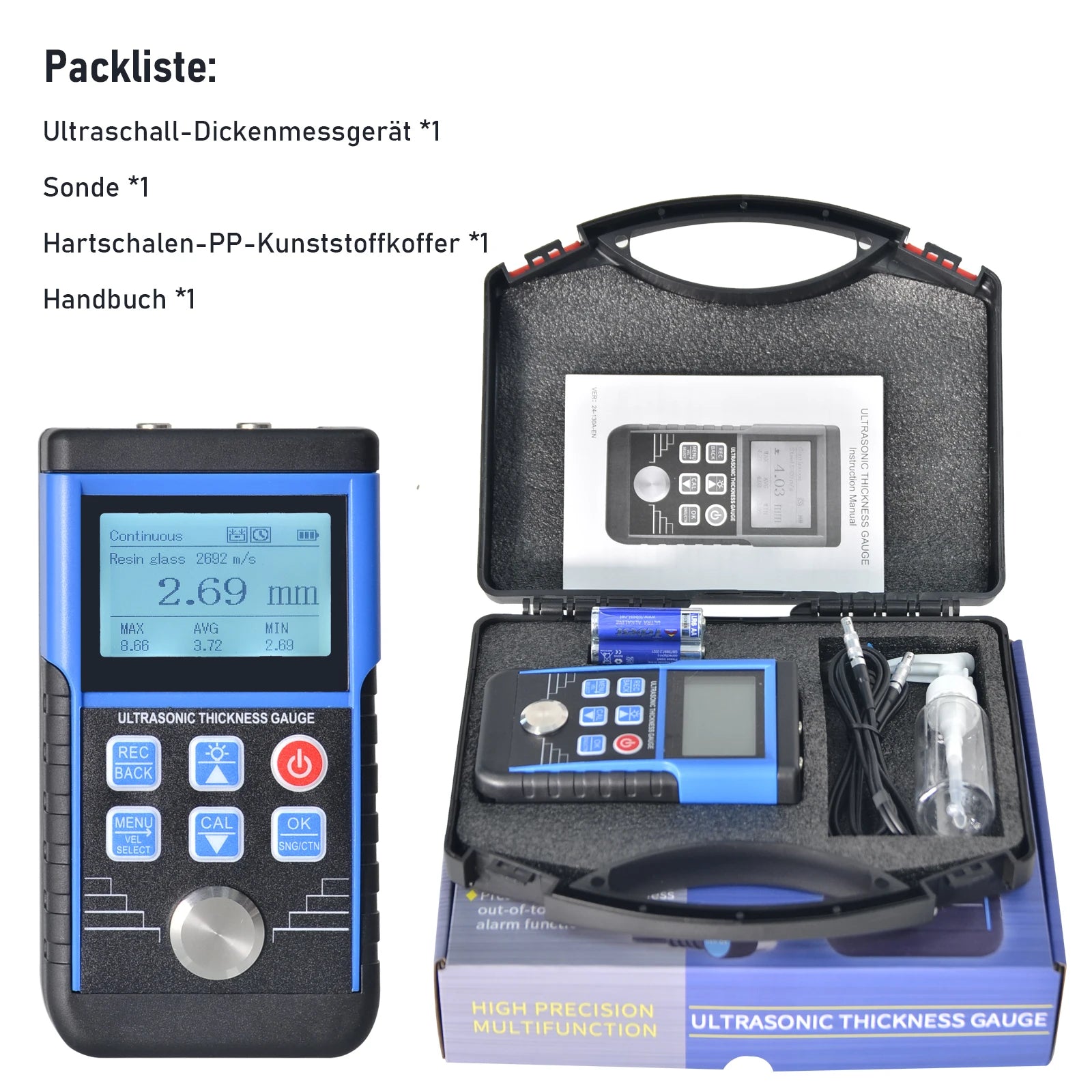

Package Contents

• 1 × Ultrasonic Thickness Gauge (T9-130S)

• 1 × 5MHz/10 probe

• 1 × Carrying hard case

• 1 × User manual

What Makes This a Smart Buy:
This digital ultrasonic thickness gauge combines high precision, portability, and versatile measurement capability, making it an essential tool for engineers, technicians, and quality control professionals. Its lightweight design and wide range ensure accurate readings anytime, anywhere.
