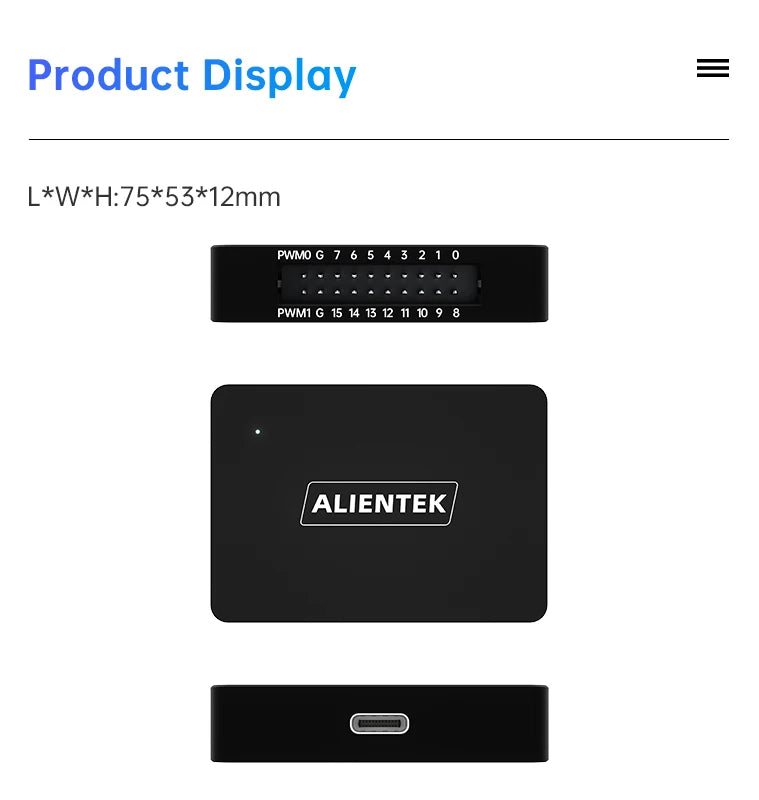

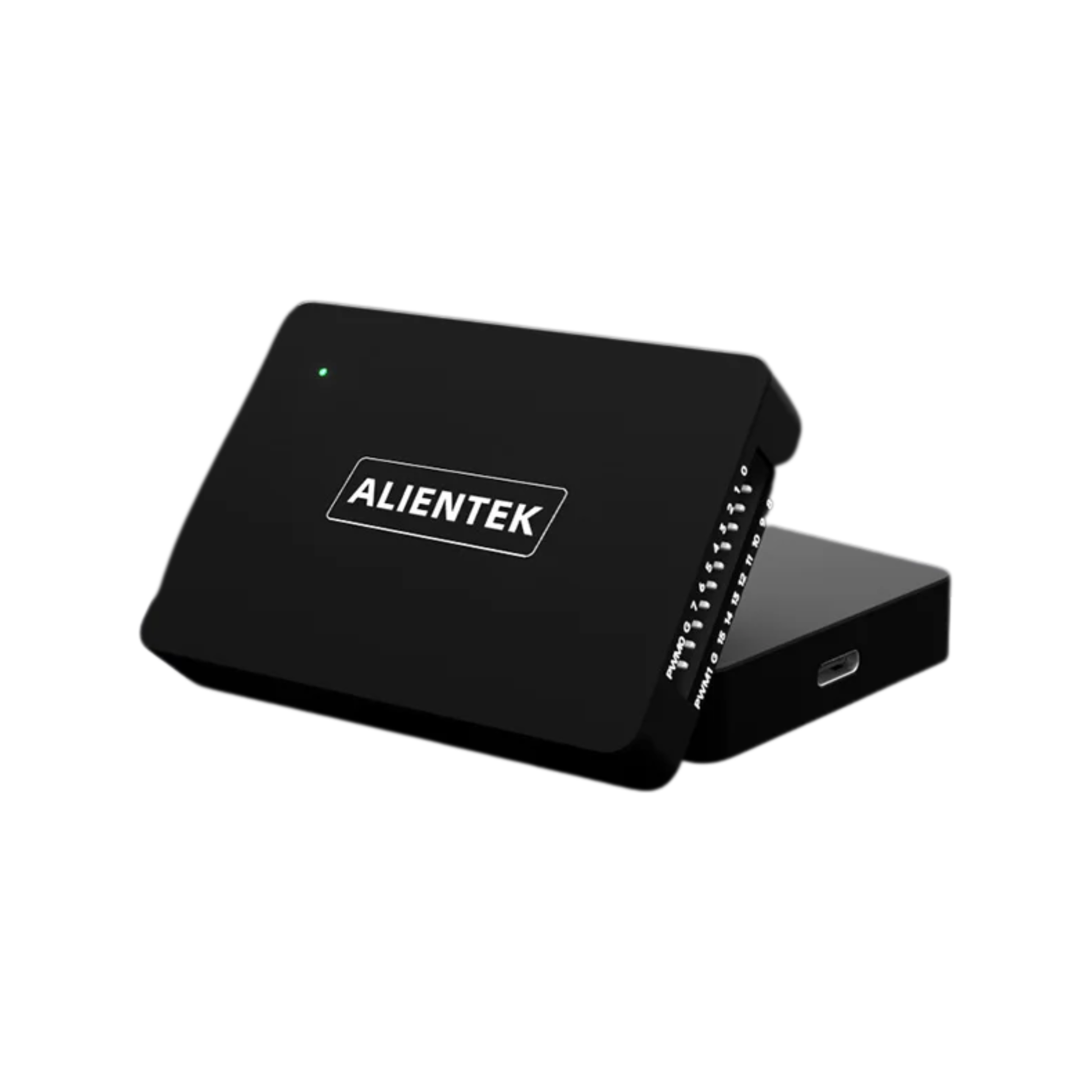

DL16 Plus USB Protocol Analyzer Bundle

Take your digital testing to the next level with this complete DL16 Plus USB protocol analyzer bundle. Capture and decode complex signals with ease, ensuring efficient debugging and reliable results for any project.

Key Features

• High-speed 16-channel logic analysis at 250MHz

• Supports over 120 communication protocols

• Stream mode with extended capture time

• Hardware RLE compression for faster data handling

• Customizable protocol decoding via open library

• Dual PWM outputs (1Hz–20MHz)

• Multiple trigger and acquisition modes

• User-friendly visual software interface

• Cross-platform compatibility (Windows, Ubuntu, Mac)

Specifications

• Max hardware storage depth: 1G

• Digital channels: 16

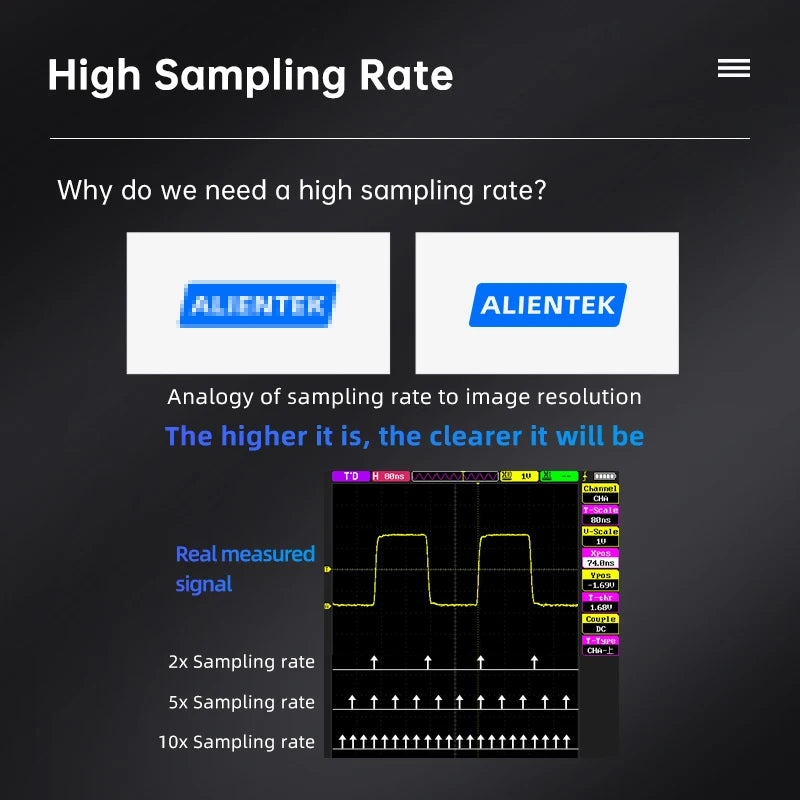

• Sampling rate: 250MHz

• Protocol library: Open, 120+ protocols

• PWM channels: 2 adjustable outputs

• Data compression: RLE

• Shell: Full metal CNC

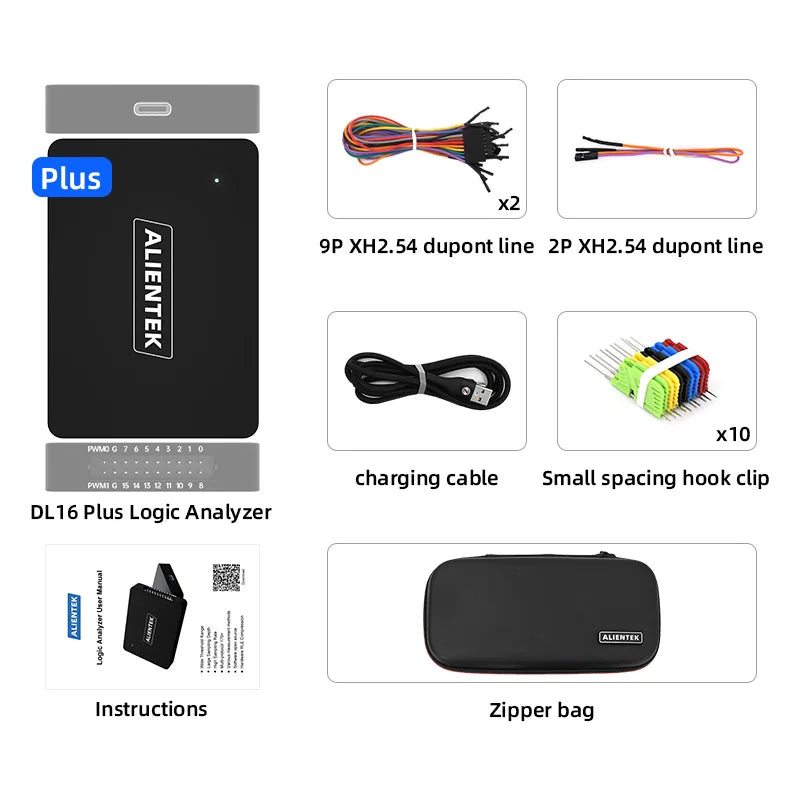

Package Contents

• 1 × DL16 Plus USB Logic Analyzer

• 2 × 9P XH2.54 Dupont Line

• 2 × 2P XH2.54 Dupont Line

• 1 × Zipper Bag

• 10 × Small Spacing Hook Clip

• 1 × User Manual

What Makes This a Smart Buy:
With its full protocol support, high-speed capture, and intuitive interface, this bundle makes digital testing faster, easier, and more accurate—perfect for engineers and electronics enthusiasts.
