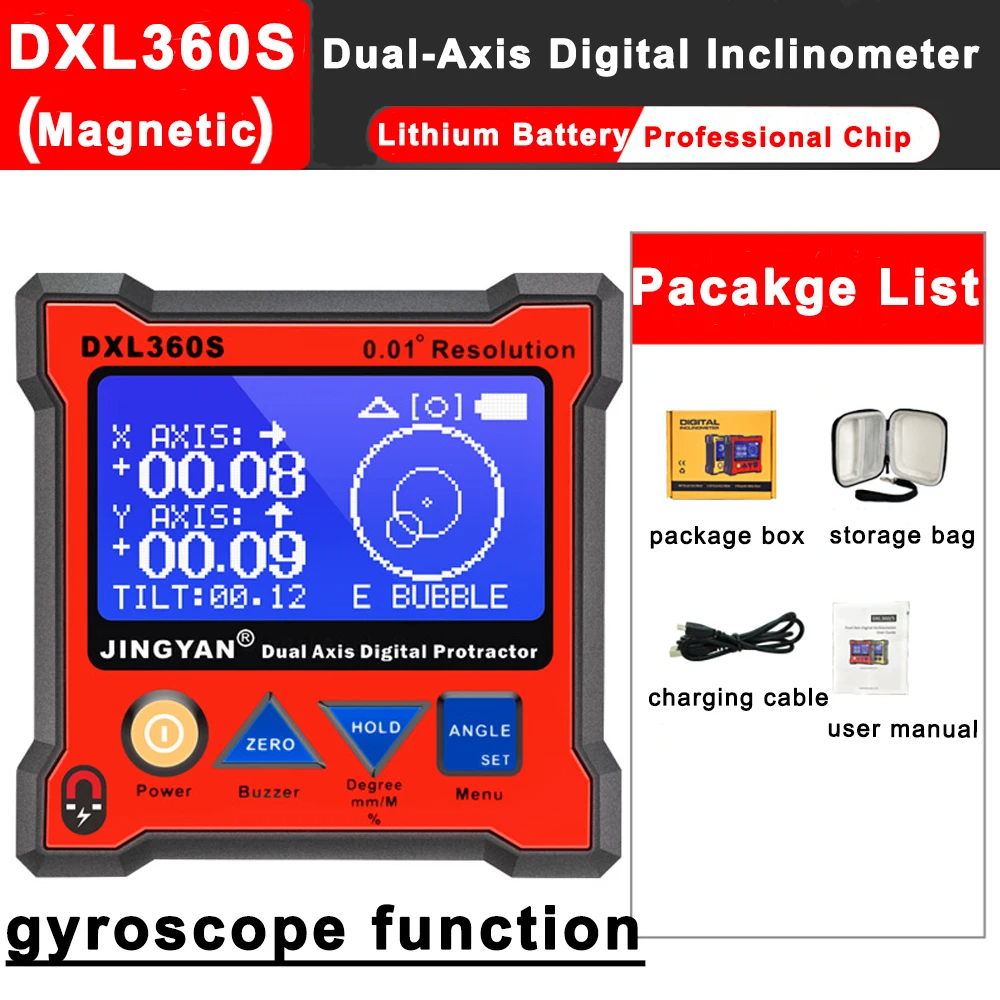

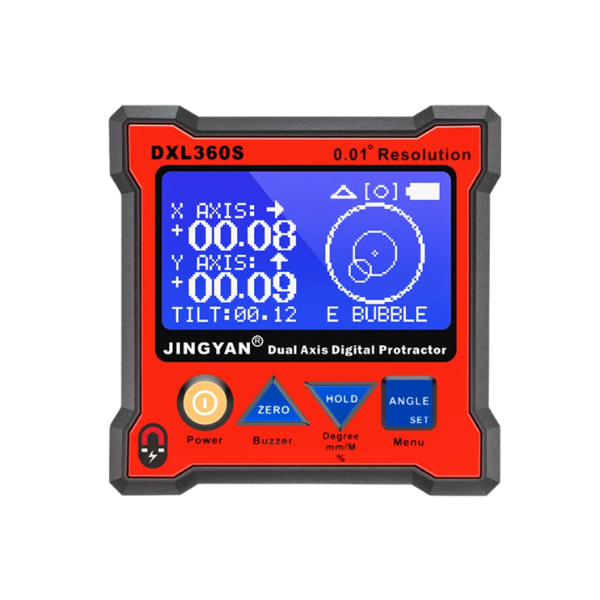

Dual Axis Digital Angle Protractor Magnetic Base Level Gauge

This dual-axis digital angle protractor is designed for accurate levelling, alignment and angle measurement across workshops, construction jobs and DIY projects. With a magnetic base, rechargeable battery and clear digital display, it makes precise measurements quick and convenient.

Key Features

• Dual-Axis Measurement: Measures single-axis angles through 360° and dual-axis angles up to ±40°

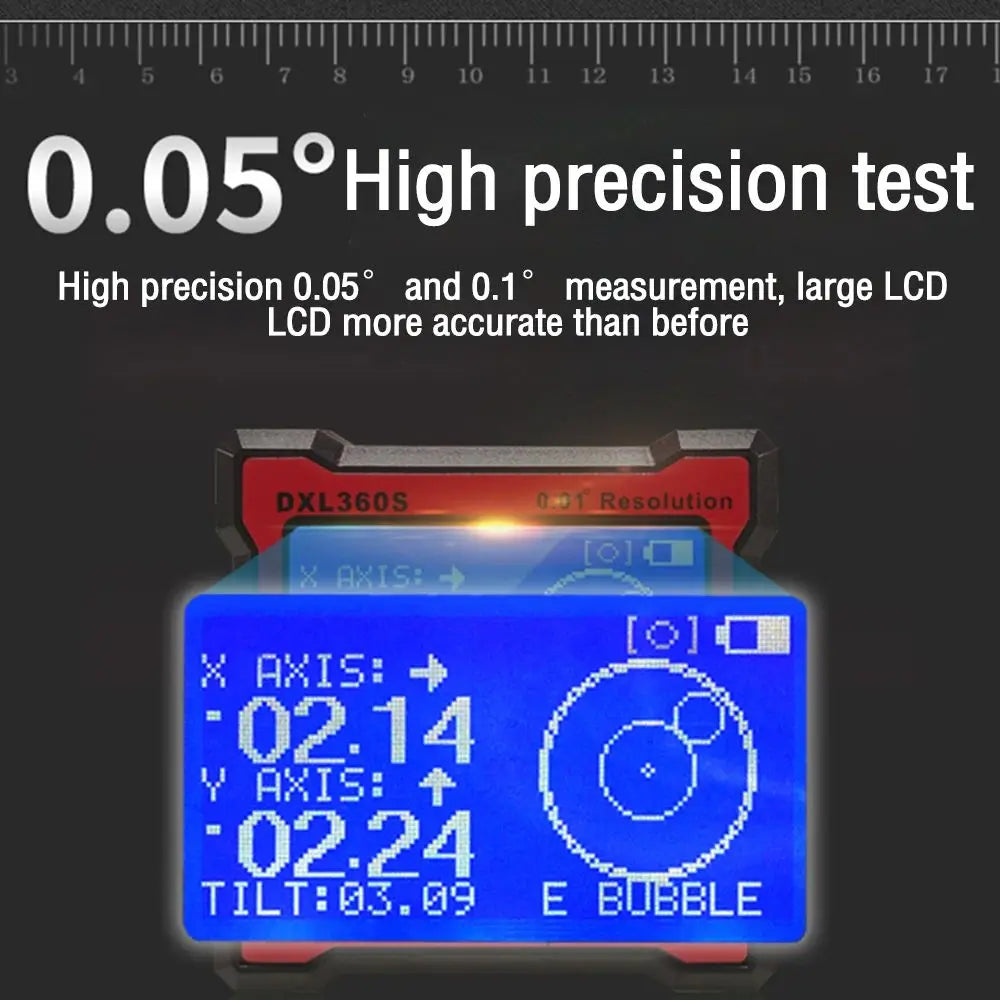

• High Precision: DXL360S variant offers up to 0.01° resolution for detailed measurements

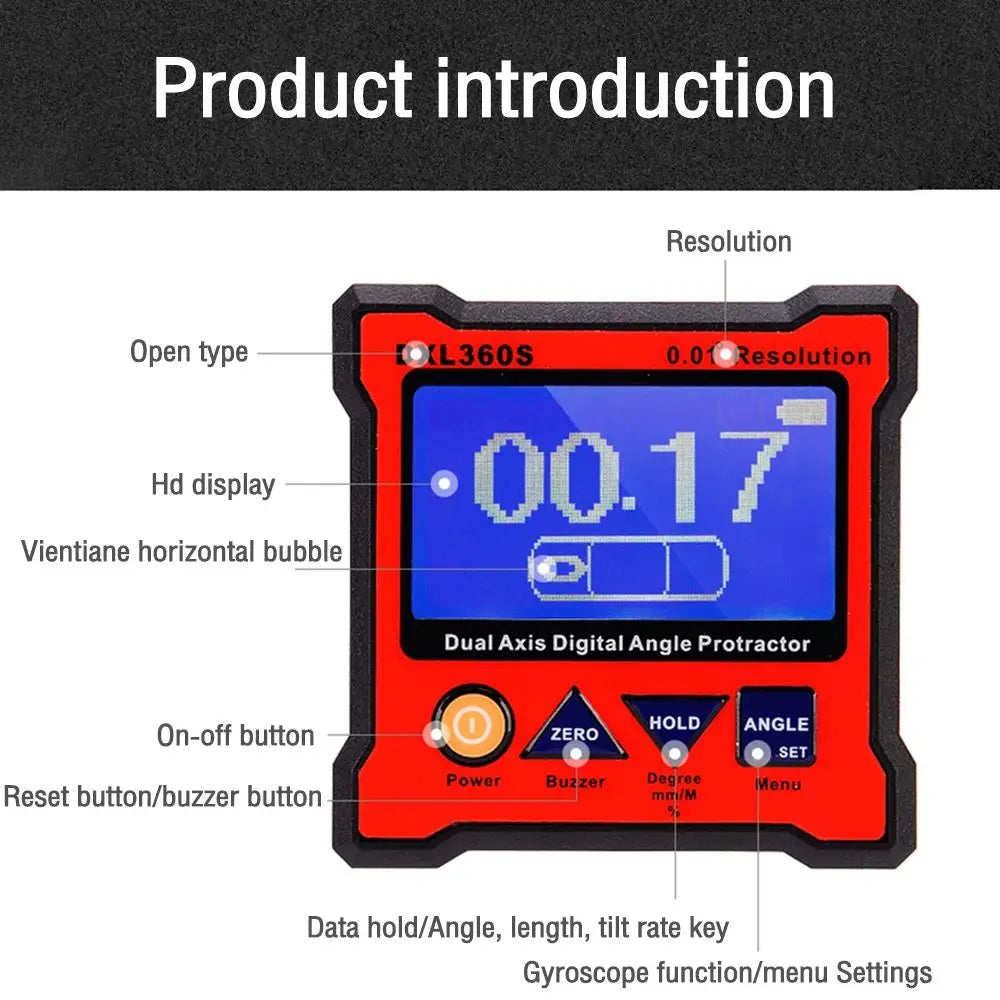

• Large LCD Display: Clear backlit screen makes readings easy to view in different working conditions

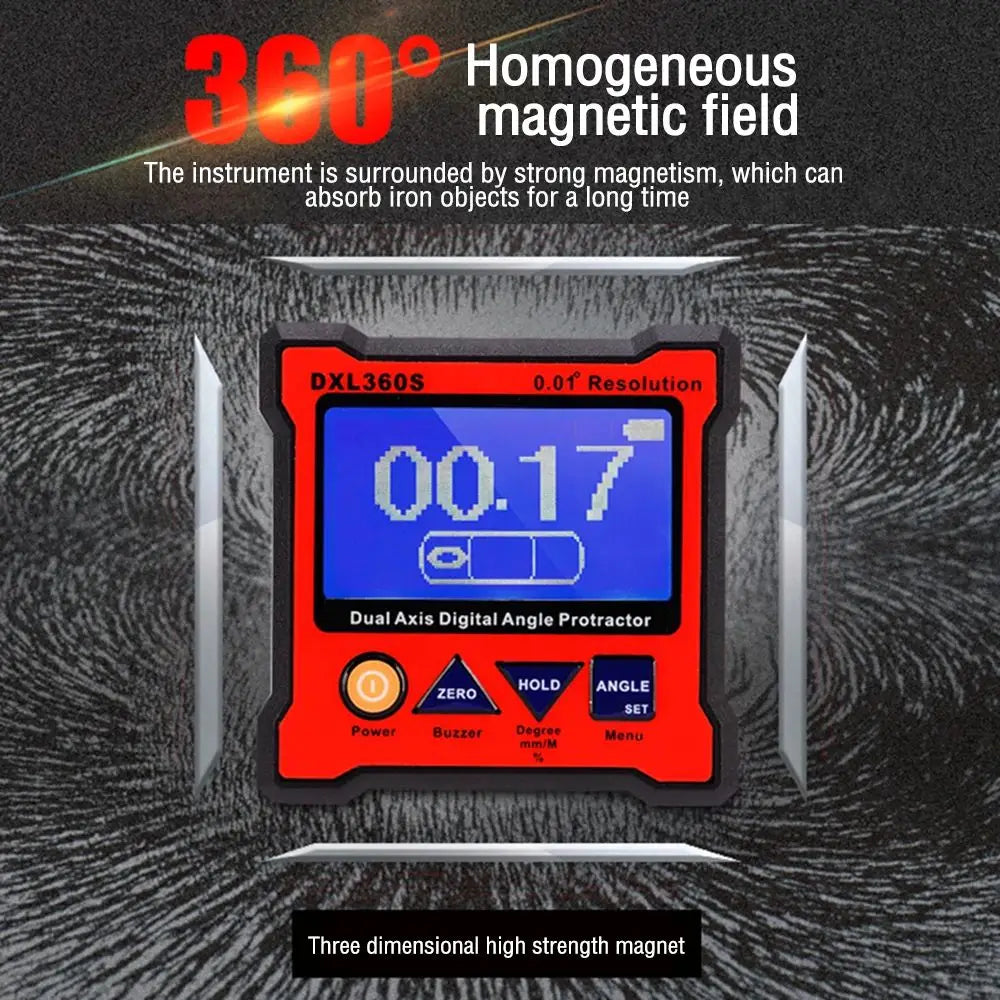

• Strong Magnetic Base: Built-in magnets on the bottom and rear securely attach to ferrous surfaces
• V-Groove Design: Helps position the gauge securely on pipes, rounded surfaces and corners

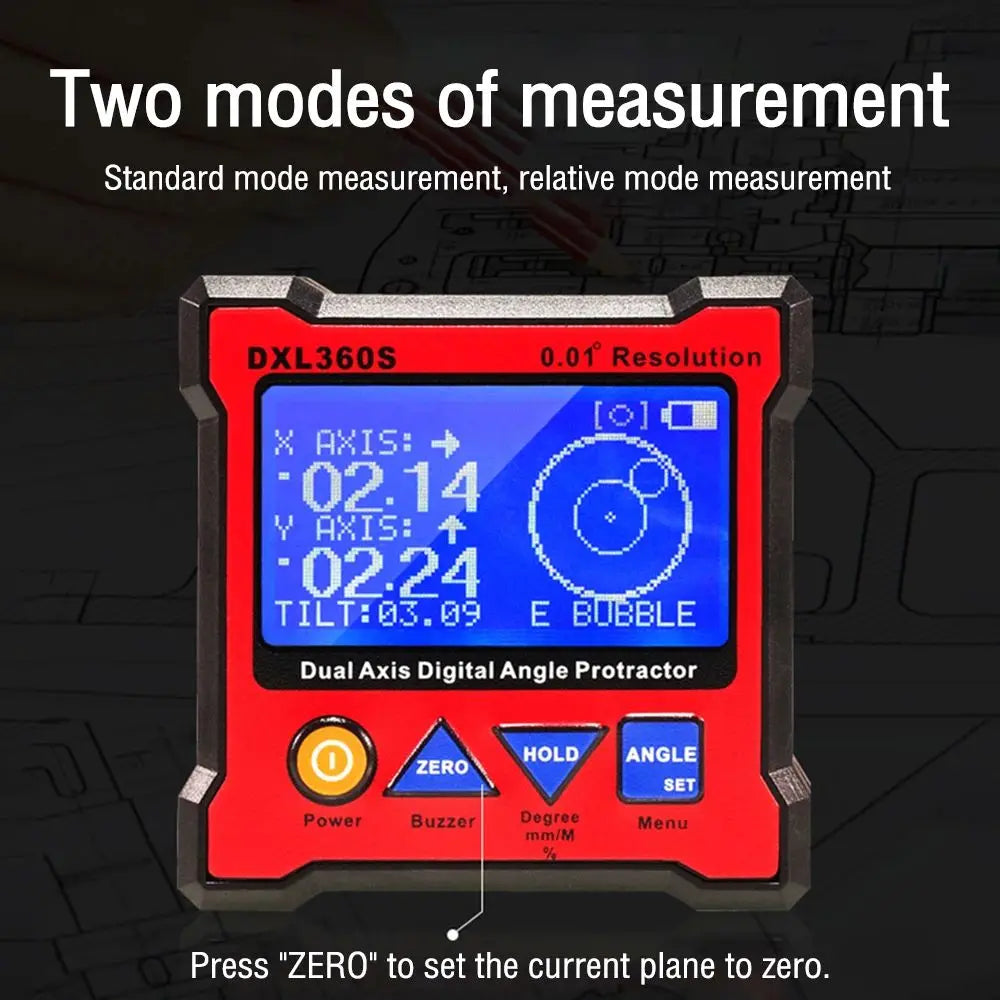

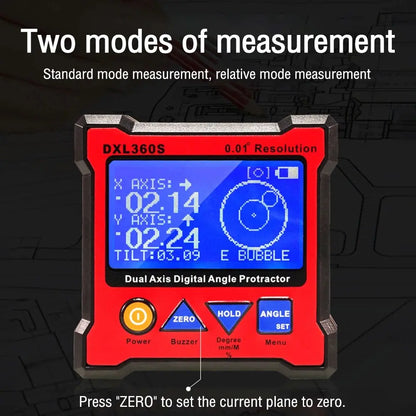

• Absolute & Relative Modes: Measure against the earth's horizontal plane or set any surface as a zero reference

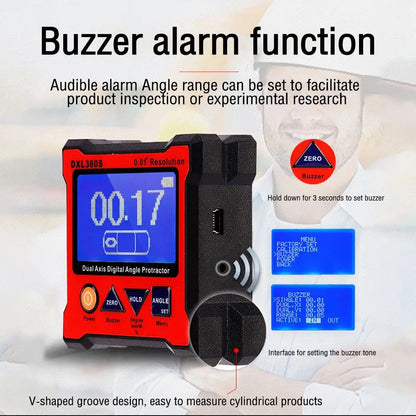

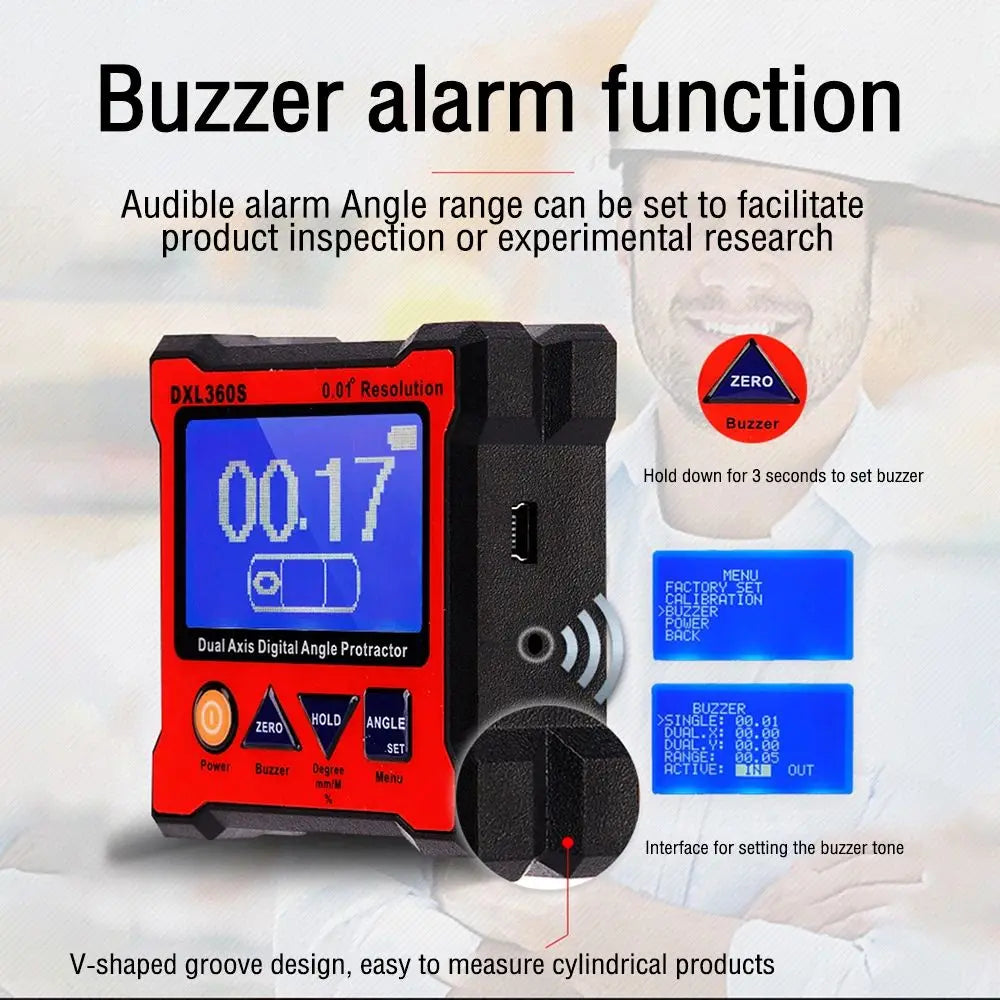

• Adjustable Angle Alarm: Audible alert can be configured for checking target angles
• Self-Calibration: Built-in calibration function helps maintain measurement accuracy

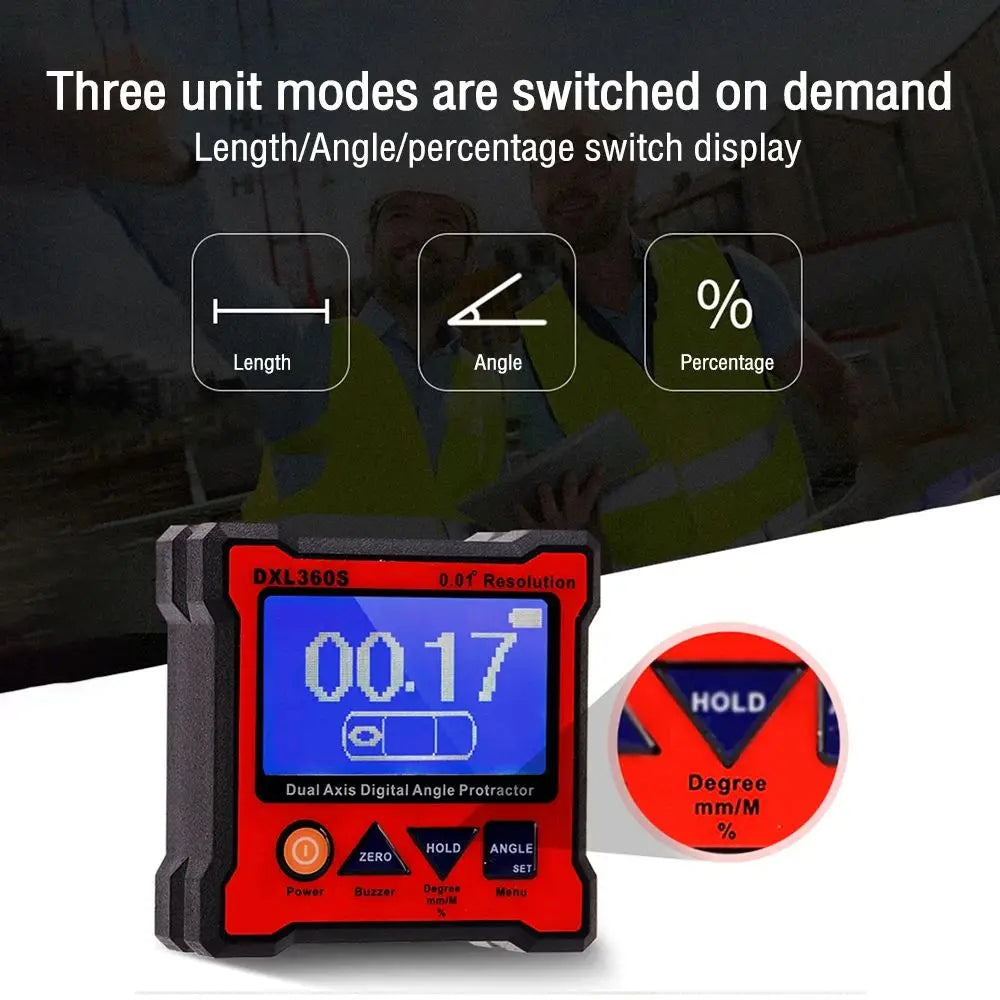

• Unit Conversion: Converts angular measurements into length-based error readings for 1m objects
• Fast Response: Delivers measurements in less than 0.4 seconds
• Rechargeable Operation: Built-in lithium-ion battery provides convenient cordless use
• Portable Design: Compact 70 x 70 x 28mm body weighs only 120g for easy transport

Specifications

• Model: DXL360 / DXL360S
• DXL360S Accuracy: ±0.05° to ±0.1° depending on angle range
• DXL360 Accuracy: ±0.1° to ±0.2° depending on angle range
• DXL360S Resolution: 0.01°
• DXL360 Resolution: 0.02°
• Single-Axis Range: 360°
• Dual-Axis Range: ±40°
• Response Time: <0.4 seconds
• Display: Monochrome backlit LCD
• Alarm Volume: 60dB at 30cm
• Battery: Built-in 3.7V rechargeable lithium-ion
• Charging Interface: 5V 500mA Mini USB
• Working Battery Life: Up to 40 hours
• Standby Battery Life: Up to 4000 hours
• Working Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Dimensions: 70 x 70 x 28mm
• Weight: 120g

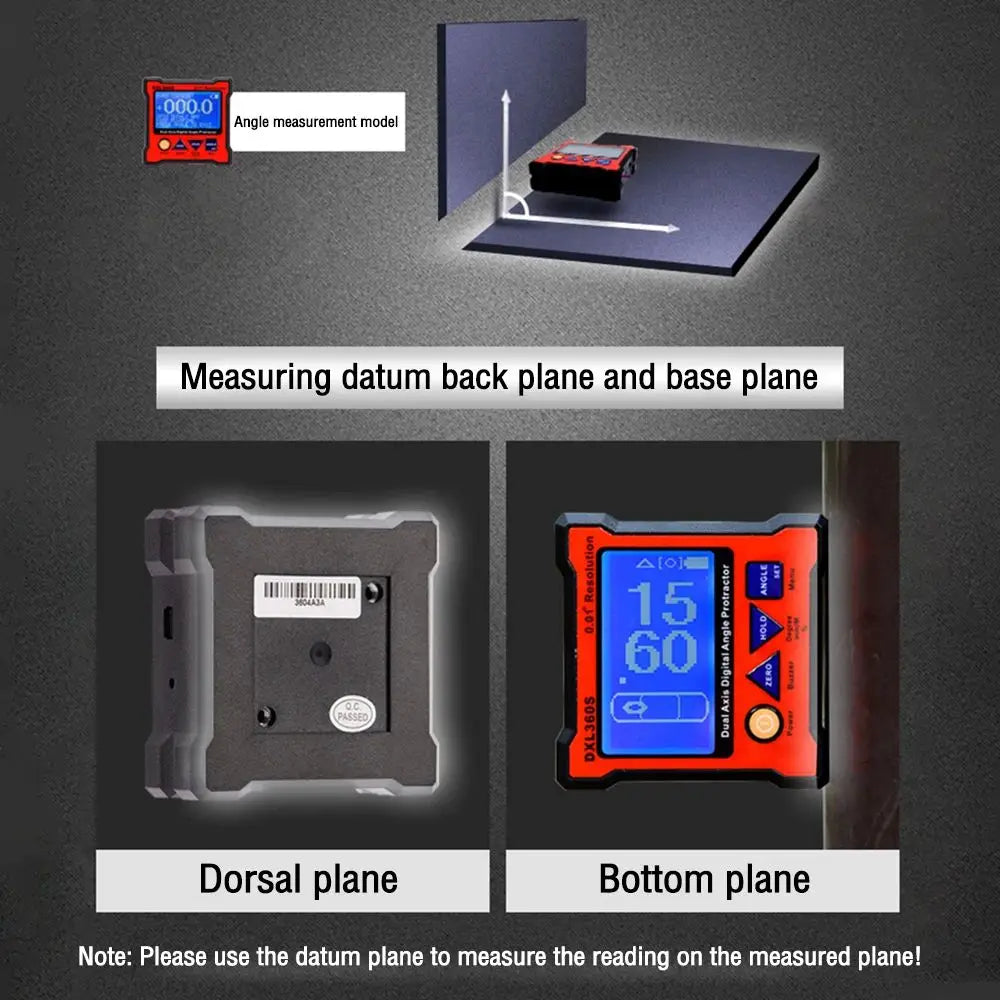

• Magnetic Positions: Bottom and rear

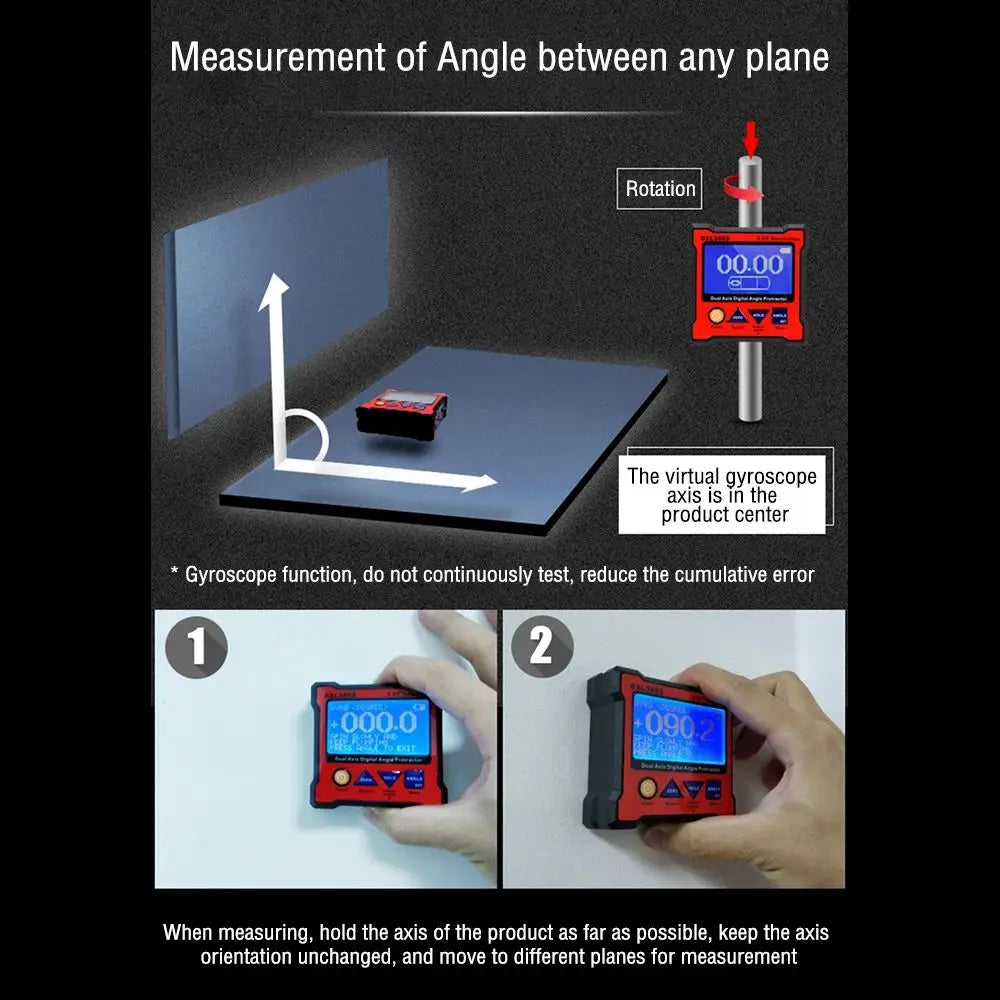

• Additional Function: Gyroscope-style angle measurement available on DXL360S

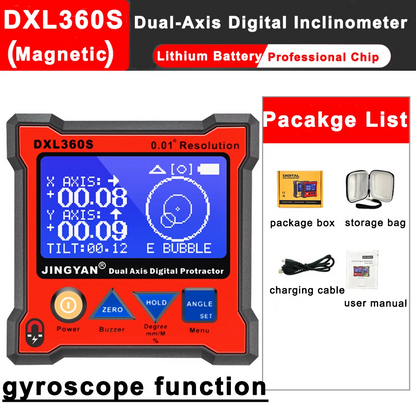

Package Contents

• 1 x Digital Angle Protractor Level Gauge (DXL360S)
• 1 x Mini USB Cable
• 1 x Storage Bag
• 1 x Instruction Manual

What Makes This a Smart Buy:

A compact combination of precision measurement, magnetic mounting and rechargeable convenience, this digital angle gauge is ideal for accurate alignment without carrying bulky equipment. Its versatile measurement modes make it useful for trades, workshops, construction and everyday DIY tasks.
