Fork Clamp Meter True RMS AC Ammeter Frequency Tester

Measure electrical values quickly and confidently with this True RMS fork clamp meter. Its open fork design makes it easier to measure current without needing to disconnect or thread a conductor through a conventional clamp, while multiple testing functions make it useful for electrical work, maintenance and DIY projects.

Key Features

• 200A Current Measurement – Measure AC and DC current up to 200A for a wide range of electrical testing tasks.
• True RMS Measurement – Provides accurate readings for AC signals, making it suitable for modern electrical systems and equipment.

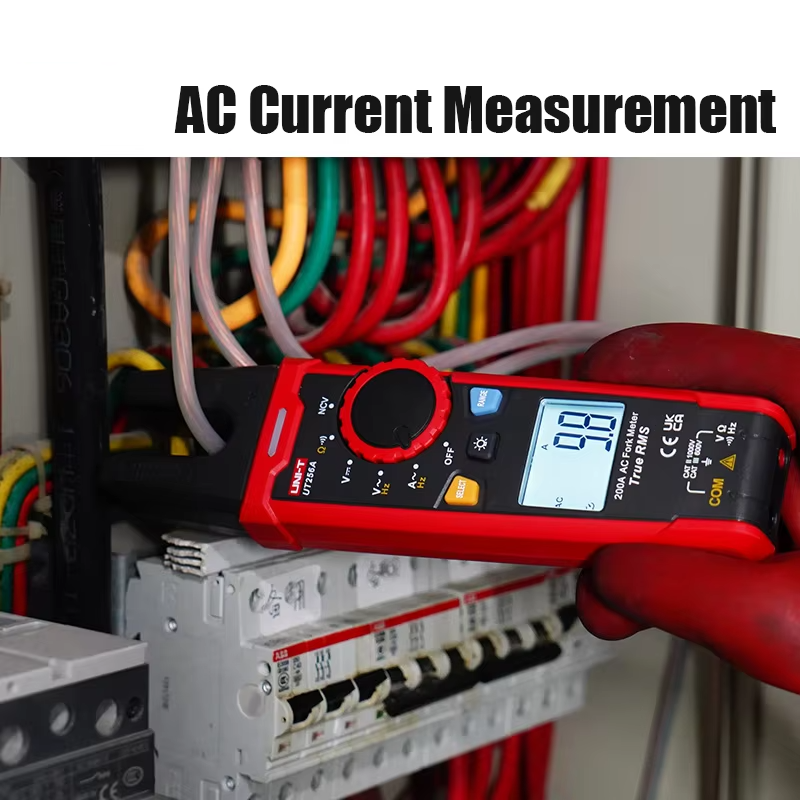

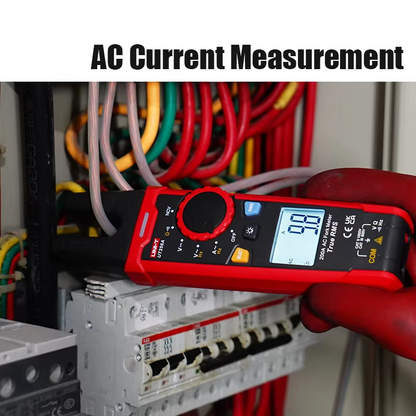

• Fork-Style Current Measurement – Simply position the conductor within the fork opening for convenient current testing.
• 1000V Voltage Measurement – Measures DC voltage up to 1000V and AC voltage up to 750V.
• Multi-Function Testing – Also measures resistance, capacitance and frequency for versatile electrical diagnostics.
• 6000-Count Display – High-resolution digital display provides clear readings for detailed measurements.
• Auto-Ranging – Automatically selects the appropriate measurement range for easier operation.
• Non-Contact Voltage Detection – NCV function helps detect the presence of AC voltage without direct electrical contact.
• Data Hold – Freeze the displayed reading for easier viewing and recording.
• Backlit LCD – Improves visibility when working in dimly lit areas.
• Continuity Buzzer – Provides an audible indication during continuity testing.
• Built-In Protection – Input protection helps safeguard the meter during measurement.
• Auto Power Off – Automatically powers down after approximately 15 minutes of inactivity to help conserve battery life.
• Portable Design – Compact 217mm body is easy to carry between jobs, workshops and electrical installations.

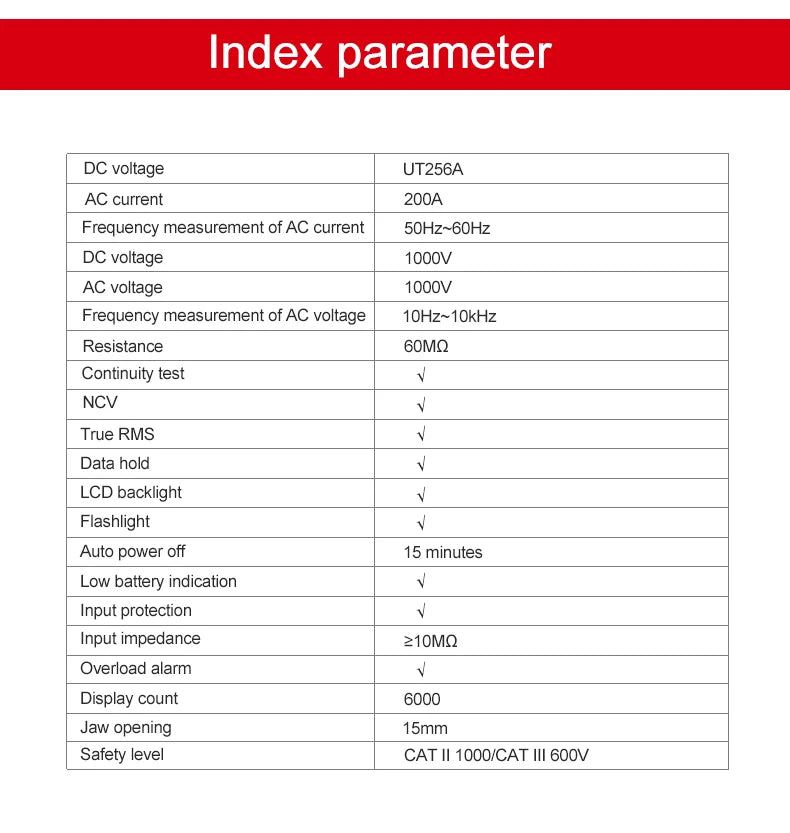

Specifications

• Product Type: Digital Fork Clamp Meter
• Measurement Type: True RMS
• AC Current Range: Up to 200A
• DC Current Range: Up to 200A
• AC Voltage Range: Up to 750V
• DC Voltage Range: Up to 1000V
• Resistance Range: Up to 60MΩ
• Capacitance Range: Up to 60mF
• Frequency Range: 10Hz–10kHz
• Display Count: 6000
• NCV Detection: Yes
• Auto Range: Yes
• Data Hold: Yes
• Continuity Buzzer: Yes
• Diode Test: Yes
• LCD Backlight: Yes
• Auto Power Off: Approx. 15 minutes
• Safety Rating: CAT II 1000V / CAT III 600V
• Battery: 2 x 1.5V LR6/AA batteries required
• Battery Included: No
• Dimensions: 217 x 58.8 x 38.5mm
• Weight: Approx. 248g

Package Contents

• 1 x Fork Clamp Meter
• 1 x Pair of Test Leads
• 1 x Carrying Bag
• 1 x User Manual

What Makes This a Smart Buy:

The fork-style design makes current measurements fast and convenient, while True RMS technology and multiple electrical testing functions provide greater versatility than a basic ammeter. Compact and easy to carry, it is a practical addition to an electrician's, technician's or DIY enthusiast's toolkit.
