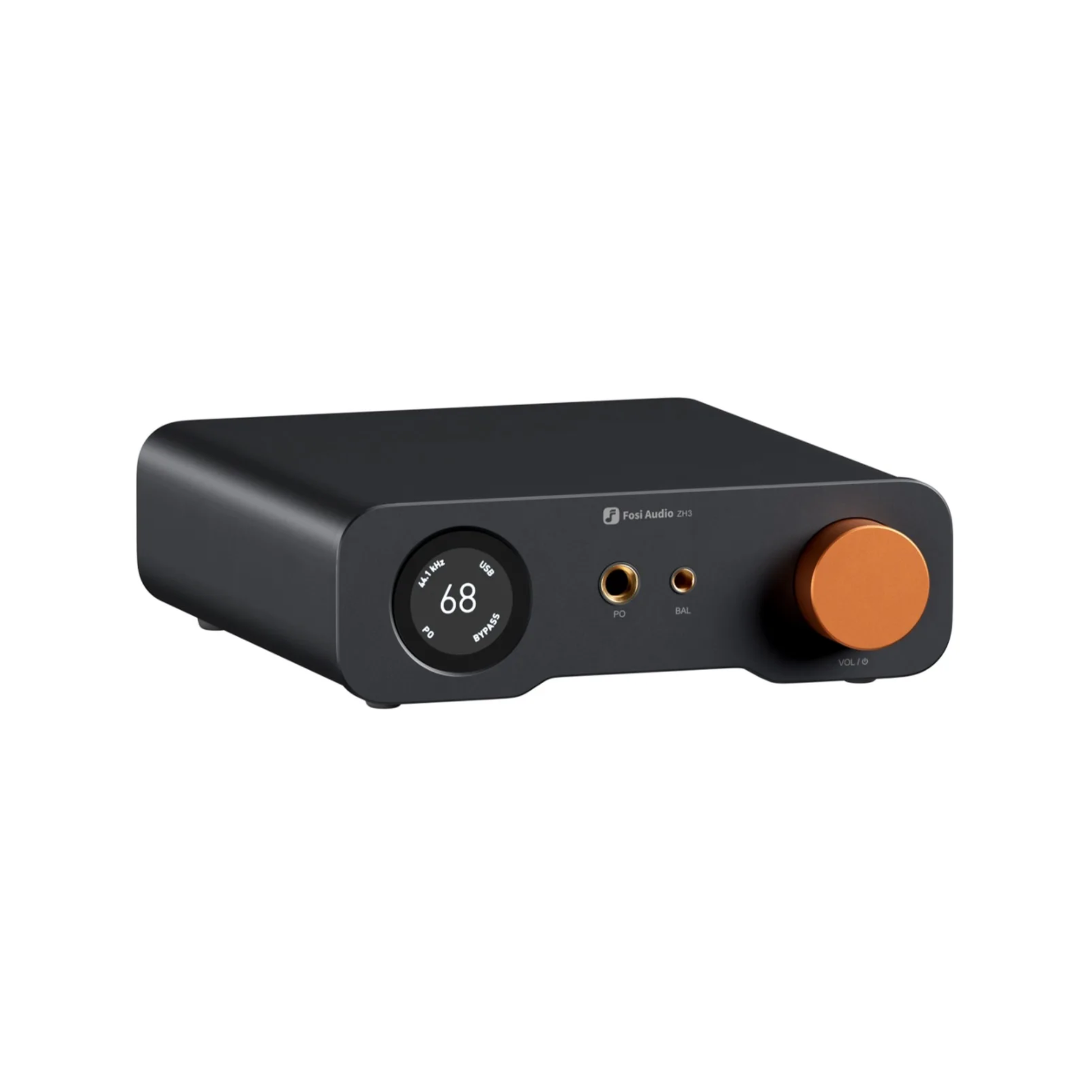

Fully Balanced Headphone Amplifier with Desktop DAC

Take your desktop audio setup to the next level with this fully balanced DAC and headphone amplifier. Designed for audiophiles, it delivers ultra-clear, distortion-free sound with versatile connectivity, making it perfect for headphones, active speakers, and HiFi systems.

Key Features

• All-in-one DAC, headphone amplifier, and preamp with fully balanced circuitry for low noise and distortion

• Premium AKM4493SEQ DAC and XMOS XU316 processor support PCM 768kHz/32bit and DSD512 playback

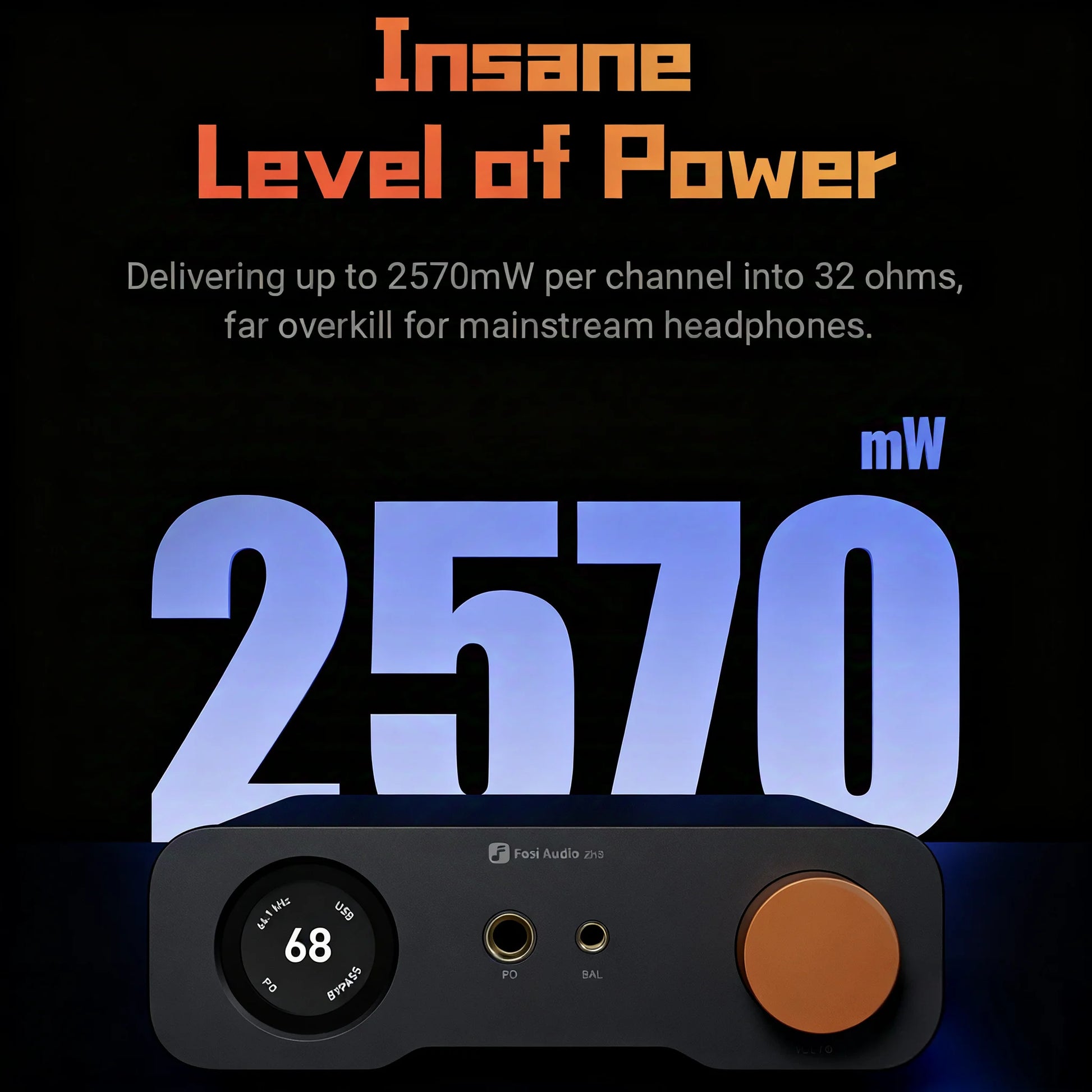

• High output power: 4.4mm balanced output 2570mW x 2; 6.35mm single-ended output 640mW x 2

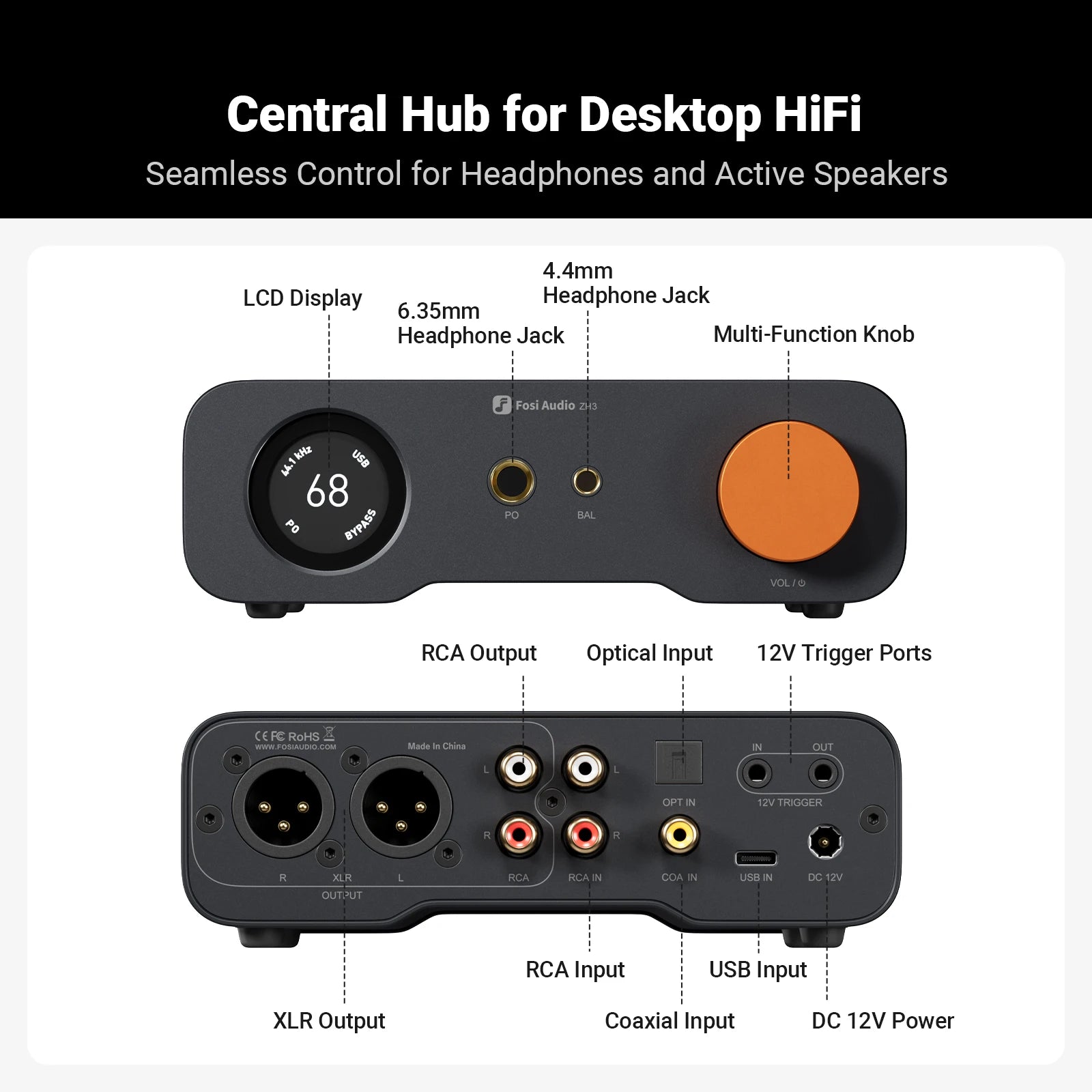

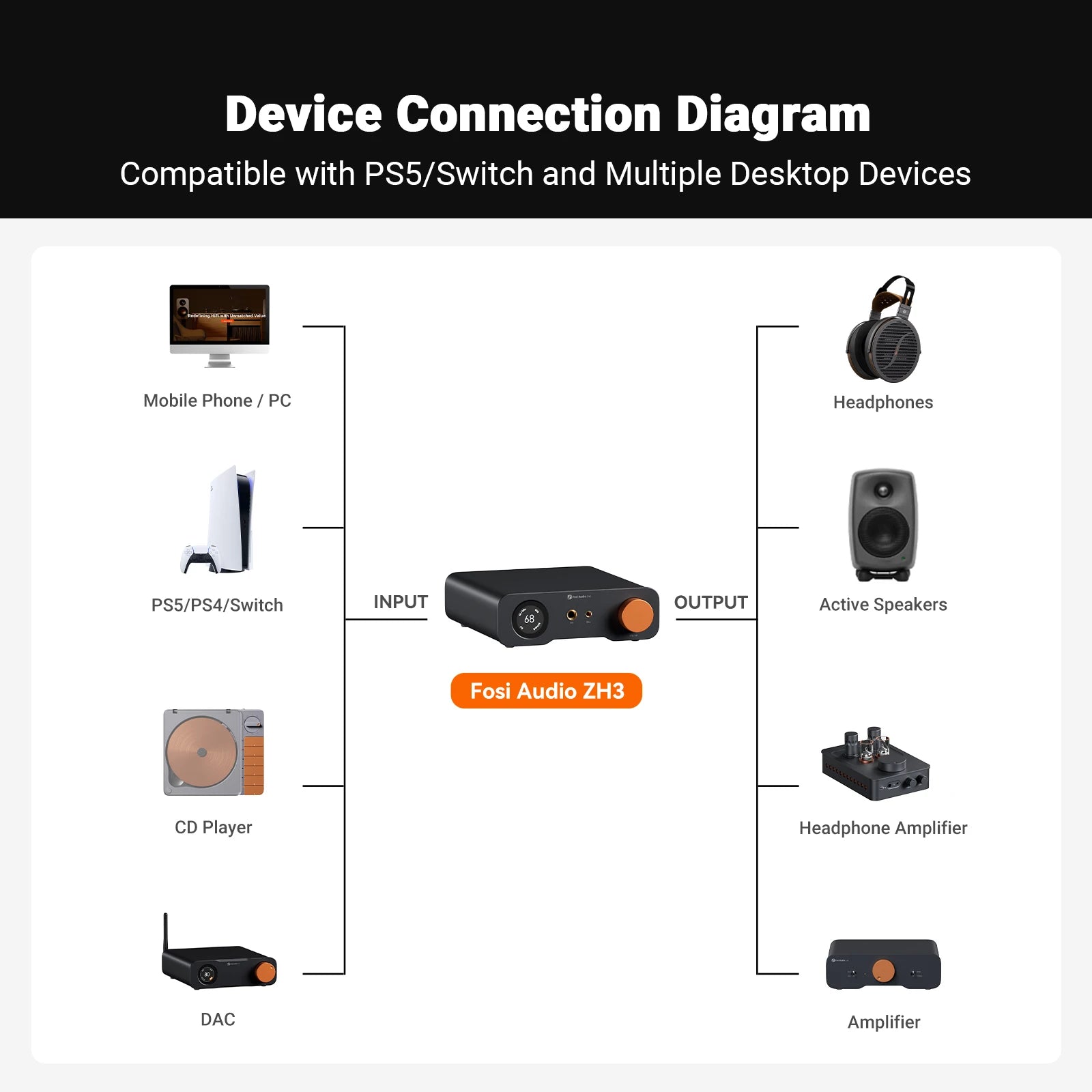

• Versatile inputs: USB, Optical, Coaxial, RCA; outputs: 4.4mm, 6.35mm, RCA, XLR

• Customizable sound with bass/treble EQ, six filter types, Bypass mode, and swappable op-amps

• 3-level gain switch supports headphones from 16Ω to 300Ω

• Low-noise LDOs and capacitors maintain an ultra-low noise floor for crystal-clear audio

Specifications

• Chipset: XMOS XU316 + AKM4493SEQ + OPA1612 x4

• 4.4mm Balanced Output: Max Power 2570mW x 2 (32Ω), SNR ≥ 119dB, THD+N ≤ 0.00018%, Noise ≤ 4.9μV

• 6.35mm Single-Ended Output: Max Power 640mW x 2 (32Ω), SNR ≥ 121dB, THD+N ≤ 0.00024%, Noise ≤ 1.9μV

• Input: USB/Optical/Coaxial/RCA

• Output: 4.4mm/6.35mm/RCA/XLR

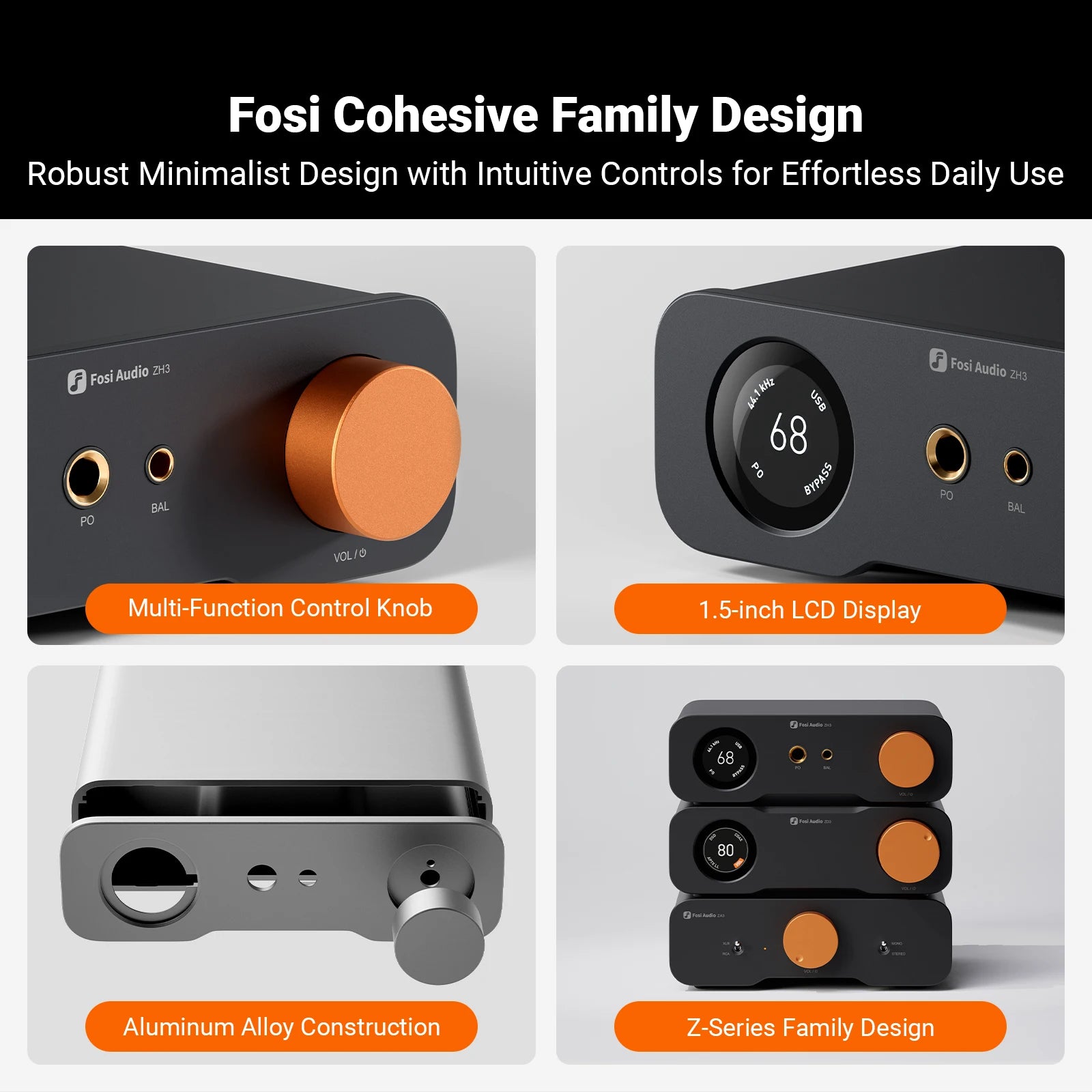

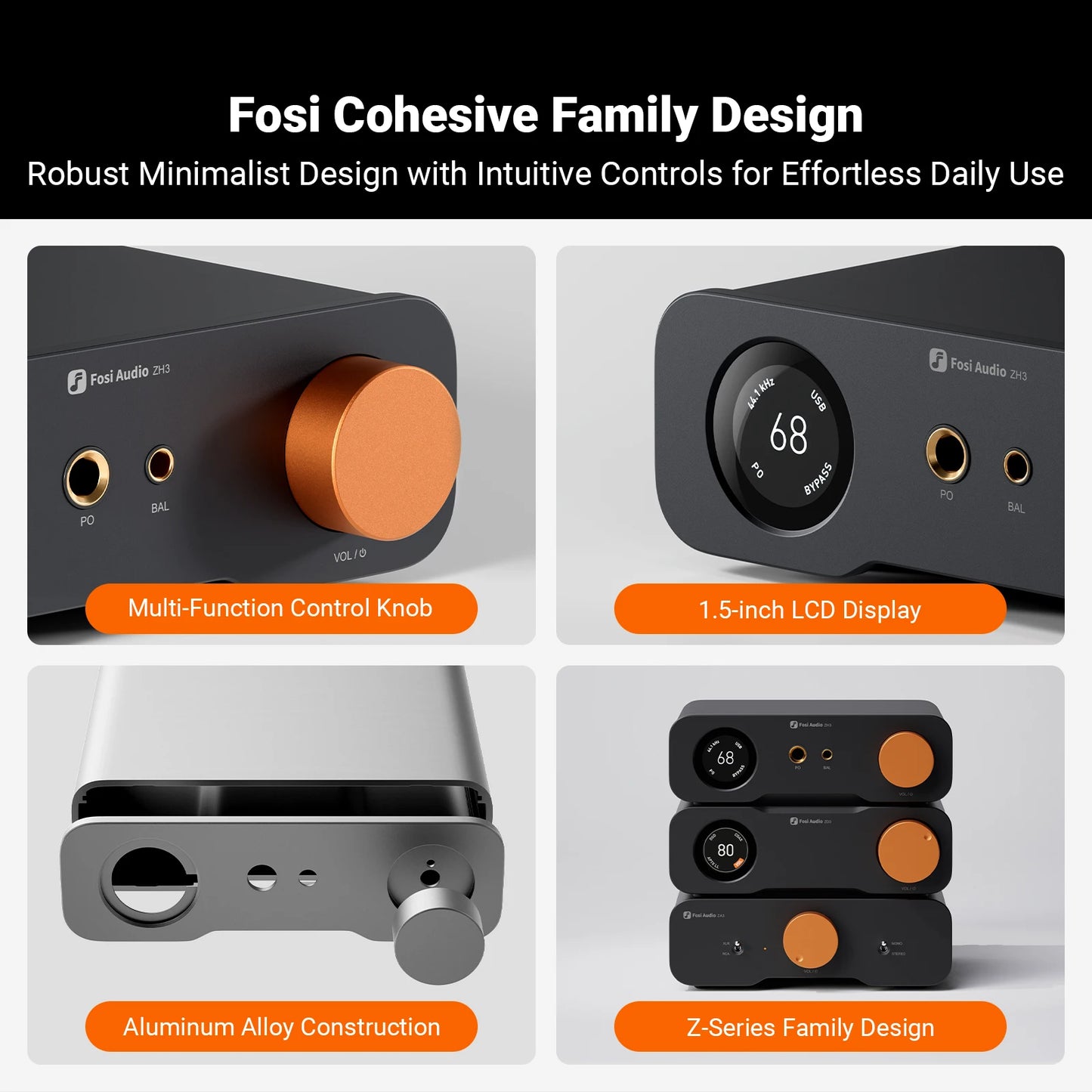

• Dimensions: Desktop-friendly design with clean Z-Series styling

Package Contents

• 1 × Fully Balanced Headphone Amplifier (ZH3)

• 1 × 6.35mm Adapter

• 1 × 12V Trigger Cable

• 1 × IR Remote

• 1 × User Manual

• 1 × USB-A/C to USB-C Cable

• 1 × DC 12V Power Adapter (AU Plug)

What Makes This a Smart Buy:
This desktop DAC and headphone amplifier delivers high-fidelity sound, powerful output, and versatile connectivity. Perfect for music lovers and gamers who demand professional-grade audio from a compact, all-in-one solution.
