Upgrade your CNC setup with this fully enclosed linear rail guide stage, designed for smooth, precise motion in automation and industrial projects. Its robust aluminium profile and enclosed design protect critical components while delivering accurate positioning for a variety of applications.
Key Features

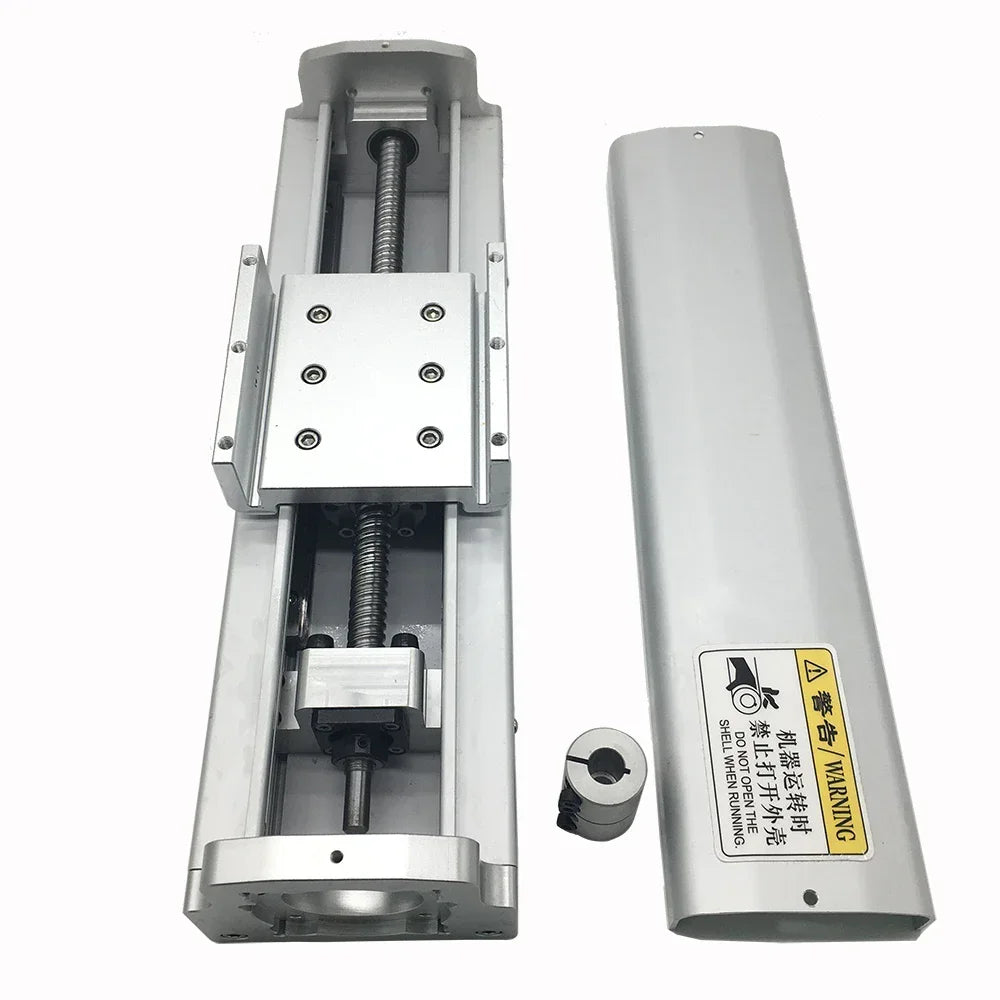

- Fully enclosed design protects rails and screws from dust and debris
- Precision linear motion for CNC machines, single-axis robots, and automation
- Supports horizontal loads up to 40kg and vertical loads up to 20kg
- Smooth, stable movement with repeat positioning accuracy of 0.03–0.05mm
- Compatible with Nema17/Nema23 stepper motors

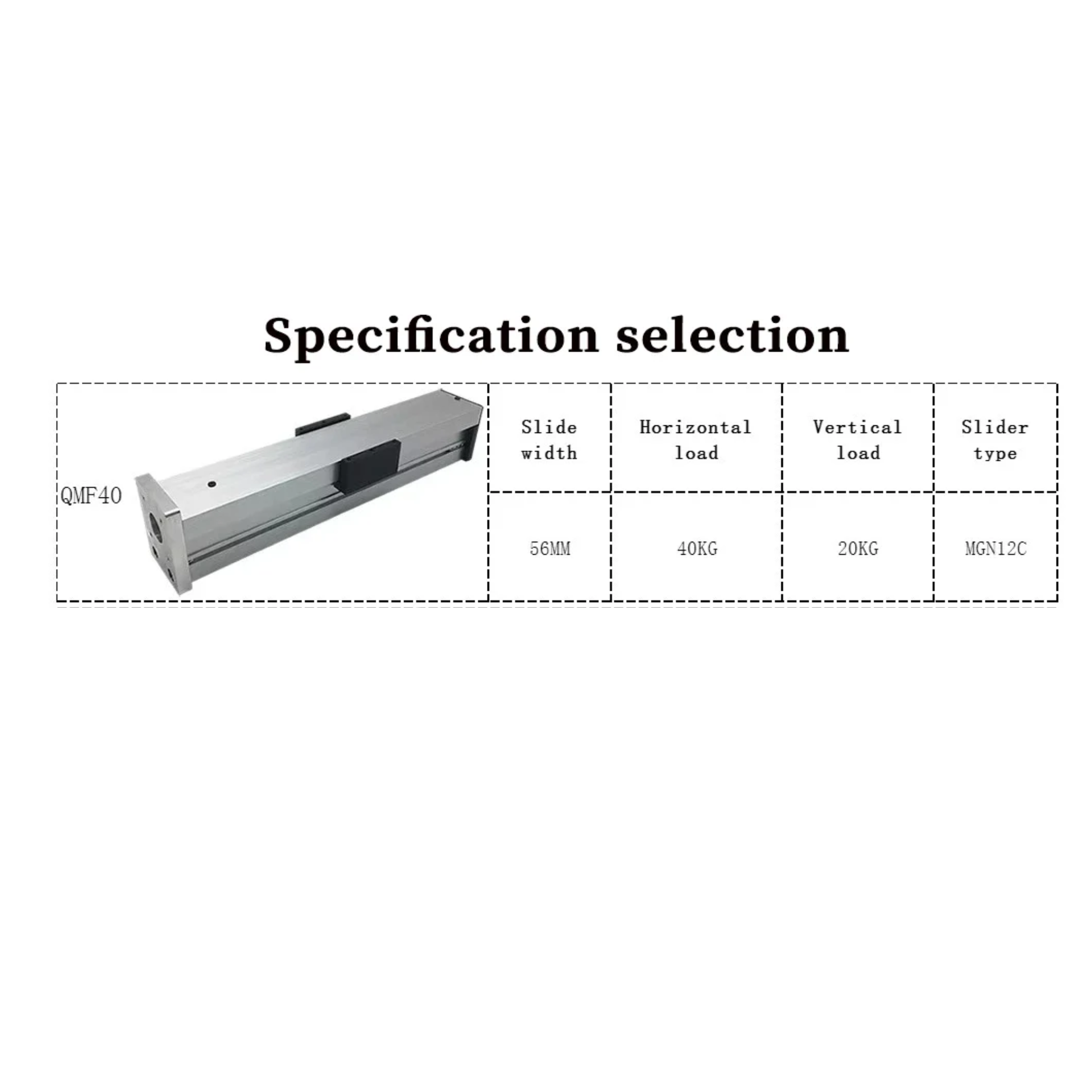

Specifications

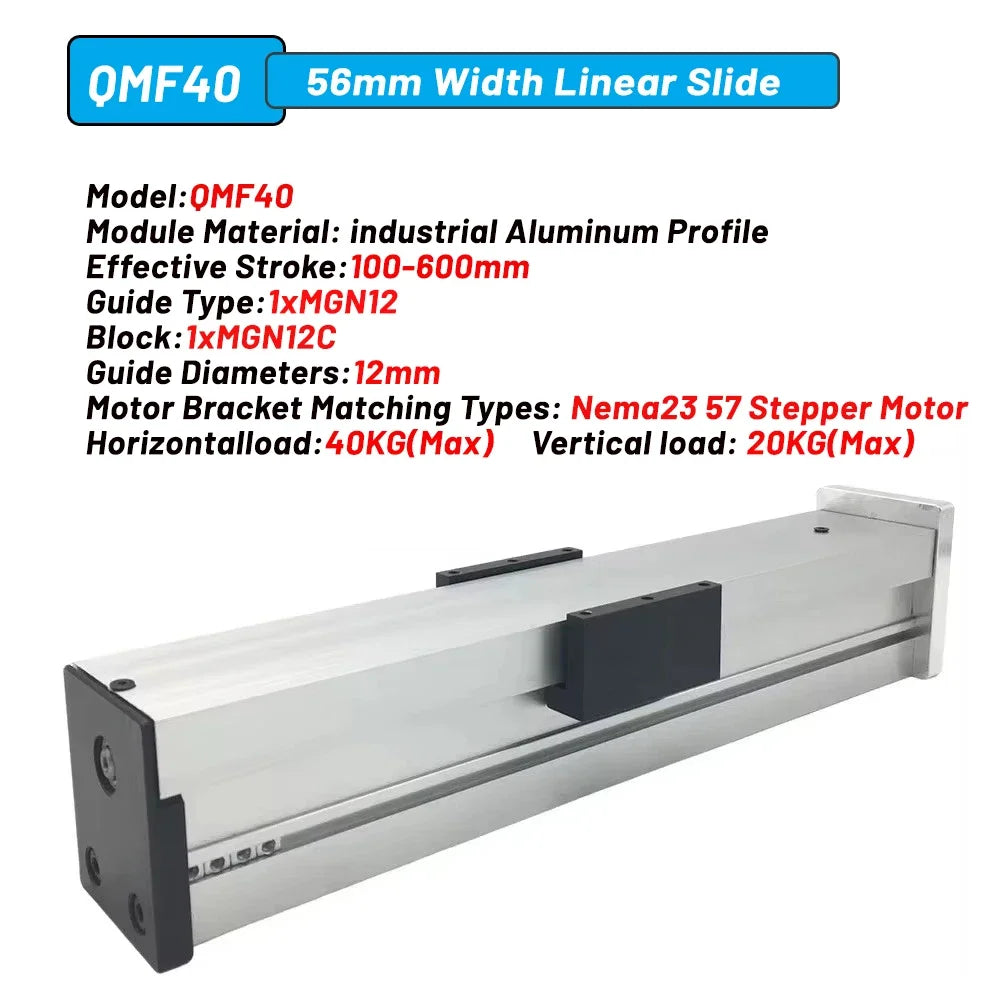

- Model: QMF40
- Effective Stroke: 200mm
- Module Width: 56mm
- Module Material: Industrial Aluminium Profile

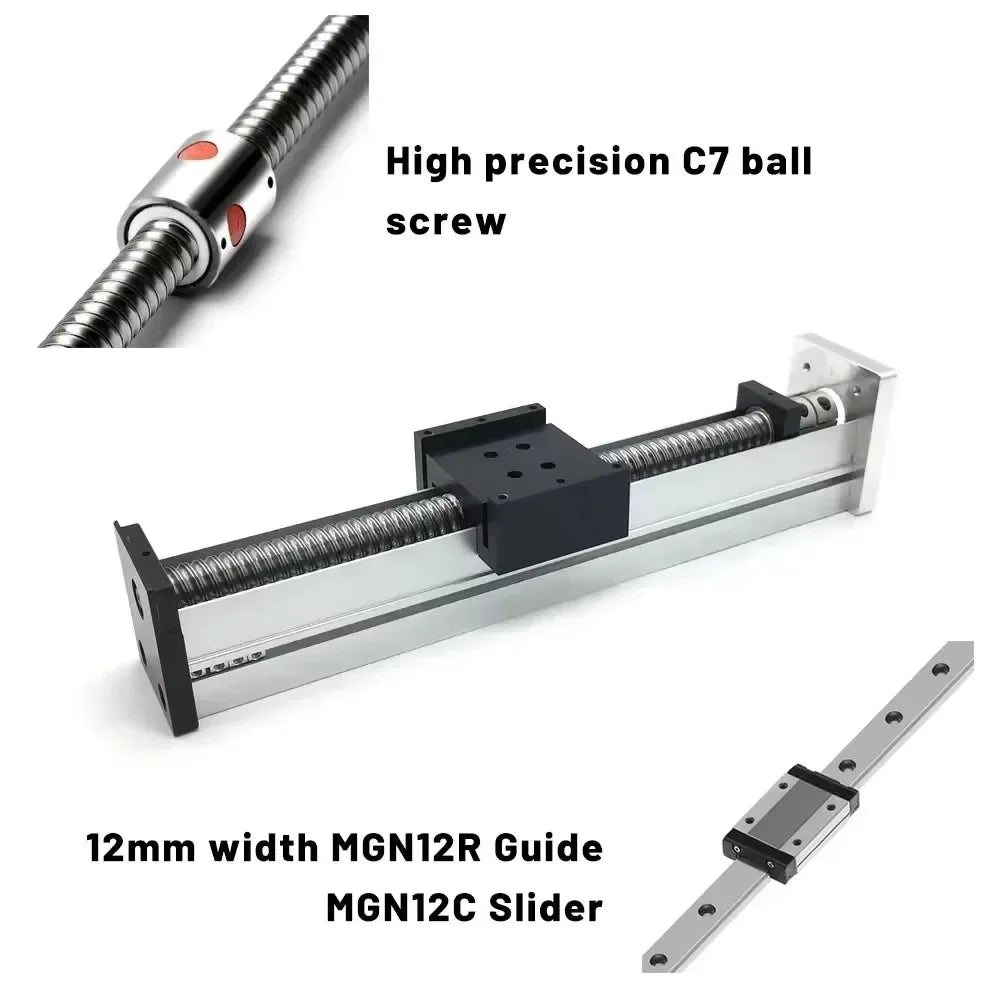

- Ballscrew Type: SFU1610
- Ballscrew Material: Bearing Steel
- Ballscrew Accuracy: C7
- Max Moving Speed: 200mm
- Guide Rail: 1 x MGN12R
- Slider: 1 x MGN12C
Package Contents
- 1 x Sliding Table
- 1 x Coupling
What Makes This a Smart Buy:
This fully enclosed stage offers durable protection and precise motion, making it ideal for CNC machining, automation, or single-axis robotics. Its compact yet heavy-duty design ensures reliable performance in demanding projects.
