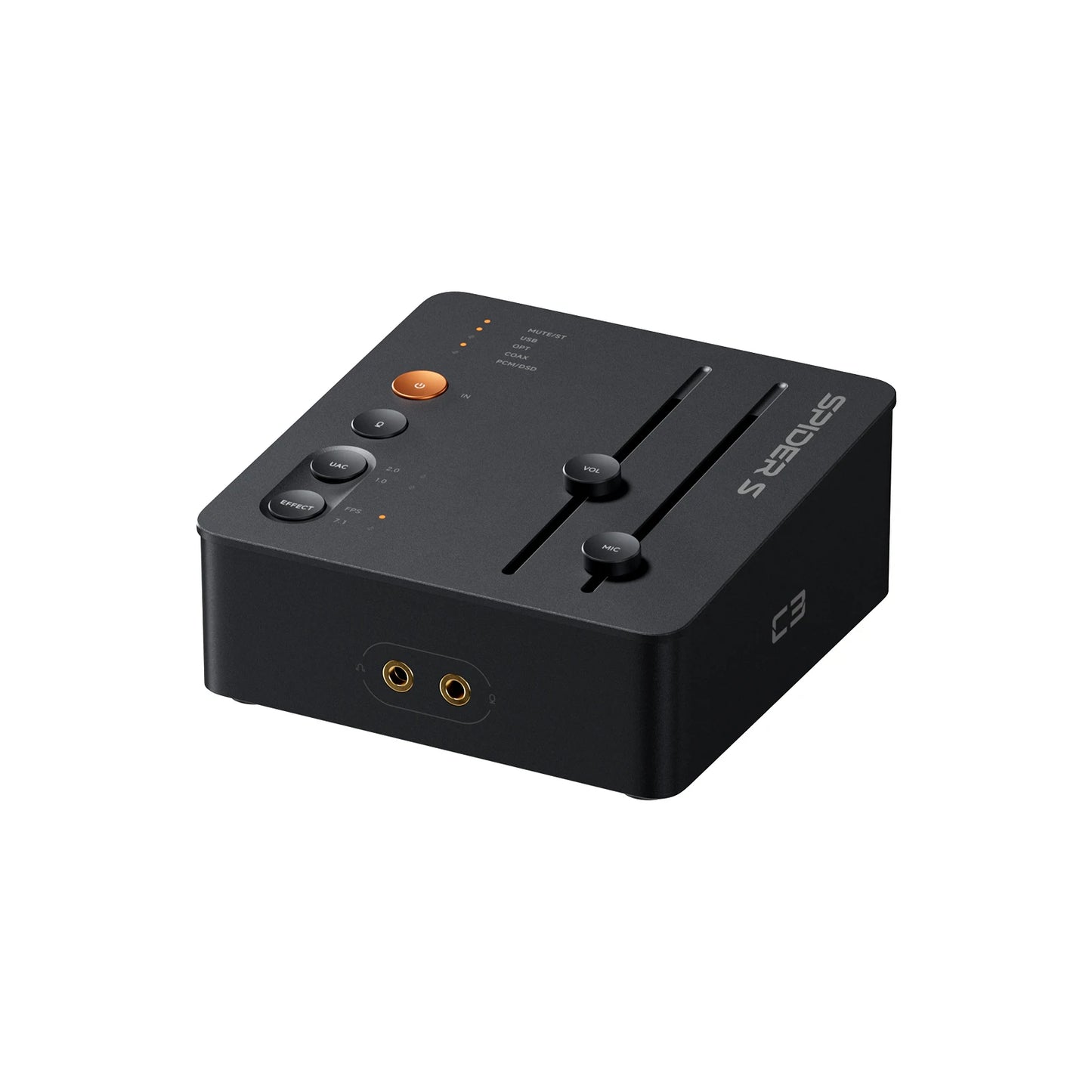

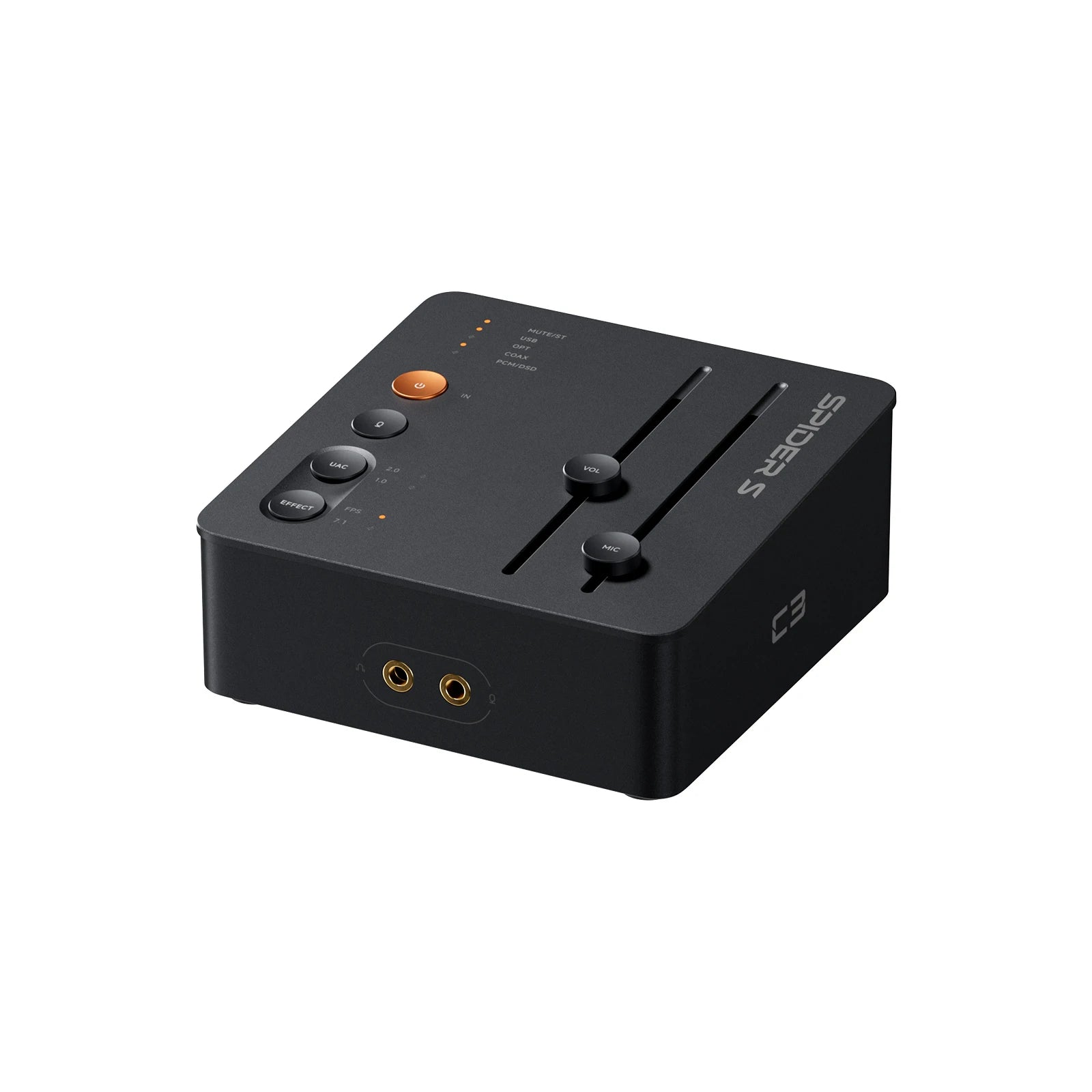

Gaming DAC Amp CS43131 Footstep Enhancement USB Sound Card

This compact gaming DAC amp is designed to give gamers clearer directional audio, enhanced footstep cues and powerful headphone output. With high-resolution DAC processing, spatial audio support and dedicated microphone controls, it helps create a more immersive and focused gaming setup.

Key Features

• Enhanced Footstep Detection – Footstep enhancement helps bring subtle movement cues forward, making it easier to identify enemy direction and distance during gameplay.
• Immersive Spatial Audio – Supports multichannel spatial processing to create a wider, more directional soundstage through compatible stereo headphones.
• Hi-Fi DAC Performance – The CS43131 DAC supports high-resolution PCM audio up to 32-bit/384kHz for detailed and clean sound reproduction.
• Powerful Headphone Amplification – Delivers up to 320mW + 320mW at 32Ω, with support for headphones ranging from 16Ω to 300Ω.

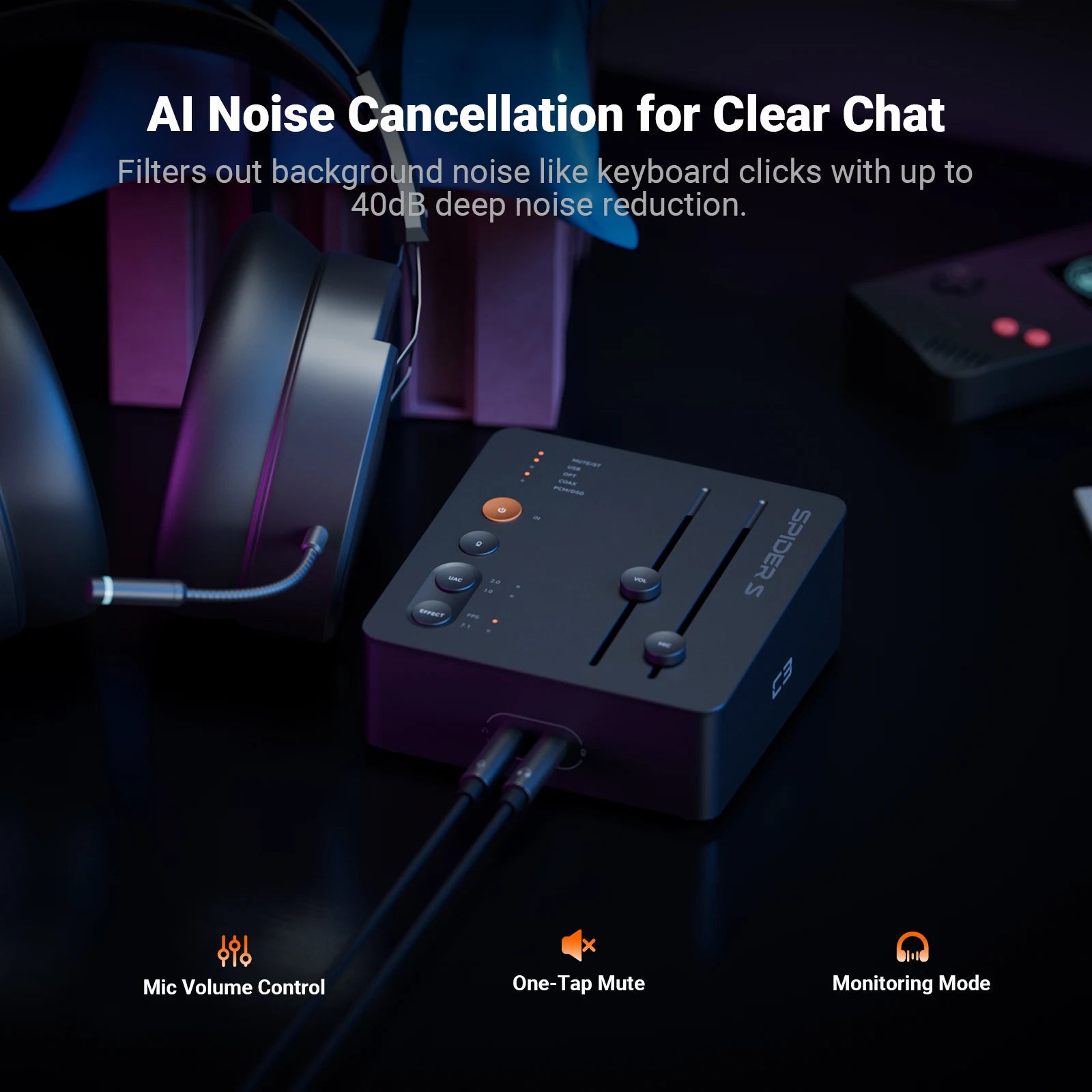

• AI Microphone Noise Reduction – Helps reduce keyboard noise and other background sounds for clearer voice communication while gaming.
• Real-Time Sidetone Monitoring – Monitor your own microphone audio while communicating with teammates for easier voice control.

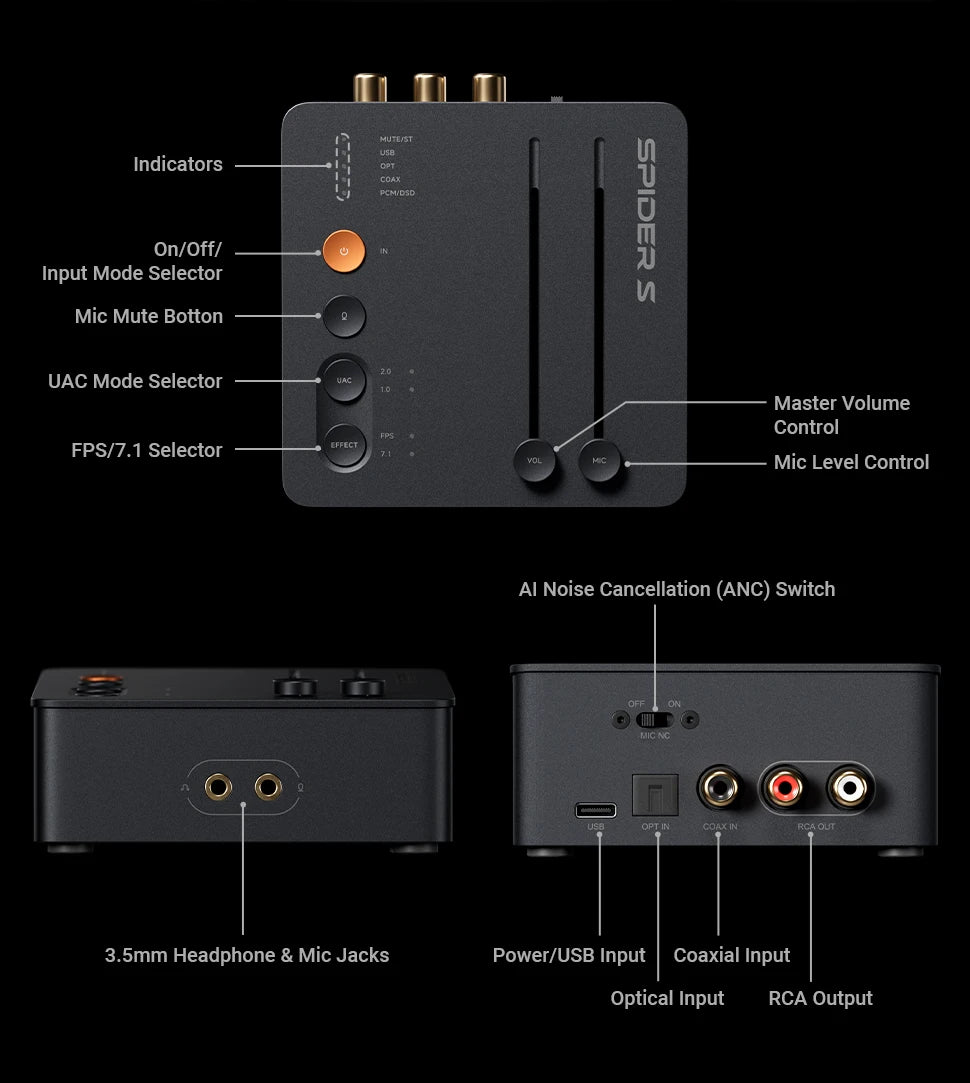

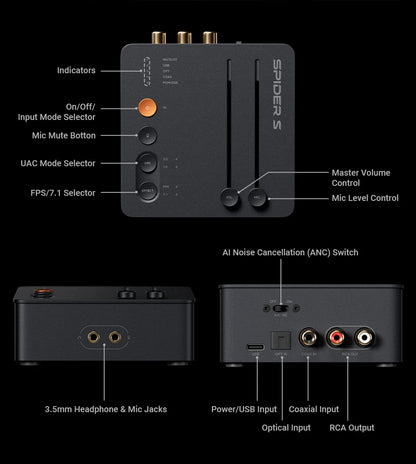

• Multiple Audio Inputs – Connect compatible devices through USB-C, optical, coaxial or line-in connections for flexible desktop use.
• Headphone & RCA Outputs – Includes a 3.5mm headphone output and RCA line output for connecting headphones, speakers or other audio equipment.
• Easy Desktop Controls – Tactile controls provide convenient adjustment of audio and microphone settings without interrupting gameplay.
• Compact Aluminium Construction – CNC-machined aluminium housing provides a durable, premium feel while taking up minimal desk space.
• USB-C Powered – Uses a 5V USB-C connection for convenient desktop operation without a built-in battery.
• PC & Console Gaming – Suitable for compatible PC and PlayStation gaming setups. Not compatible with Xbox.

Specifications

• Type: Mini Gaming DAC Amplifier / USB Sound Card

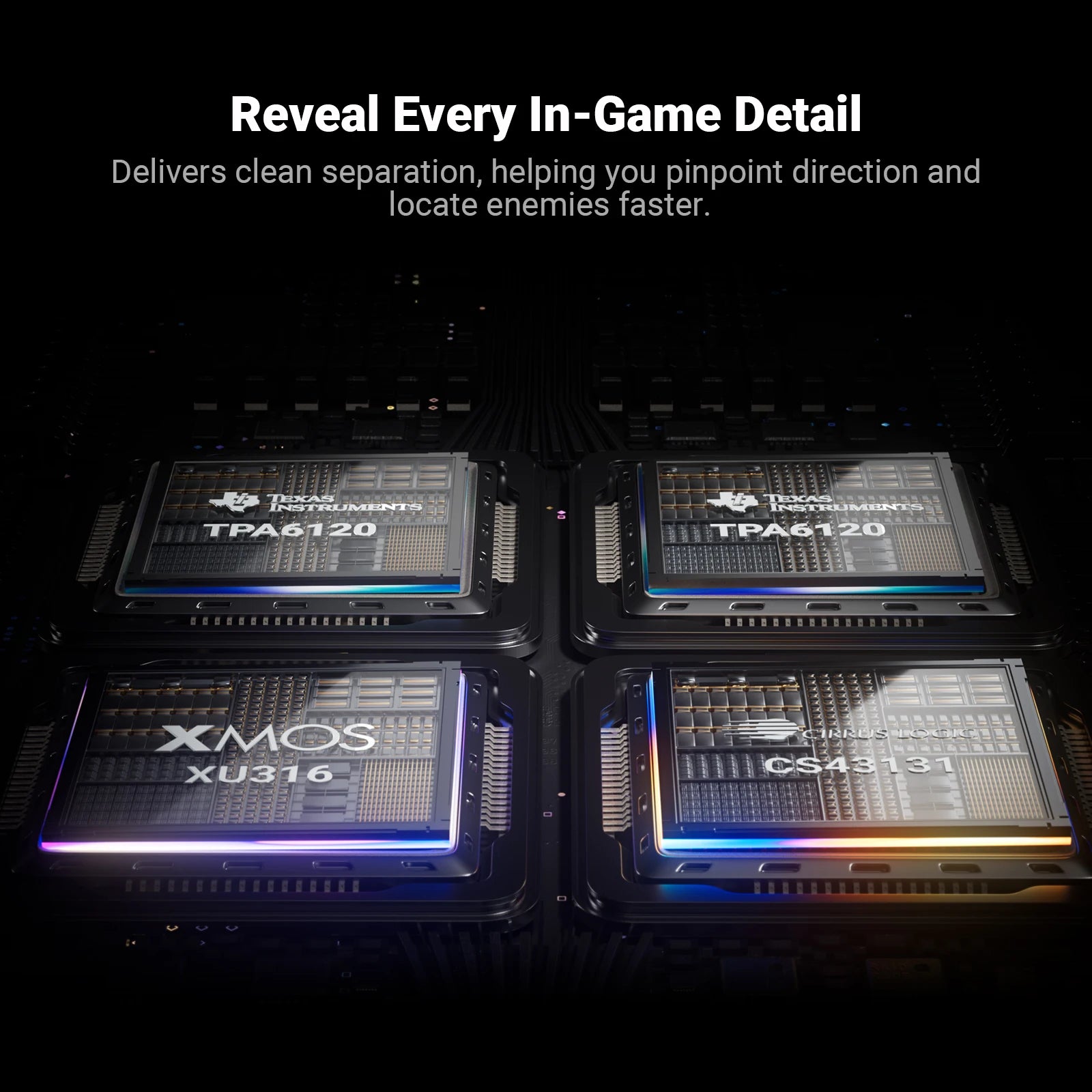

• DAC Chip: CS43131
• Additional Processing: XMOS XU316
• Amplifier Chips: TPA6120 × 2
• Channels: 2.0
• USB Audio: PCM up to 32-bit/384kHz, DSD256
• UAC 1.0: PCM 16-bit/48kHz
• Optical Input: PCM up to 24-bit/192kHz
• Coaxial Input: PCM up to 24-bit/192kHz
• Inputs: USB-C, Optical, Coaxial, 3.5mm Microphone, Line In
• Outputs: 3.5mm Headphone, RCA Line Out
• Headphone Impedance: 16–300Ω
• Headphone Output Power: ≥320mW + 320mW at 32Ω
• RCA Output Level: ≥2Vrms
• Signal-to-Noise Ratio: 123dB headphone / 124dB RCA
• THD+N: 0.0004% headphone / 0.0005% RCA
• Dynamic Range: 123dB headphone / 124dB RCA
• Noise Floor: ≤3μV
• Frequency Response: 20Hz–20kHz ±0.06dB
• Power Input: DC 5V
• Material: Aluminium
• Dimensions: 93.77 × 94 × 43.8mm
• Bluetooth: No
• Wi-Fi: No
• Built-In Battery: No
• Xbox Compatibility: No

Package Contents

• 1 x Gaming DAC Amplifier

What Makes This a Smart Buy:

Upgrade your gaming audio without taking up much desk space. Enhanced footstep cues, powerful headphone amplification and dedicated microphone processing make this a versatile choice for gamers who want clearer directional audio and better team communication.
