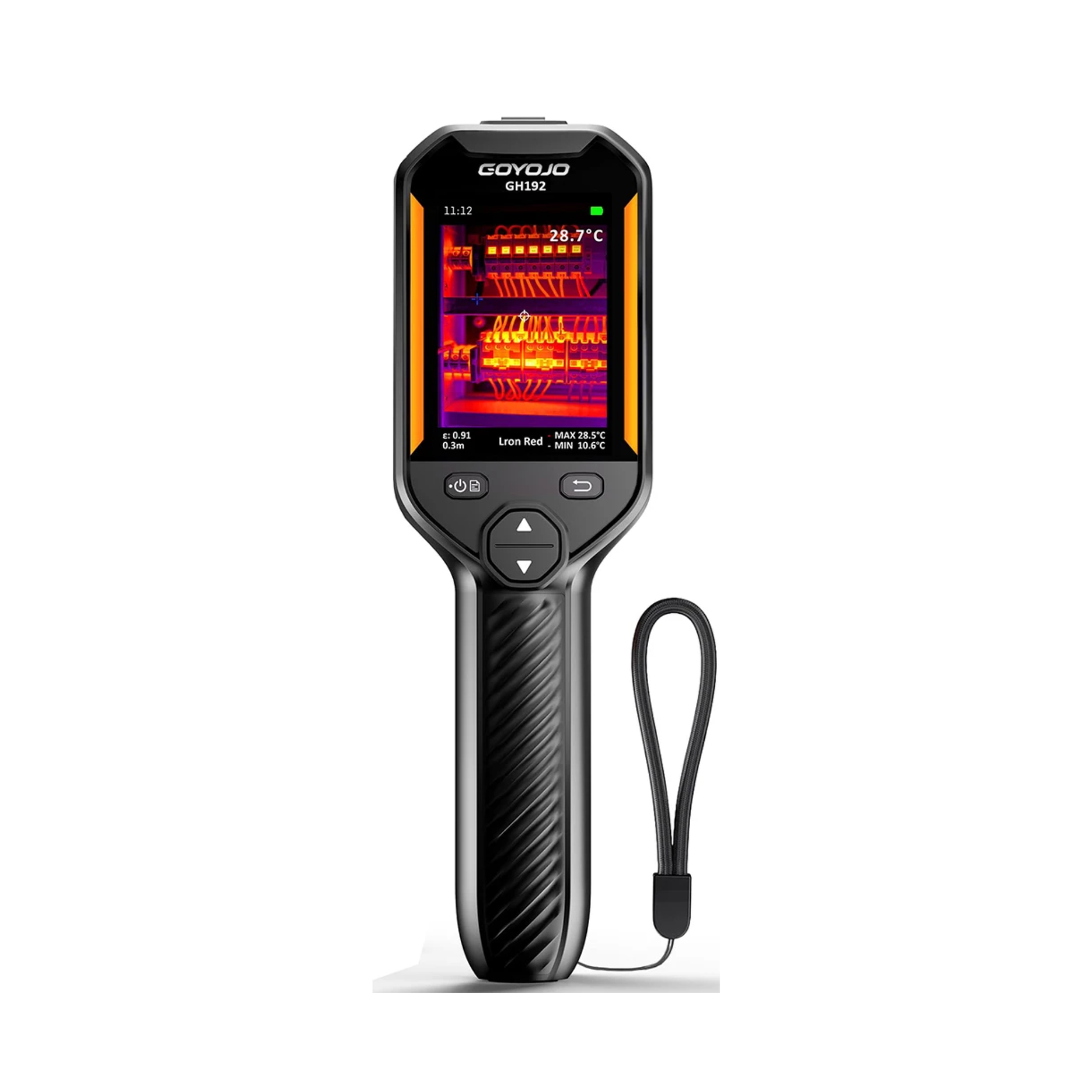

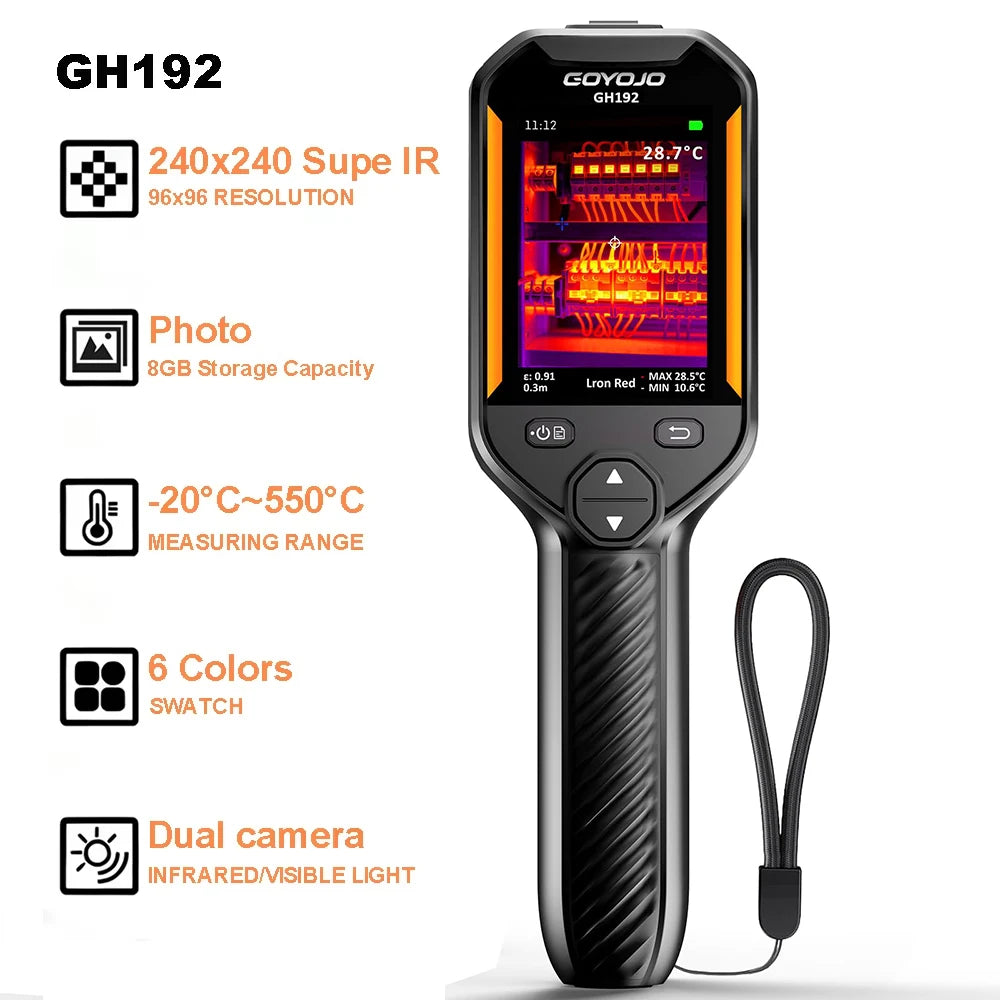

GH192 High-Resolution Thermal Imaging Inspection Camera

Perform professional inspections with the GH192 thermal camera. Featuring a high-resolution 96x96 detector enhanced to 240x240 super infrared, it combines accurate thermal measurements with visual imaging for clear analysis in electrical, HVAC, and building applications.

Key Features

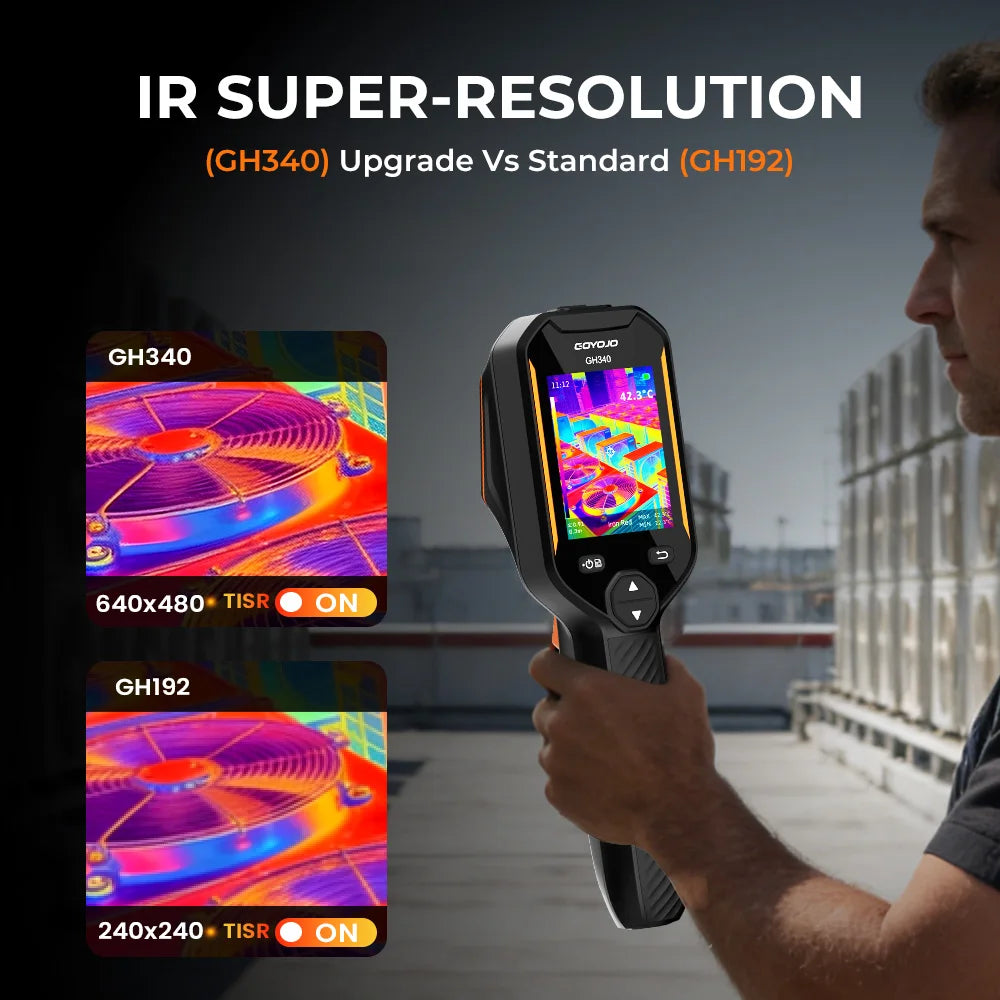

• High-resolution thermal imaging: 96x96 detector, 240x240 super infrared

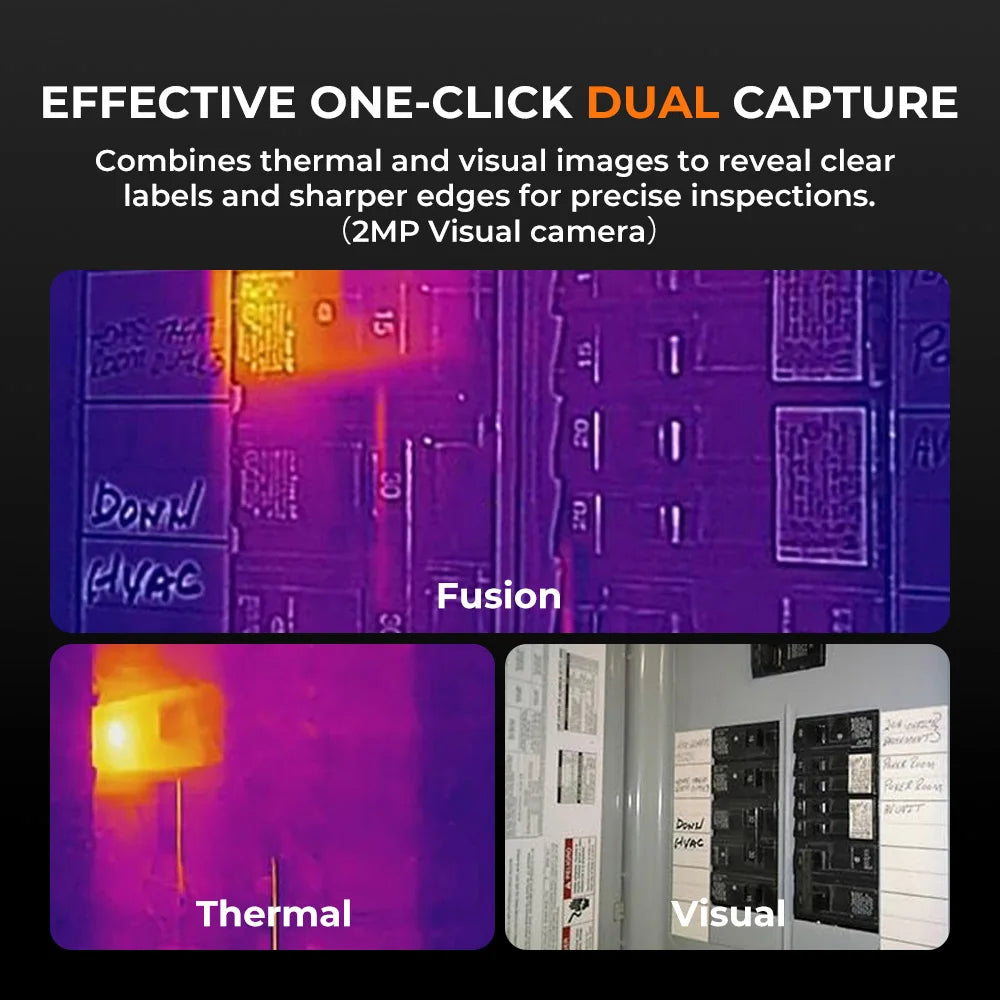

• Dual-camera system with thermal and visible light imaging

• Fusion, Thermal, and Visual modes for flexible analysis

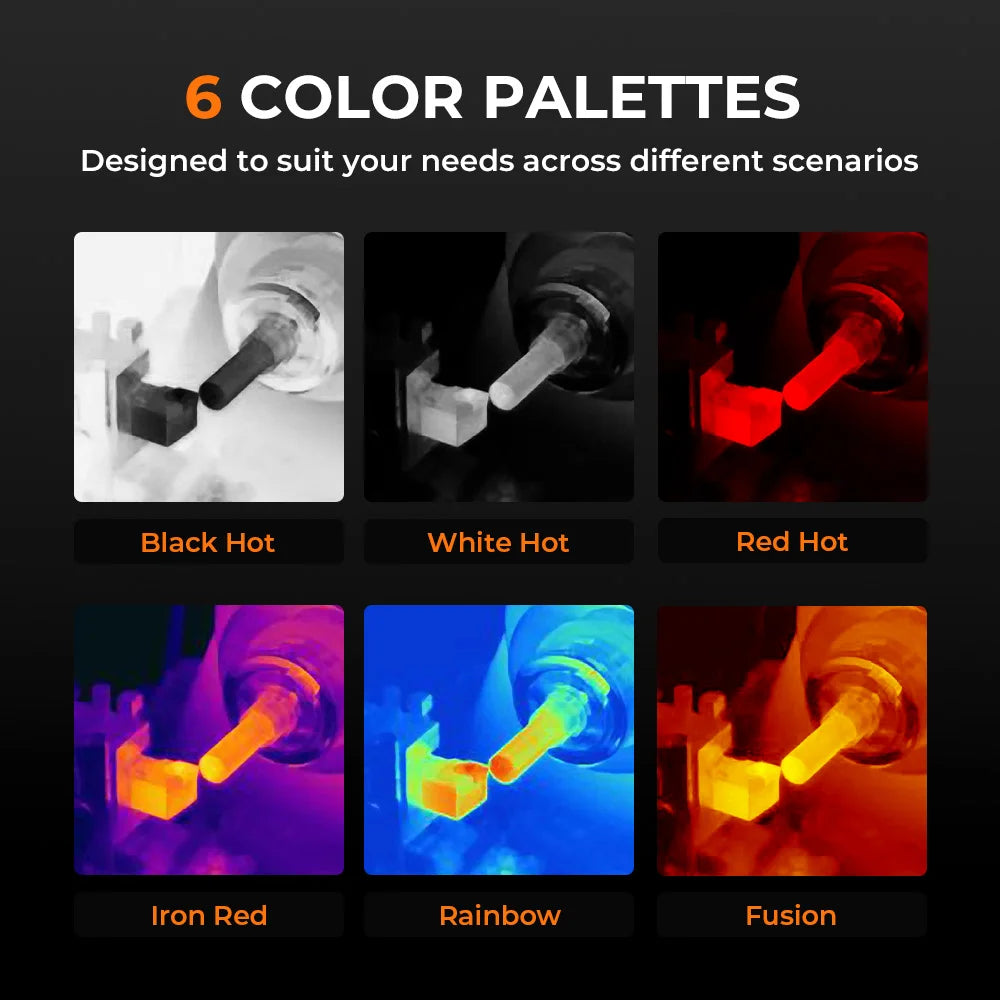

• Six selectable color palettes for easy differentiation

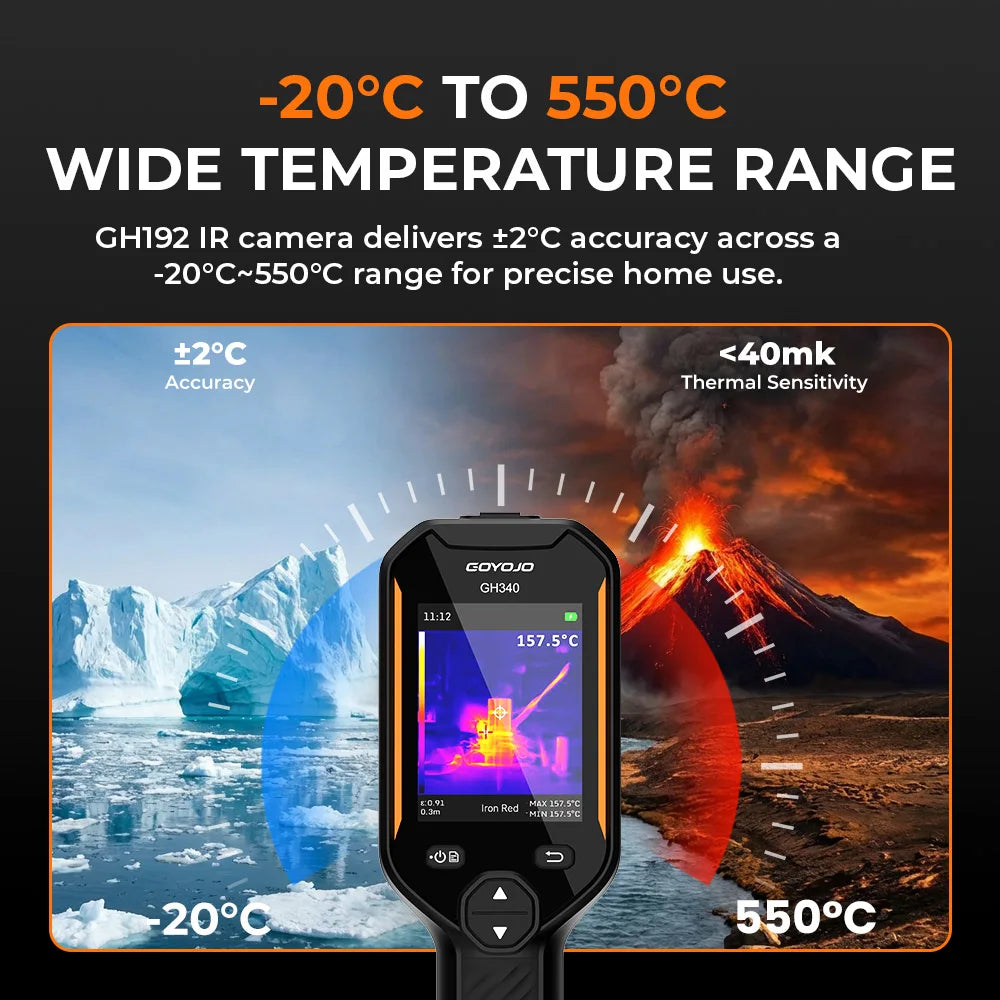

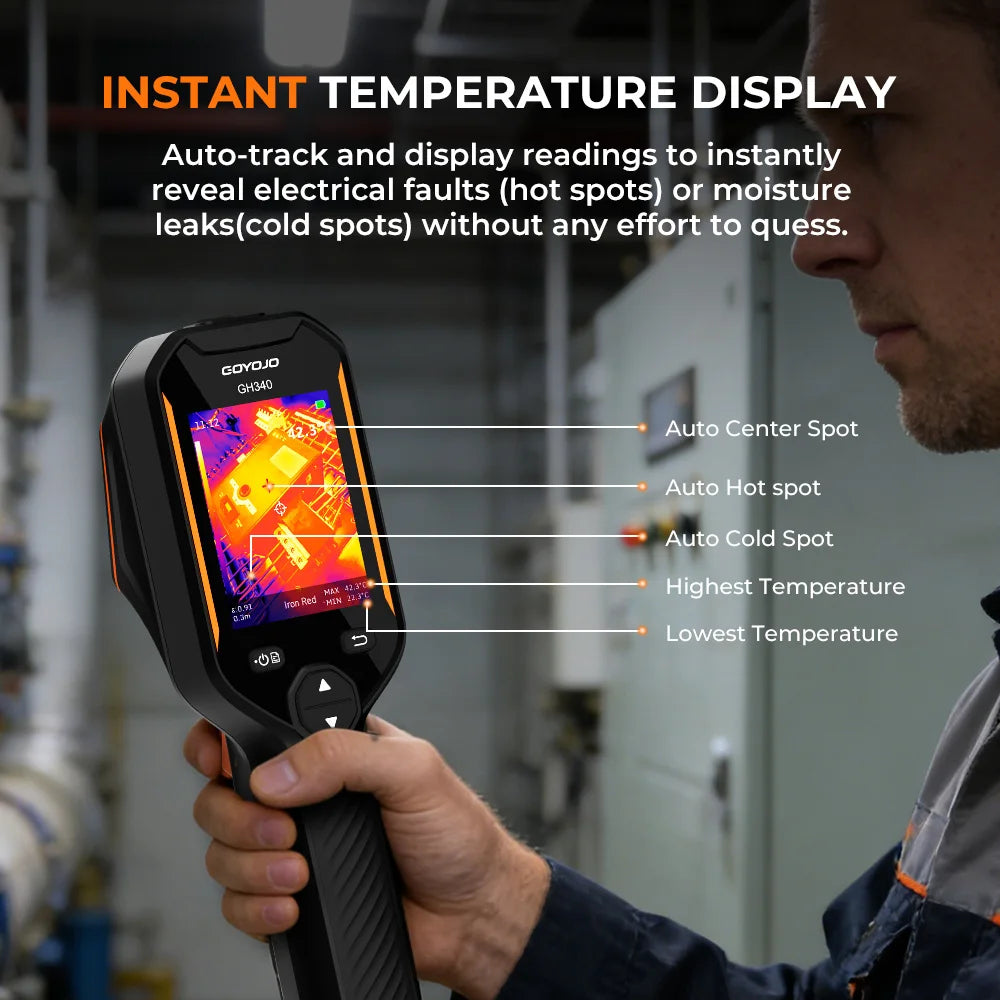

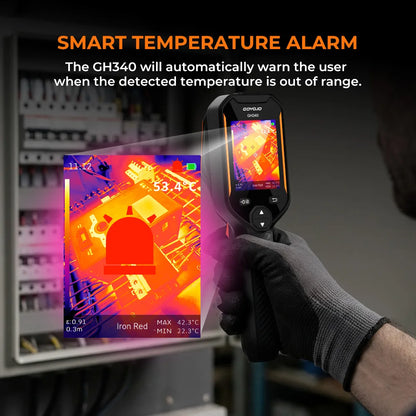

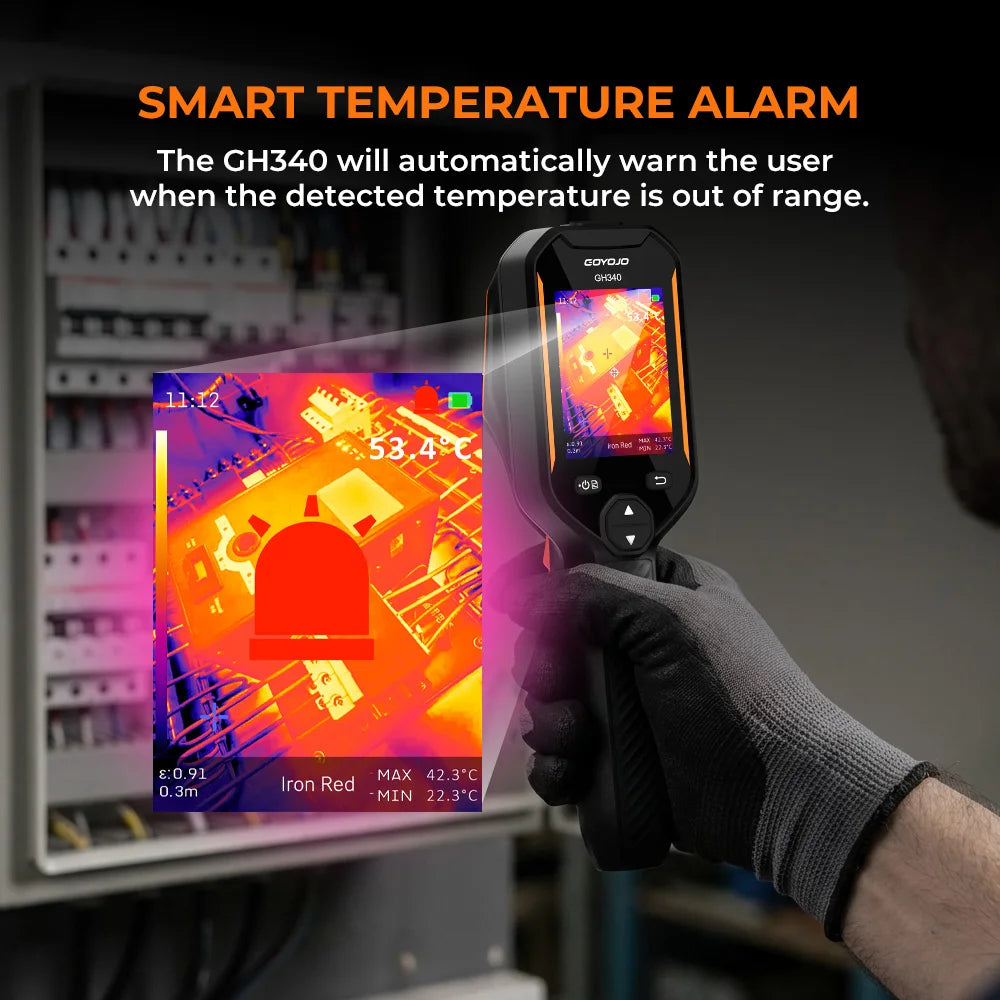

• Temperature range: -20°C to 550°C with automatic hot/cold spot alarms

• Advanced VOx detector ensures ±2% measurement accuracy

• IP54 rated for outdoor and harsh environments

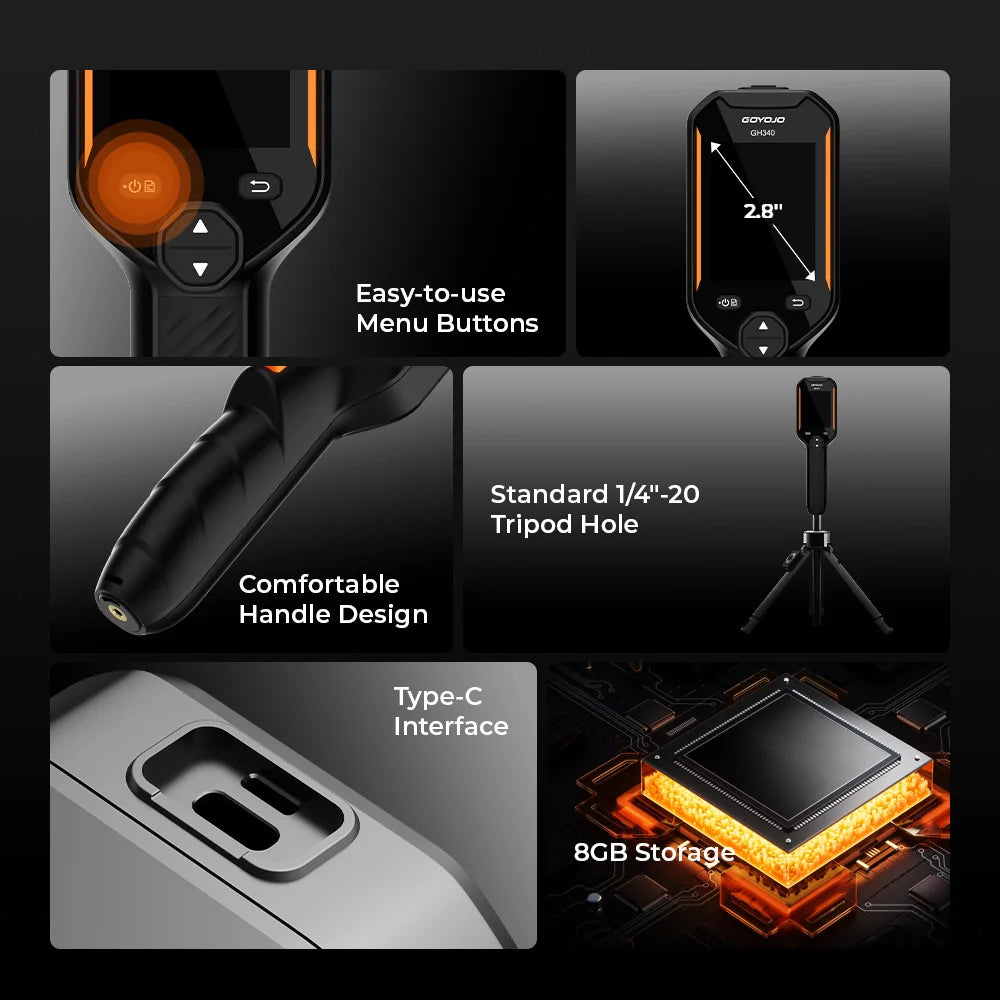

• 2.8-inch LCD display with 25Hz refresh rate

• Manual photo capture and temperature data recording

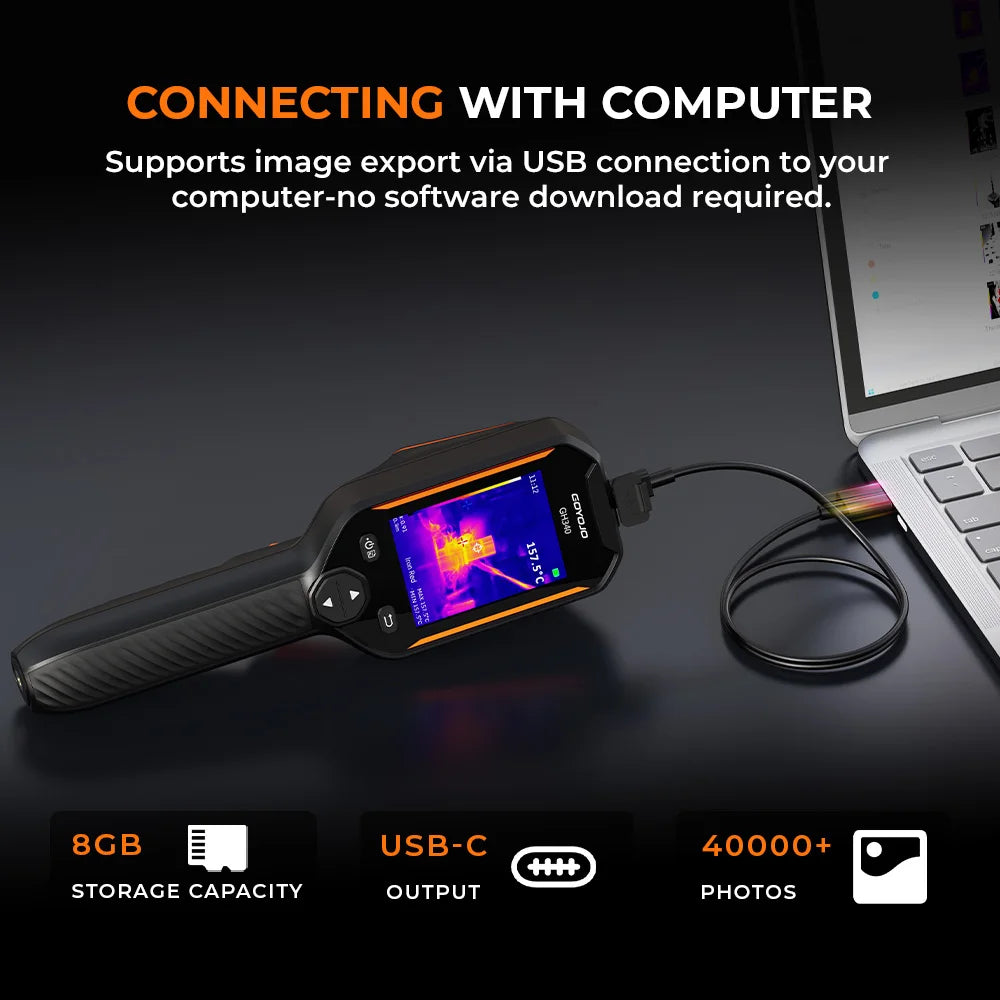

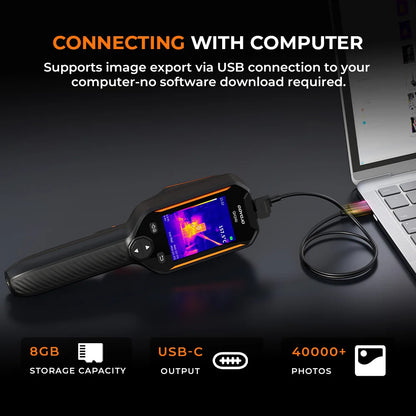

• Supports 8GB internal storage and USB Type-C connection

Specifications

• Detector Resolution: 96x96, super infrared: 240x240

• Visible Camera: 2MP, fixed focus

• NETD: ≤50 mK@25°C, F/1.0

• Field of View: 56.8° × 56.8°

• IFOV: 8.89 mrad

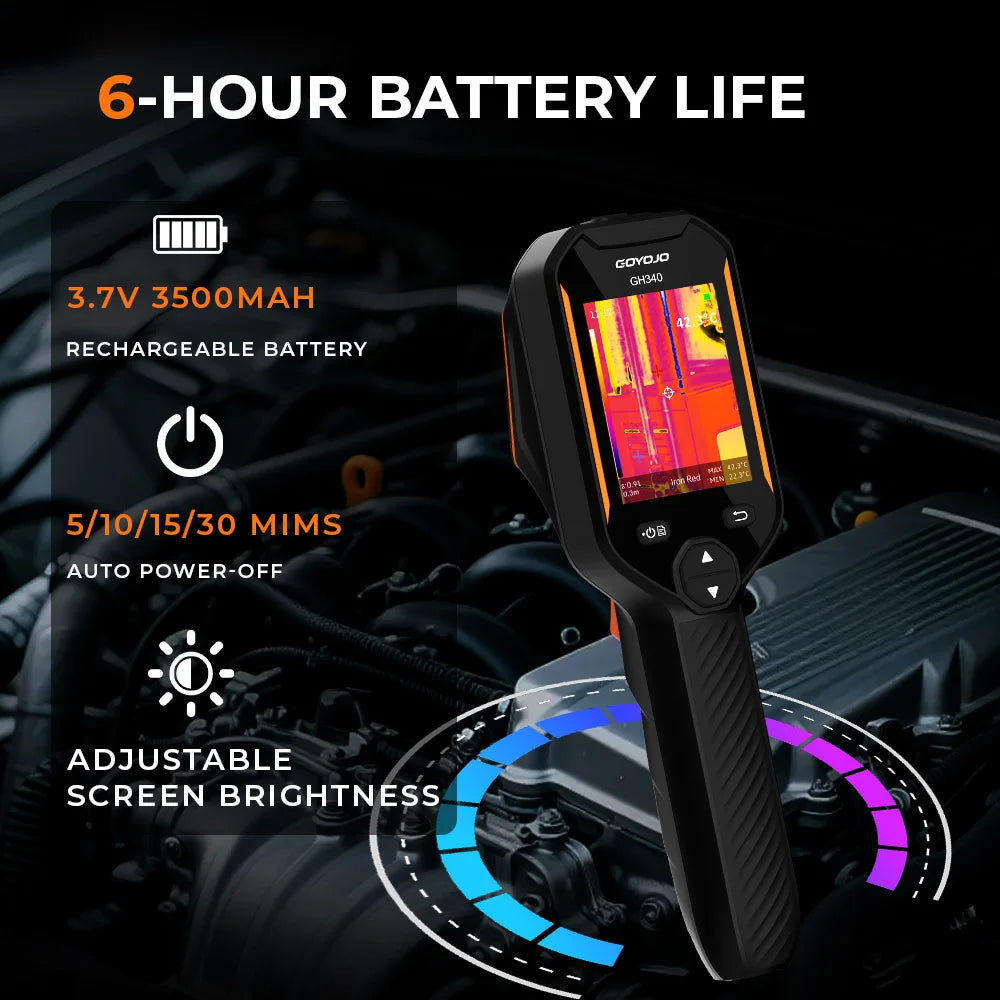

• Battery: 3.7V, 3500mAh 18650 Lithium, ≥8 hours runtime

• Dimensions: 223 × 65.6 × 67 mm

• Emissivity: Default 0.95, adjustable

• Color Palettes: White hot, Black hot, Iron Red, Rainbow, Red hot, Fusion

• Protection Level: IP54

• Operating Temperature: -10°C–50°C

Package Contents

• 1 × GH192 Thermal Imaging Camera

• 1 × USB Type-C Charging Cable

• 1 × User Manual

• 1 × Protective Case

What Makes This a Smart Buy:
Combining high-resolution thermal imaging with accurate temperature measurement and visual support, the GH192 is a versatile tool for professionals. Its dual-camera system and color palettes make spotting anomalies faster and more efficient in any inspection environment.
