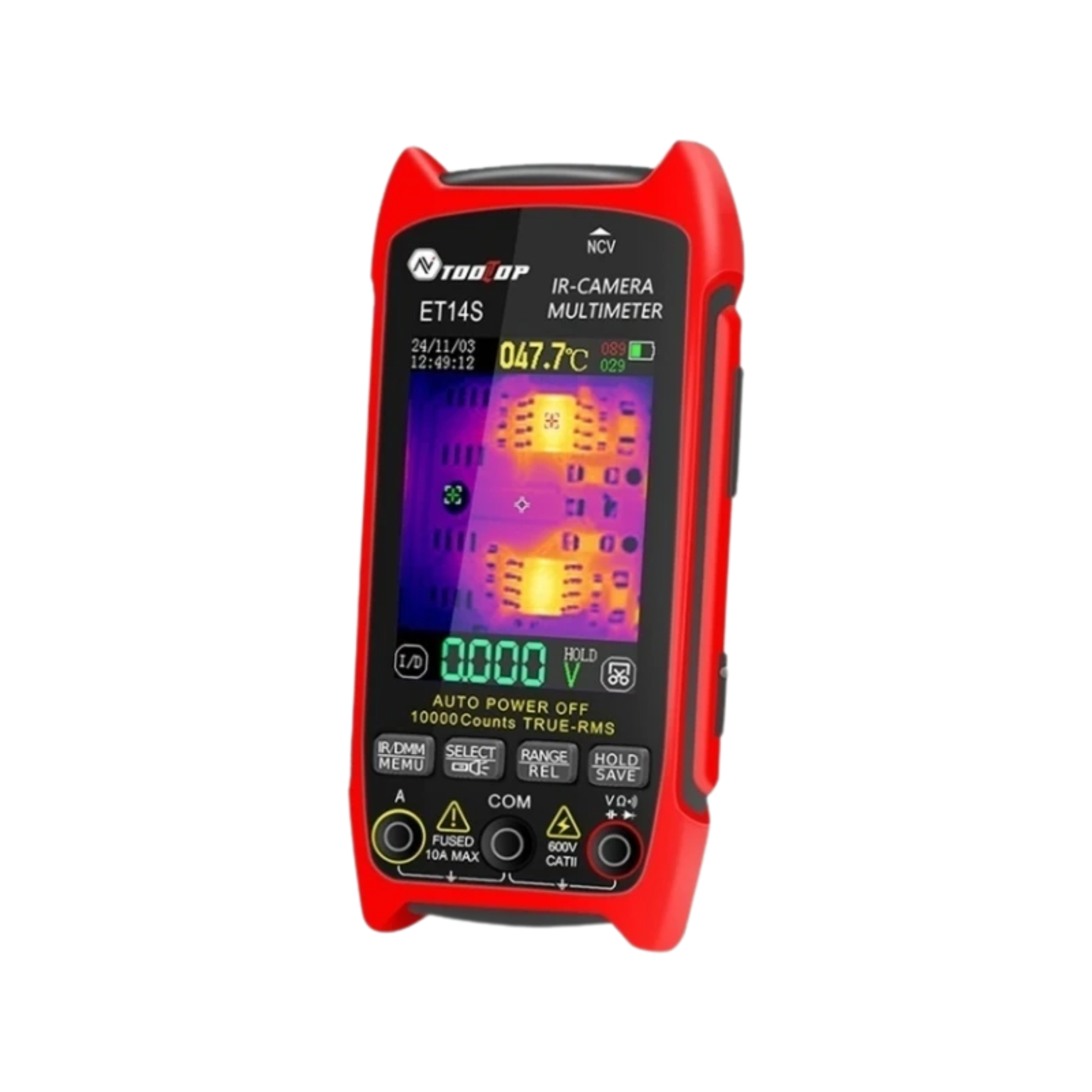

Handheld ET14S Thermal Imager and Ammeter

Simplify your electrical and thermal inspections with the Handheld ET14S Thermal Imager and Ammeter. This portable device combines a high-resolution thermal camera with a precision multimeter to help you identify issues faster, whether on-site or in the lab.

Key Features

• ISR 240x240 Thermal Camera: Capture clear, detailed thermal images with a 25Hz refresh rate.

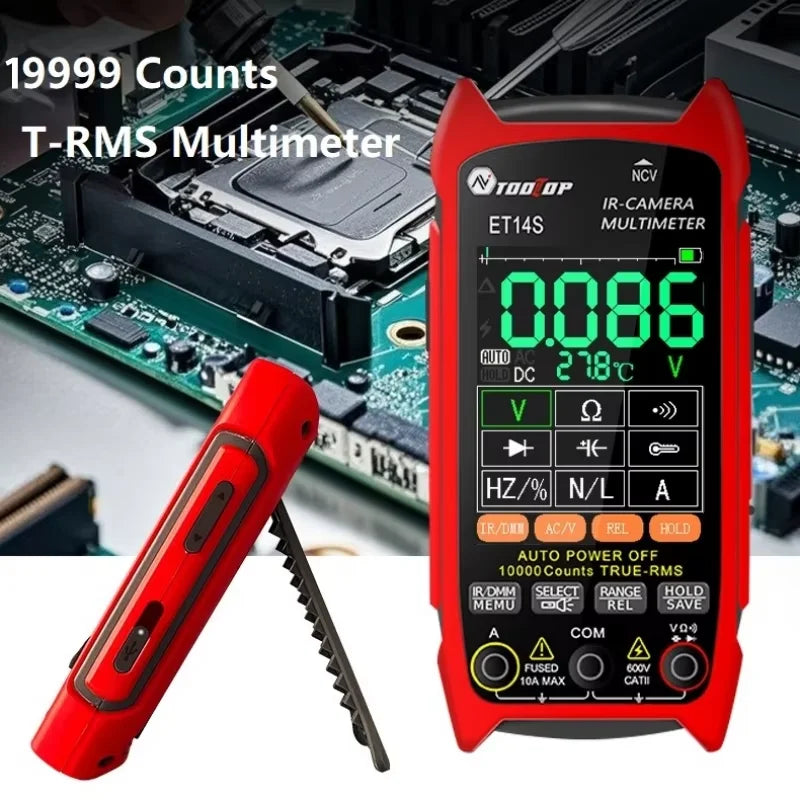

• High-Precision Multimeter: 19999 counts True RMS measurement for AC/DC voltage, current, resistance, capacitance, diode, and duty cycle.

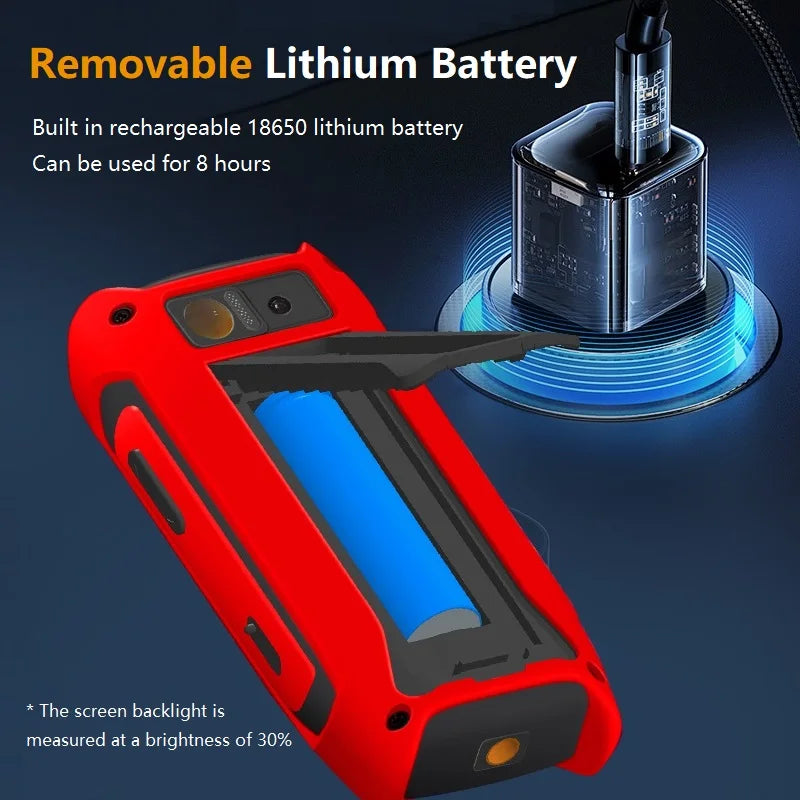

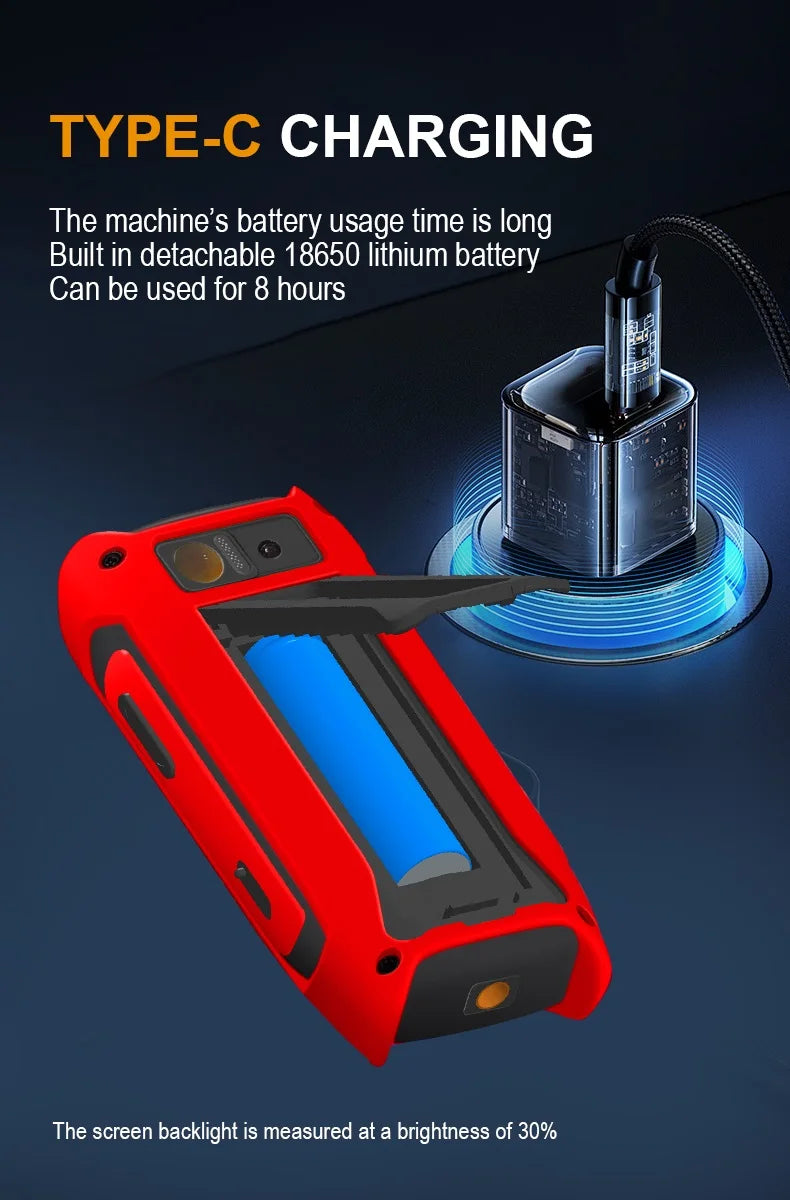

• Detachable 18650 Lithium Battery: Provides up to 8 hours of continuous use.

• PC Software Analysis: Easily transfer and review thermal images and readings on your computer.

• Compact & Portable: 2.8-inch display and ergonomic design for on-the-go use.

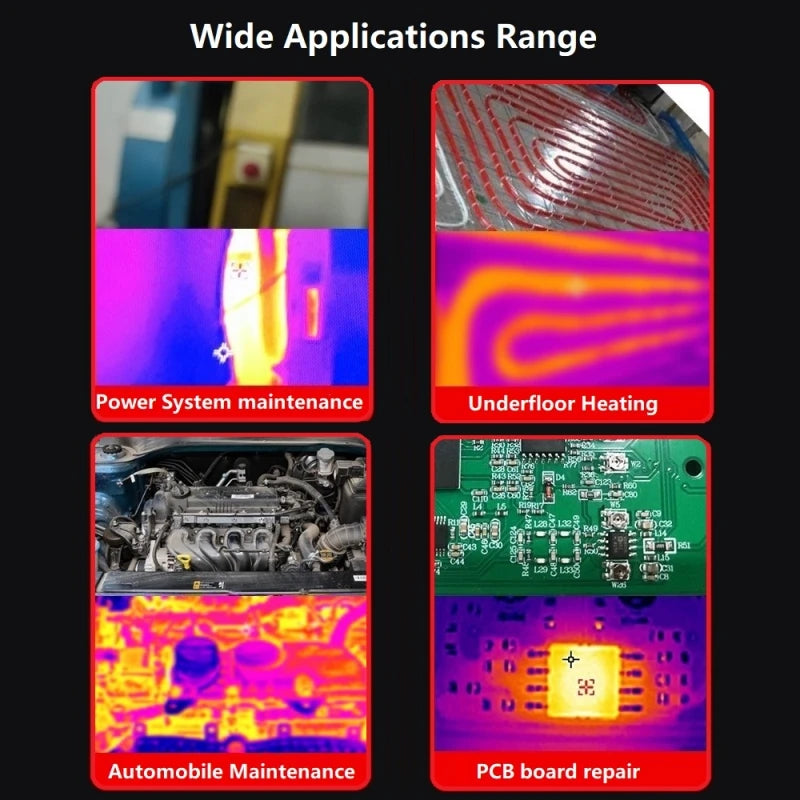

• Versatile Applications: Ideal for appliance maintenance, electronics repair, and power supply inspections.

Specifications

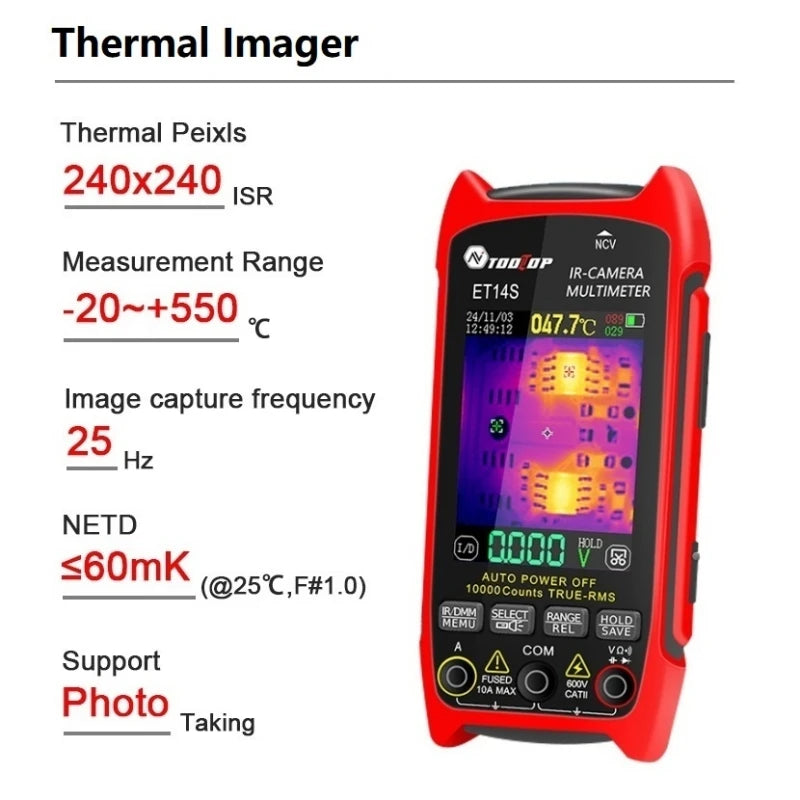

• Thermal Imaging: 240x240 pixels, 25Hz, -20℃ to +550℃ range, emissivity 0.1–0.99 adjustable, ±2℃ accuracy.

• Multimeter: 19999 counts, AC max 750V, DC max 1000V, max current 10A, max resistance 99.99MΩ, max capacitance 99.99mF, continuity 999.99Ω, diode 0–3V, duty cycle 0.1–99.9%.

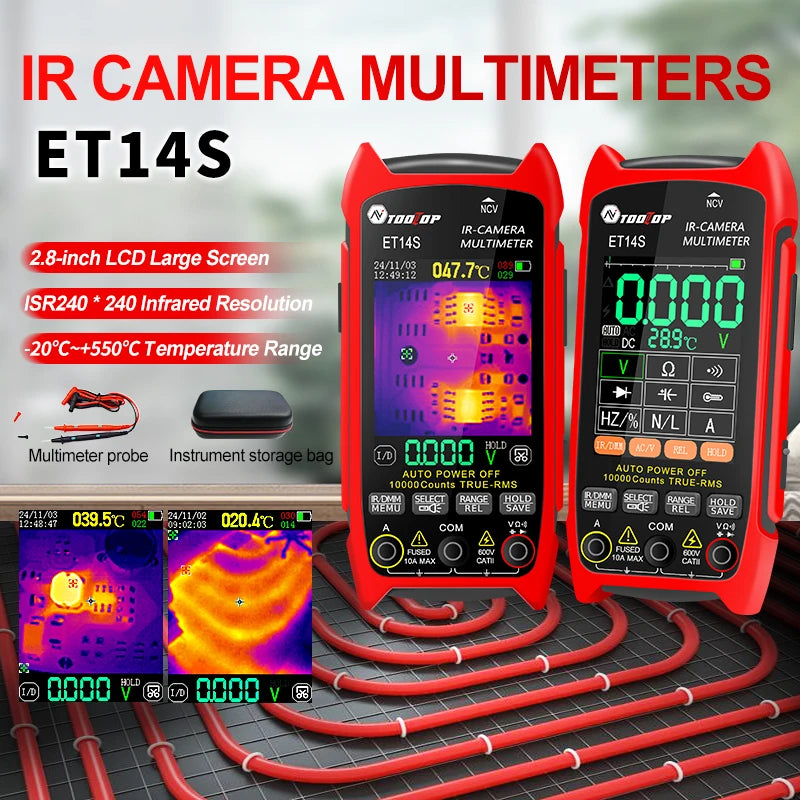

• Display: 2.8-inch, 240x320 resolution, color palettes: Iron Red, Rainbow, Fusion, White Heat, Red Heat.

• Storage & Connectivity: 7.5MB internal storage, BMP image format, Type-C USB.

• Battery: Detachable 18650 Lithium-ion.

• Size & Weight: 134×64×28mm, 180g (host), 380g (packaging).

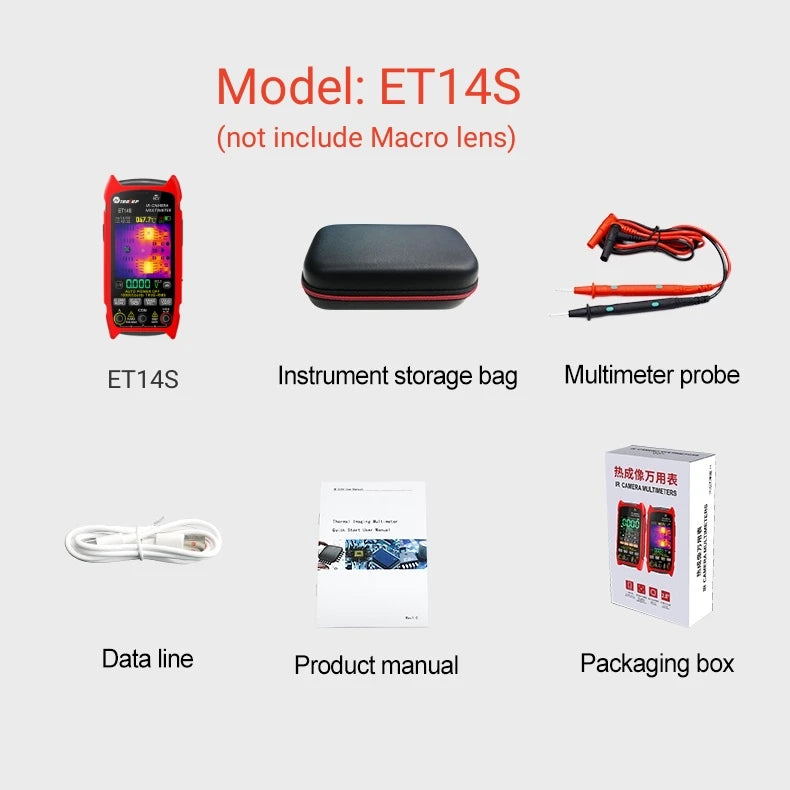

Package Contents

• 1 x Thermal Camera Multimeter

• 1 x USB Cable

• 1 x English Manual

• 1 x Storage Bag

• 1 x Multimeter Probe

What Makes This a Smart Buy:
Combining a high-resolution thermal camera with a precise multimeter, the handheld ET14S lets you detect electrical and thermal issues efficiently. Its portability and versatility make it an essential tool for electricians, technicians, and DIY enthusiasts.
