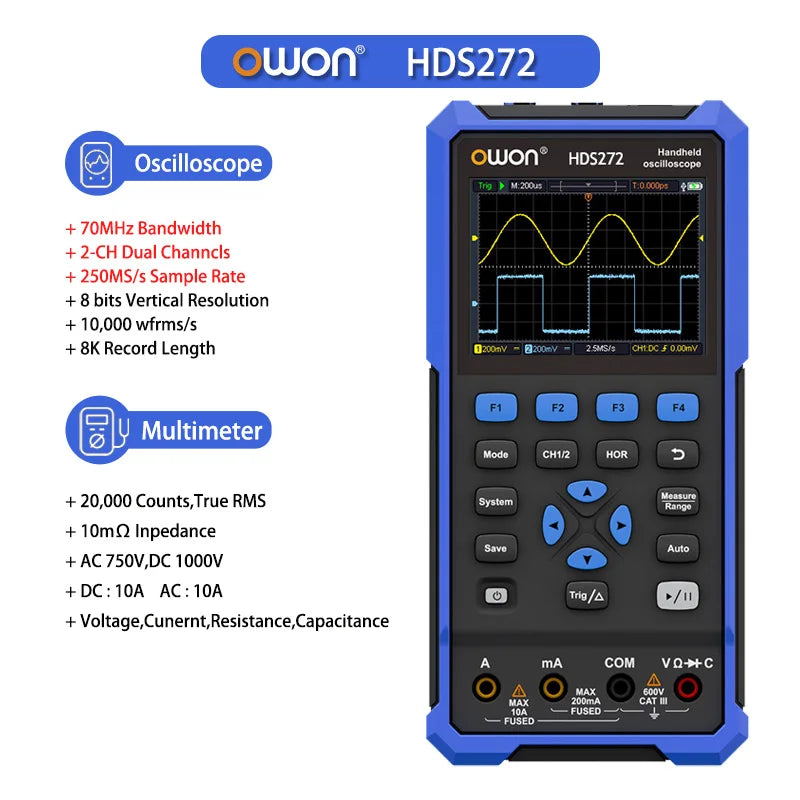

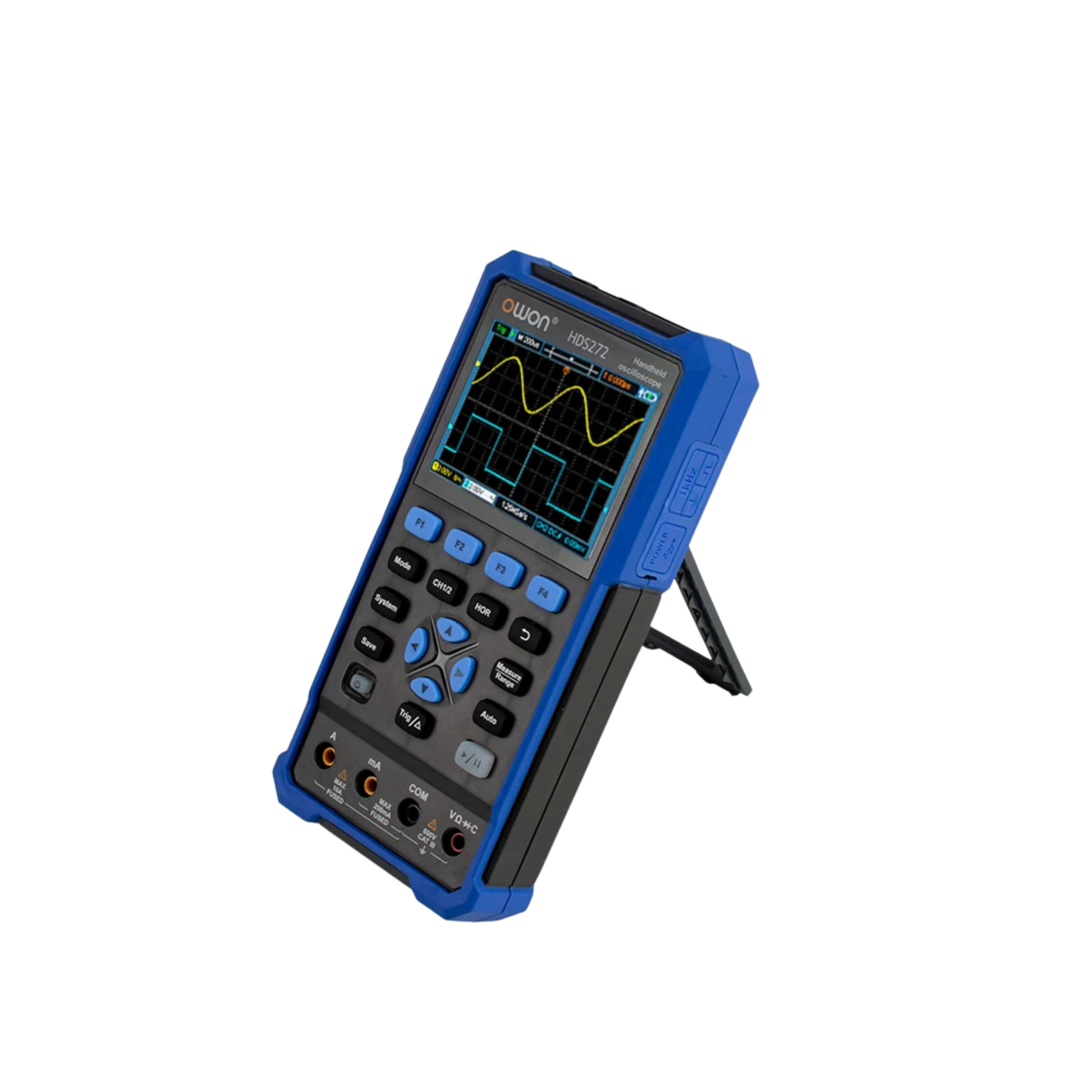

Heavy Duty Digital Oscilloscope 70MHz Dual Channel with Multimeter

This higher-bandwidth handheld oscilloscope is built for users working with faster signals. It combines oscilloscope and multimeter functions in a portable format, making it suitable for more advanced diagnostics while staying mobile.

Key Features

• Dual-channel handheld oscilloscope for side-by-side signal viewing

• 70MHz bandwidth for faster and more detailed signal analysis

• Integrated digital multimeter for everyday electrical measurements

• Portable design with rechargeable battery power

• 3.5-inch colour LCD for clear, easy viewing

• USB Type-C interface for charging and PC connection

• Supports self-calibration and advanced measurement functions

Specifications

• Bandwidth: 70MHz

• Channels: 2

• Real-Time Sampling Rate: 500MS/s

• Record Length: 8K

• Display: 3.5-inch colour LCD

• Resolution: 320 × 240 pixels

• Maximum Input Voltage: AC 750V / DC 1000V

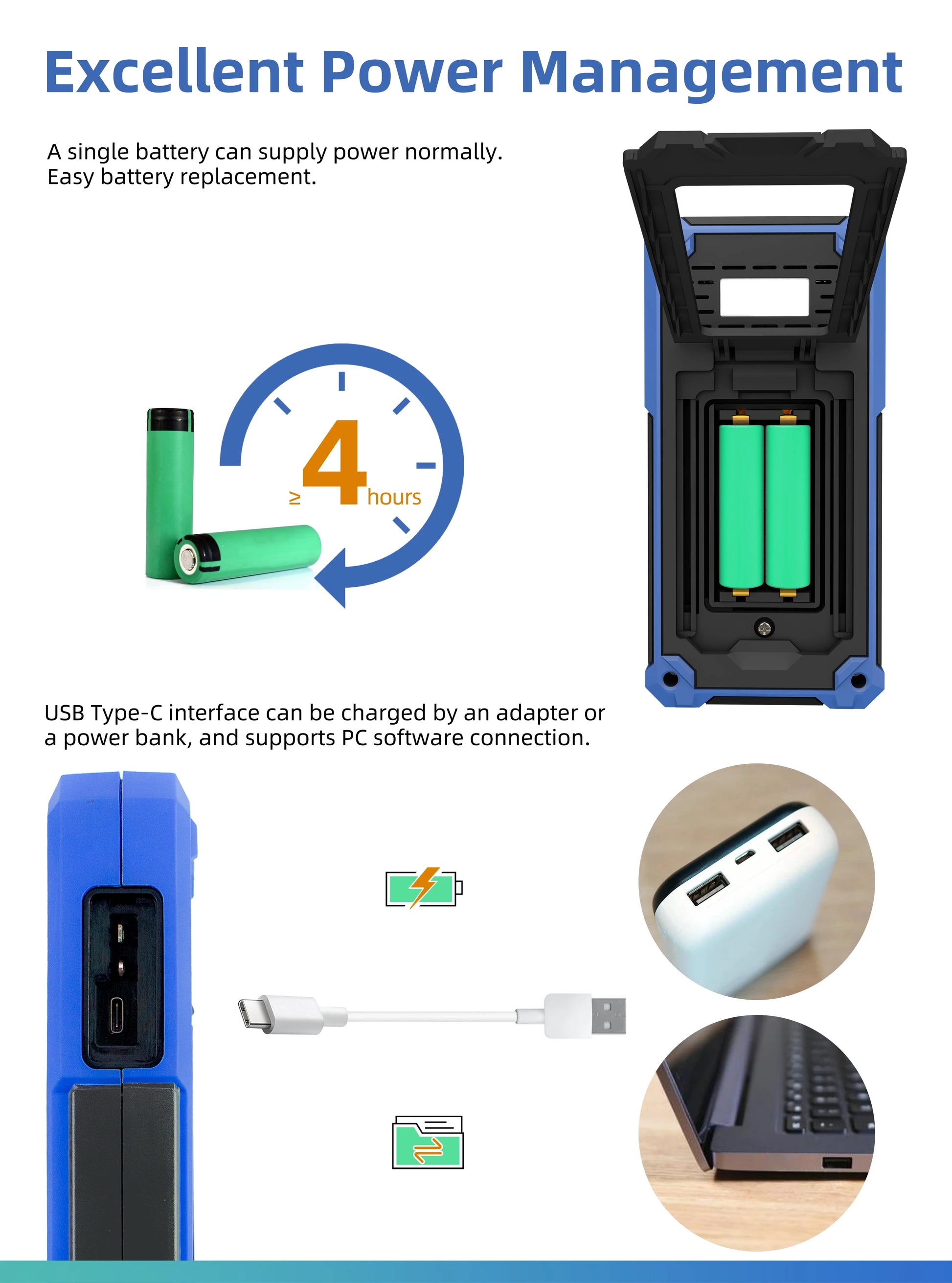

• Battery: Rechargeable 18650 lithium battery

Package Contents

• 1 × Handheld Digital Oscilloscope

• Oscilloscope probe

• Multimeter test leads

• USB charging cable

• Quick guide

• Carry pouch and accessories

What Makes This a Smart Buy:
The increased bandwidth makes this model ideal for users working with more demanding signals, while still offering the convenience of a portable, all-in-one tester.
