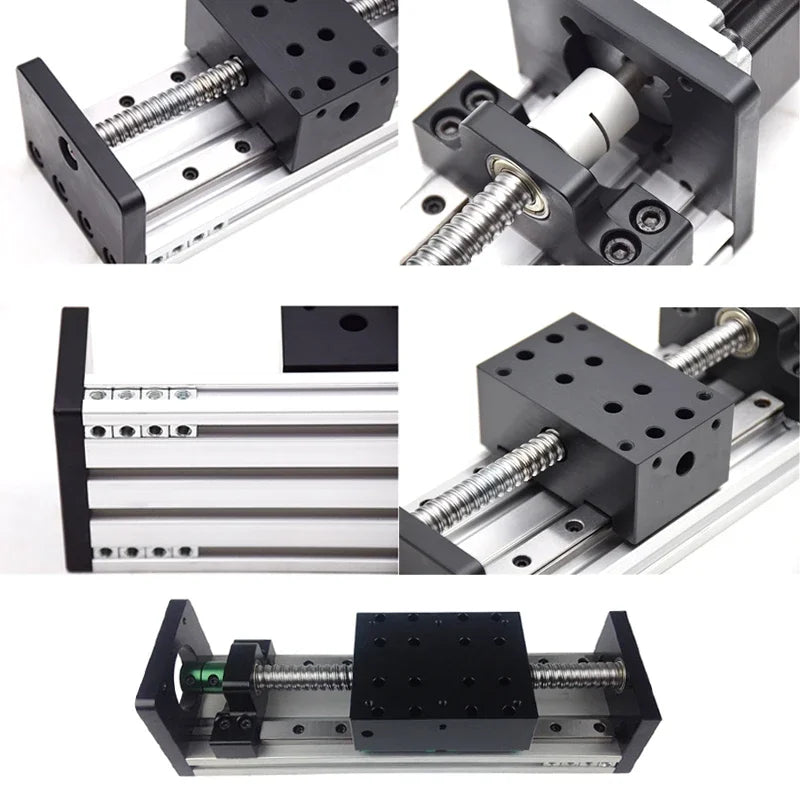

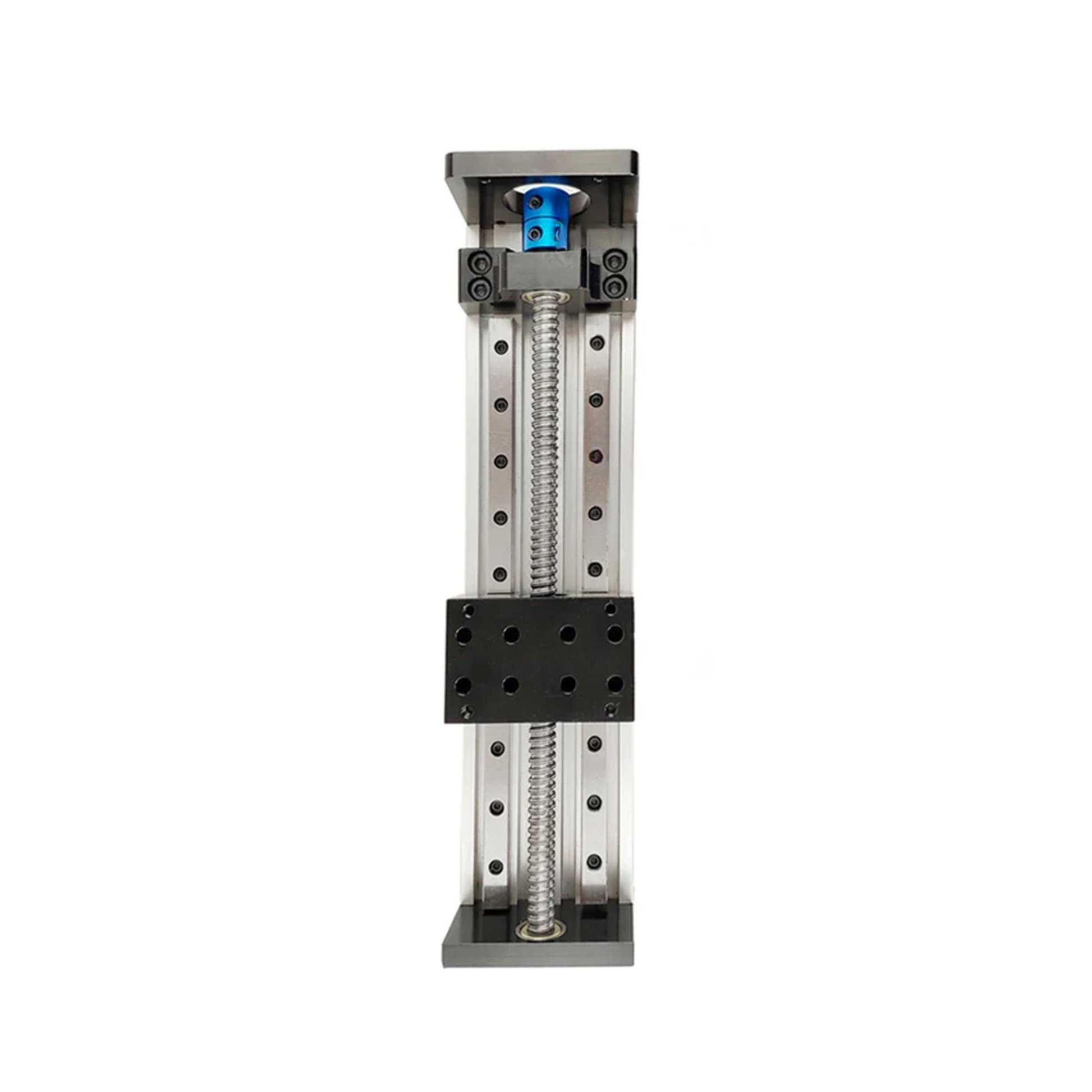

Heavy Duty SFU1610 Linear Stage 150mm Stroke 50x80 Table

Designed for precision motion control, this compact linear stage delivers smooth and accurate positioning for CNC, automation, and DIY engineering projects. Its space-saving size makes it ideal for setups where performance and efficiency matter.

Key Features

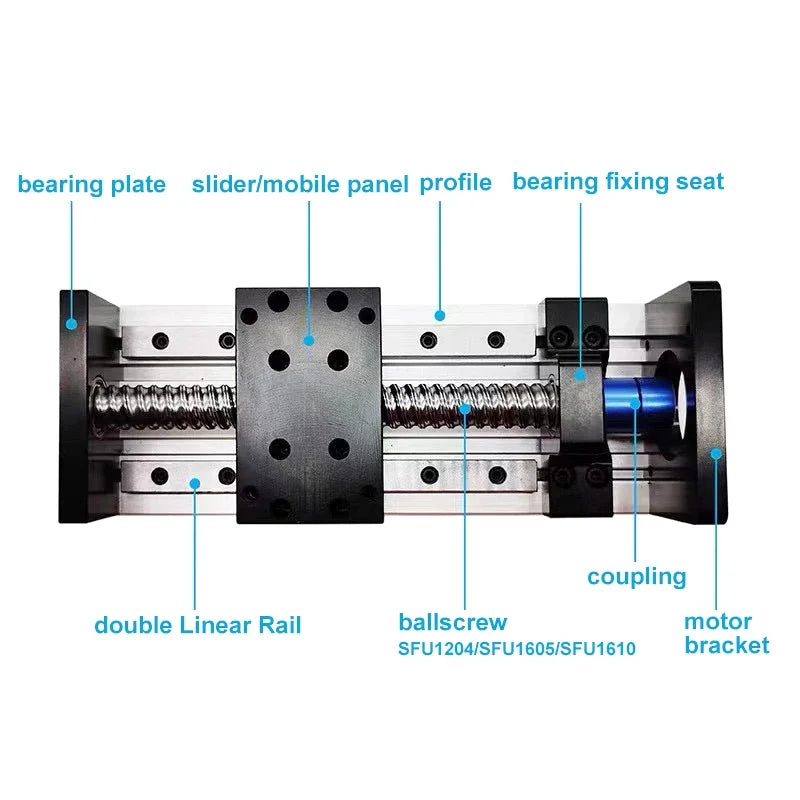

• High-precision ball screw drive for smooth, accurate linear motion
• 150mm stroke ideal for controlled, repeatable movement
• Compact 50x80mm platform perfect for tight installations
• Dual linear guide rails for enhanced stability and reduced vibration
• Strong load capacity for small to medium mechanical setups
• Durable aluminium construction for long-term reliability
• Compatible with NEMA 17 and NEMA 23 stepper motors

Specifications

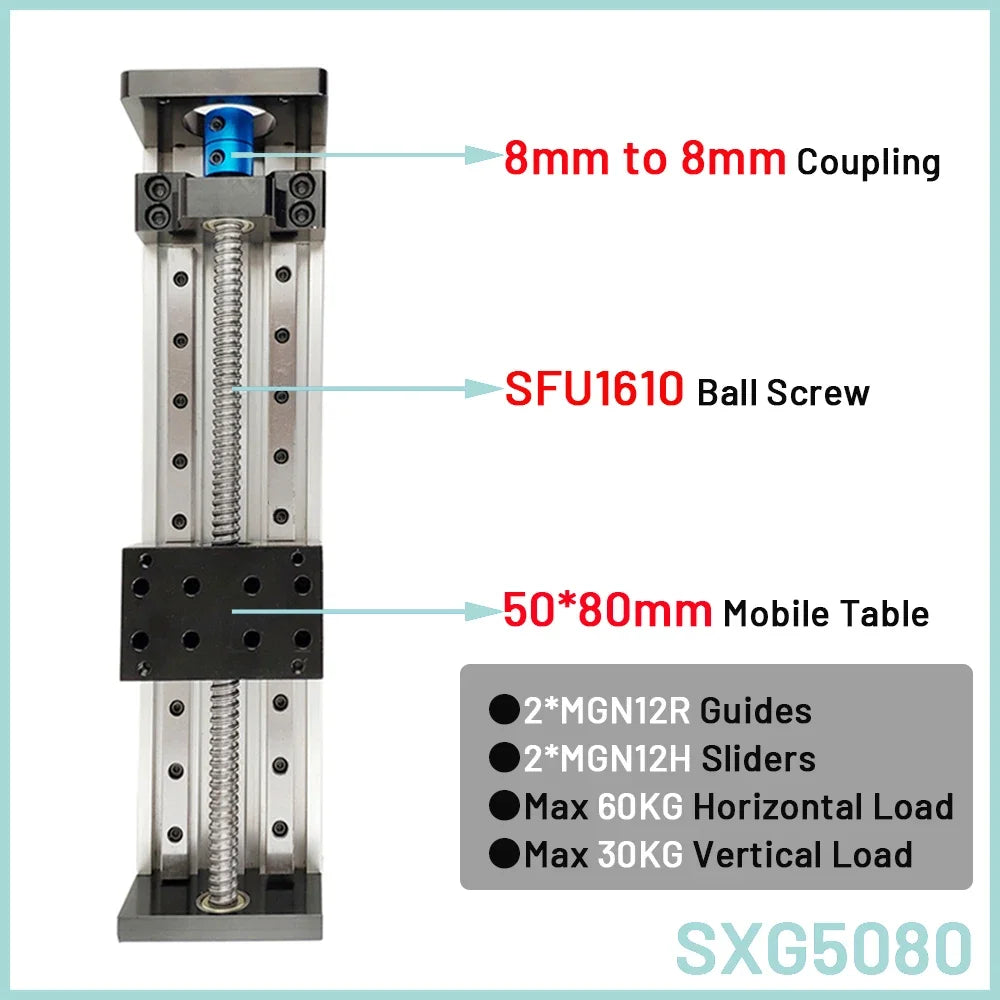

• Table Size: 50 x 80mm
• Effective Stroke: 150mm
• Ball Screw Type: SFU1610 (16mm diameter, 10mm pitch options available)
• Ball Screw Accuracy: C7 Level
• Repeat Positioning Accuracy: 0.02–0.03mm
• Guide Width: 12mm (Dual MGN12 rails)
• Maximum Speed: 500mm/s
• Horizontal Load: Up to 50kg
• Vertical Load: Up to 20kg
• Material: Aviation-grade aluminium and steel components

Package Contents

• 1 x Linear Sliding Table (50x80mm)
• 1 x 8mm to 8mm Coupling

What Makes This a Smart Buy:
This compact linear stage offers impressive precision and strength in a smaller footprint, making it perfect for DIY CNC builds or automation upgrades without taking up excess space.
