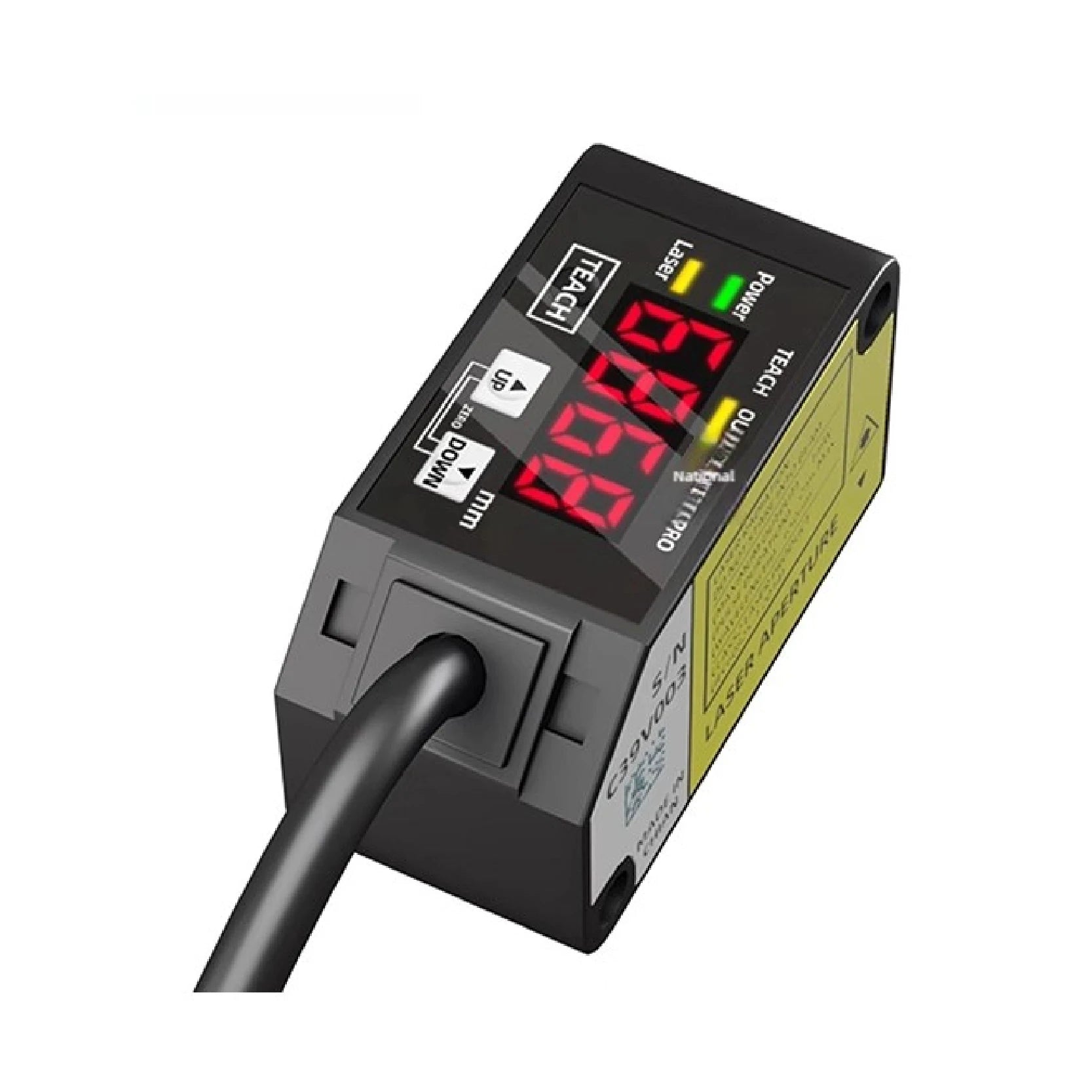

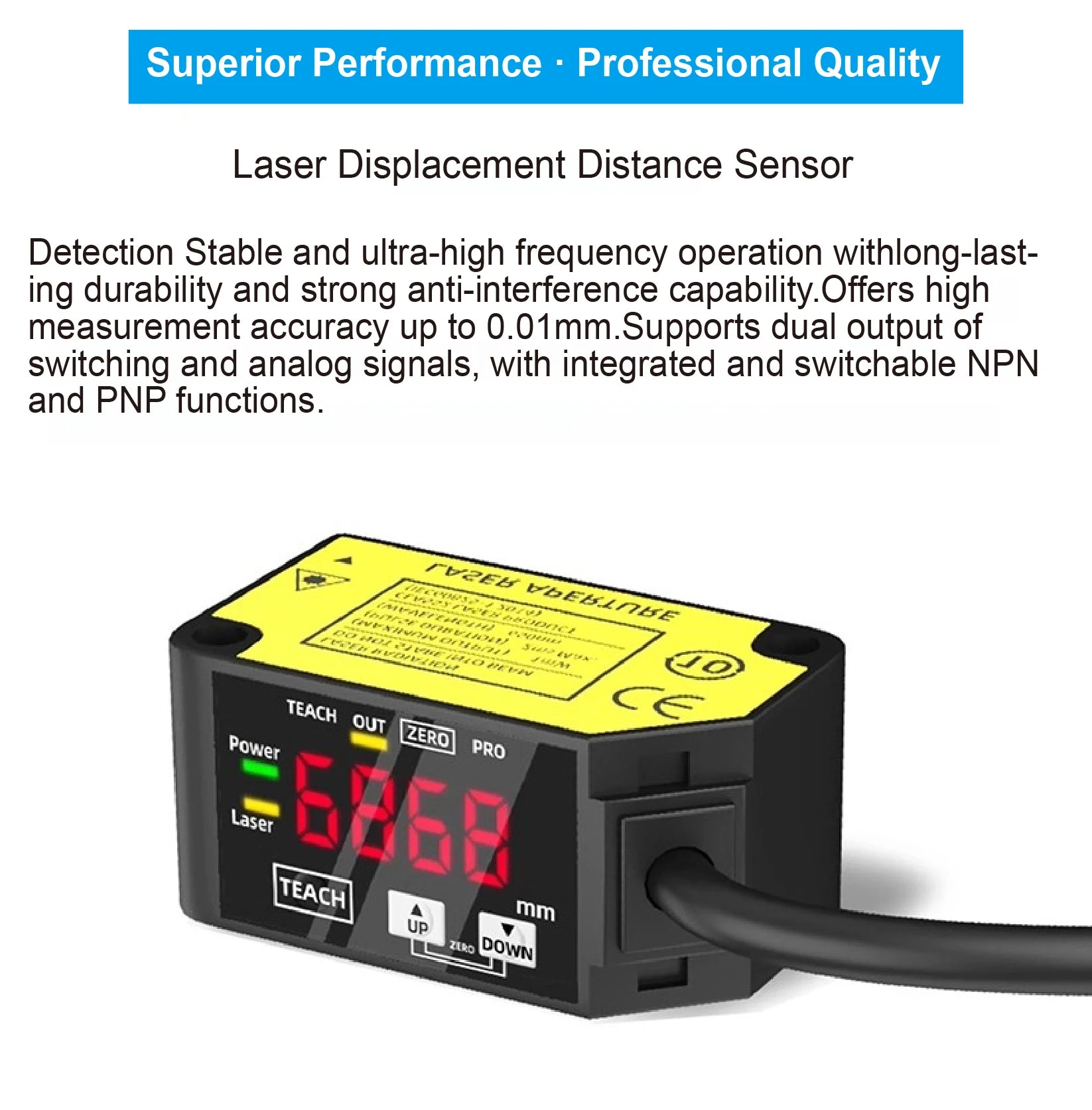

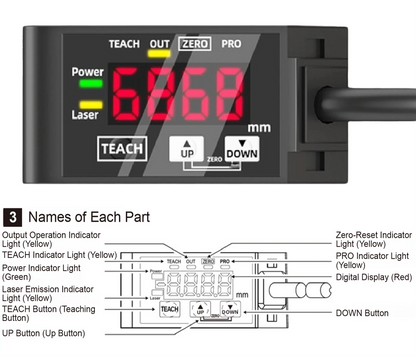

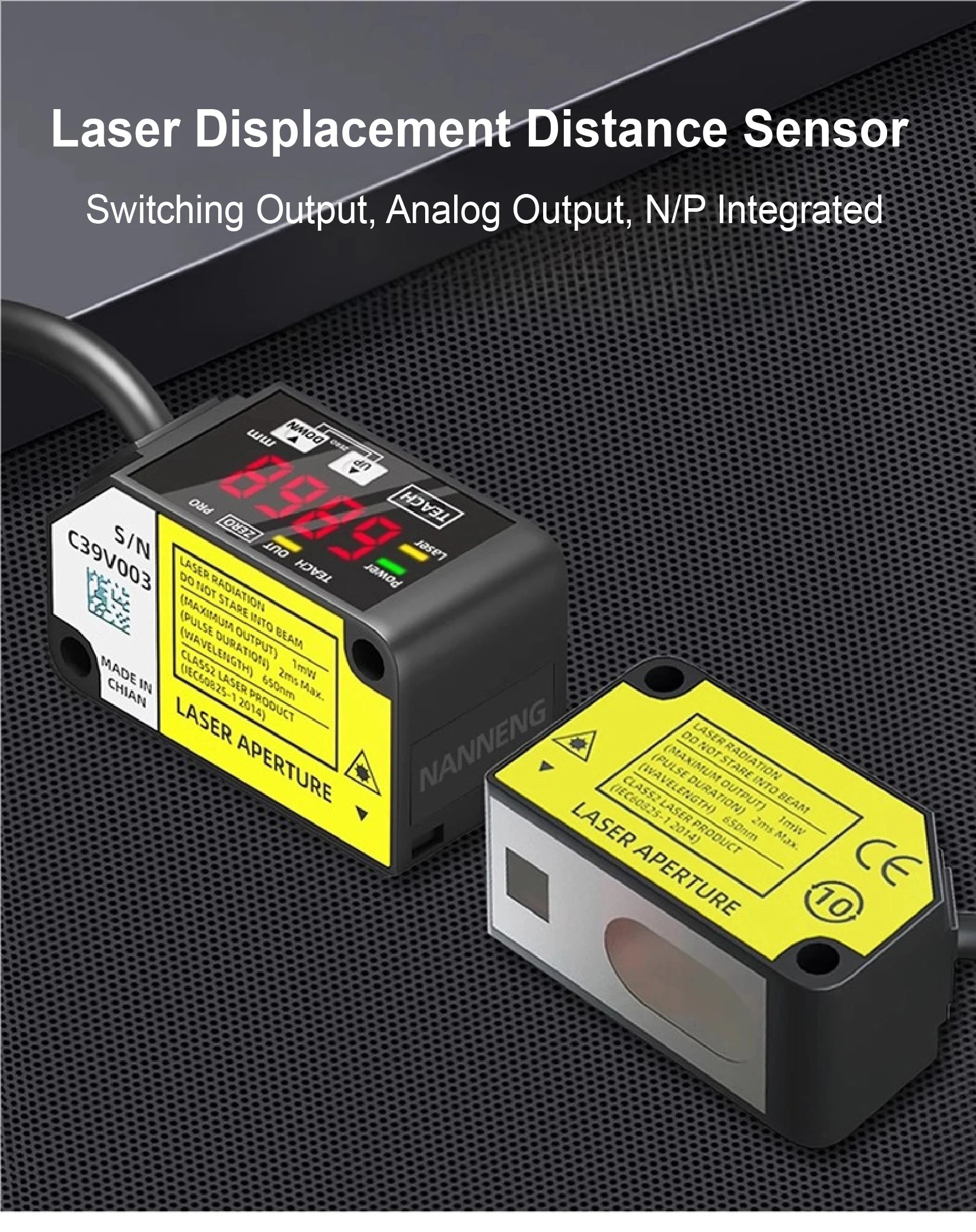

HG-C1030 Compact Laser Distance Sensor for Accurate Thickness Detection

This compact laser sensor offers high-precision measurement in a lightweight design, ideal for applications that require pinpoint accuracy in tight spaces. Perfect for monitoring material thickness or component positioning in industrial systems.

Key Features

• Ultra-fine ±5mm detection range for precision measurement

• Quick response time up to 1.5ms for dynamic applications

• Compact build for easy installation in space-limited areas

• Dual analog and digital outputs for flexible integration

• IP67-rated body for protection against dust and water exposure

• Consistent performance with built-in temperature stability

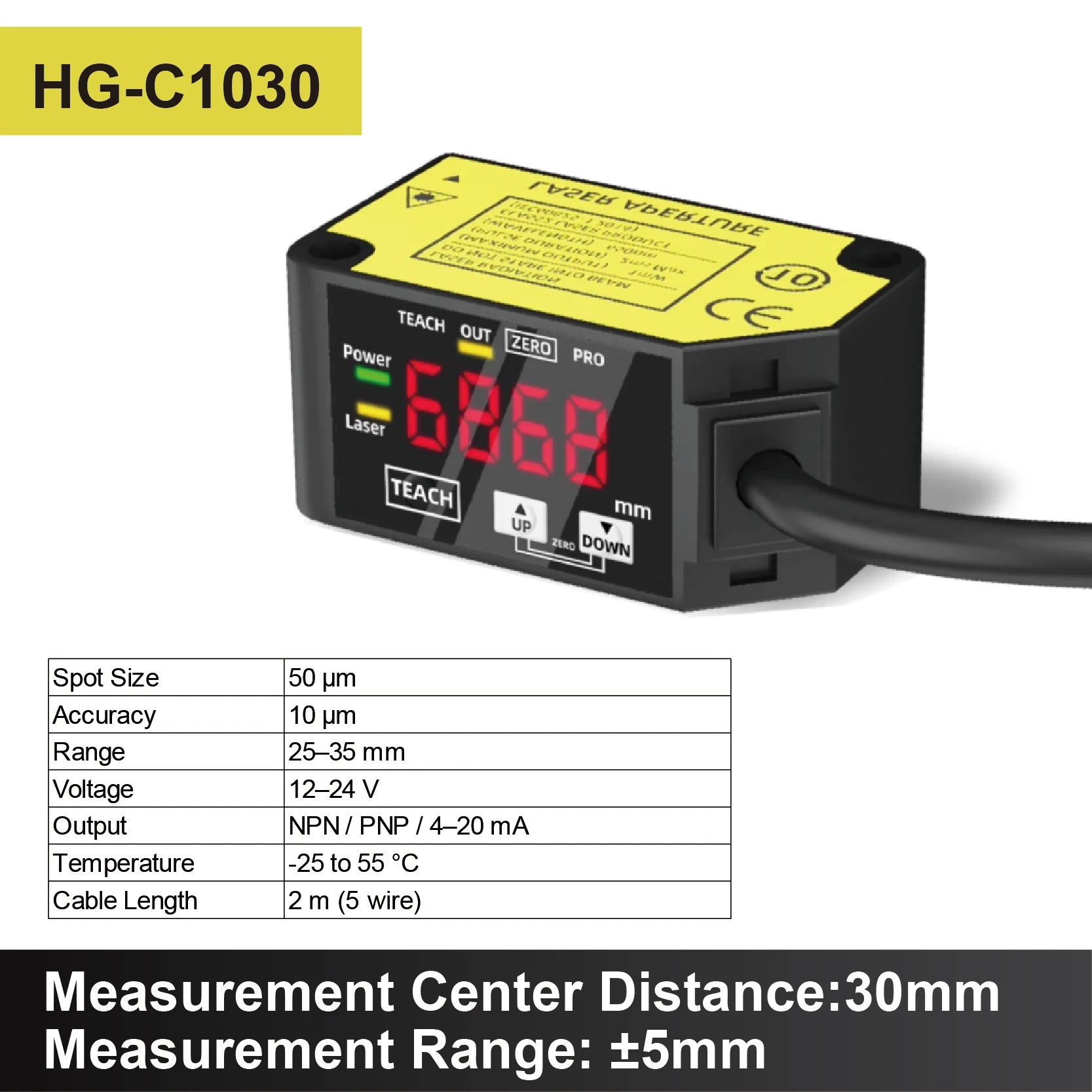

Specifications

• Measurement Centre Distance: 30mm

• Measurement Range: ±5mm

• Beam Diameter: Approx. φ50μm

• Repeat Accuracy: 10μm

• Power Supply: DC 12–24V

• Response Time: 1.5ms / 5ms / 10ms

• Protection Rating: IP67

• Output Type: NPN + PNP / 0–5V / 4–20mA

Package Contents

• 1 × HG-C1030 Laser Sensor

• 1 × Connection Cable

• 1 × User Manual

What Makes This a Smart Buy:
Compact, fast, and precise — this laser sensor is a great value for professionals who need consistent, high-resolution detection in limited spaces or high-speed automation setups.
