High Accuracy M-Probe Water Flow Meter RS485

Monitor mid-sized pipes with precision using this M-Probe ultrasonic flow meter. Designed for DN50–DN700 pipes, it provides accurate, bi-directional measurements and versatile integration options for industrial, municipal, and chemical applications.

Key Features

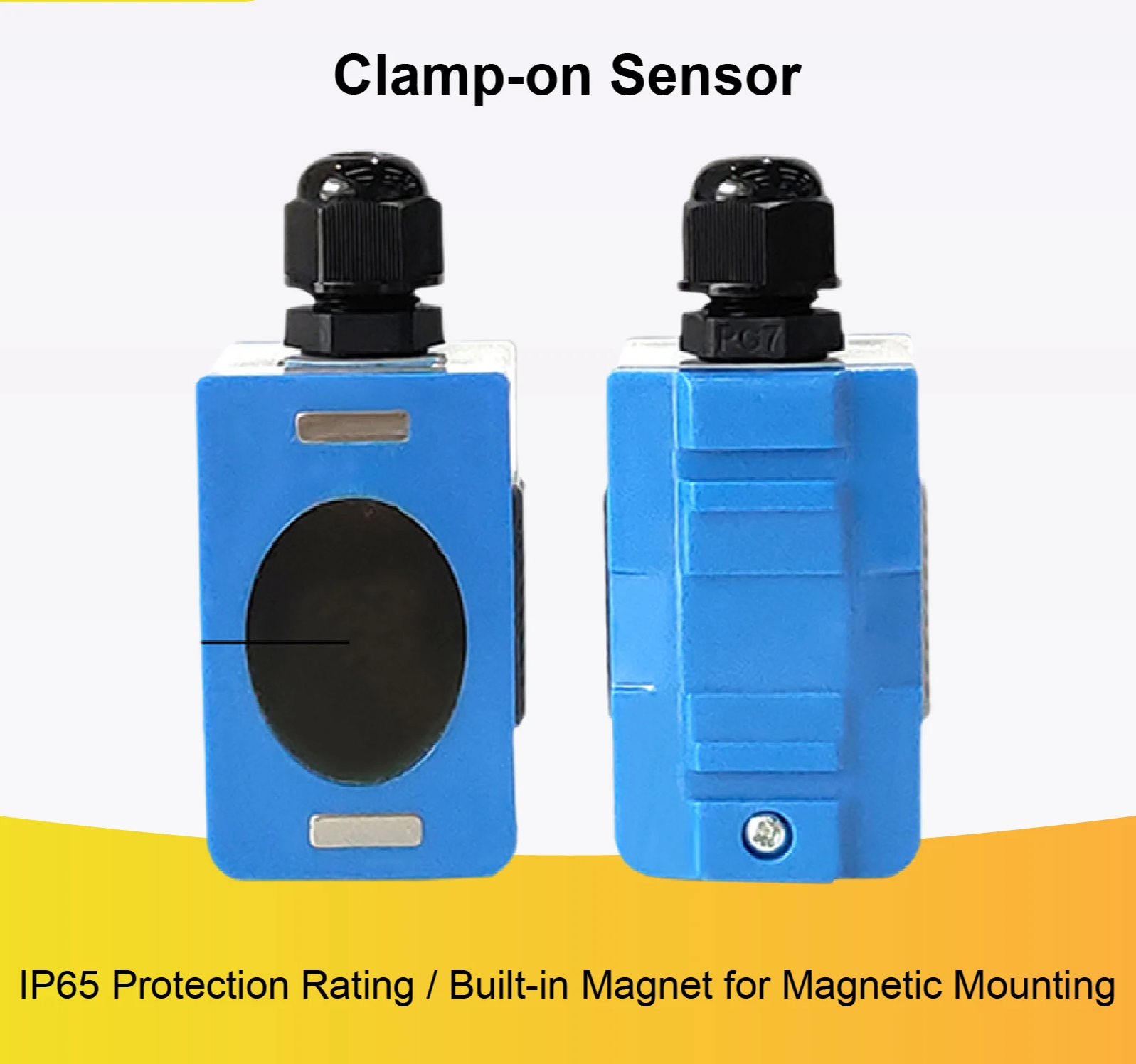

• Clamp-on M-Probe design for non-invasive installation

• Bi-directional measurement with ±1% accuracy

• Suitable for water, oils, chemicals, and industrial liquids

• RS485 and 4–20mA outputs for remote monitoring and control

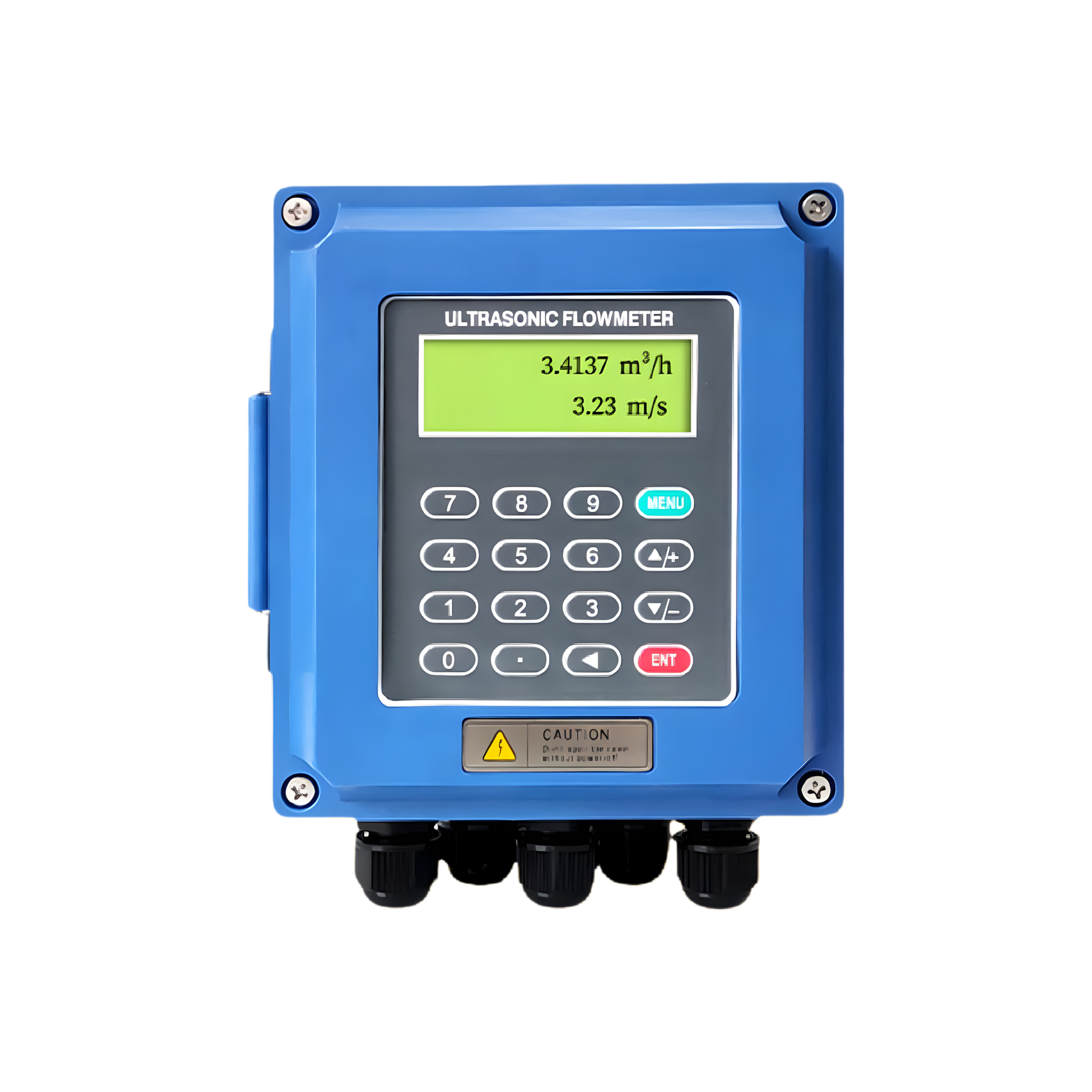

• LCD backlit display shows accumulated flow, instantaneous flow, and velocity

• IP68 waterproof rating for reliable performance outdoors

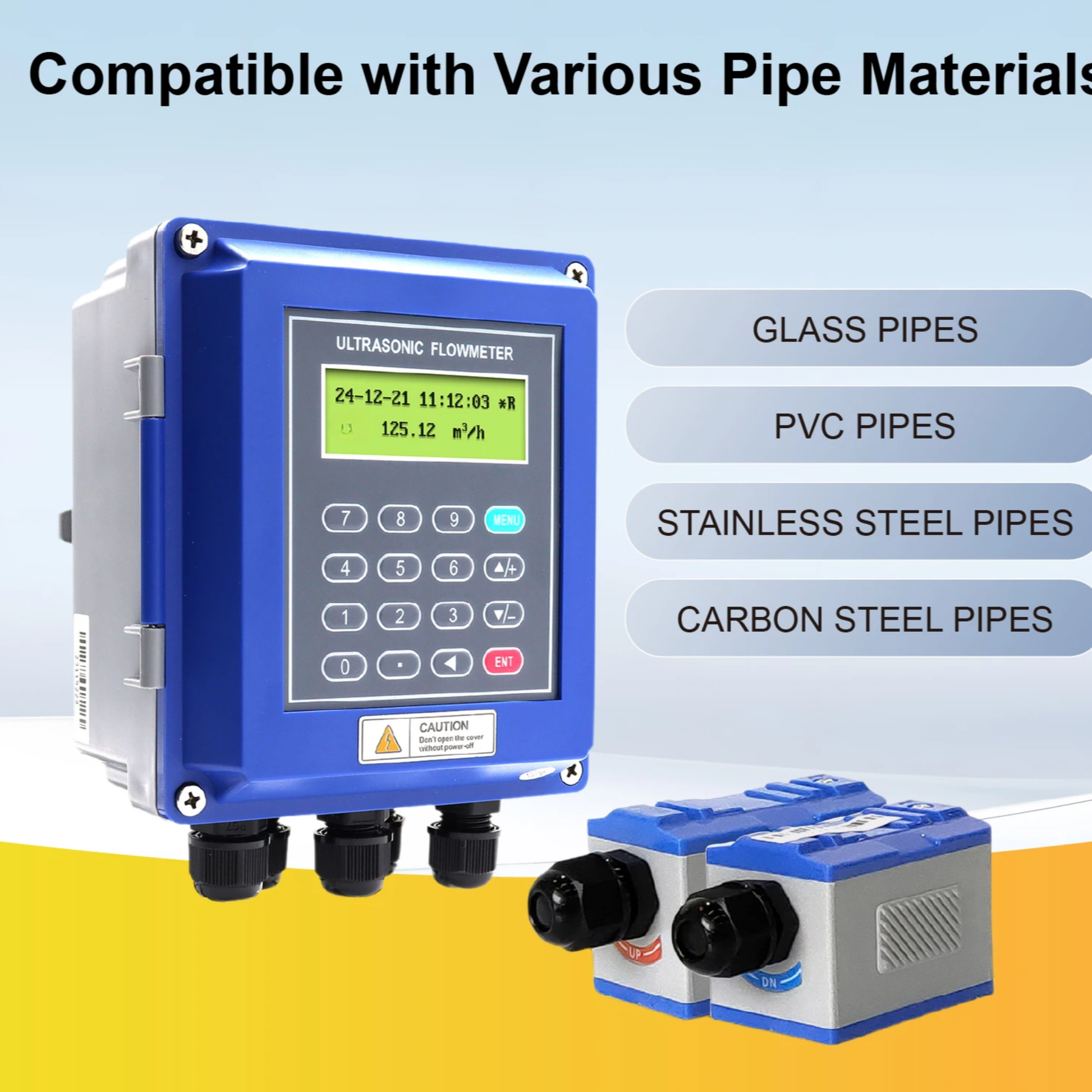

• Compatible with steel, PVC, copper, aluminium, glass, and FRP pipes

Specifications

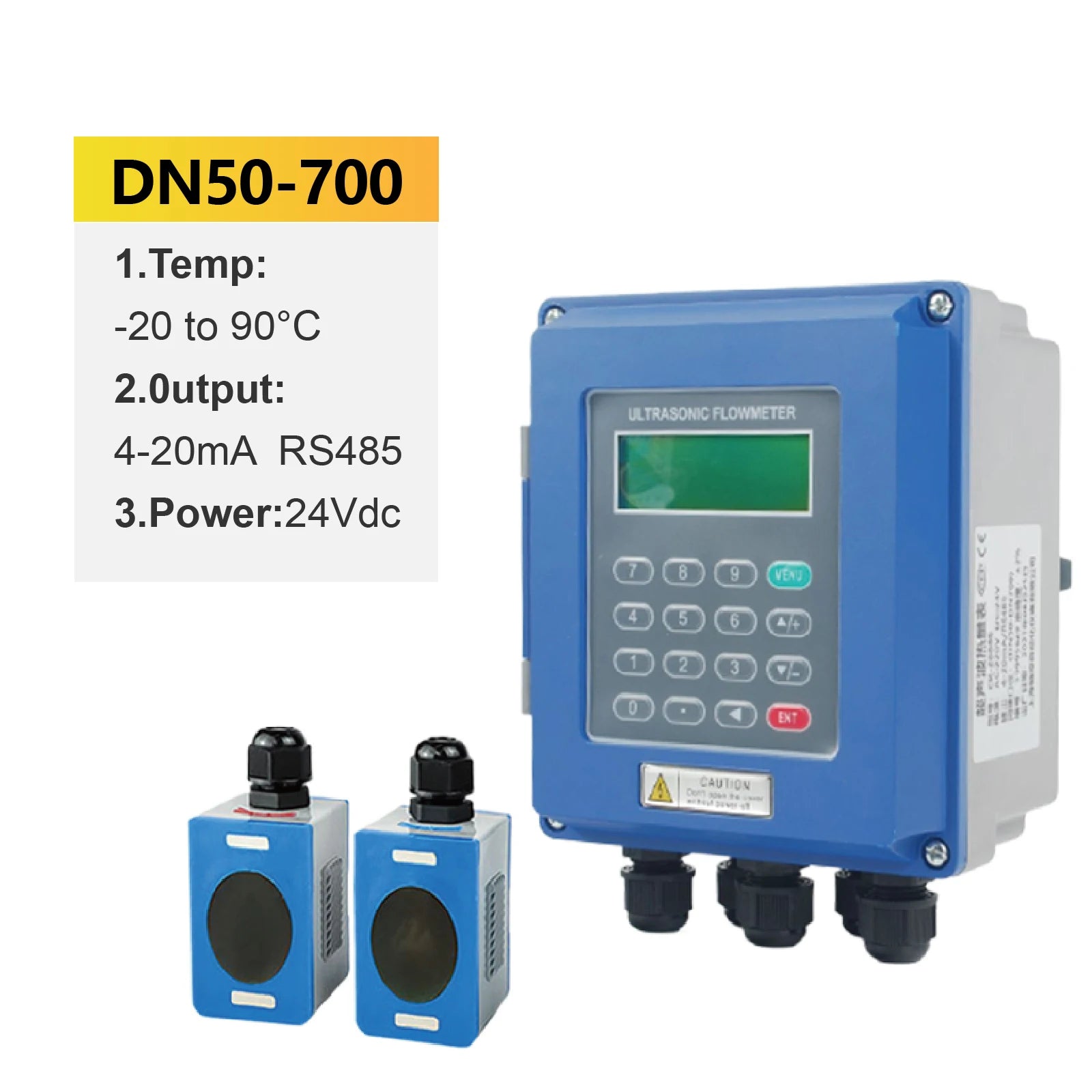

• Measurement range: DN50–DN700

• Accuracy: ±1%, Repeatability: 0.2%

• Measurement principle: Transit-time ultrasonic

• Display: LCD with backlight

• Output: 4–20mA, 0–20mA, frequency signal 1–9999Hz, RS485

• Flow direction: Bi-directional

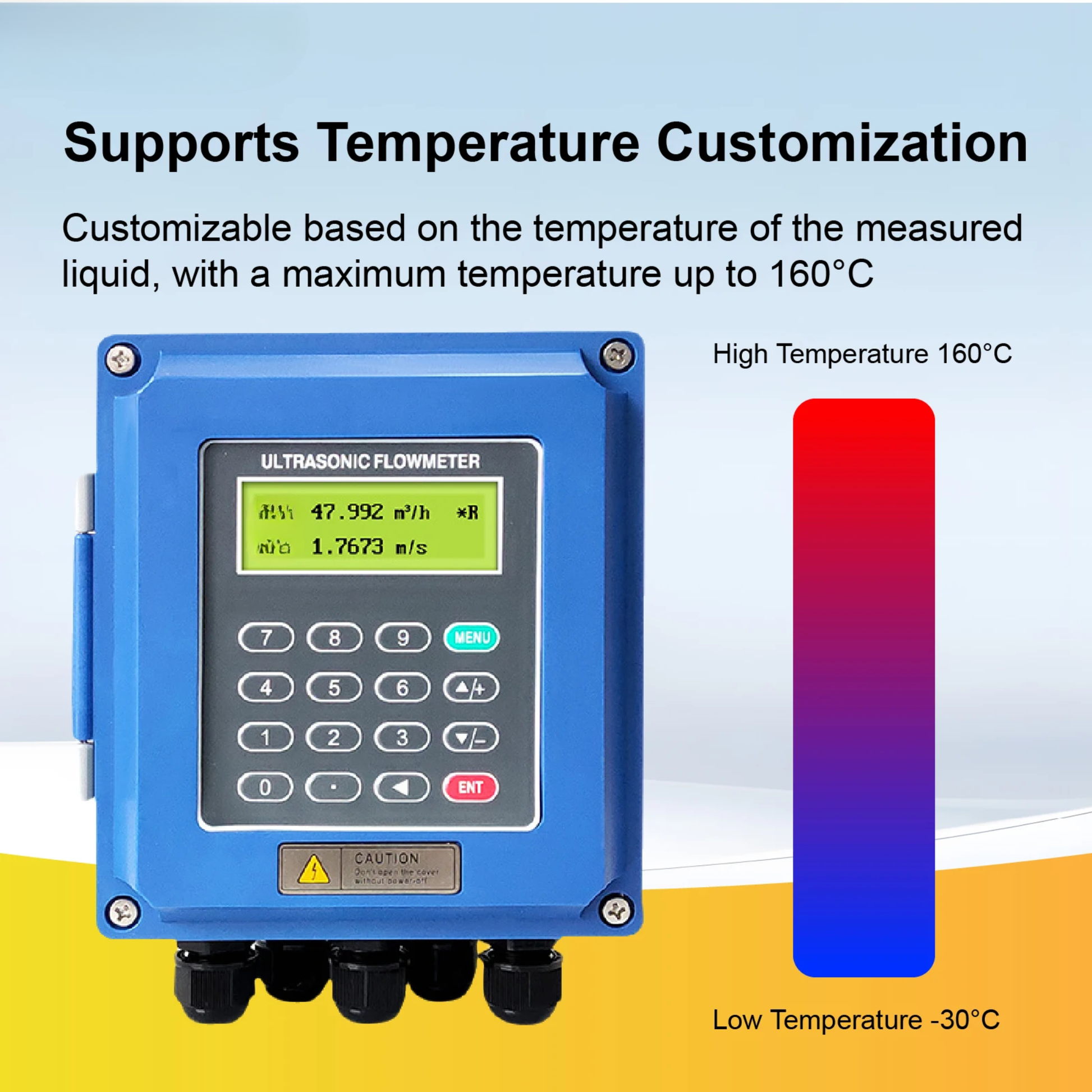

• Operating temperature: Main unit -30–80°C, Transducer -40–110°C

• Power supply: AC220V or DC24V, Power consumption <1.5W

• Cable: Twisted pair 20m standard (extendable up to 500m)

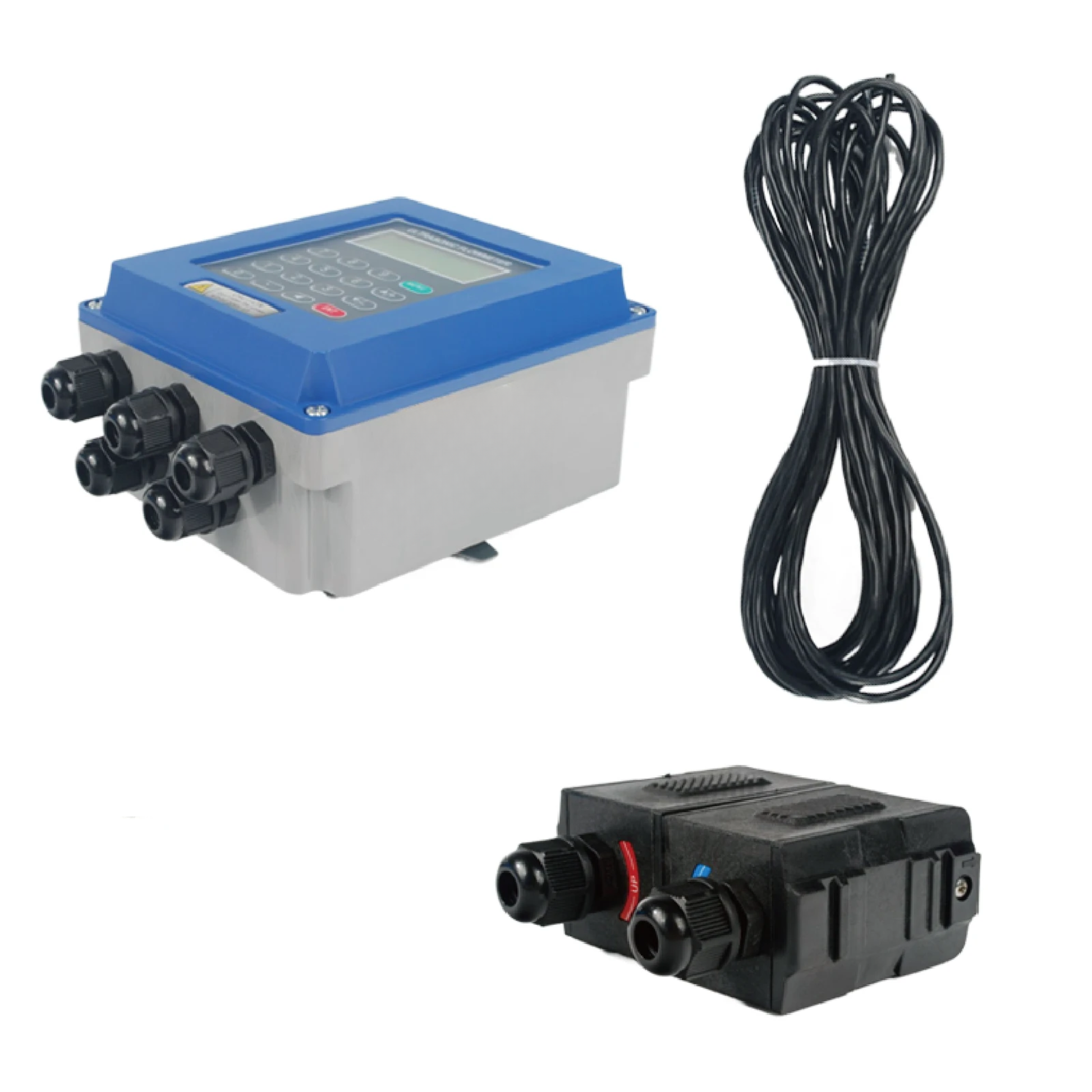

Package Contents

• 1 × Ultrasonic Flow Meter Main Unit

• 1 × M-Type Transducer Probe

• 1 × 20m Standard Twisted Pair Cable

• 1 × User Manual

What Makes This a Smart Buy:
The M-Probe meter combines mid-range pipe versatility with high-precision, non-invasive measurements, making it perfect for industrial or municipal water systems.
