High-Speed 3D Printer Motherboard with HDMI7 Support

Boost your 3D printing performance with this high-speed motherboard featuring HDMI7 support. Designed for large-format printers, it offers 8 high-power TMC2160 drivers, precise heat management, and dual CAN ports for expanded functionality.

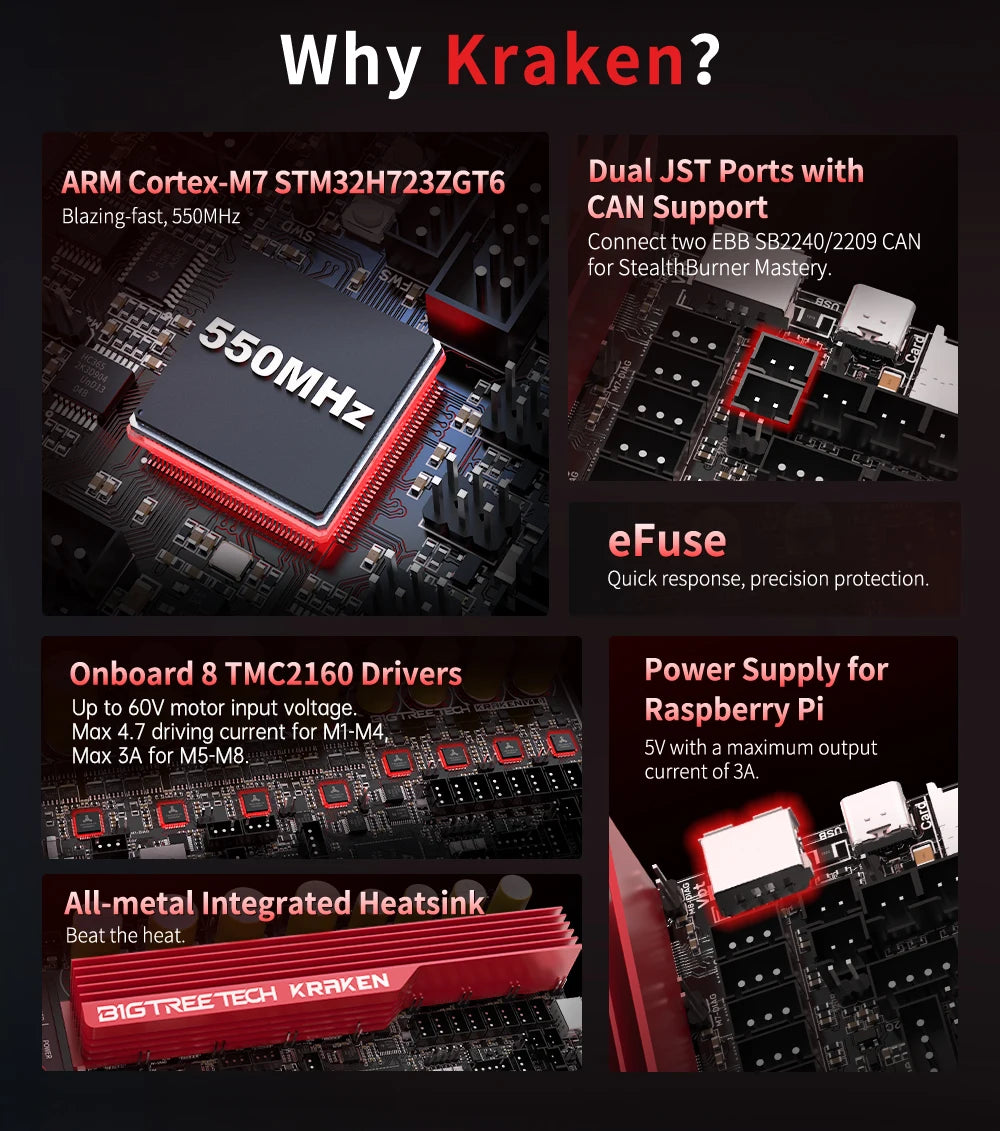

Key Features

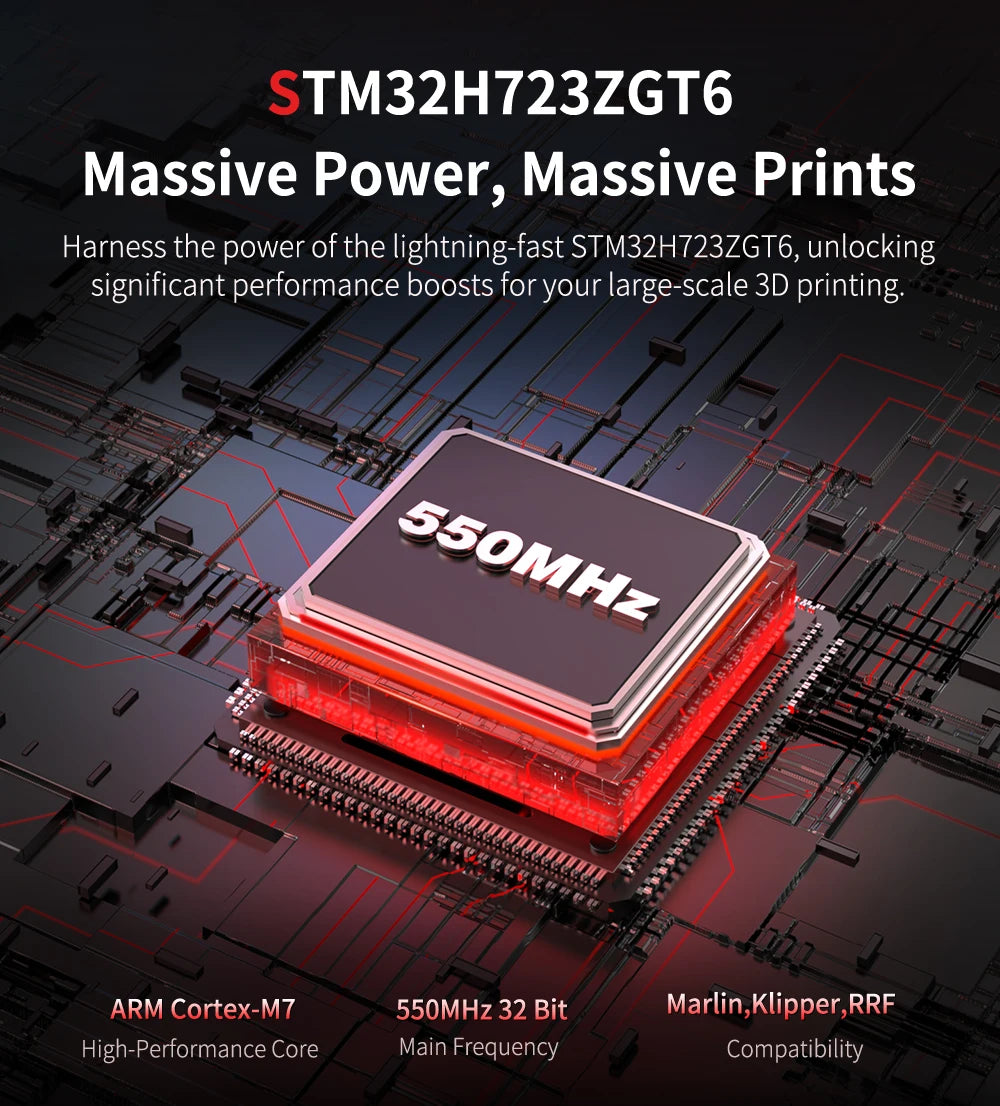

• STM32H723ZGT6 550MHz ARM Cortex-M7 processor for lightning-fast printing

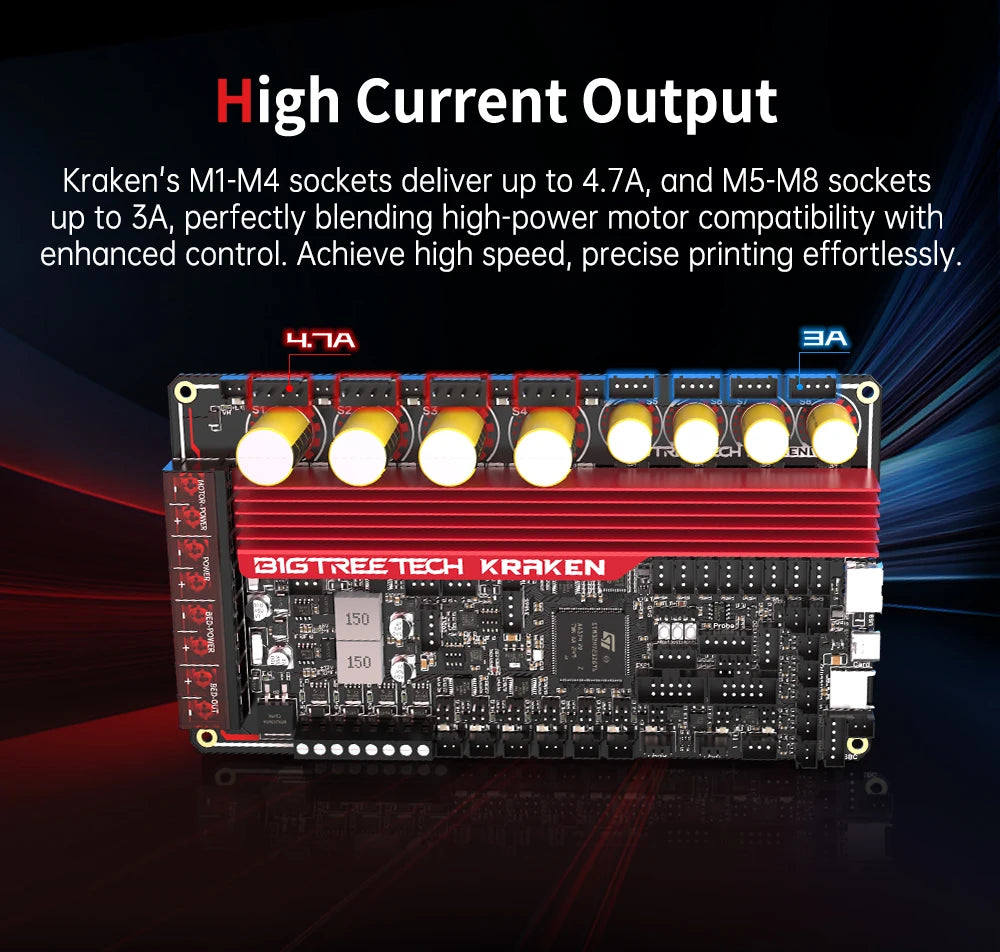

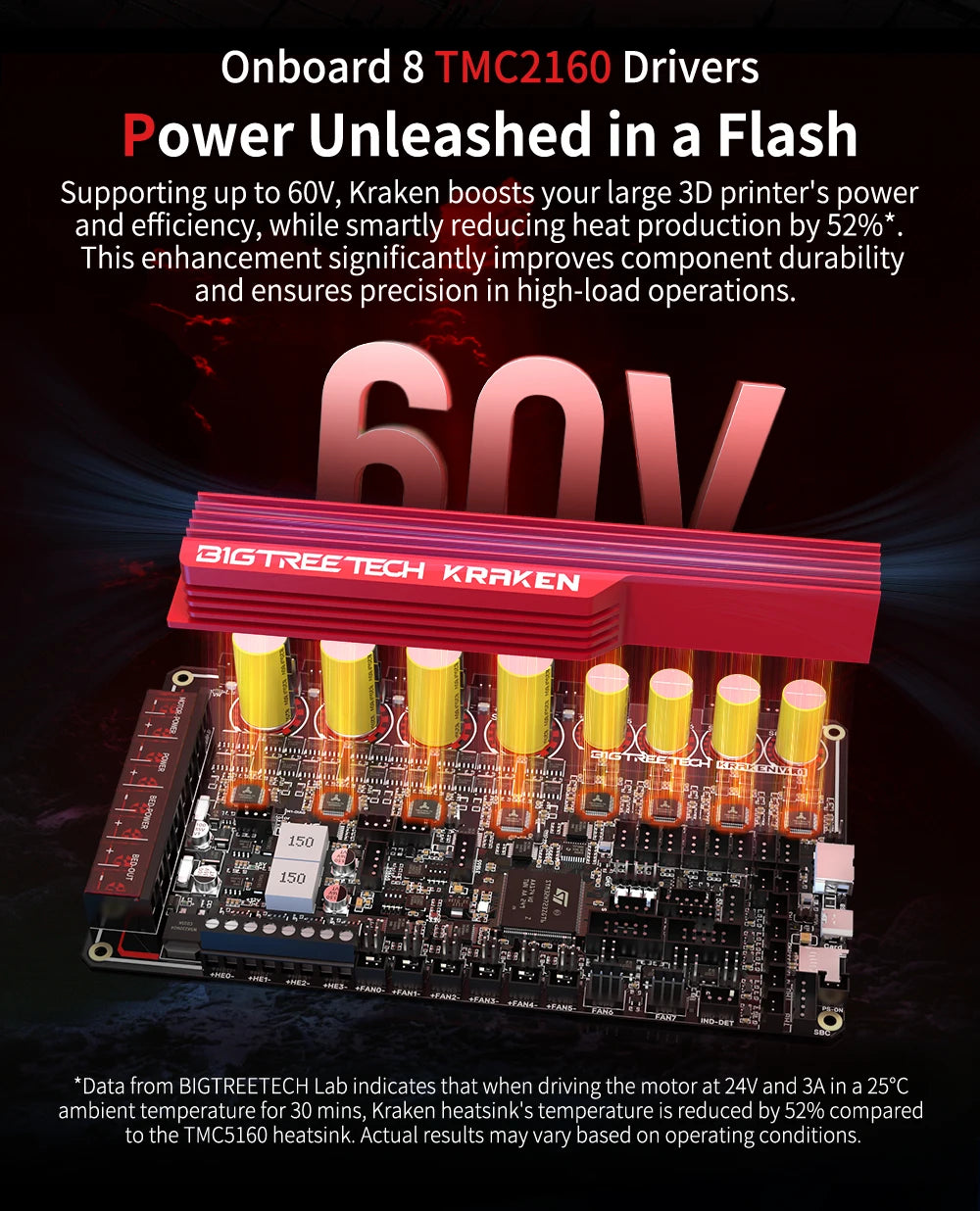

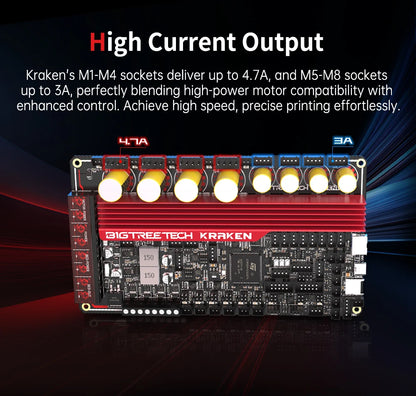

• 8 TMC2160 drivers supporting up to 60V motor input

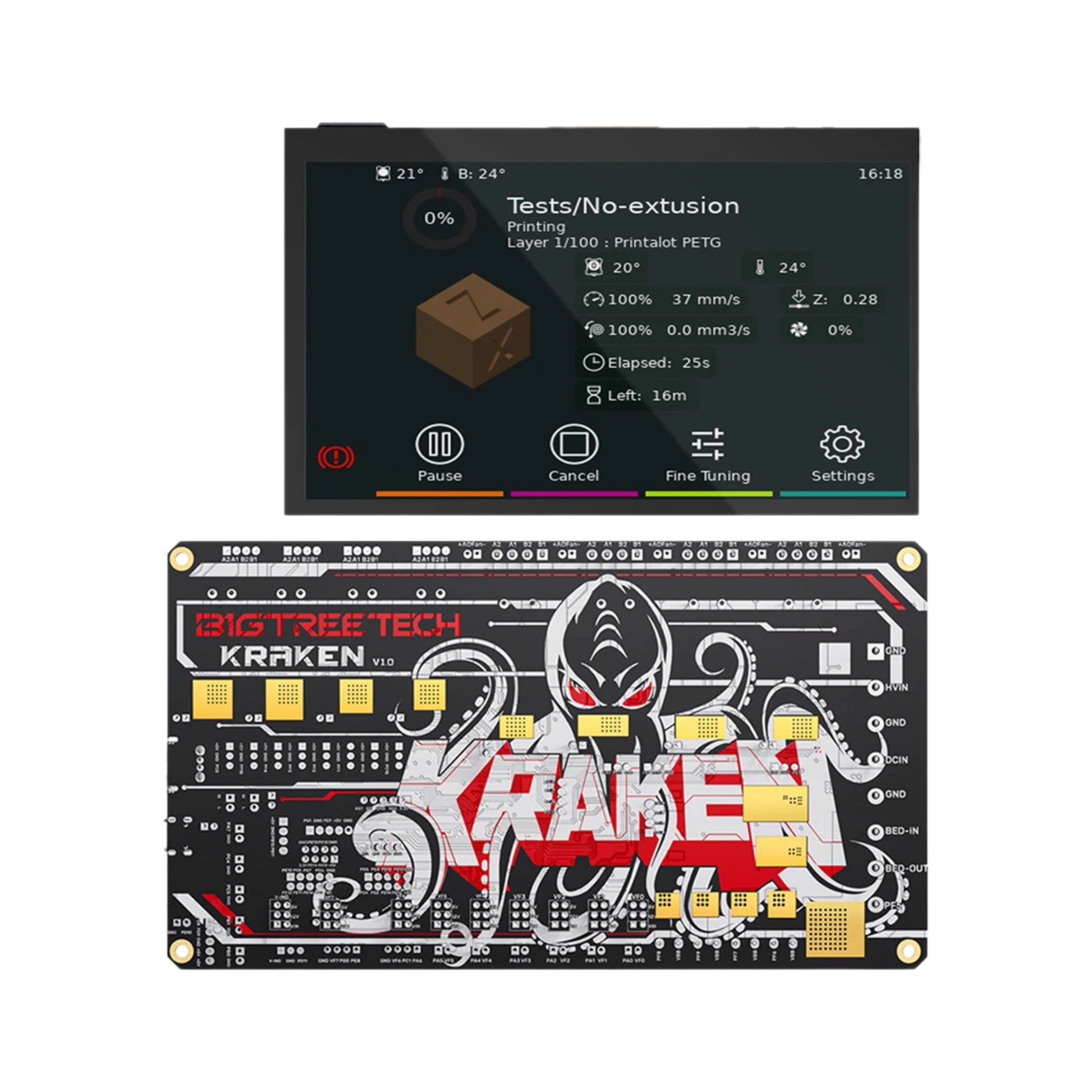

• HDMI7 interface for advanced display and monitoring

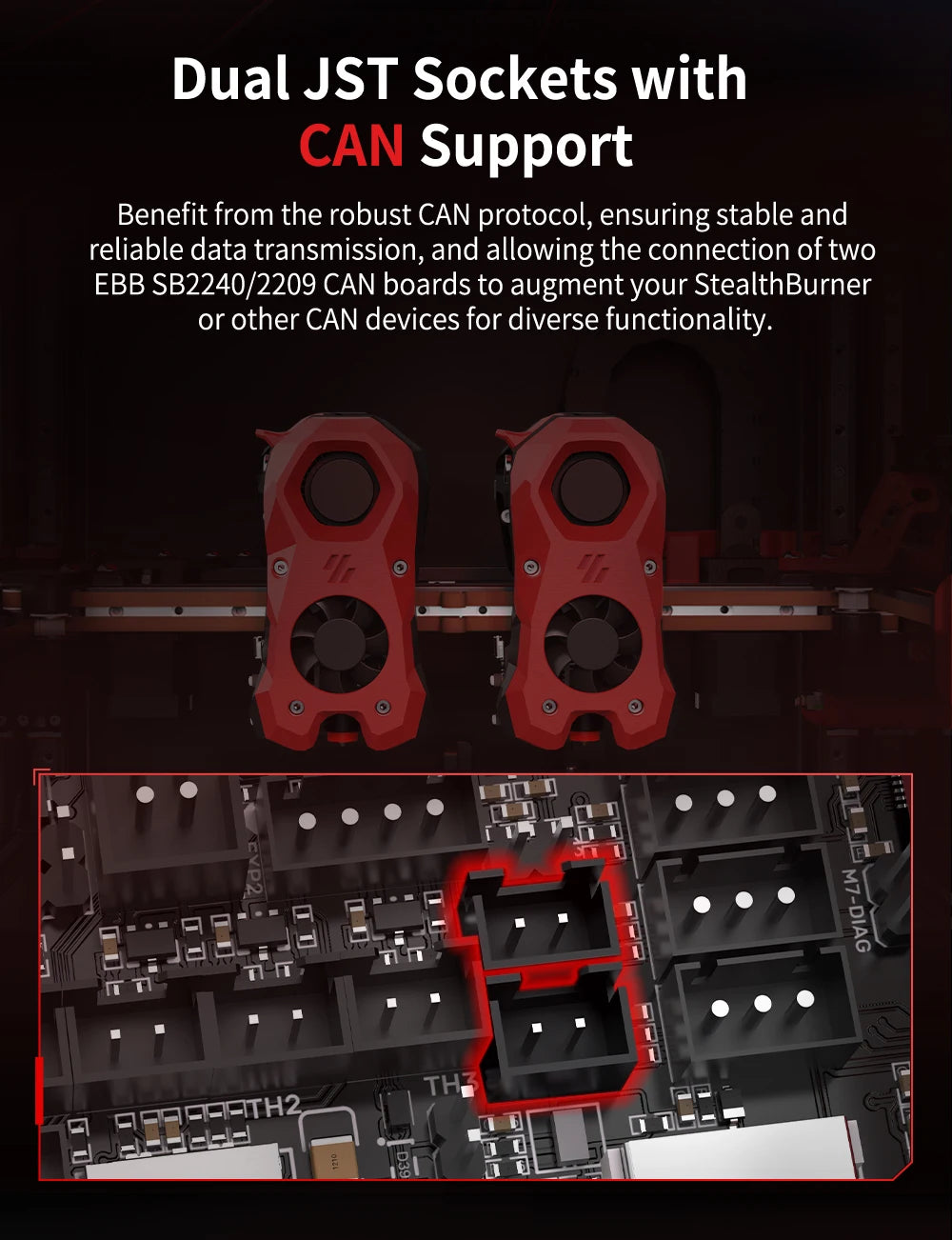

• Dual CAN ports for EBB boards or StealthBurner expansion

• Integrated metal heatsink reduces thermal strain

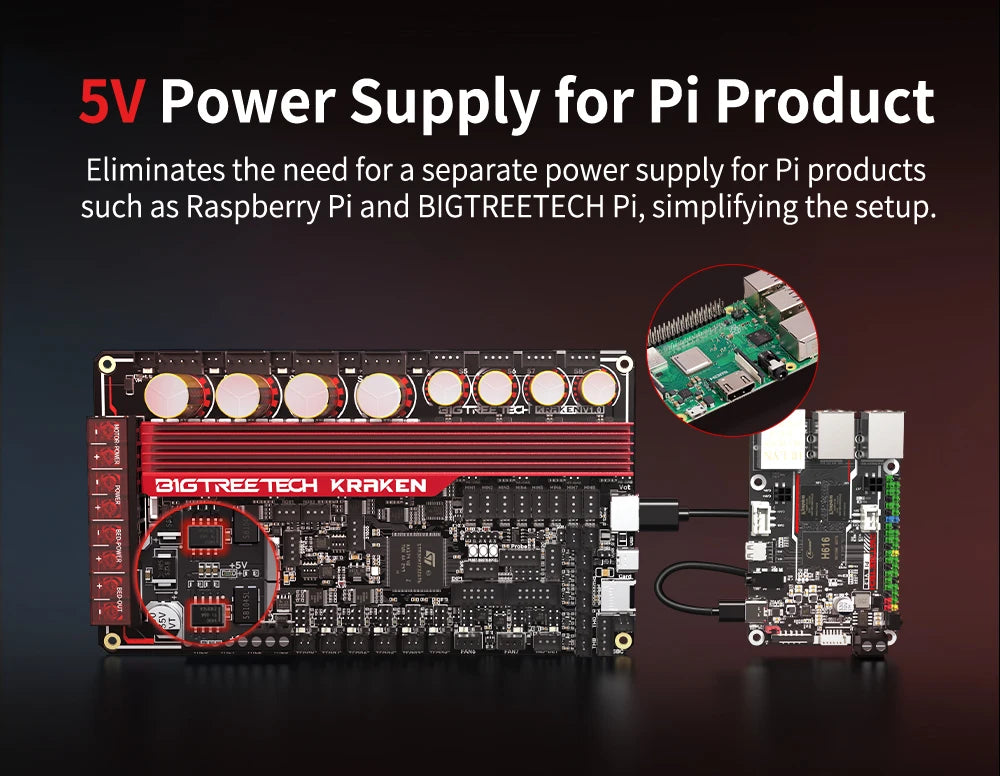

• 5V output to power Raspberry Pi or similar SBC devices

• Firmware compatible with Marlin, Klipper, RRF

Specifications

• Size: 200 x 113mm, Mounting: 193 x 106mm

• Input Voltage: DC12V / DC24V, Max Bed Output: 10A (peak 11A)

• Heater Cartridge Output: 6A (peak 6.5A), Fan Outputs: PWM 5V–24V

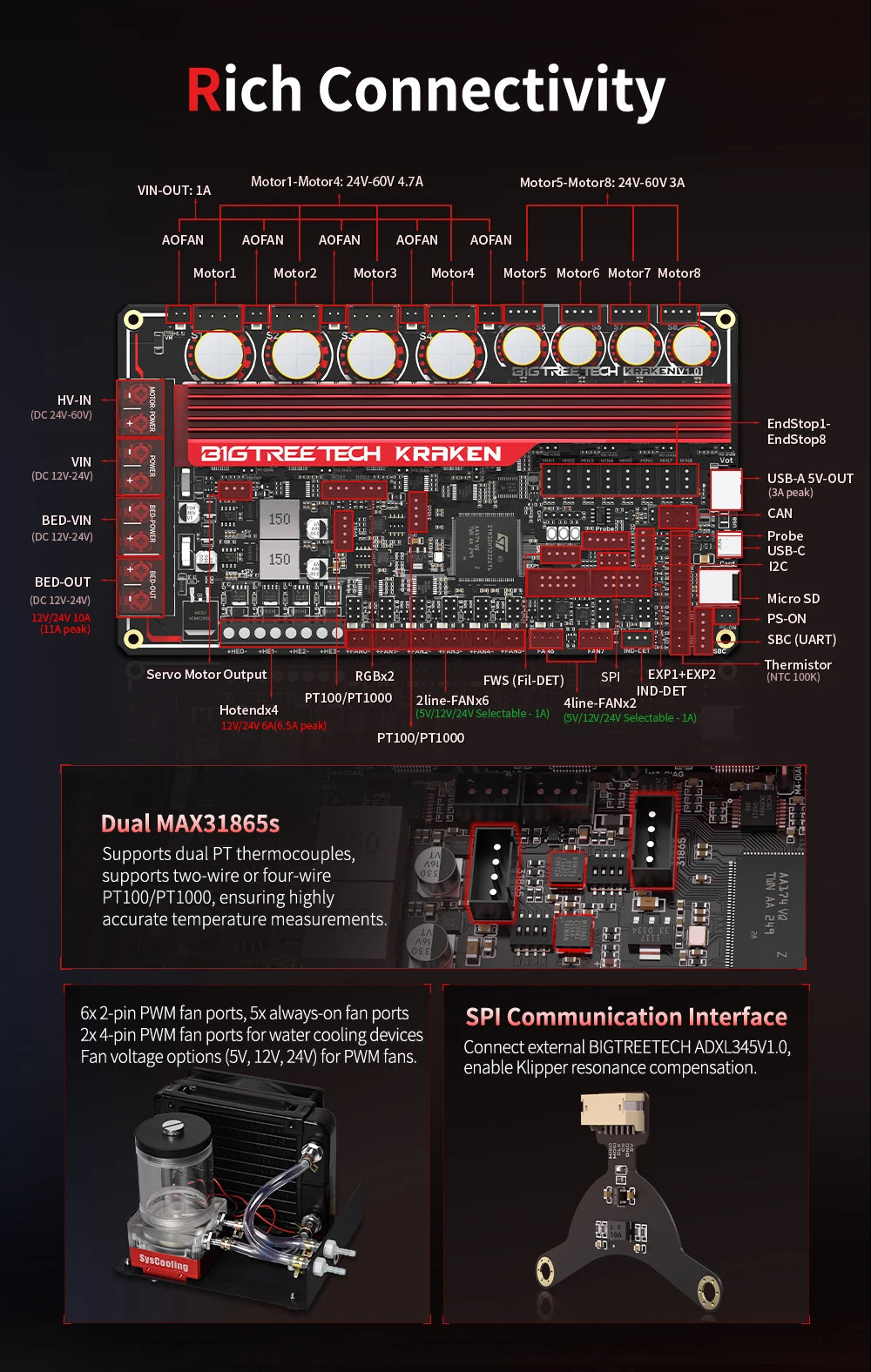

• Expansion Ports: Probe, Servo, Filament Sensor, PS-ON, I2C, SPI, RGBx2, SBC UART, CANx2, PT100/PT1000x2, USB-A 5V, Endstop x8

• Motor Drivers: Onboard TMC2160, SPI mode

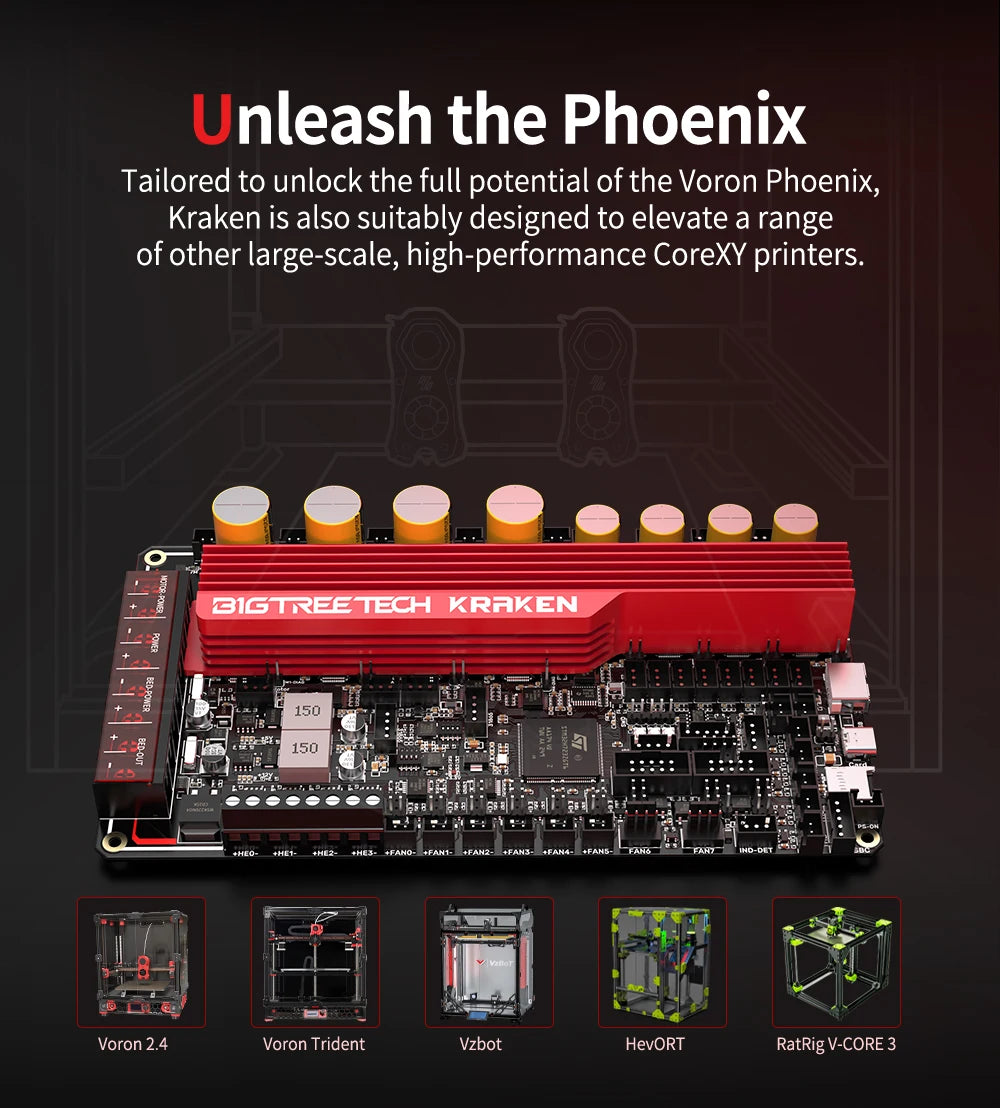

• Compatible Kinematics: Cartesian, Delta, CoreXY

Package Contents

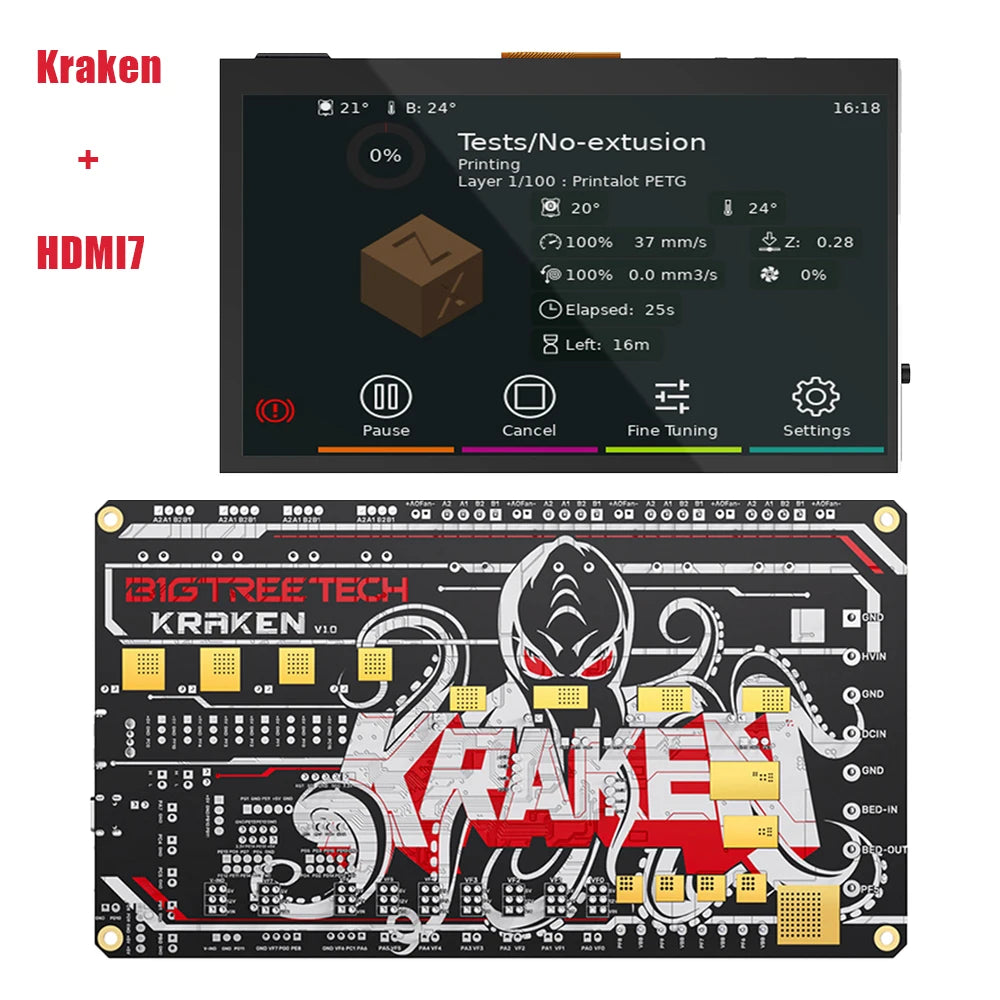

• 3D Printer Motherboard with HDMI7

• User Guide

What Makes This a Smart Buy:
This motherboard pairs high-speed processing with HDMI7 display support, ensuring superior print accuracy and expanded functionality. Ideal for printers that demand consistent high-power performance and advanced monitoring.
